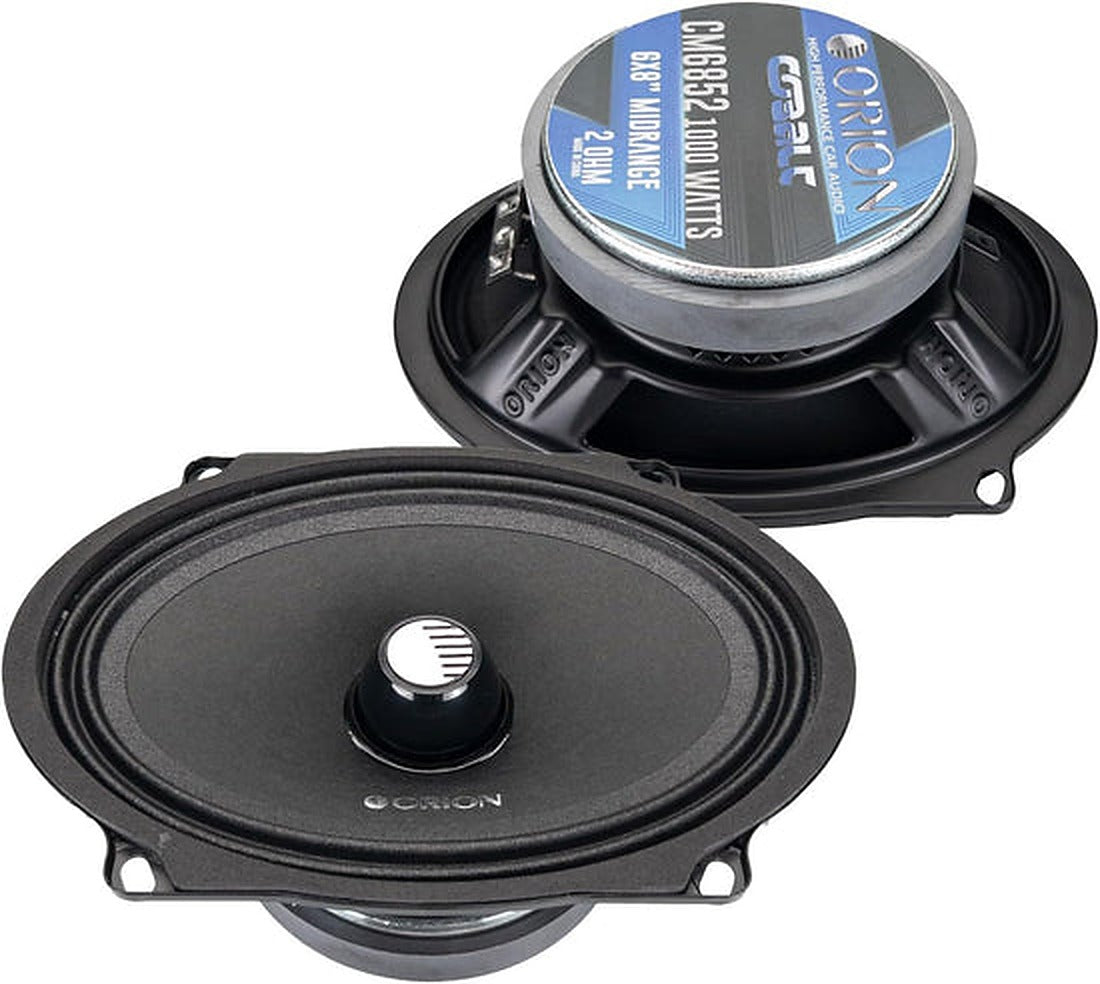

Orion CM6852 High Efficiency 5x7/6x8" Midrange Bullet Speaker 2-Ohm 250W RMS / 1000W MAX
The CM6852 Midrange Speaker is perfect for those seeking precision and dynamic performance. It features a bullet phase plug for enhanced audio clarity and dispersion, and a heavy-gauged stamped steel frame for strength and rigidity. The non-pressed paper cone and treated cloth accordion surround ensure durability and accurate sound reproduction. With 250 Watts RMS and 1000 Watts peak power, and a frequency range from 70 Hz to 20 kHz, this speaker delivers crystal-clear, balanced midrange frequencies, making it ideal for high-performance audio systems.
Features:
High-Efficiency 2-Ohm Midrange Speaker:Â Delivers precise and accurate sound reproduction, integrating seamlessly into any high-performance audio system.
Bullet Phase Plug:Â Enhances sound clarity, reduces distortion, and cools the voice coil, providing consistent, high-quality audio.
Heavy-Gauged Stamped Steel Frame:Â Offers exceptional strength and rigidity, minimizing vibrations and resonance for improved sound clarity.
High-Temperature Coating:Â Protects the speaker components from heat during extended use at high power levels, ensuring consistent performance.
High Power Handling:Â 250 Watts RMS and 1000 Watts peak power for dynamic, powerful sound performance in any environment.
Durable Construction:Â Features a non-pressed paper cone and a treated cloth accordion surround for durability and accurate sound reproduction.
Wide Frequency Range:Â From 70 Hz to 20 kHz, capturing detailed midrange frequencies for a rich, immersive audio experience.
Specifications:
Speaker Size:Â 5x7/6x8" (Inches)
Voice Coil Configuration:Â 2 ohm
Power Handling (Peak):Â 1000 Watts
Power Handling (RMS):Â 250 Watts
Sensitivity:Â 92 dB
Frequency Response:Â 70 Hz - 20 kHz
Voice Coil Diameter:Â 1.5" (Inches)
Midrange Speaker:Â 1 Pair (2 Speakers)
Grill Included:Â No
Cone Material:Â Non-Pressed Paper Cone
Damper Material:Â Poly Cotton
Surround Material:Â Accordion Treated Cloth
Magnet Information:Â 21 Oz Ferrite
Mounting Depth:Â 65.4mm / 2.57 (Inches)
Overall Depth:Â 71.7mm / 2.82 (Inches)
Cutout Diameter:Â 176.3mm / 6.94 (Inches)
Overall Diameter:Â 198.4mm / 7.81 (Inches)
Â
Â
| Specification | Details |
|---|---|
| Model | Orion CM6852 |
| UPC | 818550019263 |
| Speaker Size | 5×7 / 6×8 inches |
| Impedance | 2 Ω |
| Power Handling | 250 W RMS / 1000 W Peak |
| Sensitivity | 92 dB |
| Frequency Response | 70 Hz – 20 kHz |
| Voice Coil | 1.5″ |
| Bullet Phase Plug | Yes |
| Cone Material | Non‑pressed paper |
| Surround | Accordion treated cloth |
| Magnet | 21 oz Ferrite |
| Mounting Depth | 65.4 mm (2.57″) |
| Overall Diameter | 198.4 mm (7.81″) |
| Cutout Diameter | 176.3 mm (6.94″) |
| Overall Depth | 71.7 mm (2.82″) |
