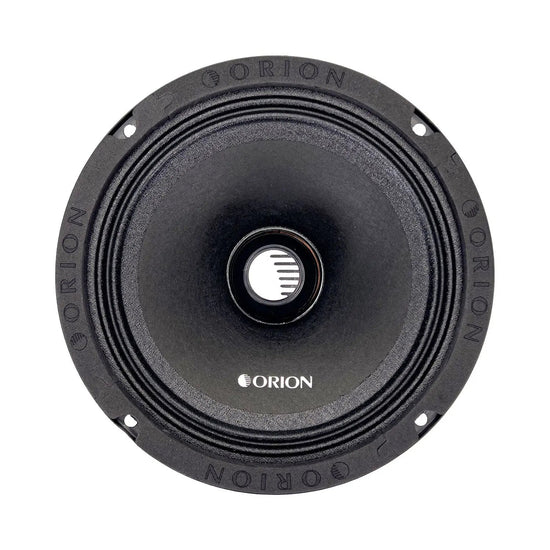

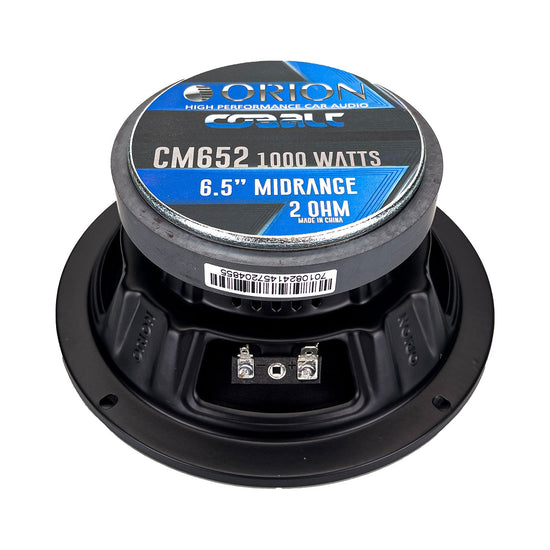

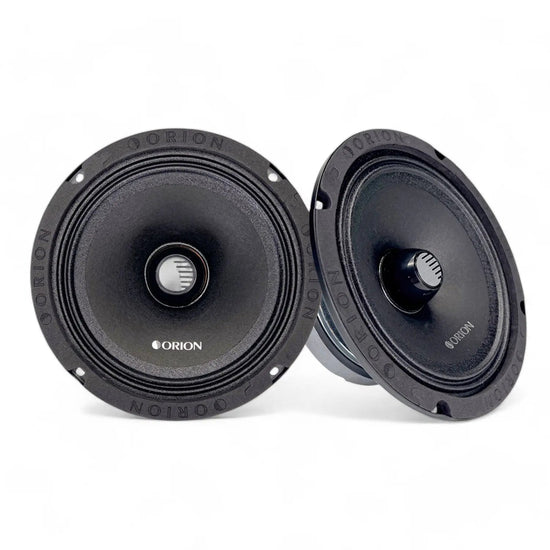

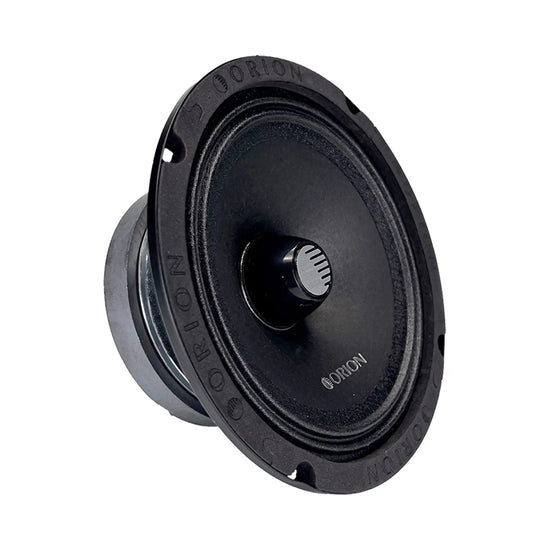

Orion CM652 High Efficiency 6.5" Midrange Bullet Speaker 2OHM 250 Watts RMS/ 1000 Watts MAX
The CM652 Midrange Speaker is designed for those seeking precision and dynamic performance in their audio systems. It features a bullet phase plug that enhances audio clarity and dispersion while cooling the voice coil for better power handling. The heavy-gauged stamped steel frame ensures strength and rigidity, minimizing vibrations and resonance for cleaner sound. With a non-pressed paper cone and treated cloth accordion surround, the speaker offers durability and accurate sound reproduction. It handles 250 Watts RMS and 1000 Watts peak power, covering a frequency range from 120 Hz to 10 kHz, making it ideal for delivering crystal-clear, balanced midrange frequencies.
Features:
High-Efficiency 2-Ohm Midrange Speaker:Ā Delivers precise and accurate sound reproduction, integrating seamlessly into any high-performance audio system.
Bullet Phase Plug:Ā Enhances sound clarity, reduces distortion, and cools the voice coil, providing consistent, high-quality audio.
Heavy-Gauged Stamped Steel Frame:Ā Offers exceptional strength and rigidity, minimizing vibrations and resonance for improved sound clarity.
High-Temperature Coating:Ā Protects the speaker components from heat during extended use at high power levels, ensuring consistent performance.
High Power Handling:Ā 250 Watts RMS and 1000 Watts peak power for dynamic, powerful sound performance in any environment.
Durable Construction:Ā Features a non-pressed paper cone and a treated cloth accordion surround for durability and accurate sound reproduction.
Wide Frequency Range:Ā From 120 Hz to 10 kHz, capturing detailed midrange frequencies for a rich, immersive audio experience.
Specifications:
Speaker Size:Ā 6.5" (Inches)
Voice Coil Configuration:Ā 2 ohm
Power Handling (Peak):Ā 1000 Watts
Power Handling (RMS):Ā 250 Watts
Sensitivity:Ā 96.67 dB
Frequency Response:Ā 120 Hz - 10 kHz
Voice Coil Diameter:Ā 1.5" (Inches)
Midrange Speaker:Ā 1 Pair (2 Speakers)
Grill Included:Ā No
Cone Material:Ā Non-Pressed Paper Cone
Damper Material:Ā Poly Cotton
Surround Material:Ā Accordian Treated Cloth
Magnet Information:Ā 20 Oz Ferrite
Mounting Depth:Ā 66.8mm / 2.63 (Inches)
Overall Depth:Ā 72.2mm / 2.84 (Inches)
Cutout Diameter:Ā 144mm / 5.67 (Inches)
Overall Diameter:Ā 166mm / 6.54 (Inches)
Ā
Specification | Detail |
---|---|
Product | Orion CM652 MidāRange Bullet Speaker (Pair) |
UPC | 818550014572 |
Speaker Size | 6.5ā³ (166āÆmm) |
Impedance | 2āÆOhm |
Power Handling (RMS) | 250āÆW |
Power Handling (Peak) | 1āÆ000āÆW |
Sensitivity | 96.67āÆdB (1āÆW/1āÆm) |
Frequency Response | 120āÆHz ā 10āÆkHz |
Voice Coil Diameter | 1.5ā³ (38āÆmm) |
Bullet Phase Plug | Yes ā improves high-frequency clarity & cooling |
Frame Material | Heavy-gauged stamped steel with high-temp coating |
Cone Material | Nonāpressed paper |
Surround Material | Treated cloth accordion |
Magnet | 20āÆoz ferrite |
Mounting Depth | 2.63ā³ (66.8āÆmm) |
Overall Depth | 2.84ā³ (72.2āÆmm) |
Cutout Diameter | 5.67ā³ (144āÆmm) |
Overall Diameter | 6.54ā³ (166āÆmm) |
