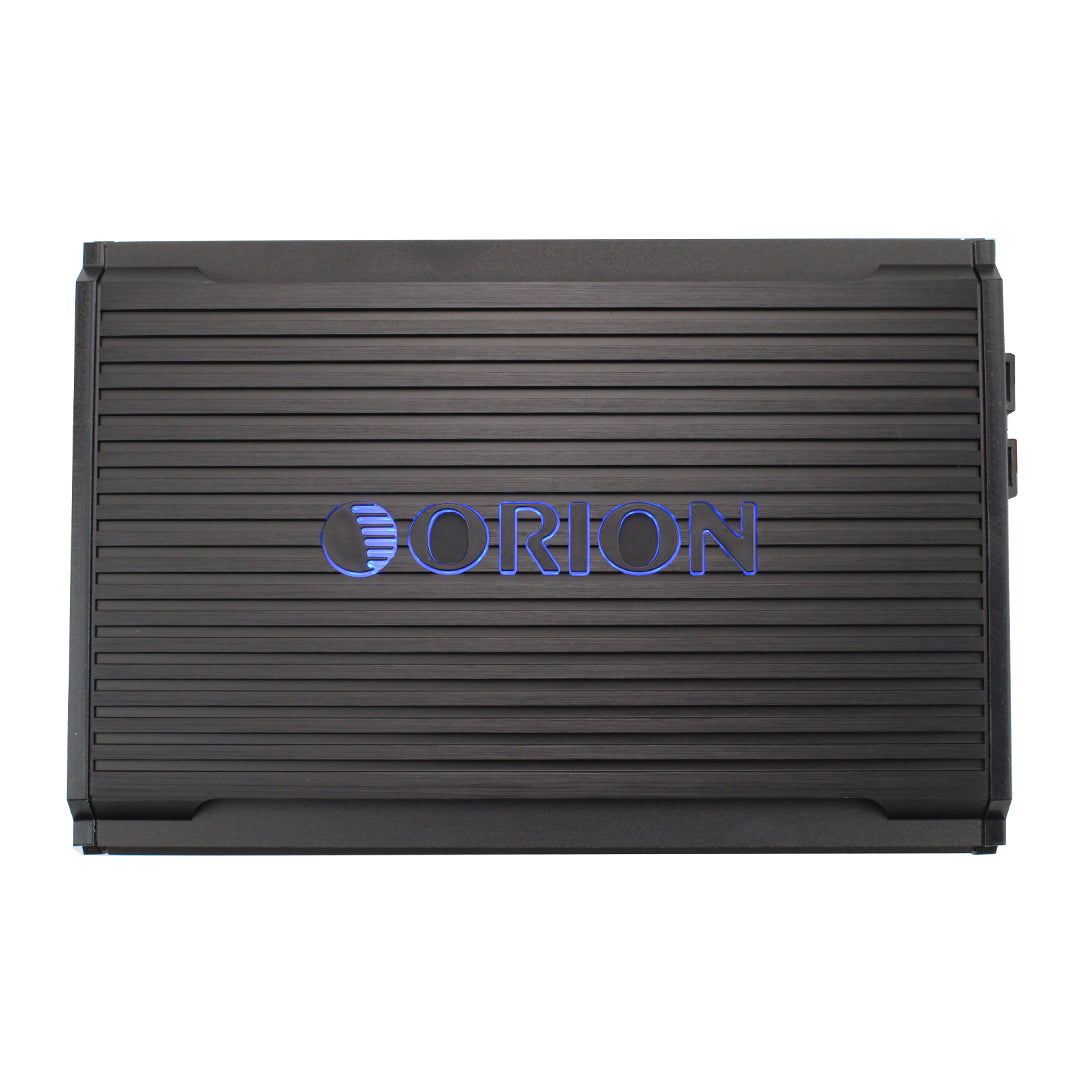

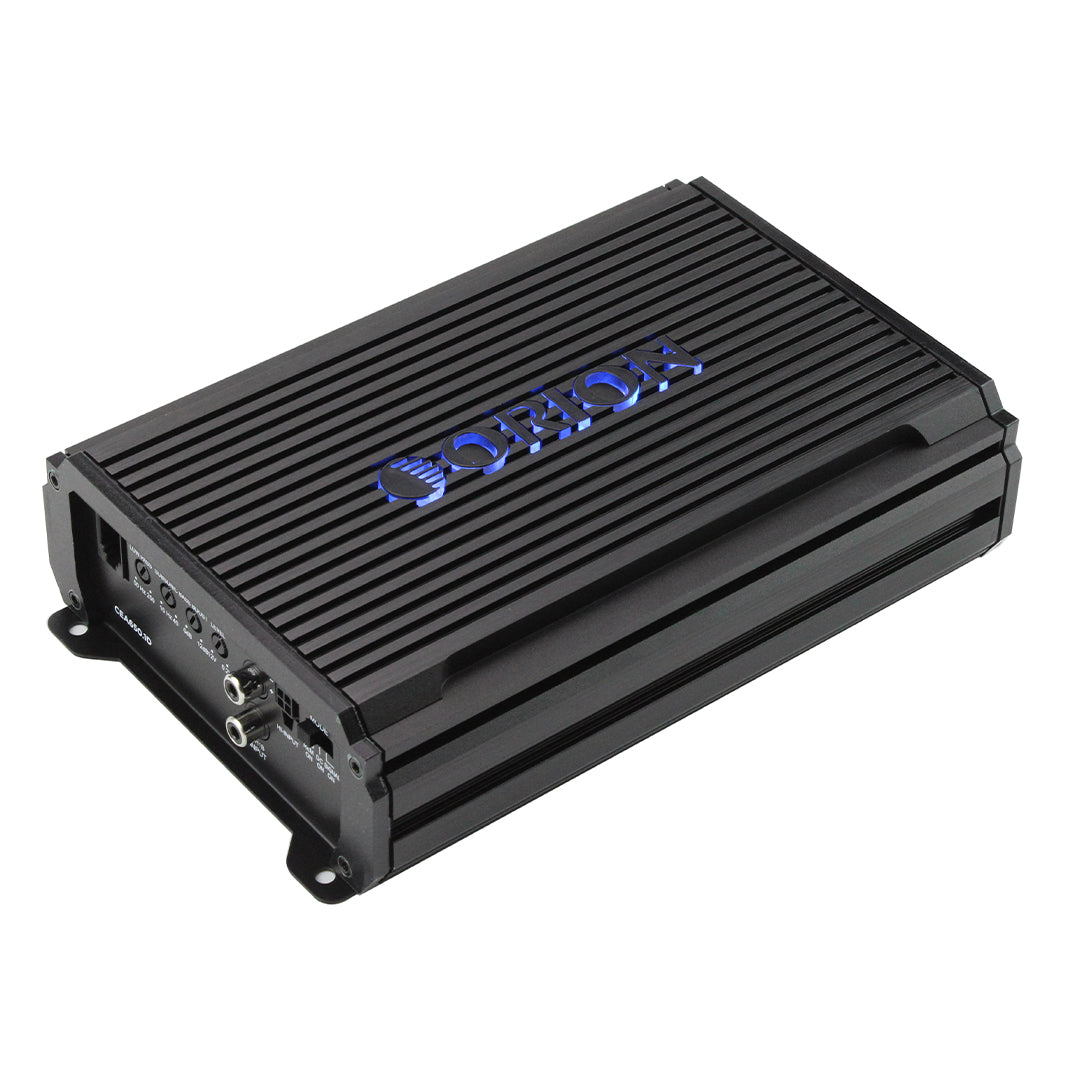

Orion CEA650.1D 650W RMS Class D Monoblock Amplifier – 2600W Max

The Orion CEA650.1D Cobalt Elite Series is a compact Class D monoblock amplifier delivering up to 650W RMS of clean, controlled bass. Designed for tight, efficient low-end performance, it features a variable low-pass crossover and adjustable bass boost for easy tuning. Built-in protection circuits guard against thermal, short, and low-voltage issues, while the compact design allows simple installation in tight spaces. Perfect for upgrading factory systems or building a reliable daily bass setup.

Features:

• High-efficiency Class D design delivers strong output with reduced heat and power loss

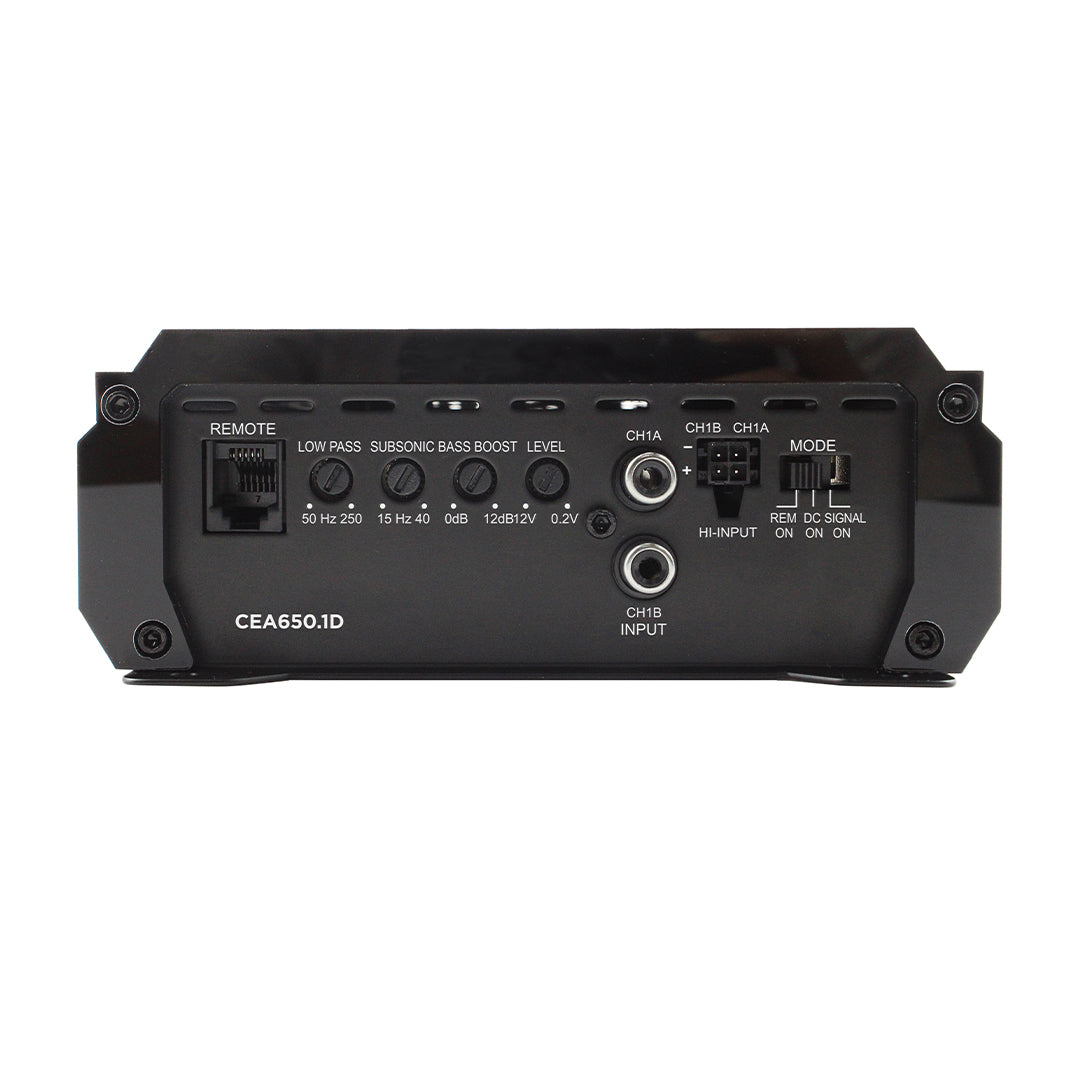

• Built-in electronic crossover with 12dB/octave low-pass filter for precise sound tuning
• Adjustable bass boost for enhanced low-frequency control
• Compact chassis for easy installation in tight or hidden spaces
• All-MOSFET power supply and output stage for clean, stable performance
• Remote gain control included for real-time bass adjustment from the driver’s seat
• 1-ohm stable for flexible subwoofer system setups
• Heavy-duty power and speaker terminals for high current handling
• Soft turn-on/turn-off with turn-on delay for system protection
• 4-way protection: thermal, DC offset, short circuit, and voltage protection
• Intelligent LED indicator for power and fault monitoring

Specifications:

RMS WATTS @ 1 Ohms: 650W

RMS WATTS @ 2 Ohms: 500W

RMS WATTS @ 4 Ohms: 300W

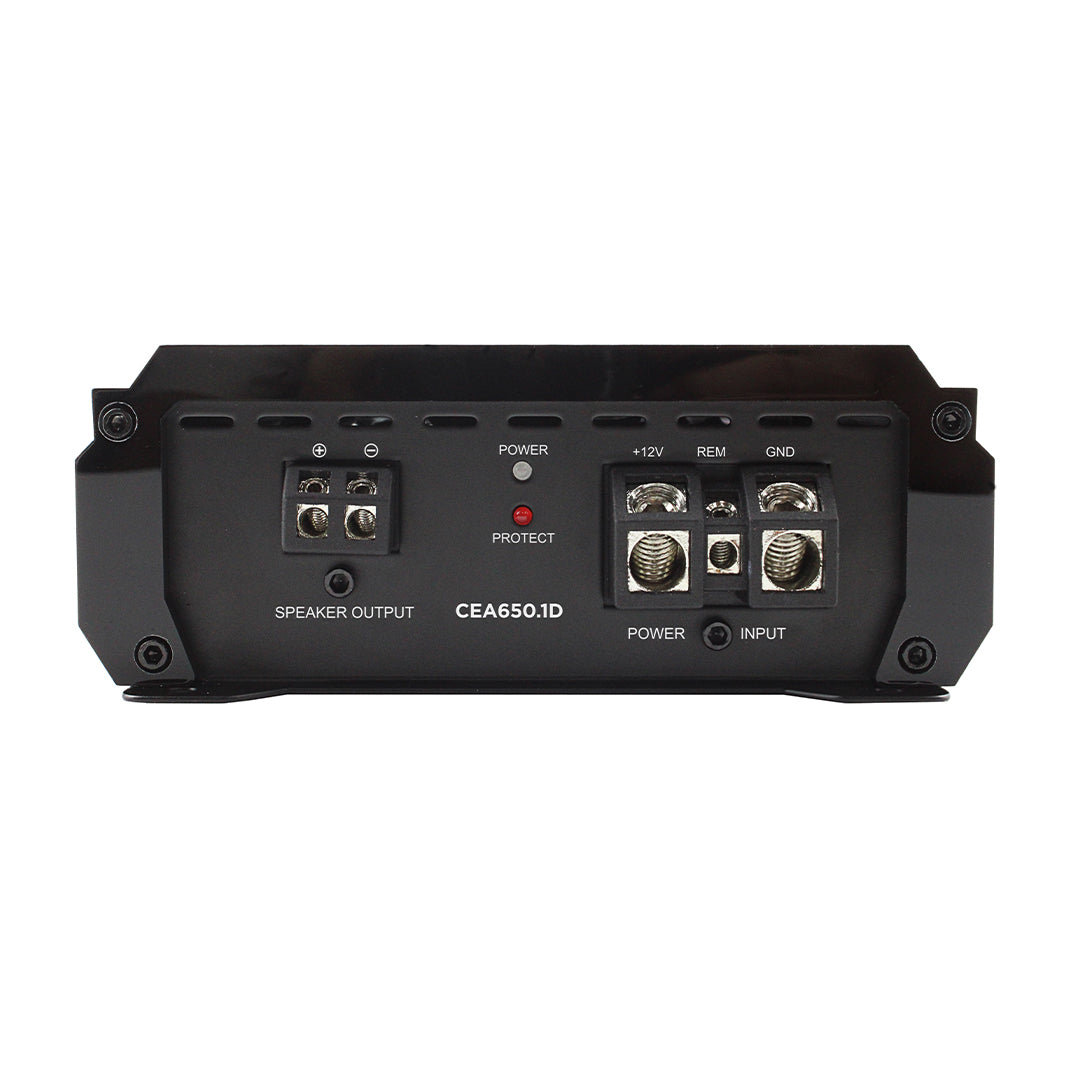

 POWER TERMINAL MANAGEMENT

  -Positive Terminals: 1 x 4 AWG.

  -Negative Terminals: 1 x 4 AWG.

  -Remote Turn-ON Signal: 10 AWG.

  -Speaker Output Terminals: 10 AWG.

Frequency Response: 15Hz - 250Hz

Subsonic: (15 - 40Hz)

Low Pass Crossover Continuously variable: 50 Hz - 250 Hz

Supply Voltage: 10 - 16V

Input Impedance: 22kOhm

Signal to Noise Ratio: 92dB

Phase Shift: 0/180 Degrees

Bass Boost: 0 - 12dB Variable

Variable Input Level Control: 0.2V - 6.0V

Recommended Fuse Rating: 80A

Dimensions (L x W x H): 7.87" x 5.71" x 2.13"

UPC: 818550014176
