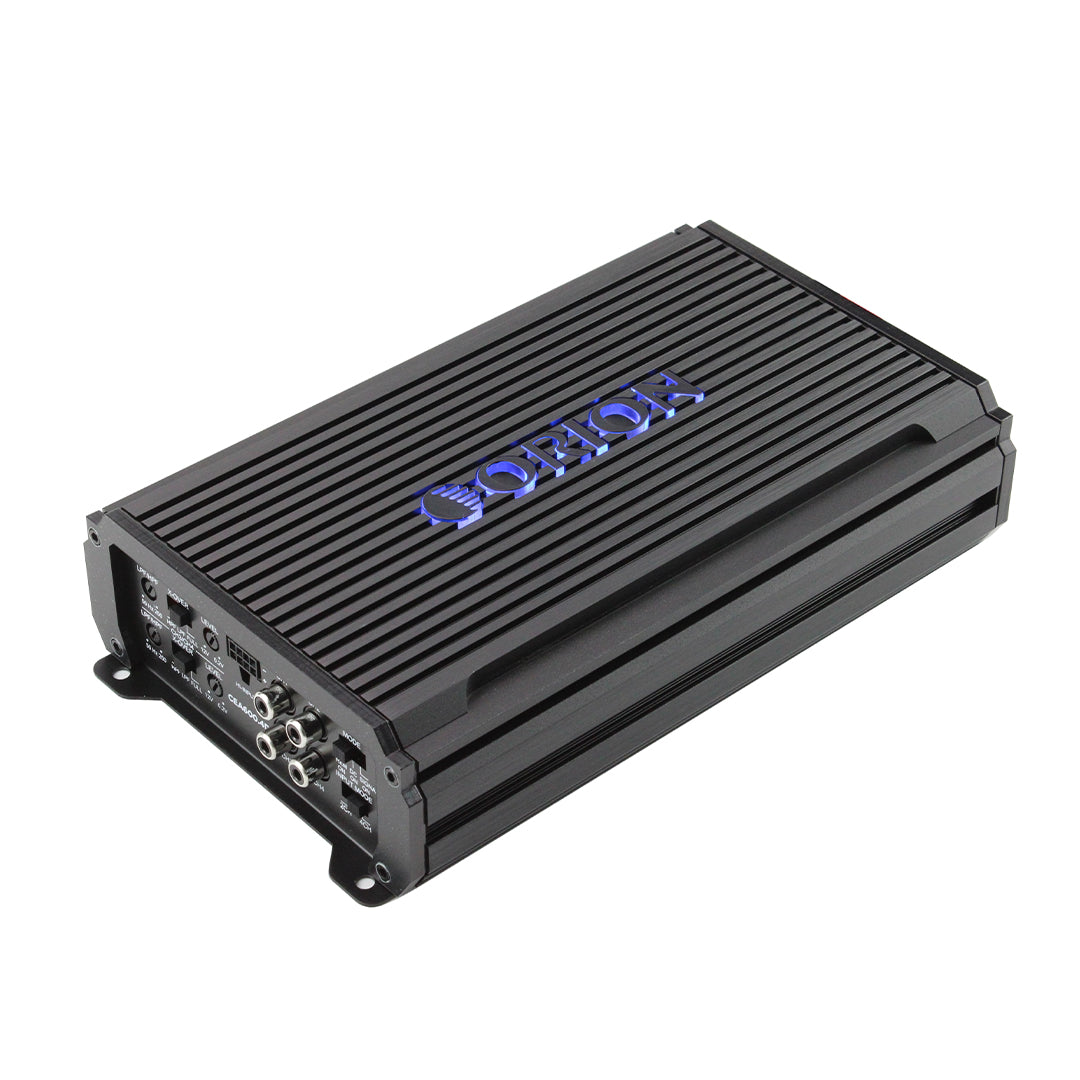

Orion CEA600.4D 600W RMS 4-Channel Class D Amplifier – 2400W Max
The Orion CEA600.4D Cobalt Elite Series is a compact 4-channel Class D amplifier delivering 600W RMS for clean, efficient power to mids and highs. Ideal for factory upgrades or aftermarket systems, it supports speakers or bridged sub setups with adjustable crossovers and gain control for precise tuning. Built-in protection ensures reliable performance against heat, voltage drops, and shorts, while the compact design fits easily in tight spaces. Perfect for clear, balanced full-range sound.
Features:
- High-efficiency Class D design delivers clean, full-range audio with low heat and power draw
- 4-channel output powers front/rear speakers or bridged subwoofer configurations
- High-pass/low-pass crossovers and gain control for precise system tuning
- All-MOSFET power supply and output stage for clean, stable signal performance
- Compact low-profile design for easy installation in tight spaces
- Built-in protection: thermal, short circuit, and voltage safeguards
- Heavy-duty high-current power and speaker terminals
- Remote gain control included for easy in-car adjustment
- Soft turn-on/turn-off with turn-on delay for system protection
- Intelligent LED indicator for power status and fault monitoring
Specifications:
RMS WATTS @ 2 Ohms: 4CH x 150W
RMS WATTS @ 4 Ohms: 4CH x 100W
RMS WATTS @ 4 Ohms Bridge: 2CH x 300W
POWER TERMINAL MANAGEMENT
-Positive Terminals: 1 x 4 AWG.
-Negative Terminals: 1 x 4 AWG.
-Remote Turn-ON Signal: 10 AWG.
-Speaker Output Terminals: 10 AWG
Frequency Response: 11Hz - 30kHz
High Pass Filter: 50Hz - 250Hz
Low Pass Filter: 50Hz - 250Hz
Supply Voltage: 10 - 16V
Signal to Noise Ratio: 98dB
Bass Boost: 0 - 12dB Variable
Variable Input Level Control: 0.2V - 12.0V
Recommended Fuse Rating: 80A
Dimensions (L x W x H): 8.66" x 5.71" x 2.13"
UPC: 818550014220
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Clean Power, Properly Delivered
Amplification That Holds Up Under Load
Stable Power Delivery
Built to hold its rated output under real load, so volume stays clean instead of falling away when the bass hits.
Protection Built In
Thermal, short-circuit and impedance protection shut the amp down safely rather than letting it fail.
Tuning Control
Onboard gain, crossover and bass controls let you match the amp to your speakers or subs instead of guessing.
Install-Ready
Standard terminals and mounting points make it straightforward to fit with the correct amp kit and fusing.
