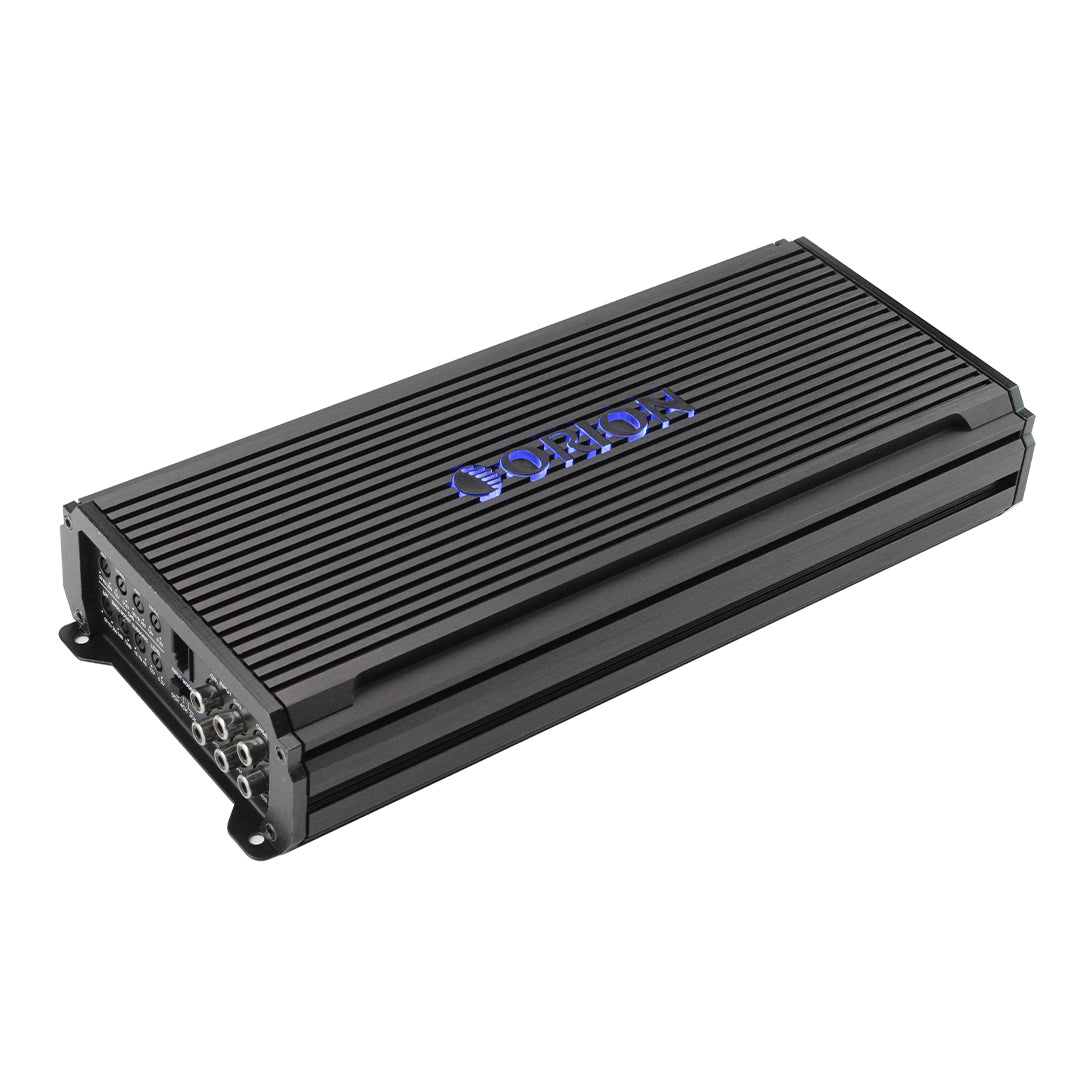

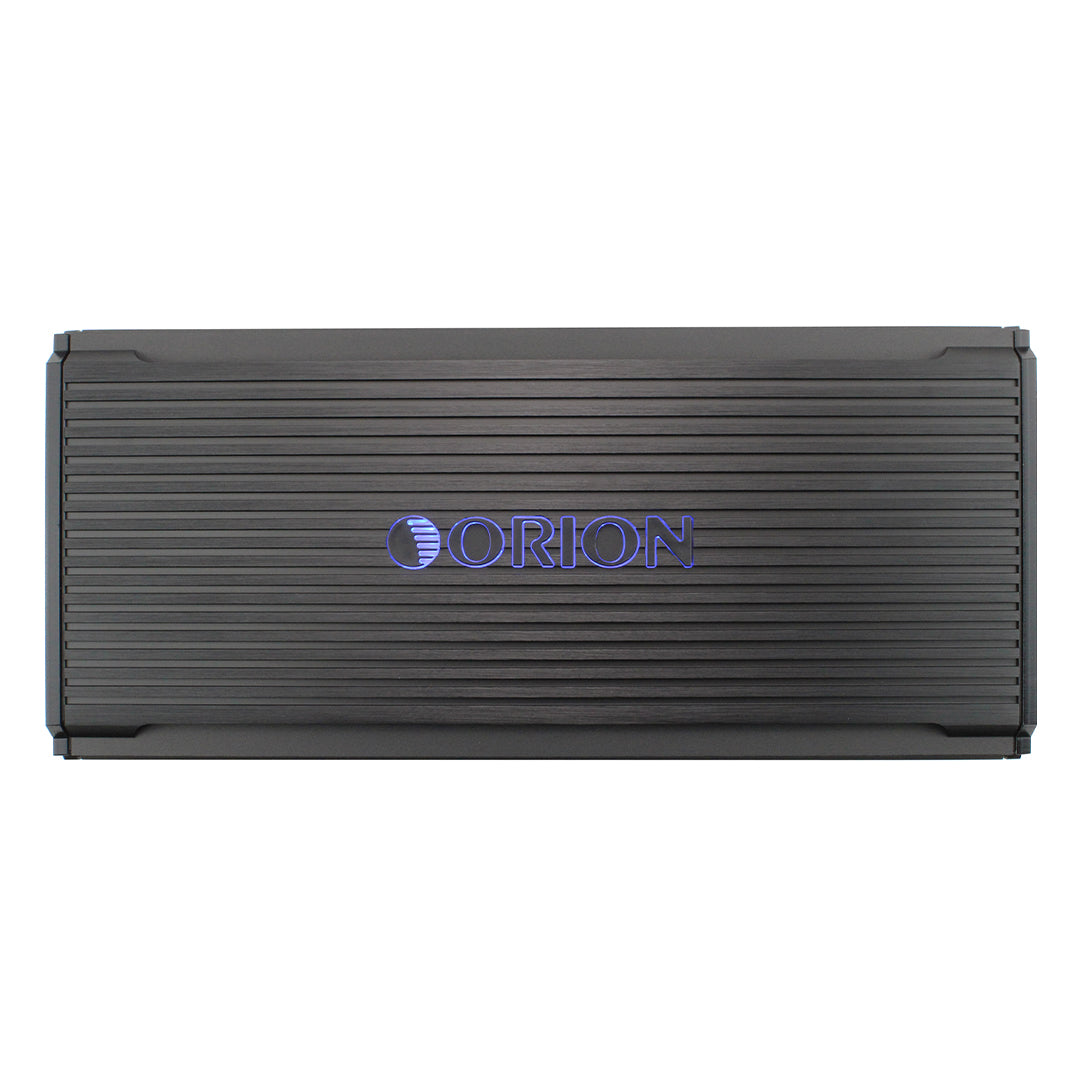

Orion CEA1000.5D 1000W RMS 5-Channel Class D Amplifier – 4000W Max
The Orion CEA1000.5D Cobalt Elite Series is a compact 5-channel Class D amplifier delivering 1000W RMS to power your full system from one unit. It runs front and rear speakers plus a dedicated subwoofer channel for balanced, punchy sound. Built-in crossovers, gain control, and bass boost allow precise tuning, while Class D efficiency keeps heat and power draw low. Protection circuits ensure reliable performance, and the compact design fits easily in tight installs. Perfect for complete, space-saving car audio builds.
Features:
- High-efficiency Class D 5-channel design powers full systems with low heat and power draw
- 4 full-range channels plus dedicated subwoofer channel for complete system control

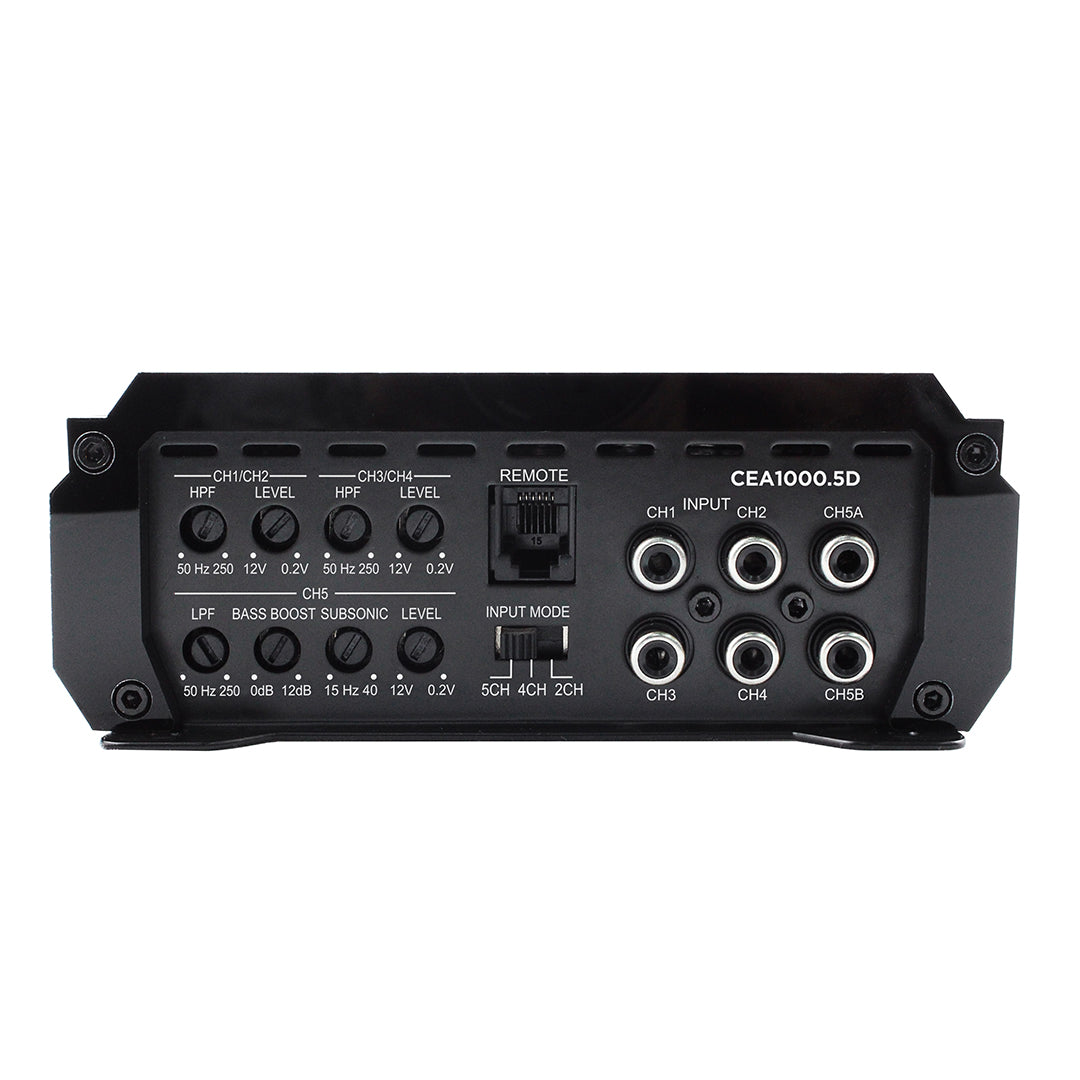

- Independent high-pass, low-pass, gain, and bass boost tuning for each audio zone
- All-MOSFET power supply and output stage for clean, stable signal performance
- Compact low-profile design for easy hidden or tight-space installation
- Built-in protection: thermal, short circuit, and voltage safeguards
- Heavy-duty high-current power and speaker terminals
- 1-ohm stable for flexible subwoofer configurations
- Remote gain control included for real-time adjustment
- Soft turn-on/turn-off with turn-on delay for system protection
- Intelligent LED indicator for power status and fault monitoring
Specifications:
RMS WATTS @ 1 Ohms: Not Supported | 1CH x 650W
RMS WATTS @ 2 Ohms: 4CH x 120W | 1CH x 400W
RMS WATTS @ 4 Ohms: 4CH x 80W | 1CH x 250W
RMS WATTS @ 4 Ohms Bridge: 2CH x 300W | Not Supported

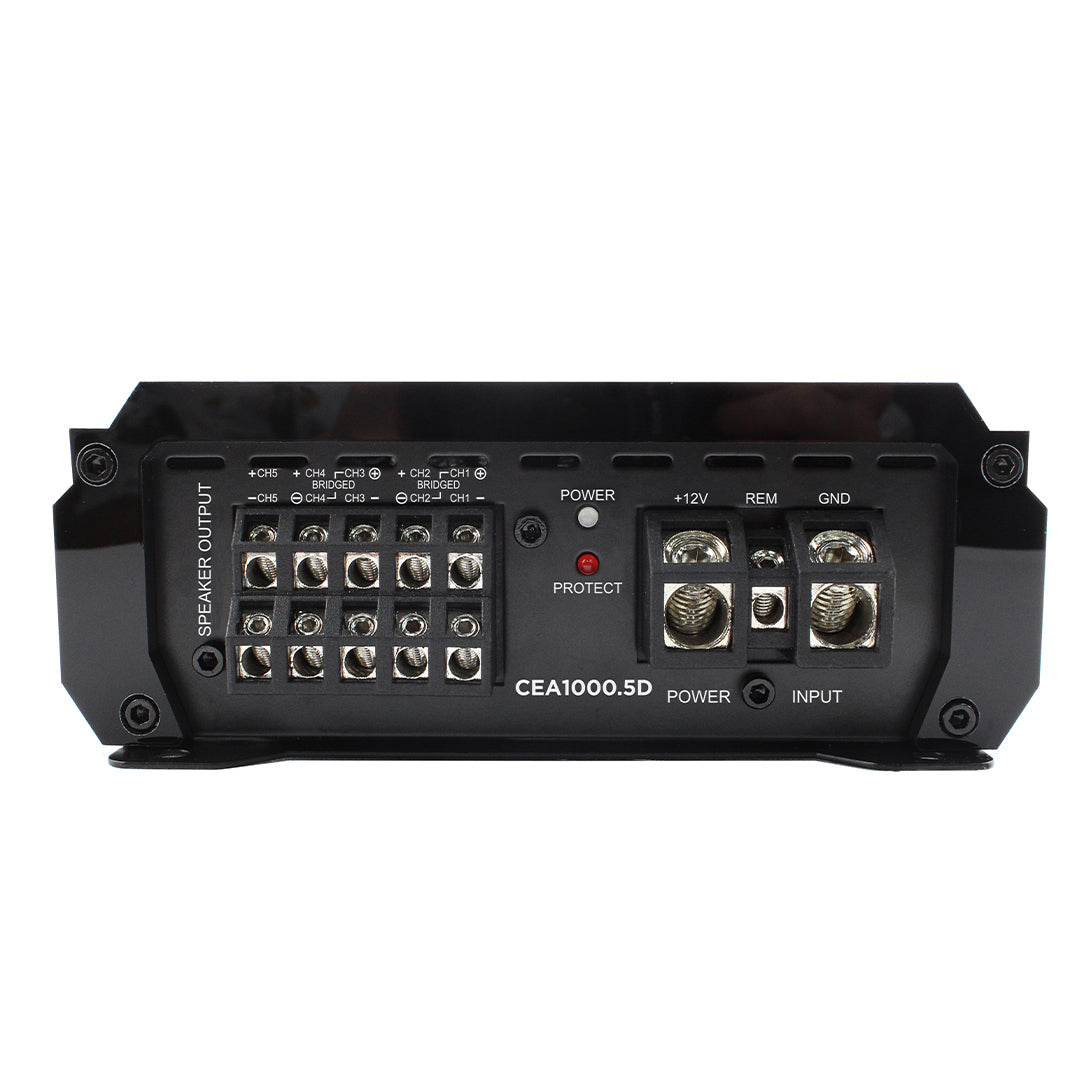

POWER TERMINAL MANAGEMENT
-Positive Terminals: 1 x 4 AWG.
-Negative Terminals: 1 x 4 AWG.
-Remote Turn-ON Signal: 10 AWG.
-Speaker Output Terminals: 10 AWG.
Frequency Response: 40Hz - 30 kHz | 15 Hz - 250 Hz
High Pass Filter: 50Hz - 250Hz
Low Pass Filter: 50Hz - 250Hz
Supply Voltage: 10 - 16V
Signal to Noise Ratio: 95dB
Bass Boost: 0 - 12dB Variable
Variable Input Level Control: 0.2V - 12.0V
Recommended Fuse Rating: 120A
Dimensions (L x W x H): 12.17" x 5.71" x 2.13"
UPC: 818550014237
