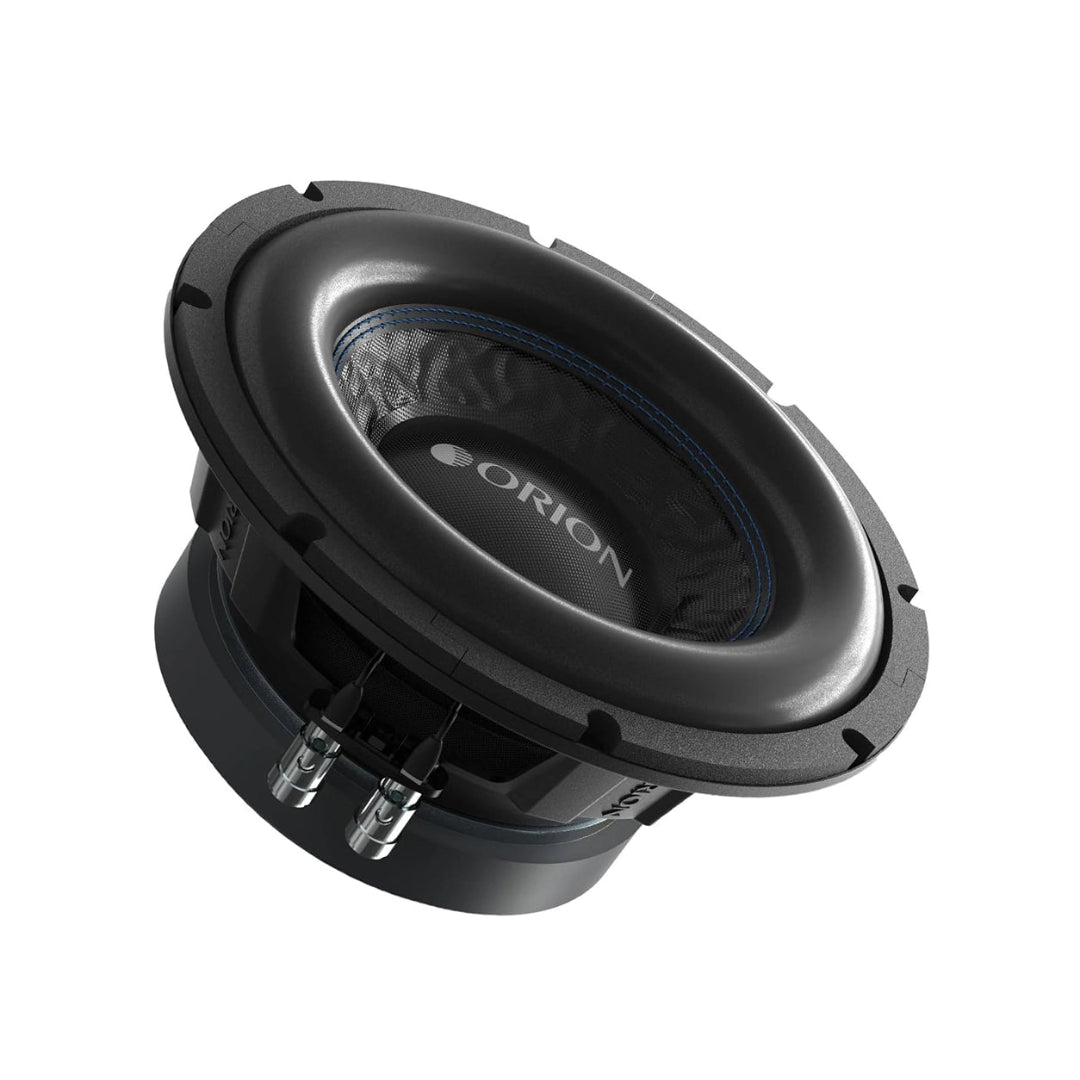

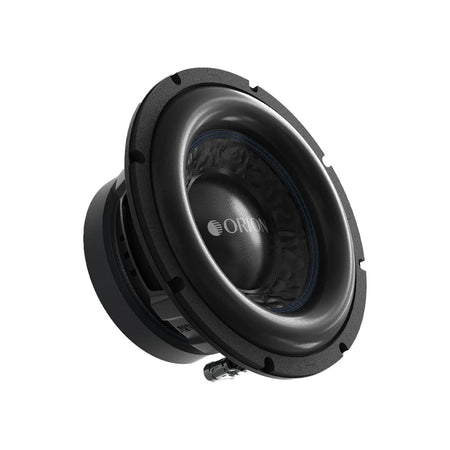

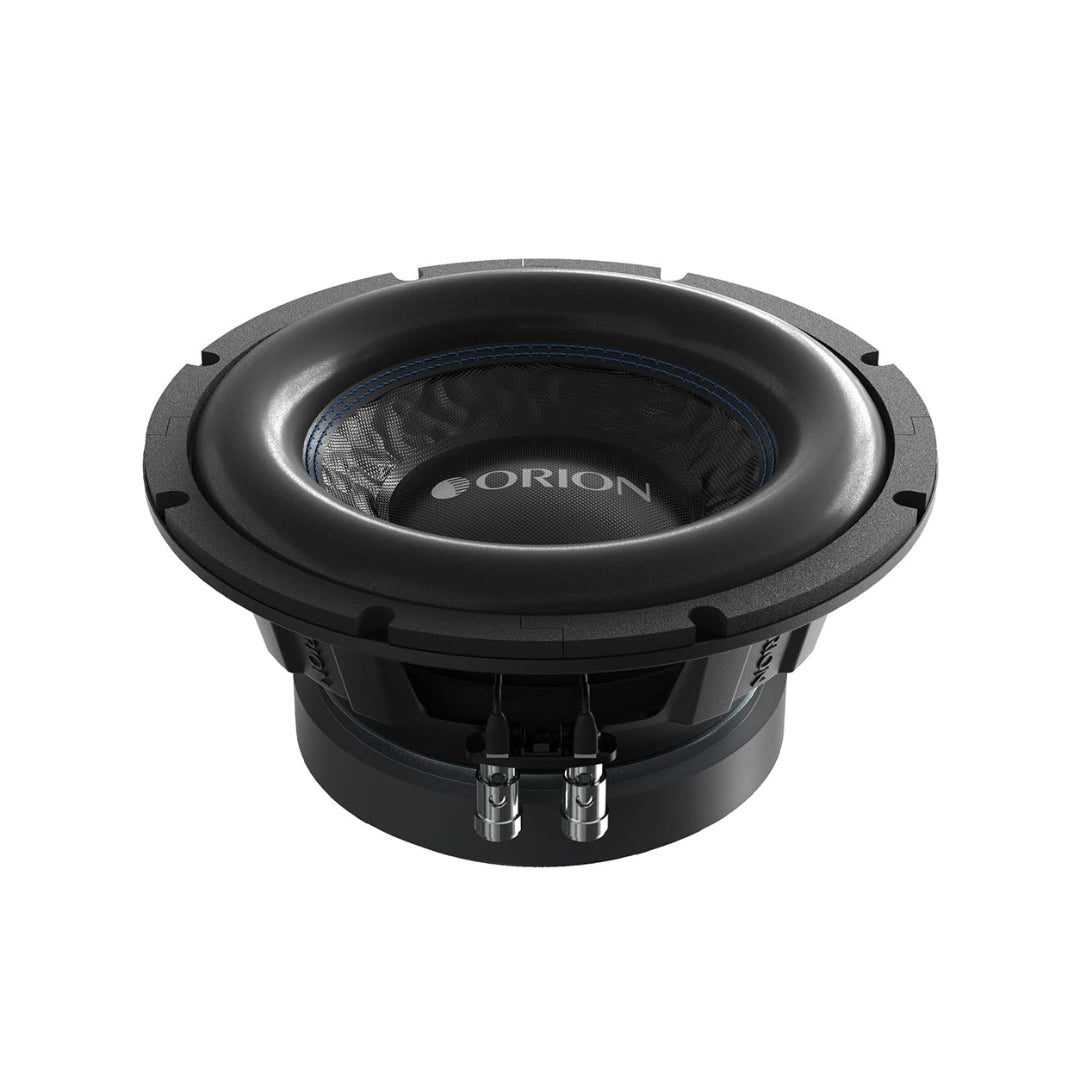

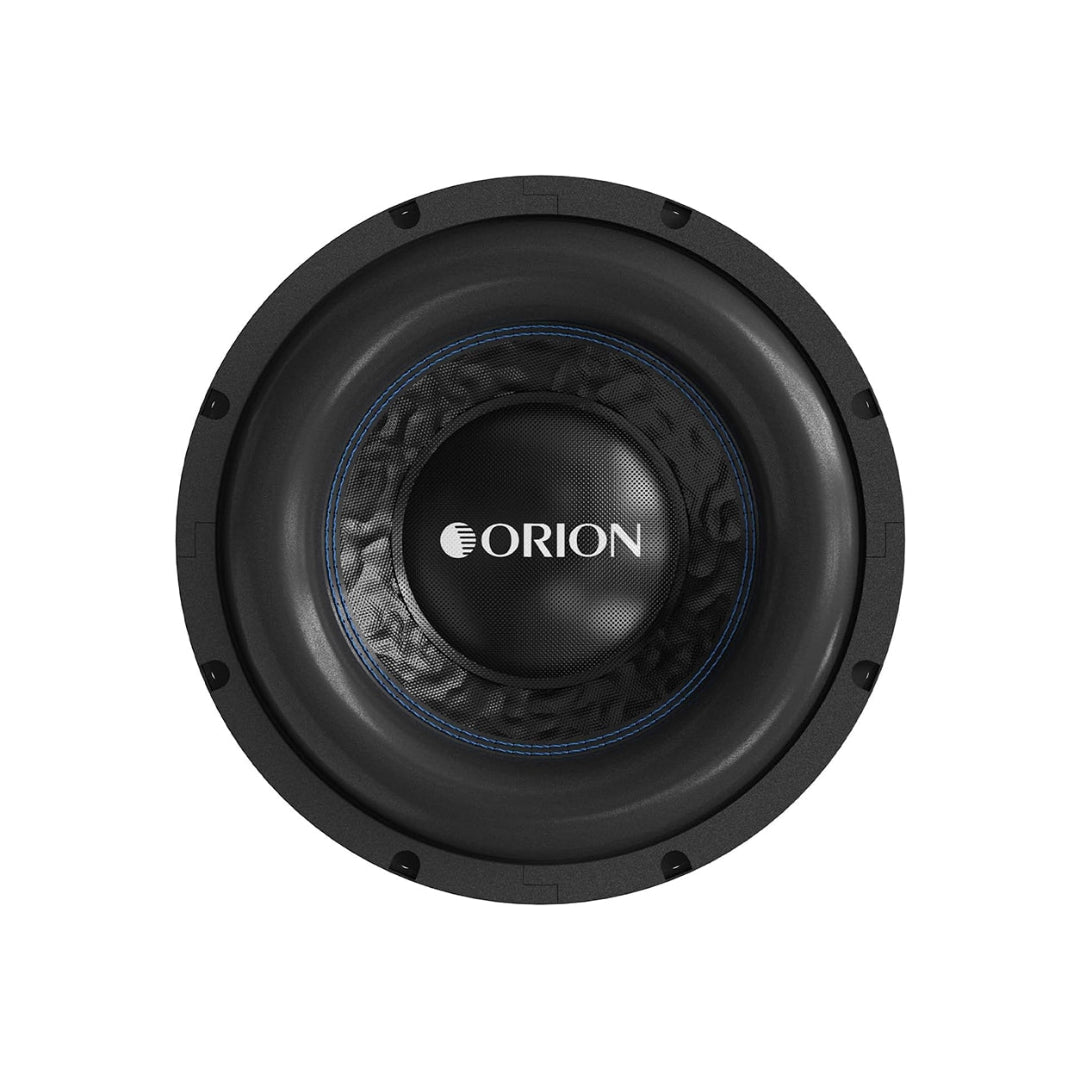

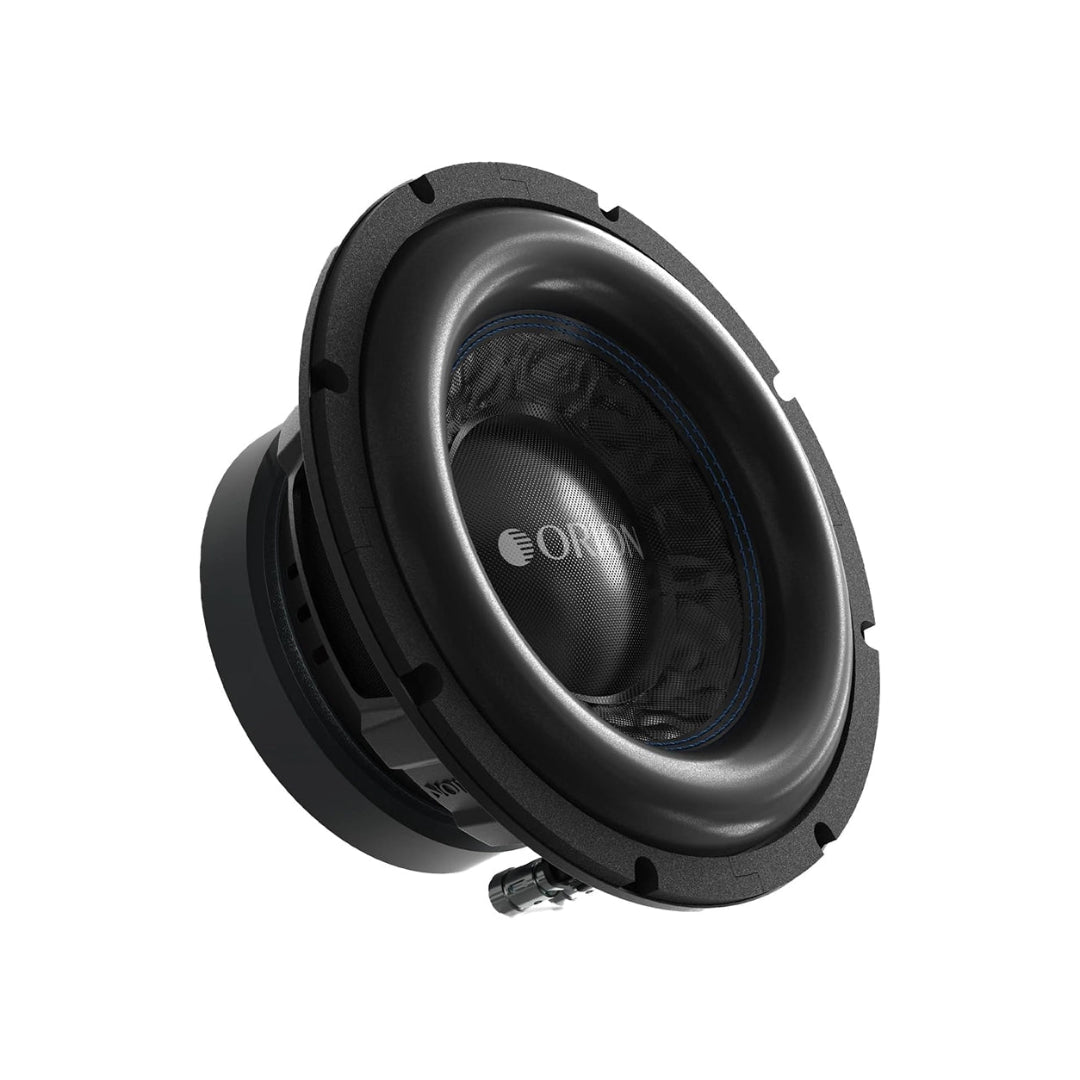

Orion CBW804S Cobalt Series 8” Subwoofer | 4 Ohm Single Voice Coil, 800W Max Bass
Orion CBW804S 8” subwoofer delivers clean, reliable bass for everyday car audio systems. With 200W RMS and 800W max power, it provides tight, controlled low-end response in both sealed and ported enclosures. The 4-ohm single voice coil allows easy amplifier matching, while the UV-coated paper cone and foam surround ensure durability and accurate sound. A 2” copper voice coil on a Kapton former improves heat handling for consistent performance, making it a solid upgrade for factory or custom setups.
Features:
- 4-Ohm High-Efficiency Design: Clean, powerful bass for versatile car audio systems.
- 2” Copper Voice Coil: Kapton former for heat resistance and stable performance.
- UV-Coated Paper/Fiber Cone: Durable cone for accurate, long-lasting bass.
- Foam Surround: Smooth movement with reduced distortion and better clarity.
- Power Handling: 200W RMS / 800W Max output.
- Wide Frequency Range: 20Hz–300Hz for deep, controlled lows.
- 40 oz Ferrite Magnet: Strong motor force and improved bass impact.
- Easy Fit Design: 3.78” mounting depth for sealed or ported enclosures.
Specifications:
Subwoofer Size: 8 (Inches)
Voice Coil Configuration: Single 4-ohm
Power Handling (Peak): 800 Watts
Power Handling (RMS): 200 Watts
Sensitivity: 86 dB
Frequency Response: 20 Hz - 300 Hz
Voice Coil Diameter: 2 (Inches)
Cone Material: UV Coated Paper / Fiber Blend Cone
Surround Material: Foam Surround
Magnet Information: 40 Oz Ferrite
Overall Depth: 113.25mm / 4.46 (Inches)
Mounting Depth: 96mm / 3.78 (Inches)
Overall Diameter: 214mm / 8.43 (Inches)
Mounting Diameter: 204mm / 8.03 (Inches)
UPC: 818550010307
