Orion CB525C 5.25" 2-Way Component Speaker Set 60 Watts RMS | 240 Watts MAX
Meet the Orion COBALT Series 5.25 inch Component Speakers—These speakers are compact, but don’t let their size fool you; they pack a serious punch when it comes to delivering premium sound. Designed to slip seamlessly into your car’s existing speaker spots, like doors and rear decks, they make upgrading your audio. These 5.25 inch component speakers come with a two-way system that divides and conquers the audio spectrum. The woofers handle the low-end and midrange tones, giving you that satisfying thump in the bass and a rich midrange. Meanwhile, the silk dome tweeters take care of the high notes, delivering those crystal-clear highs without the ear-piercing shrillness.
These speakers are equipped with a 12dB external crossover network. Plus, they’re built tough with high-quality materials that laugh in the face of daily wear and tear, whether it’s battling the heat of summer or the bumps and shakes of a gravel road. Thanks to their high sensitivity design, these speakers make the most of whatever power you’re working with. They produce loud and clear sound without needing a fancy amp—perfect for those who want an upgrade without the extra gadgets. Plus, they look as sleek as they sound, adding a bit of style to your car’s interior.
The COBALT Series 5.25 inch component speakers come with everything you need to get them set up quickly, so you can spend less time tinkering and more time enjoying. Whether you’re a seasoned car audio pro or just someone who knows their way around a screwdriver, you’ll have these speakers up and running in no time.
Features:
- Power Handling: 60 Watts RMS, 240 Watts MAX

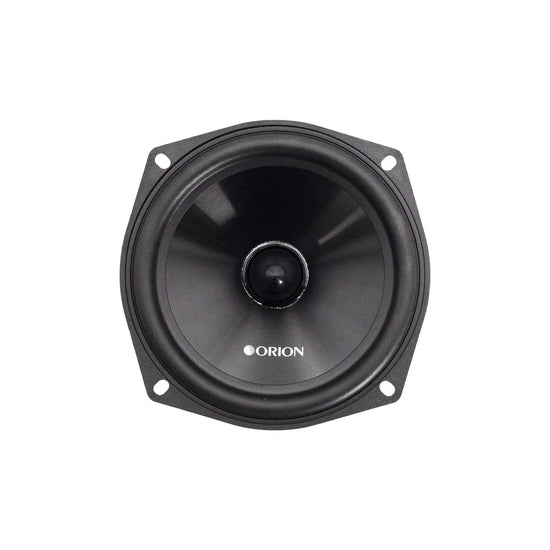

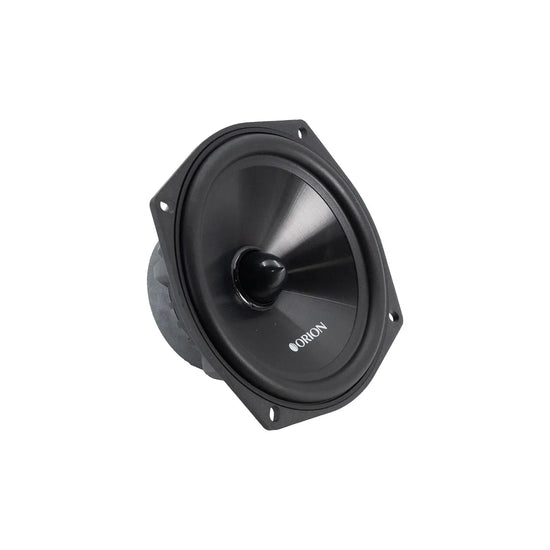

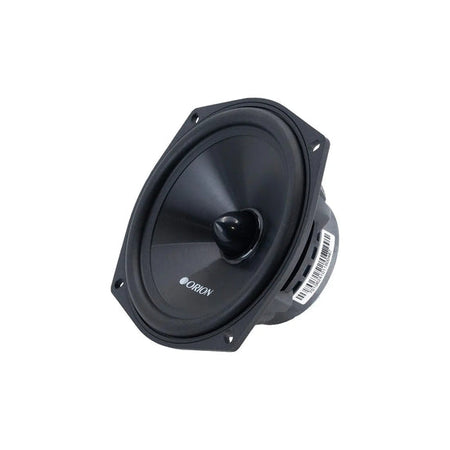

- Design: 2-way system with a dedicated woofer for deep bass and a silk dome tweeter for clear highs

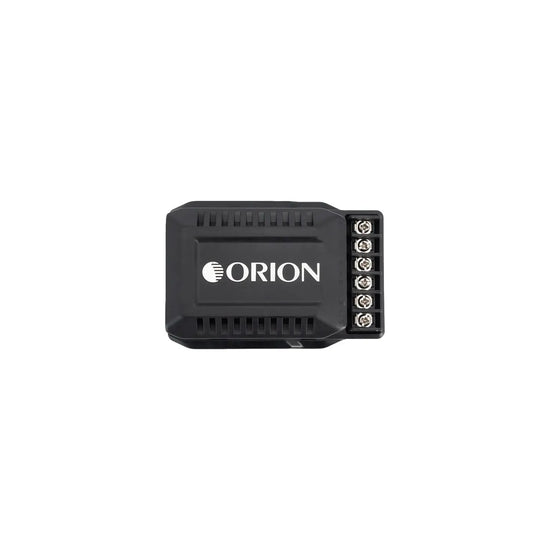

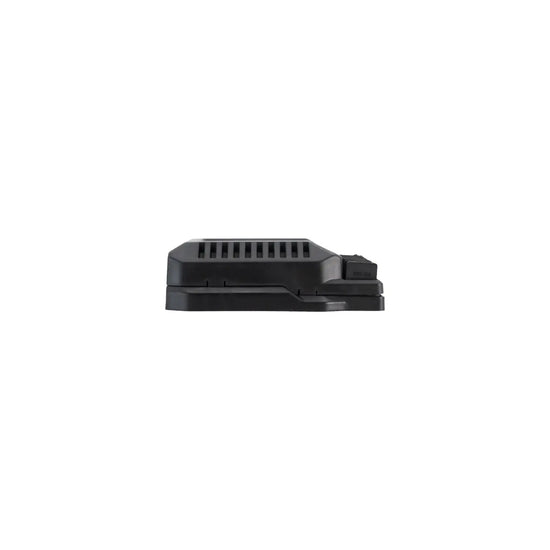

- Crossover: Includes a 12dB external passive crossover for precise frequency distribution
- Installation: Compact design for easy installation in various car speaker spots
Specifications:
Tweeter Size: 1 (Inches)
Speaker Size: 5.25 (Inches)
Voice Coil Configuration: 4 ohm
Power Handling (Peak): 240 Watts
Power Handling (RMS): 60 Watts
Sensitivity:88 dB
Frequency Response: 80 Hz - 20 kHz
Crossover Network: External 12dB
Voice Coil:High temperature Voice Coil

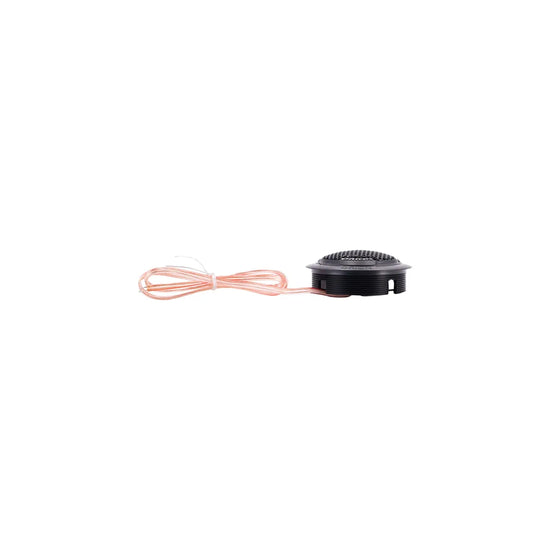

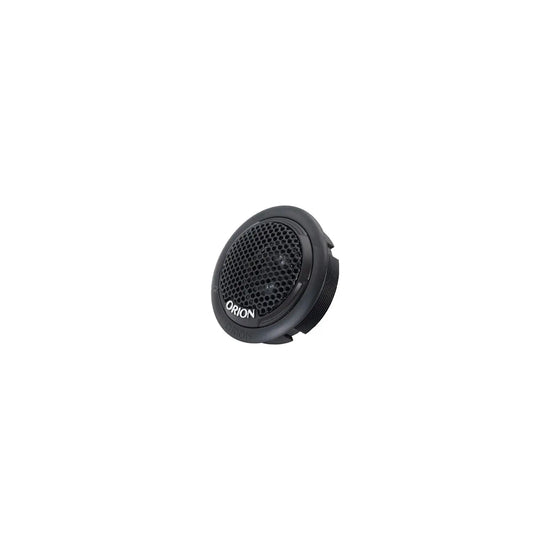

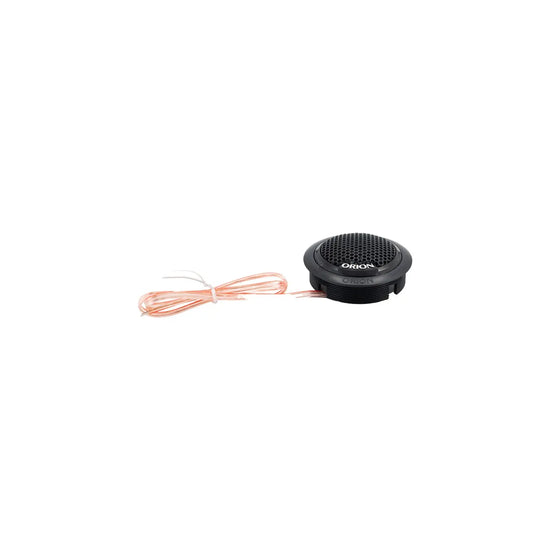

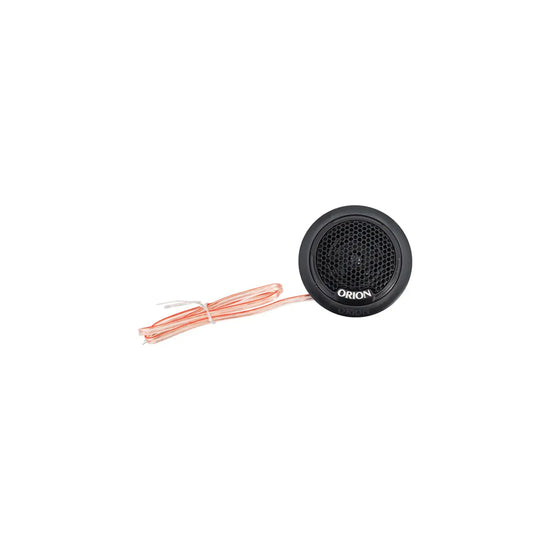

Tweeter: 25mm Silk Dome Tweeter
Material:Injection-Molded
Cone Material:Polypropylene (IMPP)
Tweeter Material: Silk
Surround Material:NBR
Magnet Information: Ferrite

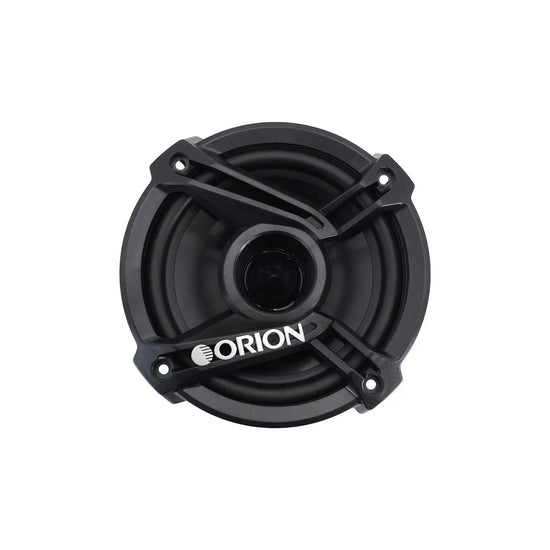

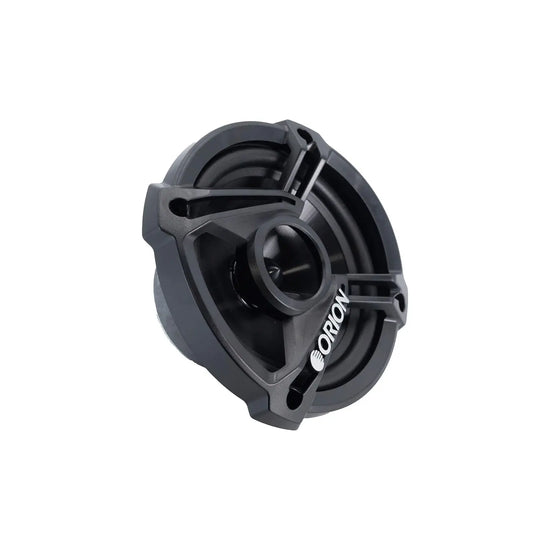

Grilles Included:Yes
Speaker Quantity:2 Speakers

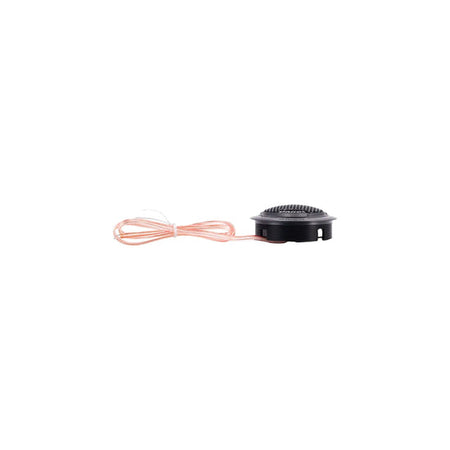

Tweeter Total Height: 34mm / 1.34 (Inches)
Tweeter Mounting Depth: 22mm / 0.87 (Inches)
Total Height: 61mm / 2.4 (Inches)

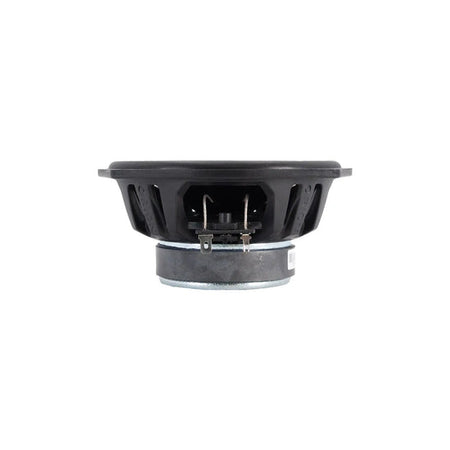

Mounting Depth: 52mm / 2.05 (Inches)
Cutout Diameter: 117mm / 4.61 (Inches)
| Specification | Details |
|---|---|
| Model | CB525C (Cobalt Series) |
| UPC | 818550010116 |
| Power Handling (RMS / Peak) | 60 W / 240 W |
| Impedance | 4 Ω |
| Sensitivity | 88 dB @ 1 W/1 m |
| Frequency Response | 80 Hz–20 kHz |
| Tweeter Size / Type | 1″ silk dome |
| Woofer Cone Material | Polypropylene (IMPP) |
| Surround Material | NBR (rubber) |
| Voice Coil | High-temperature voice coil |
| Crossover | External 12 dB/octave |
| Magnet Type | Ferrite |
| Grilles | Included |
| Cut-out Diameter | 117 mm / 4.61″ |
| Mounting Depth | 52 mm / 2.05″ |
| Total Height | 61 mm / 2.40″ |
| Tweeter Height / Depth | 34 mm / 22 mm (1.34″ / 0.87″) |

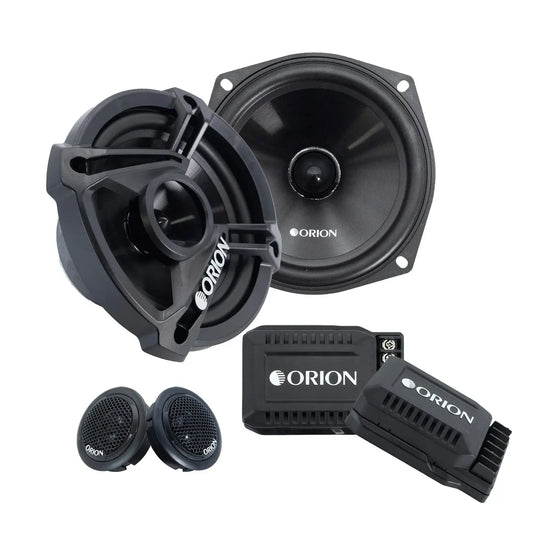

| Package Qty | 2 woofers + 2 tweeters + crossovers + hardware |
