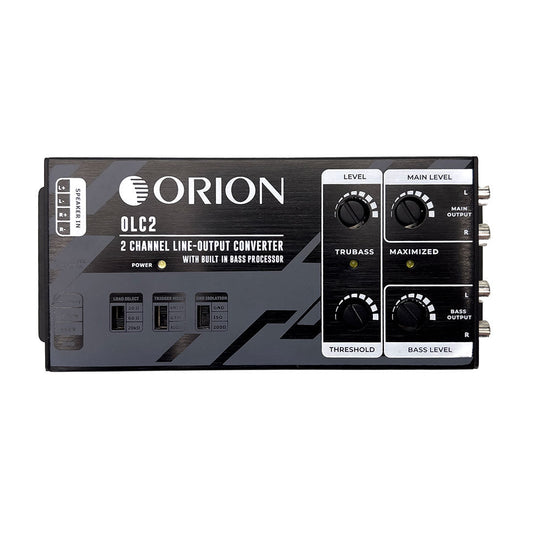

ORION ORI-OLC2 2 Channel Line Output Convertor With Bass Processor
The Orion OLC2 bridges the gap between factory and aftermarket audio systems, delivering professional-grade sound quality without sacrificing your vehicle’s built-in features. It’s the perfect choice for audiophiles looking to enhance their listening experience while maintaining the functionality of their factory setup.
By taking in high-level inputs from your factory setup and turning them into a high-quality, low-level signal, it’s perfect for linking up with aftermarket amplifiers and processors.
All the necessary accessories are included, so you won’t have to stress about the process. Even if you’re not a tech expert, you’ll get it all set up in no time. Built to last, this device performs wonderfully whether you’re using it in your car, home theater, or any audio system. It seamlessly fits with most factory systems and aftermarket components. Its compact size allows for a discreet installation, so you can enjoy fantastic sound without any clutter.
Features:
- High-Power Speaker-Level Inputs: Accepts signals up to 400 watts per channel, ensuring compatibility with high-output factory systems.
- Flexible Outputs: Includes both fixed and variable outputs with discrete level controls for precise audio tuning.
- TRUBASS® Processing: Corrects bass roll-off, restoring the deep, rich bass your factory system may lack.
- Signal Sensing: Enables automatic signal detection for seamless operation and easy integration.
- Remote Level Control Input: Compatible with an optional remote for convenient bass level adjustments on the fly.
- Compact Design: Fits easily into tight spaces, making installation hassle-free.
Specifications:
INPUT HANDLING: 400W MAX INPUT
MAXIMUM OUTPUT LEVEL: 9.5Vrms
OUTPUT GAIN +/- 12dB
VARIABLE INPUT SELECTOR: 20Ω, 60Ω, 20kΩ
VARIABLE OUTPUT LEVEL: +/- 12dB
FREQUENCY RESPONSE: 20Hz - 50kHz
TOTAL HARMONIC DISTORTION: 0.01%
SIGNAL TO NOISE: >110 dB
POWER CONSUMPTION: 200mA
RECOMMENDED FUSE RATING: 1 AMP
DIMENSIONS: 6.9 x 3 x 1” | 175 x 76 x 25mm
| Specification | Details |
|---|---|
| Model / SKU | OLC2 / ORI‑OLC2 |
| UPC | 818550019324 |
| Inputs | Speaker level up to 400 W per channel |
| Outputs | Fixed & variable RCA, Max output: 9.5 V RMS |
| Bass Processor | TRUBASS® with remote level control |
| Frequency Response | 20 Hz – 50 kHz |
| Total Harmonic Distortion | 0.01% |
| Signal-to-Noise Ratio | > 110 dB |
| Power Consumption | 200 mA |
| Fuse Rating | 1 A |
| Dimensions | 6.9″ × 3″ × 1″ (175 × 76 × 25 mm) |
