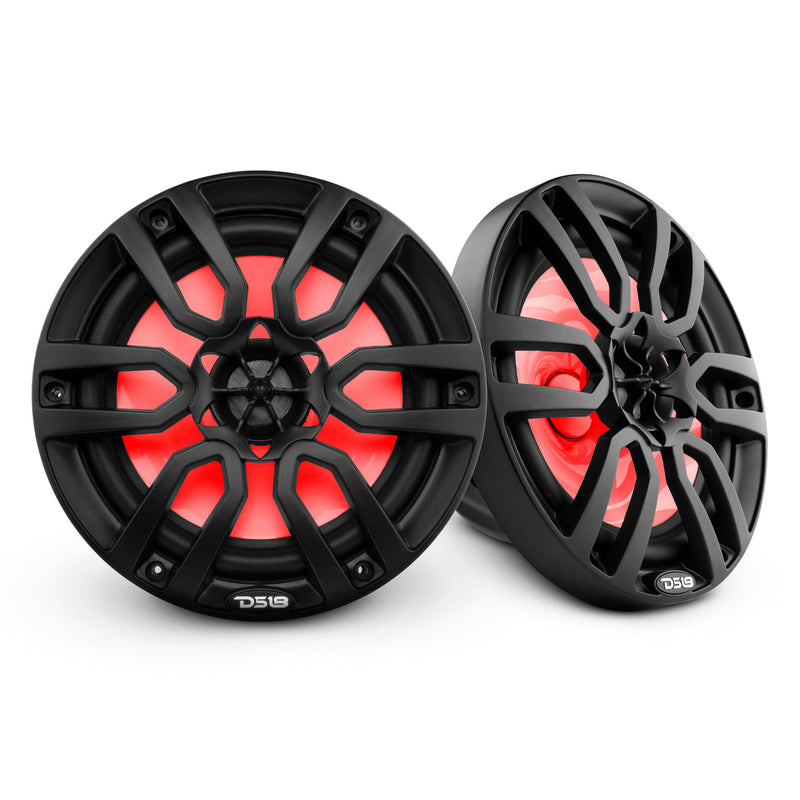

NXL 8" 2-Way Coaxial Marine Speaker With LED RGB Lights 125 Watts Rms 4-Ohm -Black

In stock
SKU: DS-NXL-8/BK
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $184.95 USD



  • 8" 2-Way Marine Speaker
  • RMS Power: 125 Watts
  • Impedance: 4 Ohm
  • Ferrite & Neodymium Magnets
  • RGB LED Light
  • Water Resistant IP65
  • DS18 NXL-8/BK


    8” 2-Way Marine Speakers With Integrated RGB LED Lights 375W (Matte Black) (Pair)

    DS18’s NXL-8/BK are not only designed to deliver breathtaking sound quality but also to withstand the harshest marine and off-road conditions.
    DS18’s NXL-8/BK boasts a sleek and rugged design that not only catches the eye but also performs like a champion. Crafted for durability and performance, these speakers feature IP65 Marine Grade Compliant Specifications, making them resistant to the corrosive effects of saltwater, UV rays, and extreme temperatures. The high temp injection-molded composite construction guarantees resilience against the most demanding conditions, while the ASA grills with UV coating ensure long-lasting aesthetics.
    The NXL-8/BK can handle an impressive 125W of RMS power, giving you the volume and clarity you crave. Equipped with Y35 Ferrite Main Magnet and Reverse Neodymium, these speakers deliver astonishingly clear and powerful sound. Thanks to the NXL-8’s revolutionary 2-way design that incorporates a 25mm Titanium Dome Tweeter, you'll experience the full range of frequencies, capturing every nuance of your favorite tracks. The NXL-8’s sensitivity of 93dB at 1 w/m, will leave you astounded by the level of detail and precision in every note.
    These models of DS18’s HYDRO NXL-8/BK speakers immerse you in a world of vivid color with the integrated RGB LED lighting. DS18 has left no detail overlooked, allowing you to customize your audio system to match your mood or style. With the optional DS18 LED-BTC or any other RF/BT/Wi-Fi Controller (sold separately), you have full control over the multi-function RGB LED lighting, daring you to create a showstopping system.

    SPECS

    SKU
    NXL-8/BK
    Nominal Diameter
    8" / 203mm
    Nominal Impedance
    4 Ohm
    RMS Power Handling
    125W
    MAX Power Handling
    375W
    Sensitivity (1w/1m)
    93dB
    Frequency Response
    35Hz-23KHz
    Recommended HI Pass Crossover
    50 Hz


    Body / Features

    UV Compliant
    Yes, 100% Stable
    Marine Grade Type
    IP65
    RGB LED
    Yes, RGB integrated
    Grill Type
    Injection Molded Composite ASA with UV Protection coating
    Pair
    Yes
    Color / Finish
    Matte Black


    Woofer Specifications

    Voice Coil Diameter
    1.2" / 30.5mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Injection Molded Polypropylene + UV Compliant
    Surround Material
    Butyl (Rubber)
    Basket Material
    High Temp Injection Molded Composite with UV Protection coating
    Magnet Material
    Ferrite+Neodymium
    Magnet Weight
    24oz + 0.32oz


    Tweeter Specifications

    Nominal Diameter
    1" / 25.4mm
    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Diaphragm Material
    Titanium + PEI Surround
    Magnet Material
    Neodymium (N38H)
    Magnet Weight
    0.54oz


    Thiele & Small Parameters

    Equivalent Volume Vas
    66.7L / 2.35ft3
    Excursion (one way) Xmax
    8.5 mm
    Free Air Resonance Fs
    56Hz
    Mechanical Factor Qms
    7.701
    Electrical Factor Qes
    0.899
    Total Factor Qts
    0.805
    Moving Mass Mms
    7.265g
    Compliance Cms
    1.119mm/N
    Bl Factor Bl
    2.98
    Voice Coil Inductance Le
    0.49mH
    Cone Area Sd
    206.12cm2
    DC Resistance Re
    3.15ohms
    Efficiency Bandwidth Product EBP
    62.2


    Speaker Measurement

    Overall Diameter
    8.59" / 218.2mm
    Overall Depth
    4.45" / 113mm
    Front Mount Baffle Cutout
    6.97" / 177mm
    Mounting Depth
    3.09" / 78.5mm
    Motor Diameter
    4.32" / 110mm
    Gross Single Unit Weight (lb)
    10.5
    Single Unit Box Dimensions W x L x H (Inches)
    20.25 x 10.25 x 5.5
    Quantity of Units in Master Carton
    2
    Gross Master Carton Weight (lb)
    22.5
    Master Carton Dimensions W x L x H (Inches)
    20.5 x 11 x 11
