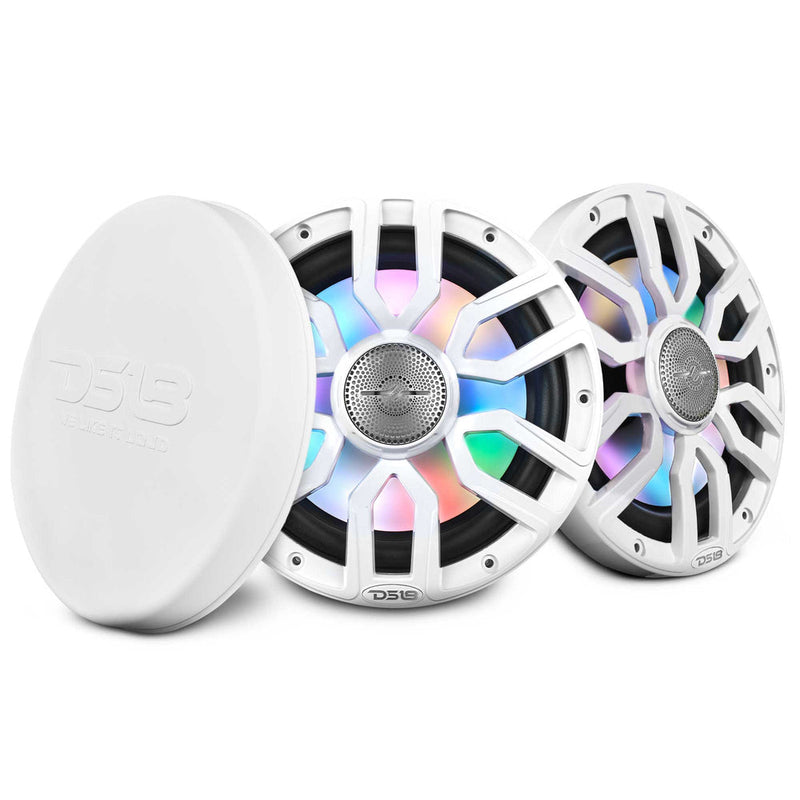

NXL 8" 2-Way Coaxial Marine Speaker With Digital Led Lights And Bullet Tweeter 175 Watts 4-Ohm
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
8" Marine Grade Coaxial Speaker with LED Lights and Bullet Tweeter
Transform your marine audio experience with the NXL-IQ8! These 8" Marine Grade 2-Way Coaxial’s are engineered for dynamic outdoor environments, delivering powerful sound with a 175W RMS and 350W MAX. Built to withstand the elements, they feature IP65 water-resistant and UV-stable construction, making them perfect for your boat's audio system. Each speaker includes a high-quality injection-molded polypropylene cone with UV protection, durable soft rubber surround, and protective silicone covers for added durability. Plus, they come in pairs for a complete sound experience.
Additionally, the integrated digital LED lighting offers customizable vibes (controller sold separately), allowing you to match the party's theme or your mood with vibrant color options.
*Disclaimer: The BT Digital LED Control Module (LC-DRM) is required to operate multifunctional digital RGB-LED lighting. The lights will not function without this module.
Features:
- 8" 2-Way Marine Speaker
- RMS Power: 175 Watts
- Impedance: 4 Ohm ~ 96dB
- Ferrite & Neodymium Magnets
- Digital LED Lighting
- White ~ Water Resistant IP65
General Specifications:
Nominal Diameter: 8" / 203mm
Nominal Impedance: 4 ohms
RMS Power Handling: 175W
MAX Power Handling: 350W
Sensitivity (1w/1m): 96dB
Frequency Response: 35Hz-20KHz
Number of Ways: 2-Ways
Recommended High-Pass Crossover: 40Hz
Sold in Pair or Single: Pair
Body Features:
UV Protection: Yes, 100% Stable
Marine Grade Type: IP65
LED Lights: Yes, Digital LED integrated (behind cone)
Digital LED Connection Type: 12V & Digital IN/OUT terminal
Digital LED Chip Type: 1815S
Grill Type: Injection Molded Composite ASA with UV Protection coating
Color / Finish: White
Woofer Specifications:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: PPI
Dust Cap Material: PPI
Surround Material: Rubber
Basket Material: Injection Molded Composite PC with UV Protection coating
Magnet Material: Ferrite+Neodymium
Magnet Weight: 24 oz + 1.1 oz
Tweeter Specifications:
Type: Floating Bullet Tweeter
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminium
Bullet Material: Injection Molded Composite PC with UV Protection coating
Magnet Material: Neodymium (N35H)
Magnet Weight: 0.4 oz
Thiele Small Parameters:
Equivalent Volume Vas: 16.9L / 0.596ft3
Excursion (one way) Xmax: 3mm
Free Air Resonance Fs: 58Hz
Mechanical Factor Qms: 7.599
Electrical Factor Qes: 0.834
Total Factor Qts: 0.752
Moving Mass Mms: 25.604 g
Compliance Cms: 0.2875 mm/N
Bl Factor BI: 6.016
Voice Coil Inductance Le: 1.4 mH
Diaphragm Area Sd: 203.58cm2
DC Resistance Re: 3.3 Ohms
Efficiency Bandwidth Product EBP: 69.5
Speaker Measurement:
Overall Diameter: 8.6" / 218mm
Overall Depth: 4.4" / 112mm
Front Mount Baffle Cutout: 7" / 177mm
Mounting Depth: 3" / 79mm
Motor Diameter: 4.5" / 115mm
| Feature | Specification |
|---|---|
| UPC (White) | 810097266933 |
| Model | NXL‑IQ8 (pair of 8″ 2‑way coaxials) |
| Impedance | 4 Ω |
| RMS Power Handling | 175 W per speaker |
| Peak Power Handling | 350 W |
| Sensitivity | ~96 dB @1W/1m |
| Frequency Response | 35 Hz – 20 kHz |
| Tweeter Type | Floating bullet tweeter, 1″ Kapton coil diaphragm, Neodymium magnet |
| Woofer Materials | Polypropylene cone, rubber surround, composite PC basket, ferrite+neodymium magnets |
| LED Lighting | Integrated digital LED (requires LC‑DRM controller, sold separately) |
| Marine Rating | IP65 water-resistant, UV-stable poly cone & ASA composite grill |
| Dimensions (Dia×Depth) | 8.6″ × 4.4″ (218 mm × 112 mm), cutout 7″ (177 mm), mounting depth 3″ (79 mm) |
| Woofer Voice Coil | 1.5″ glass-fiber former coil, CCAW winding |
| Tweeter Voice Coil | 1″ Kapton former, aluminium diaphragm |
| Additional Features | Silicone screw covers, stainless hardware, pre-wired speaker & LED connections |
