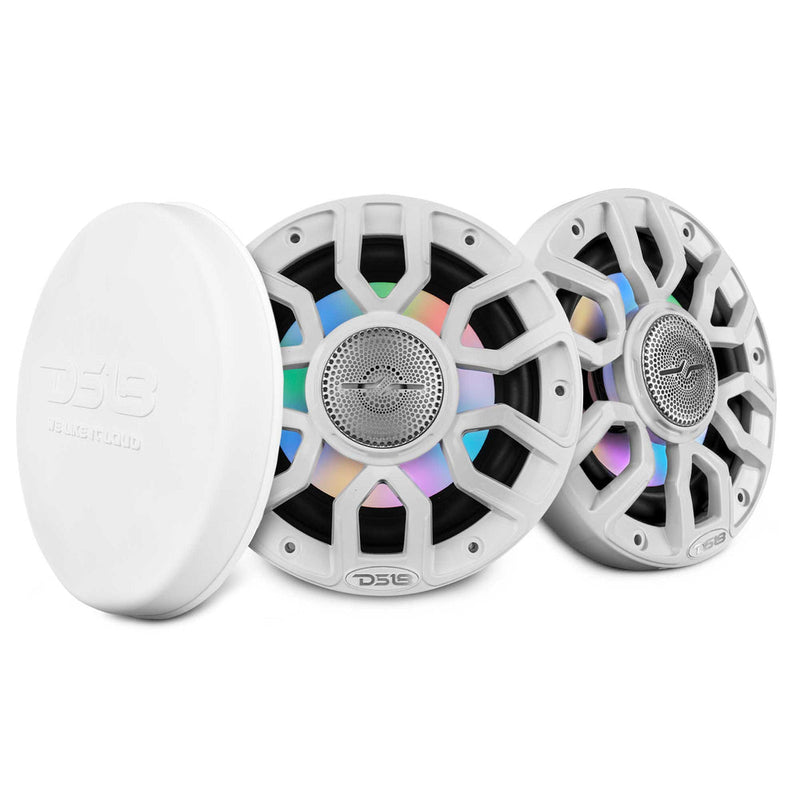

NXL 6.5" 2-Way Coaxial Marine Speaker With Digital Led Lights And Bullet Tweeter 150 Watts 4-Ohm
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED

6.5" Marine Grade Coaxial Speaker with LED Lights and Bullet Tweeter
Transform your marine audio experience with the NXL-IQ6! These 6.5" Marine Grade 2-Way Coaxial’s are engineered for dynamic outdoor environments, delivering powerful sound with a 150W RMS and 300W MAX.
What truly sets the NXL-IQ6 apart is its precision engineering: these two-way speakers combine a built-in tweeter and woofer system, with the tweeter seamlessly integrated into the grill on both the 6.5" and 8" models. The floating 25mm bullet tweeter, constructed with an aluminum diaphragm and Neodymium magnet, ensures crystal-clear high frequencies, while copper motor rings enhance far-field performance for unrivaled clarity. And with a combined impedance of 4 ohms, the NXL-IQ6 is designed to deliver consistent, superior sound.
*Disclaimer: The BT Digital LED Control Module (LC-DRM) is required to operate multifunctional digital RGB-LED lighting. The lights will not function without this module.
Features:
- 6.5" 2-Way Marine Speaker
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 95dB
- Ferrite & Neodymium Magnets
- Digital LED Lighting
- White ~ Water Resistant IP65
General Specifications:
Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 ohms
RMS Power Handling: 150W
MAX Power Handling: 300W
Sensitivity (1w/1m): 95dB
Frequency Response: 45Hz-20KHz
Number of Ways: 2-Ways
Recommended High-Pass Crossover: 60Hz
Sold in Pair or Single: Pair
Body Features:
UV Protection: Yes, 100% Stable
Marine Grade Type: IP65
LED Lights: Yes, Digital LED integrated (behind cone)
Digital LED Connection Type: 12V & Digital IN/OUT terminal
Digital LED Chip Type: 1815S
Grill Type: Injection Molded Composite ASA with UV Protection coating
Color / Finish: White
Woofer Specifications:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: PPI
Dust Cap Material: PPI
Surround Material: Rubber
Basket Material: Injection Molded Composite PC with UV Protection coating
Magnet Material: Ferrite+Neodymium
Magnet Weight: 13 oz + 1.1 oz
Tweeter Specifications:
Type: Floating Bullet Tweeter
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminium
Bullet Material: Injection Molded Composite PC with UV Protection coating
Magnet Material: Neodymium (N35H)
Magnet Weight: 0.4 oz
Thiele Small Parameters:
Equivalent Volume Vas: 3.15L / 0.11ft3
Excursion (one way) Xmax: 3mm
Free Air Resonance Fs: 94Hz
Mechanical Factor Qms: 7.497
Electrical Factor Qes: 1.205
Total Factor Qts: 1.038
Moving Mass Mms: 16.603 g
Compliance Cms: 0.1679 mm/N
Bl Factor BI: 5.138
Voice Coil Inductance Le: 1.4 mH
Diaphragm Area Sd: 114.99cm2
DC Resistance Re: 3.3 Ohms
Efficiency Bandwidth Product EBP: 78.8
Speaker Measurement:
Overall Diameter: 7" / 177mm
Overall Depth: 3.75" / 95mm
Front Mount Baffle Cutout: 5.3" / 135mm
Mounting Depth: 2.5" / 63mm
Motor Diameter: 3.75" / 95mm
Feature | Specification |
---|---|
SKU & Finish | NXL‑IQ6/WH (White) |
UPC | 810097266919 |
Configuration | 6.5″ 2‑Way marine coaxial speakers with floating bullet tweeter and LED lighting |
Impedance | 4 Ω |
Power Handling: RMS / MAX | 150 W RMS, 300 W MAX |
Sensitivity | 95 dB @ 1 W/1 m |
Frequency Response | 45 Hz – 20 kHz |
Recommended High‑Pass Crossover | ≥60 Hz |
Tweeter | Floating bullet tweeter, 1″ Kapton voice coil, aluminum diaphragm, Neodymium magnet |
Woofer Materials | Polypropylene cone, rubber surround, CCAW voice coil, ferrite+neodymium magnet (13 oz + 1.1 oz) |
LED Lighting | Integrated digital LEDs; requires LC‑DRM controller (sold separately) |
Water/UV Protection | IP65 marine rating, 100% UV-stable enclosure |
Grill | Injection-molded composite ASA with UV coating |
Body Finish | matte white (WH) |
Dimensions (Dia × Depth) | 7″ dia × 3.75″ depth (177 mm × 95 mm); cutout 5.3″ (135 mm); mounting depth 2.5″ (63 mm) |
Box Includes | Pair of speakers, wiring leads, silicone screw covers, stainless screws, installation manual |
