NXL 6.5" 2-Way Coaxial Marine Speaker With Digital Led Lights And Bullet Tweeter 150 Watts 4-Ohm

In stock
SKU: DS-NXL-IQ6/BK
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Regular price $359.95 USD
Massive Power & Clarity

Massive Power & Clarity

Superior Performance

Superior Performance

Advanced Technology

Advanced Technology

Premium Quality

Premium Quality

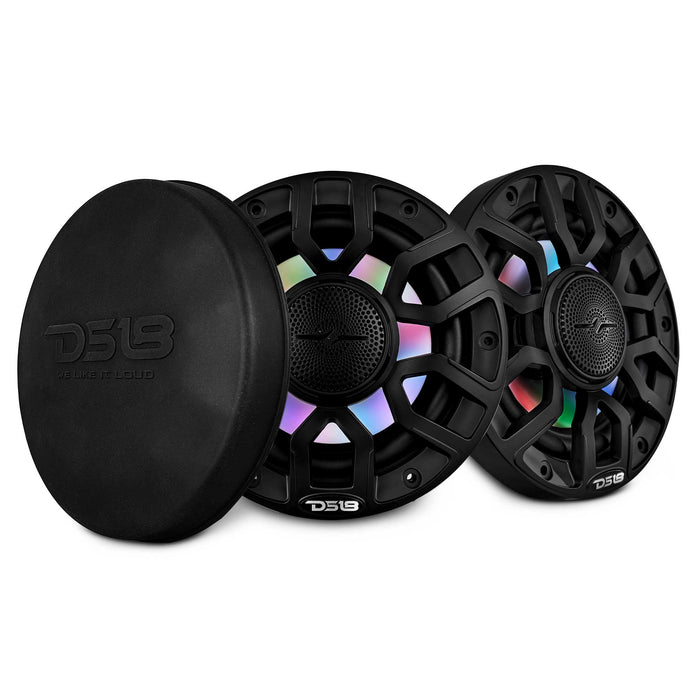

6.5" Marine Grade Coaxial Speaker with LED Lights and Bullet Tweeter

Transform your marine audio experience with the NXL-IQ6! These 6.5" Marine Grade 2-Way Coaxial’s are engineered for dynamic outdoor environments, delivering powerful sound with a 150W RMS and 300W MAX.

Built to withstand the elements, they feature IP65 water-resistant and UV-stable construction, making them perfect for your boat's audio system. Each speaker includes a high-quality injection-molded polypropylene cone with UV protection, durable soft rubber surround, and protective silicone covers for added durability. Plus, they come in pairs for a complete sound experience.

*Disclaimer: The BT Digital LED Control Module (LC-DRM) is required to operate multifunctional digital RGB-LED lighting. The lights will not function without this module.

Features:

  • 6.5" 2-Way Marine Speaker
  • RMS Power: 150 Watts
  • Impedance: 4 Ohm ~ 95dB
  • Ferrite & Neodymium Magnets
  • Digital LED Lighting
  • Black ~ Water Resistant IP65

General Specifications:

Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 ohms
RMS Power Handling: 150W
MAX Power Handling: 300W
Sensitivity (1w/1m): 95dB
Frequency Response: 45Hz-20KHz
Number of Ways: 2-Ways
Recommended High-Pass Crossover: 60Hz
Sold in Pair or Single: Pair

Body Features:

UV Protection: Yes, 100% Stable
Marine Grade Type: IP65
LED Lights: Yes, Digital LED integrated (behind cone)
Digital LED Connection Type: 12V & Digital IN/OUT terminal
Digital LED Chip Type: 1815S
Grill Type: Injection Molded Composite ASA with UV Protection coating
Color / Finish: Matte Black

Woofer Specifications:

Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: PPI
Dust Cap Material: PPI
Surround Material: Rubber
Basket Material: Injection Molded Composite PC with UV Protection coating
Magnet Material: Ferrite+Neodymium
Magnet Weight: 13 oz + 1.1 oz

Tweeter Specifications:

Type: Floating Bullet Tweeter
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminium
Bullet Material: Injection Molded Composite PC with UV Protection coating
Magnet Material: Neodymium (N35H)
Magnet Weight: 0.4 oz

Thiele Small Parameters:

Equivalent Volume Vas: 3.15L / 0.11ft3
Excursion (one way) Xmax: 3mm
Free Air Resonance Fs: 94Hz
Mechanical Factor Qms: 7.497
Electrical Factor Qes: 1.205
Total Factor Qts: 1.038
Moving Mass Mms: 16.603 g
Compliance Cms: 0.1679 mm/N
Bl Factor BI: 5.138
Voice Coil Inductance Le: 1.4 mH
Diaphragm Area Sd: 114.99cm2
DC Resistance Re: 3.3 Ohms
Efficiency Bandwidth Product EBP: 78.8

Speaker Measurement:

Overall Diameter: 7" / 177mm
Overall Depth: 3.75" / 95mm
Front Mount Baffle Cutout: 5.3" / 135mm
Mounting Depth: 2.5" / 63mm
Motor Diameter: 3.75" / 95mm



Category Specification
UPC 810097266902
Model NXL-IQ6/BK
Speaker Size 6.5" (165mm)
Type 2-Way Coaxial Marine Speaker
Power Handling (RMS/MAX) 150W RMS / 300W MAX
Impedance 4 Ohm
Sensitivity 95 dB (1W/1m)
Frequency Response 45Hz – 20kHz
Recommended Crossover 60Hz (High-Pass)
Number of Ways 2-Way
Water Resistance Marine Grade IP65
UV Protection 100% Stable (UV-Protected Enclosure and Components)
Sold As Pair
