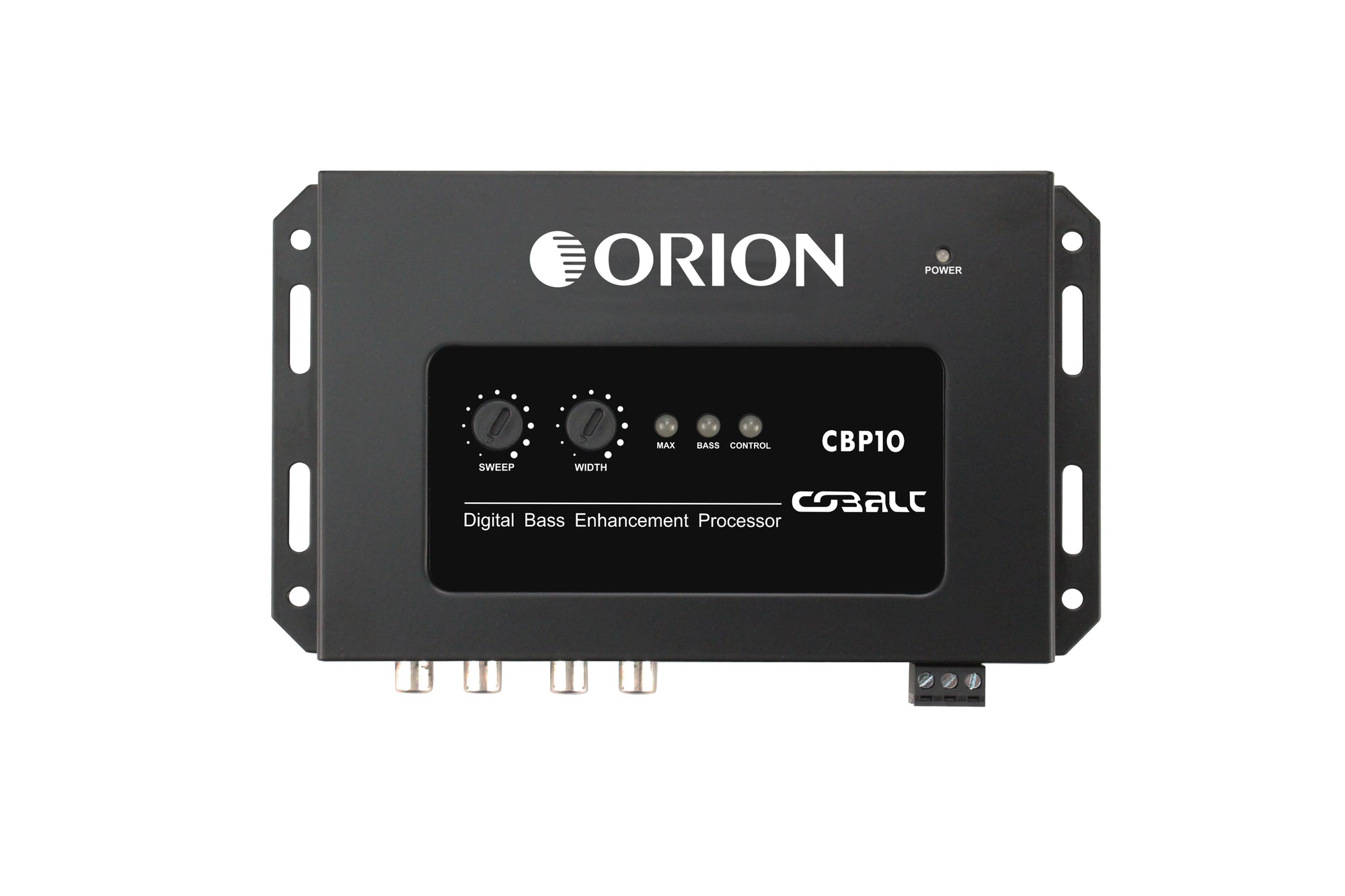

Orion CBP10 Digital Bass Processor with Bass Restoration | 10V Output
Boost your car audio with the CBP10 Digital Bass Enhancement Processor, designed to restore lost low frequencies and deliver deeper, more controlled bass. With adjustable sweep and width controls, selectable 2.5V–10V output, and ultra-clean signal performance, it integrates easily into factory or aftermarket systems for powerful, precise sound.
Features:
- Digital Bass Enhancement Processor: Restores lost bass from factory or compressed audio for deeper, tighter sound
- Sweep Frequency Control: Targets your preferred bass frequency range with precision
- Width Bandwidth Control: Adjusts bass from wide, deep response to tight, punchy output
- Selectable Output Voltage: 2.5V–10V output to match various amplifier setups
- High Signal-to-Noise Ratio: >110dB for clean, low-noise performance
- Ultra-Low Distortion: <0.02% THD for clear audio at all volume levels
- Balanced / Unbalanced Inputs: Compatible with factory and aftermarket systems
- Ground Isolation Control: Reduces alternator whine and unwanted noise
- Remote Bass Control Ready: Enables easy in-car bass adjustment
Specifications:
Power Supply: 6.5V – 18V
Maximum Input Level: 10V
Maximum Output Level: 10.5V
Input Sensitivity: 10.7V
Input Impedance: >50K Ohms
Output Impedance: 100 Ohms
EQ Boost / Cut: 15 dB
Signal-to-Noise Ratio: >110 dB
THD @ 2V Output: <0.02%
Channel Separation: >80 dB
CMRR: -63 dB Balanced / -29 dB Unbalanced
Frequency Response: 10 Hz – 30 kHz
Subsonic Filter: 31 Hz – 71 Hz
Current Draw: 180 mA
Interchannel Gain Tracking: 0.1 dB
Fuse Rating: 1A
Dimensions: 7.28” x 4.13” x 1.02”
UPC: 818550019447
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
