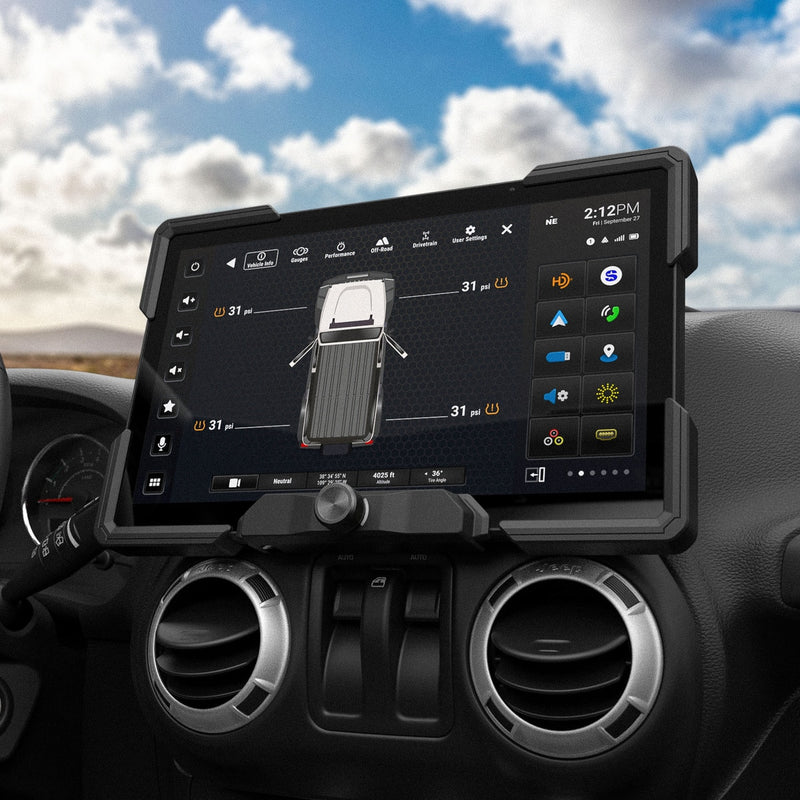

Elevate your Jeep Wrangler JK adventures with real-time information screens designed for both on-road and off-road exploration. This IP65 weather-resistant display is perfect for open-top rides, offering durability with an optically bonded screen to keep out dust and moisture. Customize your driving experience with a multi-zone interface that lets you combine essential controls, select your favorite widgets, and personalize backgrounds and color schemes. Stay safer and more aware with support for up to four camera inputs, compatible with both AHD and standard resolutions. Define your journey with a display that seamlessly combines functionality, style, and rugged reliability.

Key Features:

• On-screen gauges to monitor vehicle vitals such as battery voltage and coolant
  temperature
• Off-road screen featuring pitch and roll
• Complete feature retention: warning chimes, steering wheel mounted radio controls,
  factory amplifier (if equipped)
• Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
• Complete plug-and-play system: no vehicle modifications needed!

Customizable widget for quick access to your favorites

HORIZON12 Features:

• 12.8-inch, 1920x1080 Full HD touchscreen with anti-glare, anti-reflective & anti-fingerprint film
  protection
• Optically bonded screen for moisture and dust resistance
• IP65 rated touchscreen*
• Wireless (and wired) Apple CarPlay® and Wireless (and wired) Google Android Auto™
• SiriusXM-Ready™ (SiriusXM Connect Vehicle Tuner and Subscription required)
• Built-in HD Radio tuner
• Accessory Control to control up to four accessories on-screen (SwitchHub recommended)
• 4.5Vrms 8ch RCA audio outputs with subwoofer control
• Toslink (Optical) Variable Audio Output
• 15 Band Adjustable EQ with 6 user presets for each audio source
• 1 HDMI rear input
• 2 USB-A rear inputs, 1.5A output; 1 USB-C rear input for wired CarPlay and Android Auto, 3A
  charging
• Handsfree Bluetooth® 5.1 A2DP, supports dual phone connections
• Built-in microSD card slot for optional iGO Navigation
• Fast Wake-Up Enabled
• 4 AHD/CVBS Camera Video inputs with wired triggers (PAC RadioPRO Compatible)
• Mic Audio input from rear camera
• Steering wheel control ready
• Customizable illumination colors, display backgrounds, and multi-zone user interface (combine the most useful controls and select your favorite widgets)
• Single ISO chassis mounting design

*Radio Chassis is not IP rated.

Integrated Kit Includes Everything Needed for the Installation:

• Flush-mounted plastics for a seamless OEM experience
• Removable edge guards and volume knob (pre-Installed)
• RadioPRO Advanced vehicle integration module for Jeep vehicles
• Complete plug-and-play installation harnesses
• Adapters for satellite, AM/FM radio and factory USB retention
• External chime speakers
• USB flush mount connection parts
• HORIZON12 infotainment system

Compatibility: For 2011 - 2018 Jeep Wrangler JK
