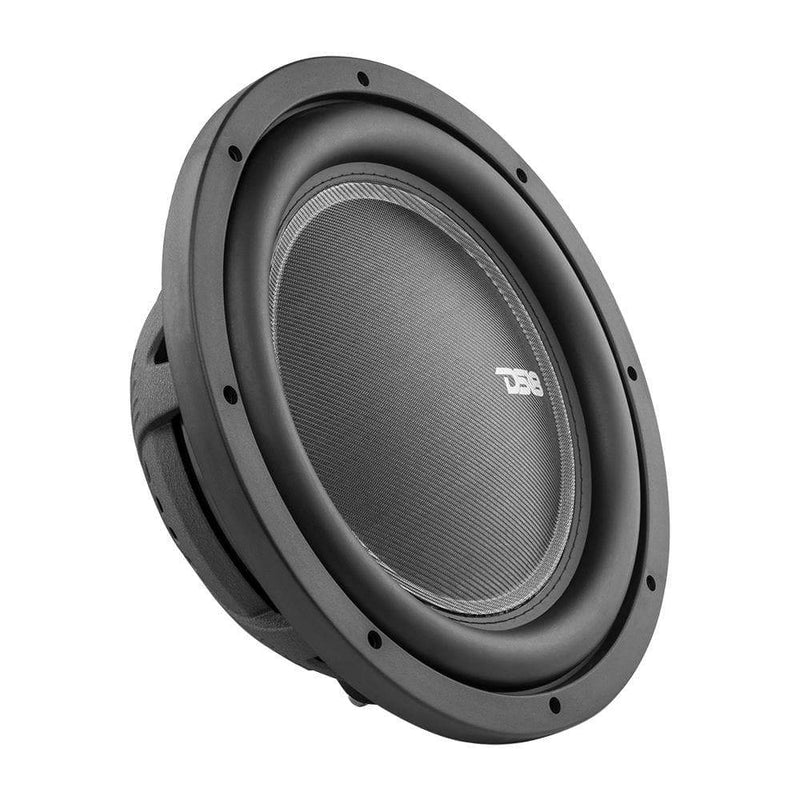

DS18 DS-IXS12.4S IXS Shallow 12 Inch Subwoofer 1400 Watts Svc 4-Ohm DS18
Continuing the tradition of our very popular flat mount subwoofers, we now have the IXS line which is the successor to our best selling SW slim subwoofer line.
We took the SW line and made it even beefier for more bass. The IXS comes in both 10 and 12 inch. Also they both have multiple voice coil options to get the most from your amplifier.
These subs are perfect for the audiophile that wants alot of bass but does not have much space for a full sized subwoofer. With these you can get that loud thump without having to sacrifice alot of room.
DETAILS:
- Model: IXS12.4D
- Type: Shallow Subwoofer
- Size: 12 inch
- RMS Power: 800W
- MAX Power: 1600W
- Impedance: 4 OHMS
- Sebsitivity 85.1dB
- Voice coil size: 2.5 inch
- Magnet: Ferrite
- Magnet Size: 62oz
- Frequency Response: 20-600KHz
MATERIALS:
- Frame: Aluminum
- Cone: Paper
- Dust Cap Material Fiberglass
- Surround: Stitched Rubber
- Voice Coil Former Material: Aluminum
DIAMETERS:
- Overall Diameter: 12.6 inch
- Overall Depth 4.73 inch
- Mounting Depth 4.33 inch
- Front Mount Baffle Cutout 10.79 inch
SPECIFICATIONS:
| SERIES | IXS Series |
| SOLD AS | Piece |
| WARRANTY | 1 Year Warranty |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| YOUTUBE VIDEO | https://youtu.be/DoSwCJgBNdY |
| VEHICLE TYPE | Marine|Jeep|Car|Truck/SUV |
| BRAND | DS18 |
| UPC | 810005184274 |
| DIAMETER | 12.0 Inch |
| WATT | 1400 Watts |
| OHM | 4 ohm |
| DIM LENGTH | 13.25 |
| DIM WIDTH | 13.5 |
| DIM HEIGHT | 6.5 |
| DIM UNIT | in |
| WEIGHT | 16.5 |
| WEIGHT UNIT | lb |
