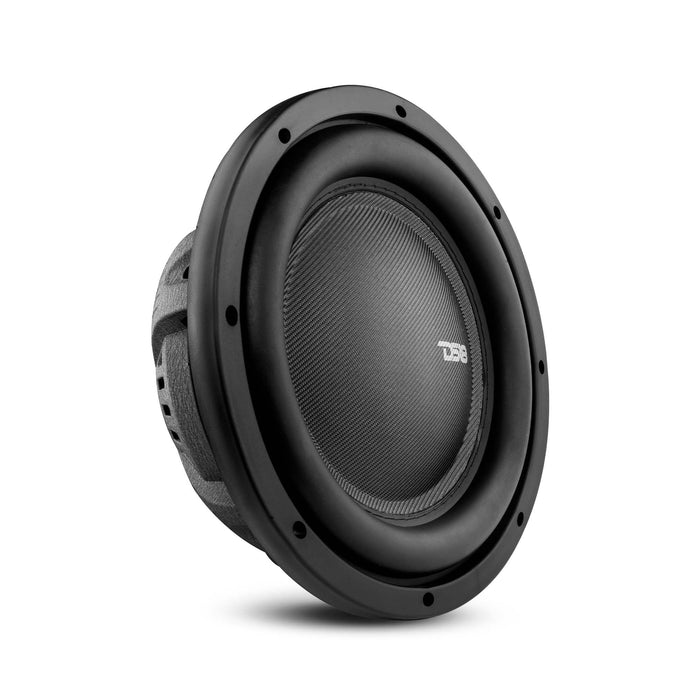

DS18 DS-IXS10.4S IXS Shallow 10 InchSubwoofer 1200 Watts Svc 4-Ohm DS18

In stock
SKU: DS-IXS10.4S
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Regular price $239.95 USD
Massive Power & Clarity

Massive Power & Clarity

Superior Performance

Superior Performance

Advanced Technology

Advanced Technology

Premium Quality

Premium Quality

DS18 IXS10.4S


10” Car Subwoofer 1200W 4-Ohm SVC Shallow Mount

Engineered with uncompromising precision and cutting-edge technology, the IXS10.4S is specifically designed to revolutionize your car audio experience.
Drawing upon the immense success of our renowned SW slim subwoofer line, the IXS series builds upon that legacy by offering even more power and depth. Available in both 10 and 12-inch variants, these subwoofers come with multiple voice coil options, allowing you to extract the maximum potential from your amplifier.
With impressive power handling capabilities rated at 600W RMS and 1200W MAX, the IXS10.4S delivers thunderous bass and dynamic performance. The IXS10.4S covers an extensive frequency range (20 – 800Hz) , capturing both the subtle nuances and the powerful impact of low-frequency sounds. It effortlessly reproduces low-frequency sounds with remarkable clarity and accuracy, ensuring that every beat is felt and heard with precision. The high sensitivity rating of 84dB the IXS10.4S means that it efficiently converts power into sound, requiring less power to produce impressive volume levels.
Even with its shallow mount size, this subwoofer fits snug in compact spaces, requiring less box space than other subs of its size. The versatility it offers is unmatched, providing you with endless placement options. The 4-ohm impedance of the IXS10.4S allows for seamless integration with a wide range of car audio systems. Ensuring efficient power transfer from your amplifier, maximizing the IXS10.4S’s performance and bass response.
Get ready to feel the bass like never before with the DS18 IXS10.4S—where power meets precision, and excellence becomes the new standard.

SPECS

SKU: IXS10.4S

UPC: 810005184250
Nominal Diameter
10" / 254mm
Nominal Impedance
4 ohms
RMS Power Handling
600w
Maximum Power Handling
1200w
Sensitivity (1w/1m)
84 dB
Frequency Response
20 - 800 Hz
Recommended Lo Pass Crossover
90 Hz


MOTOR

Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Paper
Dust Cap Material
Fiberglass
Surround Material
Stitched rubber
Basket Material
Aluminum
Basket Color/Finish
Corrugated Black
Magnet Material
Ferrite
Magnet Weight
62 Oz
Displacement Volume
0.9L / 0.032ft3


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
20L / 0.7ft3
Free Air Resonance Fs
38 Hz
Mechanical Factor Qms
4.661
Electrical Factor Qes
0.691
Total Factor Qts
0.602
Moving Mass Mms
145.6
Compliance Cms
121.4 mm/N
Bl Factor BI
13.4
Voice Coil Inductance Le
4.58 MH
Diaphragm Area Sd
333.29 cm2
DC Resistance Re
3.6 ohms
Efficiency Bandwidth Product EBP
54.9


RECOMMENDED ENCLOSURES

Sealed Internal Volume (minimum)
14.2L / 0.5ft3
Sealed Box Output Response F3
44Hz


MEASUREMENT

Overall Diameter
10.63" / 270 mm
Overall Depth
4.48" / 114 mm
Front Mount Baffle Cutout
9.25" / 235 mm
Mounting Depth
3.66" / 93 mm
Motor Diameter
6" / 154 mm
Gross Single Unit Weight (lb)
15
Single Unit Box Dimensions W x L x H (Inches)
11.25 x 11.25 x 5.75
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
31
Master Carton Dimensions W x L x H (Inches)
12 x 12 x 12.5
