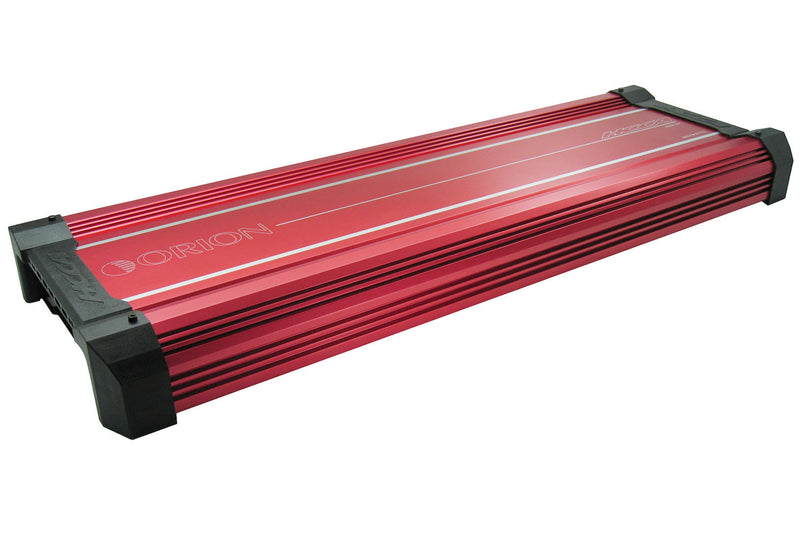

ORION HCCA4000.4H HCCA Series 4000W RMS 4-Channel Class-H Amplifier
ORION HCCA4000.4H HCCA Series 4000W RMS 4-Channel Class-H Amplifier
Unleash Unparalleled Audio Power and Precision
The ORION HCCA4000.4H HCCA Series 4000W RMS 4-Channel Class-H Amplifier is a testament to engineering excellence, delivering an extraordinary fusion of power, precision, and efficiency. Tailored for audiophiles who demand the pinnacle of sound quality, this amplifier redefines your audio experience, offering a level of sonic clarity and depth that surpasses expectations.
Elevate Your Audio Journey -
Embark on an unparalleled audio journey with the ORION HCCA4000.4H HCCA Series 4000W RMS 4-Channel Class-H Amplifier. Expertly designed and featuring advanced capabilities, this amplifier transforms your listening experience into a sonic masterpiece.
Uncompromising Sound Fidelity -
Rediscover your music with unmatched clarity and detail. From delicate harmonies to thunderous crescendos, every sonic element is faithfully reproduced.
Unmatched Power and Precision -
Experience a harmonious blend of power and precision that sets new standards. The ORION HCCA4000.4H HCCA Series Amplifier seamlessly merges commanding power with sonic accuracy, creating an audio journey that captivates the senses.
Elevate Your Drive -
Elevate your driving experience with the ORION HCCA4000.4H HCCA Series 4000W RMS 4-Channel Class-H Amplifier. Elevate your audio journey and embrace a level of sonic excellence that exceeds all expectations.
Â
Class-H Amplification - Experience the epitome of efficiency with Class-H amplification, delivering unmatched power and precision.
4000 Watts RMS - Immerse yourself in a sonic journey with a commanding 4000 Watts RMS, producing impactful and detailed sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring unwavering reliability.
Sleek and Stylish Design - The amplifier's sleek design seamlessly integrates into your audio setup, adding an element of sophistication to your system.
Engineered Excellence Meticulously engineered for optimal audio precision, power efficiency, and consistent performance.
All MOSFET Power Supply
Remote Gain Control
Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
Electronic Crossover Network
Bass Boost Circuitry
Tri-Mode Capable
High-Pass/Low-Pass Filter Control
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Balanced Input (CMRR)
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 600W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 1000W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 2000W
 POWER TERMINAL MANAGEMENT
 Positive Terminals: 1 x 0 AWG.
 Negative Terminals: 1 x 4 AWG.
 Remote Turn-ON Signal: 10 AWG.
 Speaker Output Terminals: 10 AWG.
- Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 350A recommended (not included)
- Dimensions (L x W x H): 27.95" x 11.89" x 3.15" (710x302x80mm)
