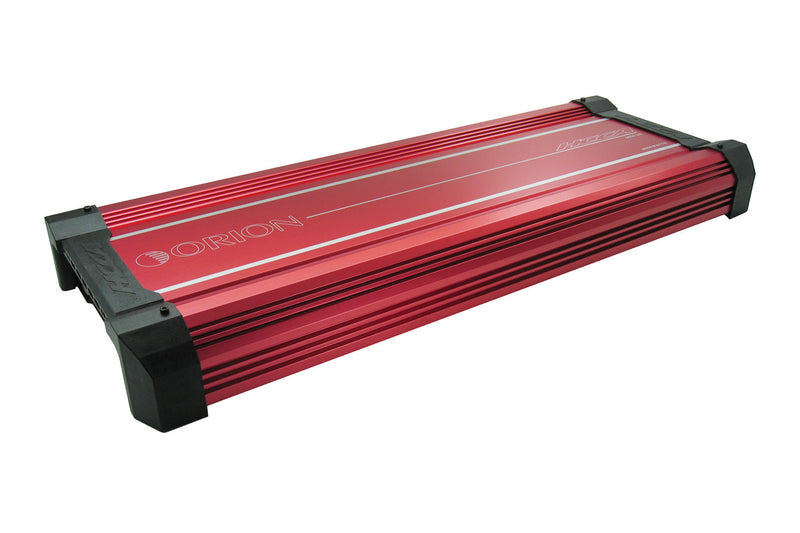

ORION HCCA3000.2H HCCA Series 3000W RMS 2-Channel Class-H Amplifier
ORION HCCA3000.2H HCCA Series 3000W RMS 2-Channel Class-H Amplifier
Unleash Audio Power and Precision with Class-H
The ORION HCCA3000.2H HCCA Series 3000W RMS 2-Channel Class-H Amplifier stands as a testament to engineering excellence, offering a blend of power, precision, and efficiency. Crafted for audiophiles who demand the finest audio quality, this amplifier elevates your audio experience to astonishing heights.
Elevate Your Audio Journey
Step into a realm of audio grandeur with the ORION HCCA3000.2H HCCA Series 3000W RMS 2-Channel Class-H Amplifier. Meticulously designed and equipped with advanced features, this amplifier transforms your listening experience into an auditory masterpiece.
Uncompromising Sound Quality
Rediscover your music with unmatched clarity and detail. From the gentlest notes to the most dynamic peaks, every aspect of your audio is faithfully reproduced.
Power and Precision Redefined
Experience an exceptional fusion of power and precision. The ORION HCCA3000.2H HCCA Series Amplifier seamlessly combines potent power with sonic accuracy, creating an audio journey that resonates deeply.
Elevate Your Drive
Elevate your driving experience with the ORION HCCA3000.2H HCCA Series 3000W RMS 2-Channel Class-H Amplifier. Elevate your audio journey, and embrace a level of sonic excellence that surpasses expectations.
Features:
Class-H Amplification - Experience the cutting-edge efficiency of Class-H amplification, delivering unparalleled power and precision.
3000 Watts RMS - Immerse yourself in an auditory adventure with 3000 Watts RMS, producing commanding and detailed sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier ensures longevity by safeguarding against overheating and short circuits.
Compact and Stylish Design - The amplifier's sleek design seamlessly integrates into your audio setup, adding visual appeal without sacrificing performance.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast performance.
All MOSFET Power Supply
Remote Gain Control
Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
Electronic Crossover Network
Bass Boost Circuitry
Tri-Mode Capable
High-Pass/Low-Pass Filter Control
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Balanced Input (CMRR)
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 900W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 1500W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 3000W
POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
Specifications:
- Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 250A recommended (not included)
- Dimensions (L x W x H): 24.02" x 11.89" x 3.15" (610x302x80mm)
UPC: 818550010659
