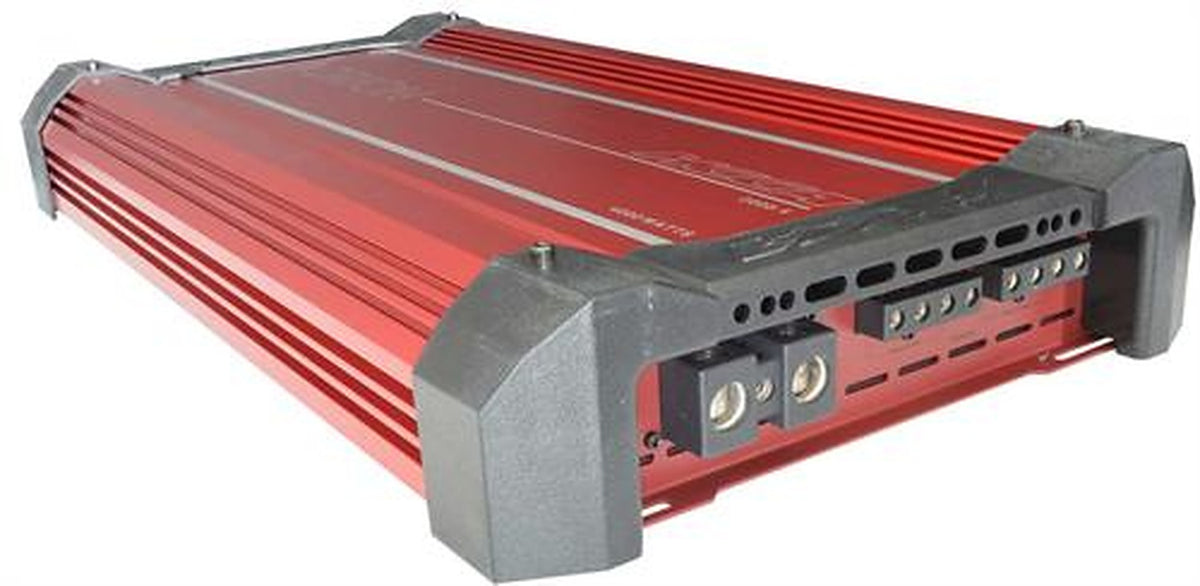

ORION HCCA2000.5 HCCA Series 2000W RMS 5-Channel Class-AB/D Amplifier

Unleash Powerful Audio: 2000 Watts RMS ensures a dynamic and immersive audio experience for superior sound performance. Class-AB/D Technology: Combines the efficiency of Class D with the sound quality of Class AB, optimizing your audio system. Advanced Audio Customization: Features a built-in adjustable crossover, bass boost, and high/low pass filters for precise sound control. Durable and Reliable: Equipped with 4-way protection, including thermal, short circuit, and under/over voltage safeguards. Optimized Audio Control: Tri-mode capability and electronic crossover network enhance speaker performance and system versatility. Efficient Power Management: MOSFET power supply and superior power terminal management for consistent, high-quality performance.

Features:

All MOSFET Power Supply
Remote Gain Control
Heavy Gauge Direct-WireHigh Current Power and Speaker Terminals
Electronic Crossover Network
Bass Boost Circuitry
Tri-Mode Capable
High-Pass/Low-Pass Filter Control
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Balanced Input (CMRR)
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

What's in the Box:

(1) Orion 5-Channel 2000 Watts RMS Class AB/D HCCA Series Amplifier

Power Ratings:

RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x TBD + 1 x TBD

RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x TBD + 1 x TBD

RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x TBD + 1 x TBD

Power Terminal Management:

Positive Terminals: 1 x 0 AWG.

Negative Terminals: 1 x 4 AWG,

Remote Turn-ON Signal: 10 AWG.

Speaker Output Terminals: 10 AWG.

Specifications:

Frequency Response 10Hz to 35kHz +/- 1 dB

Linear Bandwidth 20Hz to 65kHz +/- 3 dB

High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)

Low Pass Crossover Continuously variable (40-300Hz)

Phase shift control 0 to 180

Bass Boost 0-18dB variable

Distortion at Rated Power 0.005% THD+N

Damping Factor > 100

Input Sensitivity(RMS) 200mV to 6V

Supply Voltage Range 9 to 16V

Input Impedance 20K Ohms

Amplifier Efficiency > 67% into 2 Ohms load at max. power

SNR at rated output power and lowest impedance > 95dB

Fuses: 200A recommended (not included)

Dimensions (L x W x H): TBD" x 11.89" x 3.15" (TBDx302x80mm)
