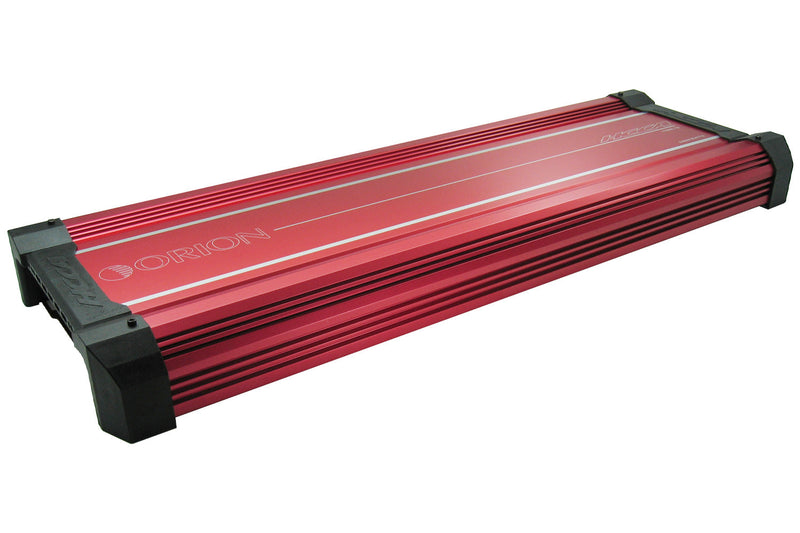

ORION HCCA17000.1DSPLX HCCA Series 17000W RMS 1-Channel Class-D Amplifier

Out of stock
SKU: HCCA17000.1DSPLX
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $2,799.95 USD

ORION HCCA17000.1DSPLX HCCA Series 17000W RMS 1-Channel Class-D Amplifier

Unleash Unprecedented Power and Sonic Excellence
ORION HCCA17000.1DSPLX HCCA Series 17000W RMS 1-Channel Class-D Amplifier redefines the limits of power and sonic excellence in car audio. Designed for audio purists and enthusiasts who demand the pinnacle of performance, this amplifier elevates your audio experience to extraordinary heights.

Unleash Auditory Excellence
Elevate your audio journey with the ORION HCCA17000.1DSPLX HCCA Series 17000W RMS 1-Channel Class-D Amplifier. Crafted with precision engineering and advanced features, this amplifier redefines power and accuracy, delivering an auditory experience that resonates profoundly.

Immersive Sound Reproduction
Rediscover your music in its purest form. Every note, beat, and melody – from the softest to the most intense – is meticulously reproduced for an immersive and authentic listening experience.

Unprecedented Power and Sonic Excellence
Experience your music with unprecedented power and sonic excellence. The ORION HCCA17000.1DSPLX HCCA Series Amplifier seamlessly merges colossal power with exceptional audio quality, creating a sonic masterpiece that leaves a lasting impression.

Elevate Your Drive
Step into the realm of unparalleled power with the ORION HCCA17000.1DSPLX HCCA Series 17000W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical grandeur. It's time to embrace sound in its purest form.



Class D Amplification - Experience the zenith of efficiency and power with Class D amplification, delivering unmatched and precise sound reproduction.
17000 Watts RMS - Immerse yourself in a world of unparalleled audio power with 17000 Watts RMS, delivering commanding and precise sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12/24dB / Octave Low-Pass Filter
Remote Gain Controller Included
Low-Level and High-Level Balanced Input
Infrasonic Filter
Concealed Controls Under Locking Top Panel Orion Patented ESP®
Digitally Programmed Input Voltage for Fast, Accurate System Setup
Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage


- RMS Power @ 4 Ohms @ 0.5% THD+N: 6000W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 10500W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 17500W
- Linked with identical Amplifier
  RMS Power @ 2 Ohms @ 0.5% THD+N: 35000W

 POWER TERMINAL MANAGEMENT
  Positive Terminals: 3 x 0 AWG.
  Negative Terminals: 3 x 0 AWG.
  Remote Turn-ON Signal: 10 AWG.
  Speaker Output Terminals: 4 AWG.


- Frequency Response: 15Hz - 250Hz
- Low Pass Crossover: 40Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >88%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Input Impedance: 24K Ohms
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 40Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 1500A recommended (not included)
- Dimensions (L x W x H): 37.79" x 11.89" x 3.15" (960x302x80mm)
