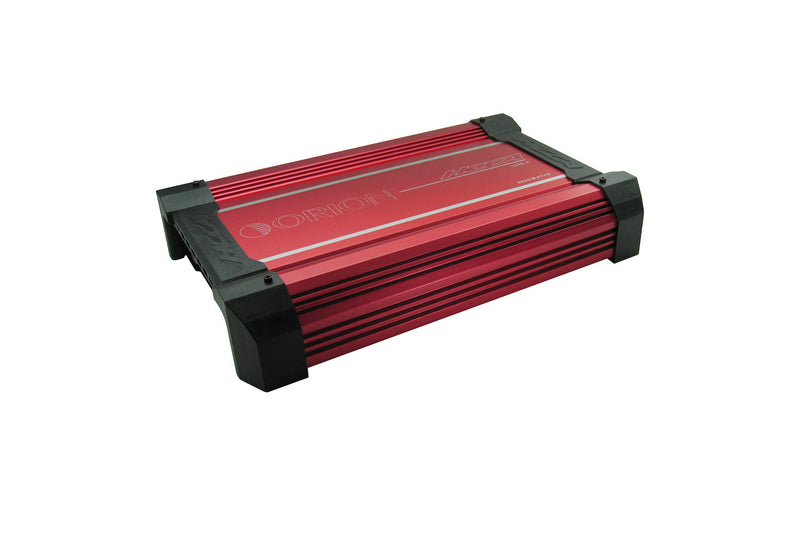

ORION HCCA1500.4 HCCA Series 1500W RMS 4-Channel Class-AB Amplifier
ORION HCCA1500.4 HCCA Series 1500W RMS 4-Channel Class-AB Amplifier
Experience the harmonious combination of Class-AB amplification, merging the efficiency of Class B with the sound quality of Class A for a remarkable sonic journey. Immerse yourself in a world of audio prowess with 1500 Watts RMS, delivering impactful and nuanced sound performance. The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes. Equipped with protection circuitry, the amplifier ensures reliability by safeguarding against overheating and short circuits. The amplifier's sleek design seamlessly integrates into your audio setup, adding elegance without compromising on performance. Meticulously engineered for optimal audio precision, power efficiency, and consistent performance.
Features:
- All MOSFET Power Supply
- Remote Gain Control
- Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
- Electronic Crossover Network
- Bass Boost Circuitry
- Tri-Mode Capable
- High-Pass/Low-Pass Filter Control
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off
- Balanced Input (CMRR)
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 250W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 375W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 750W
Power Terminal Management:
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
Specifications:
Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 150A recommended (not included)
- Dimensions (L x W x H): 17.32" x 11.89" x 3.15" (440x302x80mm)
UPC: 818550010680
