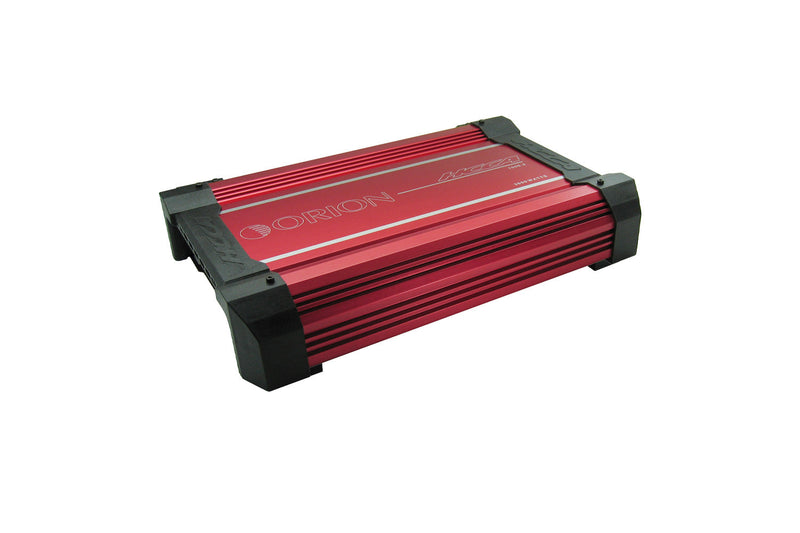

ORION HCCA1500.2 HCCA Series 1500W RMS 2-Channel Class-AB Amplifier
ORION HCCA1500.2 HCCA Series 2-channel Class-AB amplifier is built for serious car audio systems that need strong output, clean control, and reliable performance. With up to 1500W RMS bridged power, this amplifier is made for users who want powerful speaker or subwoofer performance without sacrificing sound quality.
Designed with an all-MOSFET power supply, electronic crossover network, remote gain control, bass boost, balanced input, and advanced protection monitoring, the HCCA1500.2 gives you the strength and tuning flexibility needed for high-performance builds. Whether you are powering loud mids, strong components, or a bridged subwoofer setup, this amplifier delivers precision, durability, and serious Orion power.
Features
1500W RMS Power Output
Delivers up to 1500W RMS when bridged at 4 ohms, giving your system the power needed for strong, dynamic sound.
2-Channel Class-AB Amplification
Combines the sound quality benefits of Class-A design with the efficiency of Class-B operation for clean and powerful performance.
All MOSFET Power Supply
Provides stable current flow, improved efficiency, and reliable output during demanding listening conditions.
Remote Gain Control Included
Allows quick adjustment of amplifier level from the driver’s seat for better control over bass or system output.
Electronic Crossover Network
Built-in crossover control helps fine-tune your speakers or subwoofers for cleaner frequency separation.
High-Pass and Low-Pass Filter Control
Gives you flexible tuning options for mids, highs, or subwoofer applications.
Variable Bass Boost
Adjustable 0 to 18dB bass boost helps add extra low-frequency impact when needed.
Tri-Mode Capable Design
Supports flexible wiring configurations for custom system setups.
Balanced Input with CMRR
Helps reduce unwanted noise and improves signal clarity for cleaner playback.
Soft Turn-On and Turn-Off
Reduces unwanted pops and stress during amplifier startup and shutdown.
Advanced Protection System
Includes 4-way protection against thermal issues, DC offset, short circuits, under-voltage, and over-voltage.
Power and Protection LED Indicators
Makes it easy to monitor amplifier status during installation and operation.
Power Ratings
| Power Rating | Output |
|---|---|
| RMS Power at 4 Ohms, 0.5% THD+N | 2 × 500W |
| RMS Power at 2 Ohms, 0.5% THD+N | 2 × 750W |
| Bridged RMS Power at 4 Ohms, 0.5% THD+N | 1 × 1500W |
Terminal Management
| Terminal Type | Details |
| Positive Power Terminal | 1 × 0 AWG |
| Negative Power Terminal | 1 × 4 AWG |
| Remote Turn-On Signal | 10 AWG |
| Speaker Output Terminals | 10 AWG |
Specifications
| Specification | Details |
| Model | HCCA1500.2 |
| Brand | ORION |
| Series | HCCA Series |
| Amplifier Type | 2-Channel |
| Amplifier Class | Class-AB |
| Frequency Response | 10Hz to 35kHz, ±1dB |
| Linear Bandwidth | 20Hz to 65kHz, ±3dB |
| High-Pass Crossover | Continuously Variable, 40Hz to 1.25kHz / 400Hz to 12.5kHz |
| Low-Pass Crossover | Continuously Variable, 40Hz to 300Hz |
| Phase Shift Control | 0 to 180 Degrees |
| Bass Boost | 0 to 18dB Variable |
| Distortion at Rated Power | 0.005% THD+N |
| Damping Factor | >100 |
| Input Sensitivity RMS | 200mV to 6V |
| Supply Voltage Range | 9V to 16V |
| Input Impedance | 20K Ohms |
| Amplifier Efficiency | >67% into 2 Ohms Load at Max Power |
| Signal-to-Noise Ratio | >95dB at Rated Output Power and Lowest Impedance |
| Recommended Fuse Rating | 150A, Not Included |
| Dimensions | 15.75 × 11.89 × 3.15 in |
| Dimensions Metric | 400 × 302 × 80 mm |
| UPC | 818550010635 |
Why Choose the ORION HCCA1500.2?
ORION HCCA1500.2 is a strong choice for car audio users who want high output, detailed tuning, and dependable protection in one amplifier. Its Class-AB design gives your system clean sound character, while the 1500W RMS bridged rating provides the power needed for demanding audio builds.
From its heavy-gauge direct-wire terminals to its crossover controls, bass boost, remote gain control, and fault monitoring system, the HCCA1500.2 is built for serious performance. It is ideal for drivers who want louder, cleaner, and more controlled sound from an amplifier trusted for high-power car audio setups.
