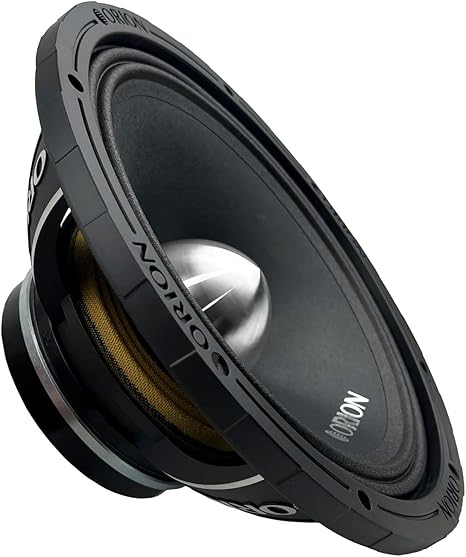

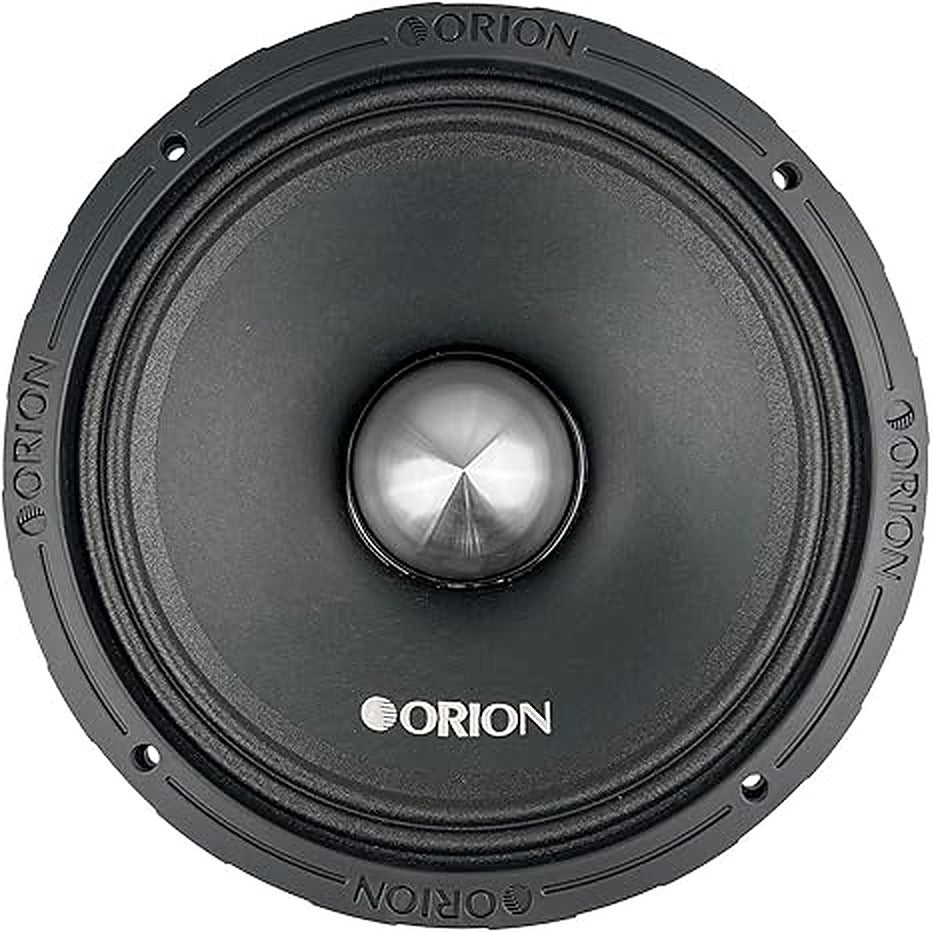

Orion HCCA104N 10” 4 Ohm Neodymium Midrange Speaker – 550W RMS High Output Pro Audio
Experience louder vocals, cleaner mids, and competition-level performance with the Orion HCCA104N 10" Neodymium Midrange Speaker. Engineered for high-output car audio systems, it delivers powerful 550W RMS handling, exceptional clarity, and dynamic sound that cuts through even the loudest setups. The lightweight neodymium motor, bullet phase plug, and cast aluminum basket work together to maximize efficiency, reduce distortion, and keep your music sounding crisp at any volume. Perfect for SPL builds, pro audio systems, and serious car audio enthusiasts seeking extreme output and unmatched midrange detail.
Features:
- 550W RMS / 2200W Peak Power – Delivers extreme output and dynamic sound for serious car audio builds.
- High-Efficiency Neodymium Motor – Lightweight design with massive output, stronger sensitivity, and louder performance.
- Bullet Phase Plug Technology – Enhances vocal clarity, improves sound dispersion, and reduces distortion at high volume.
- Cast Aluminum Basket Construction – Minimizes resonance and vibration for cleaner, more accurate sound reproduction.
- Wide 105Hz–12kHz Frequency Response – Produces powerful vocals, detailed instruments, and exceptional midrange accuracy.
Specifications:
Speaker Size: 10 (Inches)
Voice Coil Configuration: 4 ohm
Power Handling (Peak): 2200 Watts
Power Handling (RMS): 550 Watts
Sensitivity: 101.3 dB
Frequency Response: 105 Hz - 12 kHz
Voice Coil Diameter: 3" (Inches)
Speaker Quantity 1 Speaker
Material: Cast Basket
Cone Material: Non Pressed Paper
Phase Plug Material: Billet Aluminum
Magnet Information: Neodymium
Grill Included: No
Mounting Depth: 99mm / 3.9 (Inches)
Overall Depth: 111mm / 4.37 (Inches)
Cutout Diameter: 234mm / 9.21 (Inches)
Overall Diameter: 260mm / 10.24 (Inches)
UPC: 818550011113
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Clarity Where You Actually Hear It
Speakers Tuned for the Road, Not a Showroom
Clear Mids and Highs
Cone and dome materials are chosen to stay clean at volume, so vocals cut through road noise.
Handles Real Power
RMS is the number that matters day to day. Match it to your amplifier channel for headroom without strain.
Check the Fit
Mounting diameter and depth vary by vehicle. Compare the listed dimensions with your door, pod or panel first.
Crossover and Placement
Setting the right crossover point and aiming keeps highs smooth instead of harsh.
