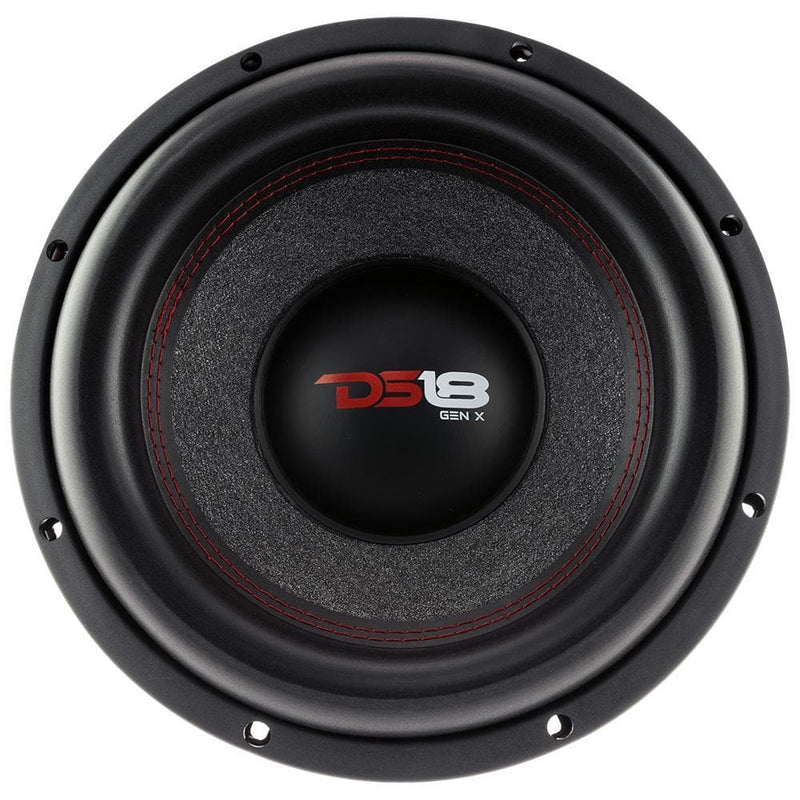

DS18 DS-GEN-X104D GEN-X 10 Inch Subwoofer 800 Watts Dvc 4-Ohm DS18
Introducing the GEN-X subwoofers at 4 ohm configurations in 10 inch, 12 inch, and 15 inch. With powers ranging from 400-500 watts RMS, these subwoofers will provide high-quality, provoking resonation for anyone seeking a powerful bass.
DETAILS:
- Model: GEN-X104D
- Type: Subwoofer
- Size: 10 inch
- RMS Power: 400W
- MAX Power: 800W
- Impedance: 4 + 4
- Voice Coil Size: 2 inch
- Magnet: Ferrite
- Magnet Size: 66 oz
- Frequency Response: 25Hz - 6KHz
MATERIALS:
- Frame: Steel Basket
- Cone: Paper with Glass Fiber
- Surround: Foam Edge
- Voice Coil Former Material: Black Aluminum
DIAMETERS:
- Mounting Cut-Out: 9.21 inch (234mm)
- Mounting Depth: 5.39 inch (137mm)
- Overall Diameter: 10.24 inch (260mm)
- Net Weight: 6kg
SPECIFICATIONS:
| SERIES | Gen-X Series |
| SOLD AS | Piece |
| WARRANTY | 1 Year Warranty |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| YOUTUBE VIDEO | https://youtu.be/DoSwCJgBNdY |
| VEHICLE TYPE | Marine|Jeep|Car|Truck/SUV |
| BRAND | DS18 |
| UPC | 663593056689 |
| WATT | 800 Watts |
| OHM | 4 ohm |
| DIM LENGTH | 11.25 |
| DIM WIDTH | 11.25 |
| DIM HEIGHT | 7.25 |
| DIM UNIT | in |
| WEIGHT | 13.5 |
| WEIGHT UNIT | lb |
