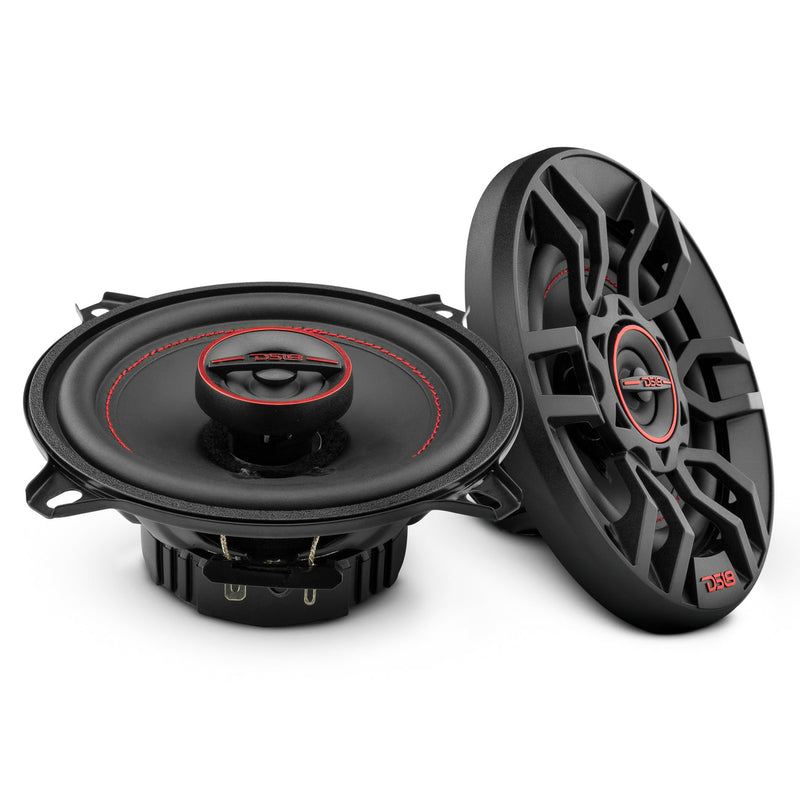

DS18 GEN-X 5.25" 2-Way Coaxial Speakers 45 Watts Rms 4-Ohm

Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last
Regular price $50.95 USD
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last



  • 5.25" 2-Way Coaxial
  • MAX Power: 135 Watts
  • RMS Power: 45 Watts
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnets
  • Grills Included

DS18 G5.25XI


2-Way Coaxial Speakers 135 Watts 4-Ohm

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

The G5.25Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G5.25Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G5.25Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 50Hz.

These speakers get loud extremely easily with a MAX Power Handling of 135W and RMS Power Handling of 45W.

Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G5.25Xi will deliver. Order yours today and take the first step towards audio perfection on the road.



SPECS

SKU
G5.25XI
Nominal Diameter
5.25" / 133mm
Nominal Impedance
4 Ohms
RMS Power Handling
45W
Maximum Power Handling
135W
Sensitivity (1w/1m)
84dB
Frequency Response
50Hz-20KHz
Recommended HI Pass Crossover
80Hz
Number of ways
2
Pair or single
Pair
Grill Included
Yes


WOOFER SPECS

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
6.3Oz / 180g


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
3.66L / 0.129ft3
Excursion (one way) Xmax
2.2mm
Free Air Resonance Fs
86Hz
Mechanical Factor Qms
3.5
Electrical Factor Qes
1.63
Total Factor Qts
1.1
Moving Mass Mms
9.15g
Compliance Cms
330mm/N
Bl Factor Bl
3.4
Voice Coil Inductance Le
151uH
Cone Area Sd
84.5cm2
DC Resistance Re
3.7 Ohms
Mechanical Mass w/o air Mmd
8.3g


TWEETER SPECS

Nominal Diameter
1" / 25.5mm
Voice Coil Diameter
0.5" / 13.25mm
Voice Coil Former Material
ASV
Winding Material
EISVM
Diaphragm Material
Mylar
Magnet Material
Neodymium
Magnet Weight
1.8g


MEASUREMENTS

Overall Diameter
5.13" / 130.4mm
Overall Depth
2.47" / 62.8mm
Overall Diameter with Grill
6.38" / 162mm
Overall Depth with Grill
2.75" / 69.8mm
Front Mount Baffle Cutout
4.52" / 115mm
Mounting Depth
1.97" / 50mm
Motor Diameter
3" / 76mm
Tweeter Protrusion
0.5" / 12.8mm
Gross Single Unit Weight
0.52 KG
Single Unit Box Dimensions W x L x H
185 x 85 x 325mm
Quantity of Units in Master Carton
10 PRS/CTN
Gross Master Carton Weight
14 KG
Master Carton Dimensions W x L x H
450 x 340 x 390mm
UPC: 663593063977

Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.

Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.

1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.

Customer Support : 9:00 am to 5:00 pm

Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States

Email: info@eliteautogear.com

Phone: (877)-215-8187
