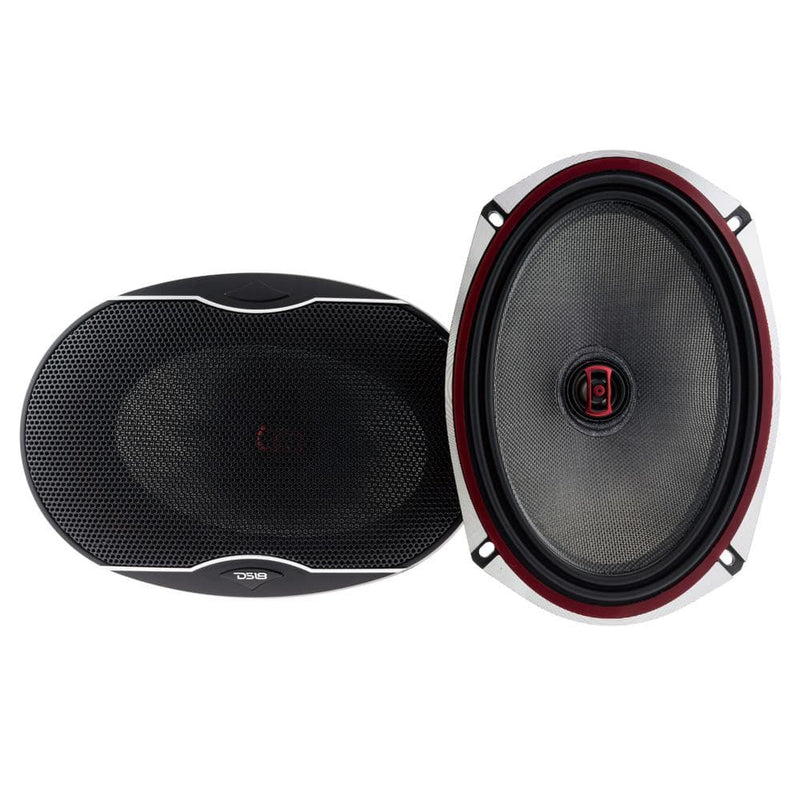

DS18 DS-EXL-SQ6.9 EXL 6x9 Inch 2-Way Coaxial Speaker W/ Fiber Glass Cone 560 Watts 3-Ohm DS18
When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors.
EXL SQ Coaxial Speaker brings it all with black glass fiber cone, advanced PEI dome tweeter, NEO magnets, die-cast baskets, 1 inch BASV voice coils, 3 OHMS impedance strontium-magnets and machine finished basket surrounds.
DETAILS:
- Model: EXL-SQ6.9
- Type: Coaxial
- Size: 6x9 inch
- RMS Power: 160W
- MAX Power: 560W
- Frequency Response: 55-22KHz
- Impedance: 3 ohm
- Sensitivity: 90dB
MATERIALS:
- Surround: Rubber Edge
- Cone: Black Glass Fiber
- Magnet: Strontium
- Voice Coil Wire: BASV
DIAMETERS:
- Voice Coil Size: 1.3 inch (32.88mm)
- Magnet Size: 3.94x1.77x0.7 Y30 (19.88 oz)
- Tweeter Size: 1.14 inch PEI Dome
SPECIFICATIONS:
| SERIES | Exclusive Series |
| SOLD AS | Pair |
| WARRANTY | 1 Year Warranty |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| YOUTUBE VIDEO | https://youtu.be/DoSwCJgBNdY |
| VEHICLE TYPE | Marine|Jeep|Car|Truck/SUV |
| BRAND | DS18 |
| UPC | 95225337611.0 |
| WATT | 560 Watts |
| OHM | 3 ohm |
| STYLE | 2 Way |
| DIM LENGTH | 16.5 |
| DIM WIDTH | 11.25 |
| DIM HEIGHT | 5.0 |
| DIM UNIT | in |
| WEIGHT | 8.5 |
| WEIGHT UNIT | lb |
