Elite Audio Enclosures | GMC Sierra / Chevrolet Silverado Crew Cab 2019+ Dual 12" Ported - USA Made Subwoofer Box with Bed Liner Spray Finish

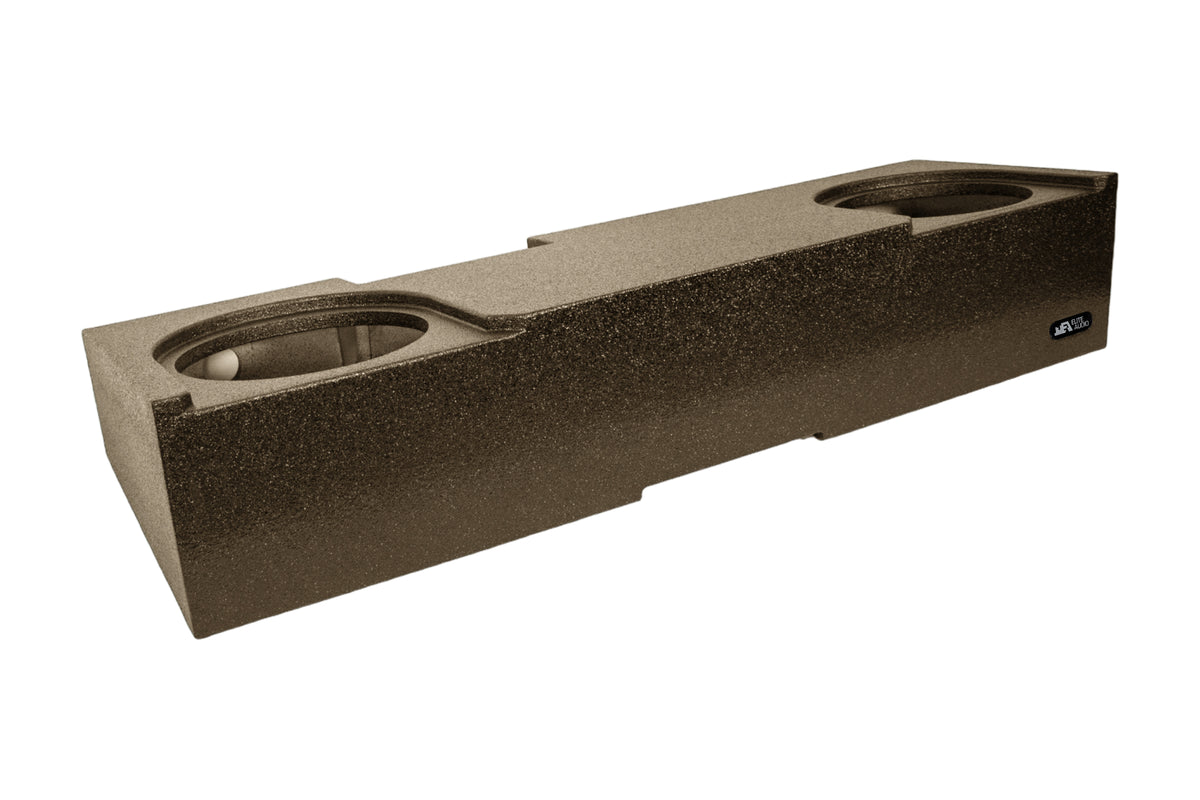

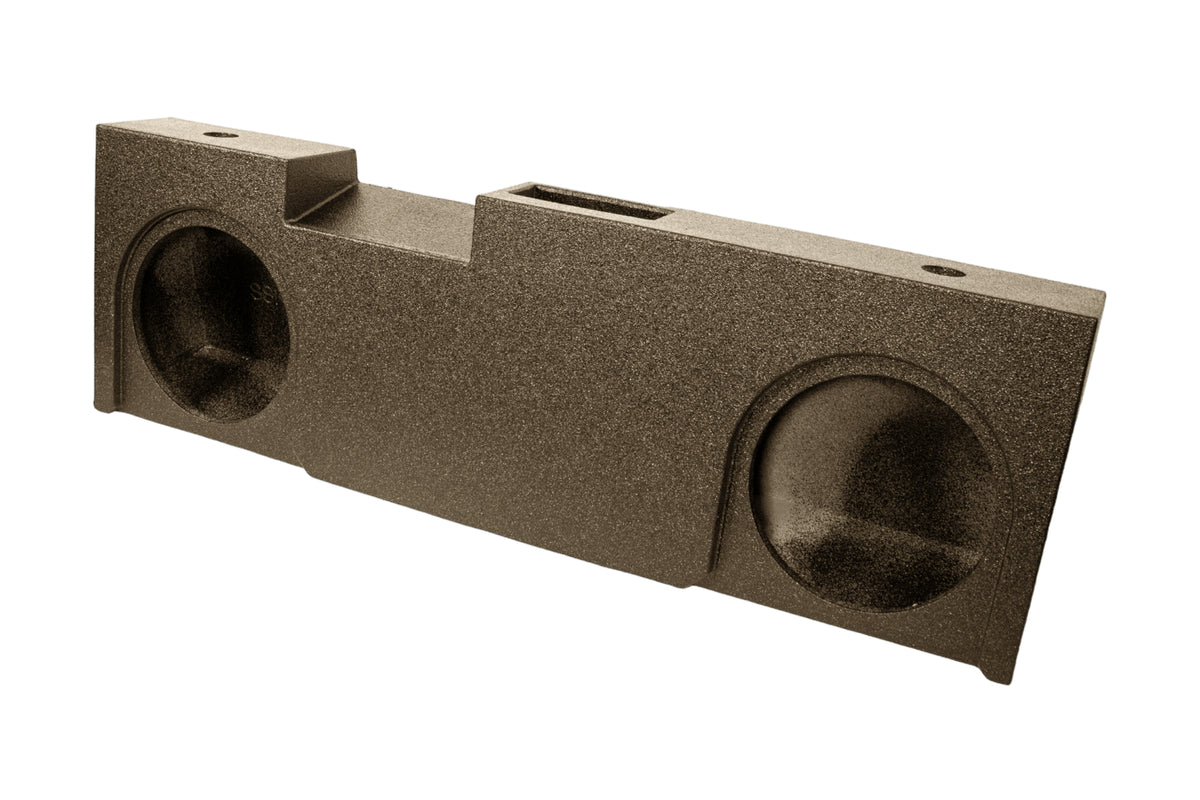

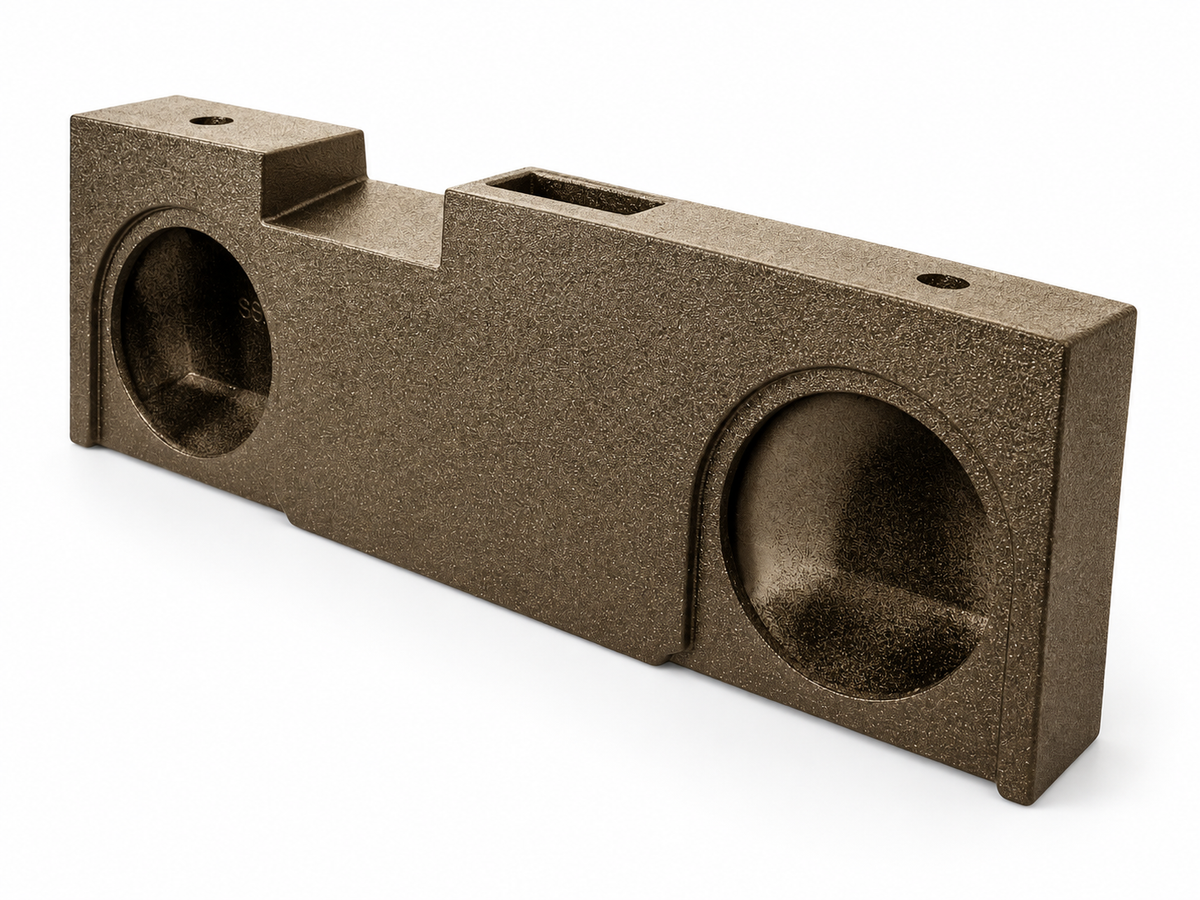

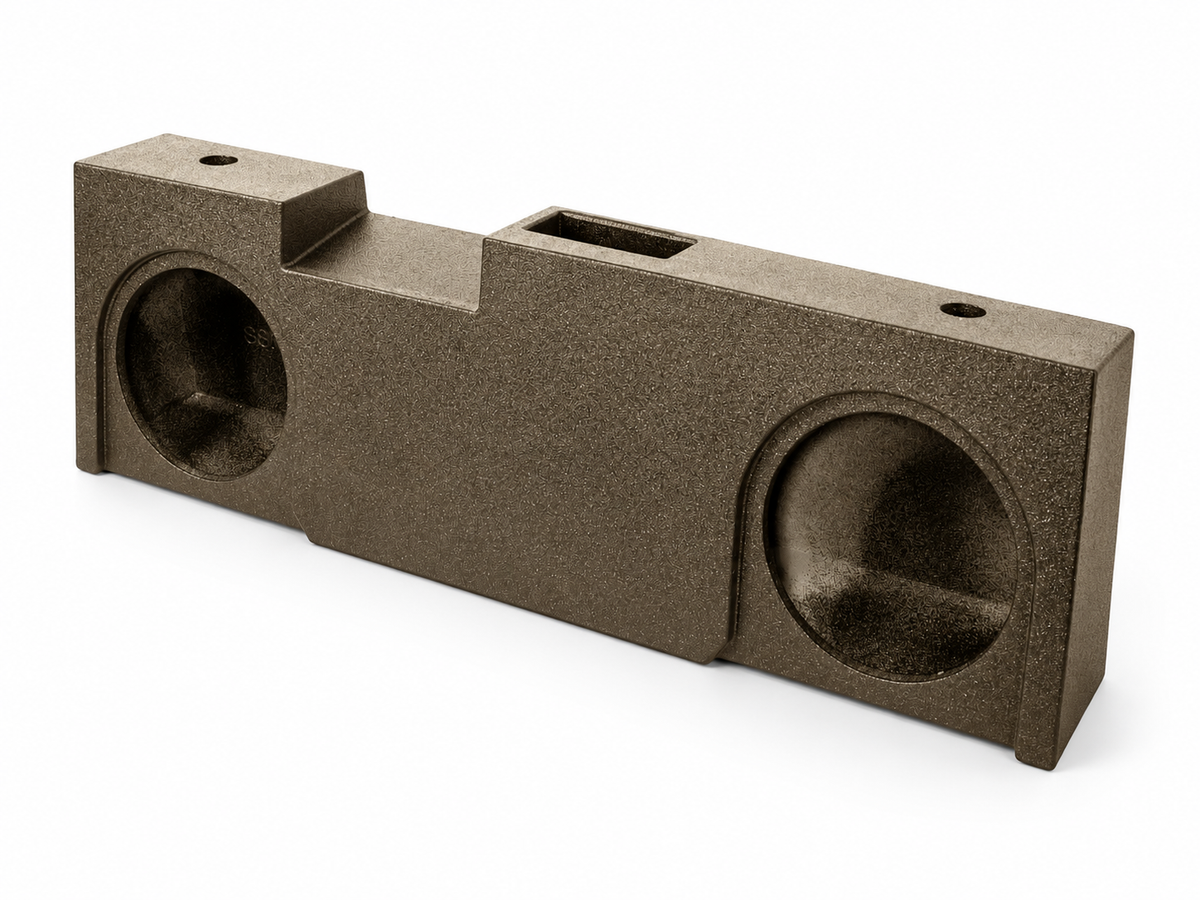

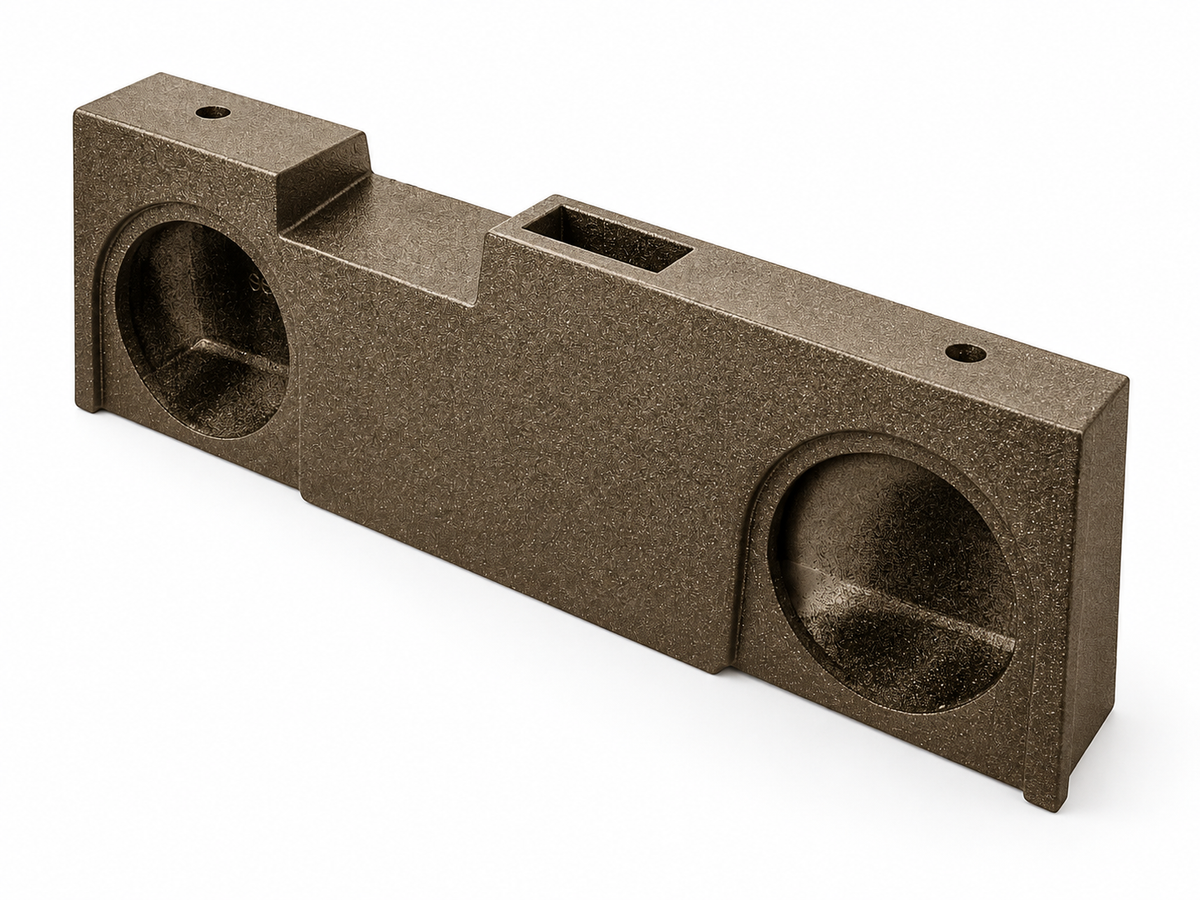

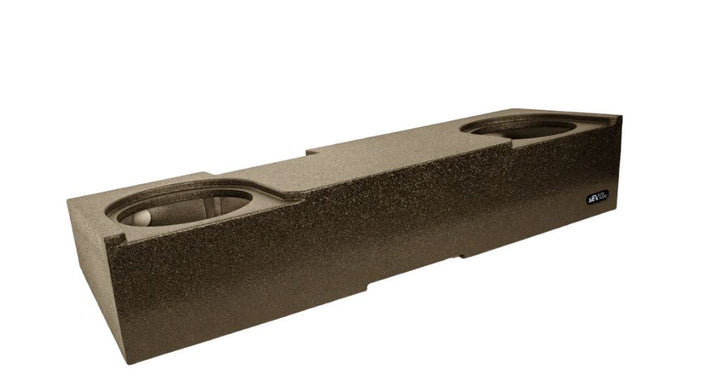

Elite Audio Dual 12” Ported Down Fire and Up Fire Enclosures for 2019+ GM Crew Cabs. Available in Kicker and JLTW3 Subwoofer specific options. Each Elite Audio box is coated with a durable bed liner polymer spray to enhance its longevity. These USA-made enclosures are constructed from high-grade, full 3/4" MDF, ensuring robustness and exceptional sound quality.
EAG-P212SG5C Dimensions: Width: 49", Front Height: 10.5", Rear Height: 6.5", Height: 10.5", Bottom Depth: 15.5", Top Depth: 15.5", Depth: 15.5", Mounting Depth: 7", Cutout Diameter: 11.125", Weight: 41 LBS, Air Space per Cubic Foot: 1 Per Chamber
EAG-P212PG5CU Dimensions: Width: 52.25", Front Height: 10.25", Rear Height: 6.5", Height: 6.5", Bottom Depth: 17", Top Depth: 17", Depth: 17", Mounting Depth: 8", Cutout Diameter: 11.125", Weight: 50 LBS, Air Space per Cubic Foot: 1 Per Chamber, Tuning Frequency: 41Hz
EAG-P212PG5CUK Dimensions: Width: 52.25", Front Height: 10.25", Rear Height: 6.5", Height: 10.5", Bottom Depth: 17", Top Depth: 17", Depth: 17", Mounting Depth: 8", Cutout Diameter: 11.125", Weight: 50 LBS, Air Space per Cubic Foot: 1 Per Chamber, Tuning Frequency: 30Hz
EAG-P212PG5CJ Dimensions: Width: 52.25", Front Height: 10.25", Rear Height: 6.5", Height: 10.5", Bottom Depth: 17", Top Depth: 17", Depth: 17", Mounting Depth: 8", Cutout Diameter: 11.625", Weight: 50 LBS, Air Space per Cubic Foot: 1 Per Chamber, Tuning Frequency: 40Hz
DISCLAIMER: All Elite Audio Enclosures are custom-made. Enclosure orders cannot be discounted, canceled, or modified once placed. ALL SALES ARE FINAL. Please double-check dimensions to ensure fitment for your vehicle and subwoofers before purchasing. You have 30 days to claim any shipping damages. Subwoofers not included.
| Feature | Details |
|---|---|
| Model | EAG‑P212SG5C / EAG‑P212PG5CU / EAG‑P212PG5CUK / EAG‑P212PG5CJ |
| Configuration | Dual 12″ Ported Down-Fire (SG) / Ported Down & Up-Fire (PG variants) |
| Cutout Diameter | 11.125″ (SG, PG) / 11.625″ (CJ) |
| Dimensions (W × H × D) | SG: 49″ × 10.5″ × 15.5″; PG variants: 52.25″ × (10.25–10.5)″ × 17″ |
| Air Space | 1.0 ft³ per chamber |
| Mounting Depth | SG: 7″; PG: 8″ |
| Weight | SG: 41 lbs; PG variants: 50 lbs |
| Tuning Frequency | SG: — ; PG5CU: 41 Hz; PG5CUK: 30 Hz; PG5CJ: 40 Hz |
| Construction | ¾″ MDF with ¾″ front baffle; polyurethane bed-liner finish |
| Compatibility | 2019+ GM Sierra / Silverado Crew Cab; Kicker & JL TW3 specific kits |
| Country of Origin | USA |
| UPC | N/A |
