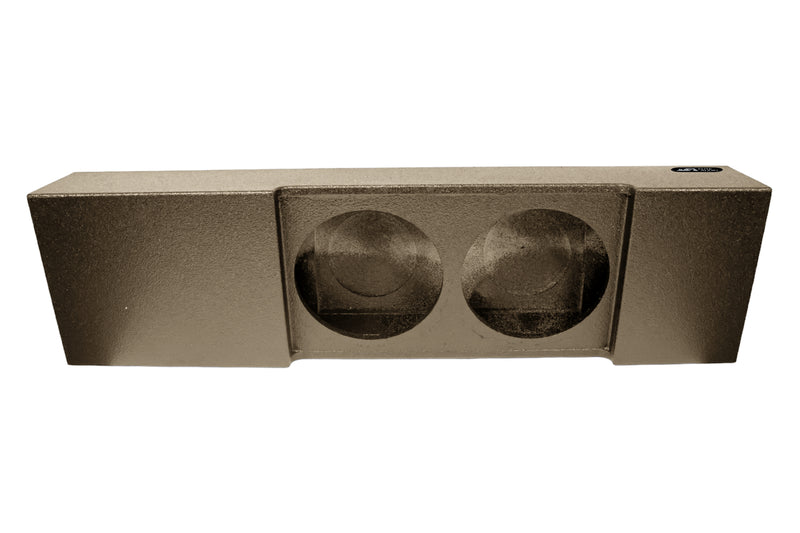

Elite Audio Enclosures | Ford F-150 Crew Cab 2009+ Dual 12" Deluxe - USA Made Subwoofer Box with Bed Liner Spray Finish
Elite Audio Dual 12” Sealed and Ported Deluxe Downfire Ford Enclosures fit Crew Cabs 2009+. Deluxe options offer additional airspace for powerful subwoofers. They enclosures also come in Kicker and JLTW3 Subwoofer specific options. These enclosures also come in Kicker and JLTW3 Subwoofer specific options. Each Elite Audio box is coated with a durable bed liner polymer spray to enhance its longevity. These USA-made enclosures are constructed from high-grade, 3/4" MDF, ensuring robustness and exceptional sound quality.
EAG-P212SF3CD Dimensions: Width: 55", Front Height: 9.25", Rear Height: 6", Height: 9.25", Bottom Depth: 15", Top Depth: 15", Depth: 15", Mounting Depth: 5.75", Cutout Diameter: 11.125", Weight: 46 LBS, Air Space per Cubic Foot: 1 Per Chamber
EAG-P212SF3CDK Dimensions: Width: 55", Front Height: 9.25", Rear Height: 6", Height: 9.25", Bottom Depth: 15", Top Depth: 15", Depth: 15", Mounting Depth: 5.75", Cutout Diameter: 11.125", Weight: 46 LBS, Air Space per Cubic Foot: 1 Per Chamber
EAG-P212SF3CDJ Dimensions: Width: 55", Front Height: 9.5", Rear Height: 6", Height: 9.5", Bottom Depth: 15.5", Top Depth: 15.5", Depth: 15.5", Mounting Depth: 3.25", Cutout Diameter: 11.625", Weight: 41 LBS, Air Space per Cubic Foot: 1 Per Chamber
EAG-P212PF3CD Dimensions: Width: 55", Front Height: 9.25", Rear Height: 6", Height: 9.25", Bottom Depth: 15", Top Depth: 15", Depth: 15", Mounting Depth: 5.75", Cutout Diameter: 11.125", Weight: 46 LBS, Air Space per Cubic Foot: 1, Tuning Frequency: 38Hz Per Chamber
EAG-P212PF3CDK Dimensions: Width: 55", Front Height: 9.5", Rear Height: 6", Height: 9.5", Bottom Depth: 15.25", Top Depth: 15.25", Depth: 15.5", Mounting Depth: 4.25", Cutout Diameter: 11.125", Weight: 40 LBS, Air Space per Cubic Foot: 1 Per Chamber
DISCLAIMER: All Elite Audio Enclosures are custom-made. Enclosure orders cannot be discounted, canceled, or modified once placed. ALL SALES ARE FINAL. Please double-check dimensions to ensure fitment for your vehicle and subwoofers before purchasing. You have 30 days to claim any shipping damages. Subwoofers not included.
| Specification | EAG-P212SF3CD | EAG-P212SF3CDK | EAG-P212SF3CDJ | EAG-P212PF3CD | EAG-P212PF3CDK |
|---|---|---|---|---|---|
| UPC | NA | NA | NA | NA | NA |
| Mounting Depth | 5.75″ | 5.75″ | 3.25″ | 5.75″ | 4.25″ |
| Cutout Diameter | 11.125″ | 11.125″ | 11.625″ | 11.125″ | 11.125″ |
| Width | 55″ | 55″ | 55″ | 55″ | 55″ |
| Front Height | 9.25″ | 9.25″ | 9.5″ | 9.25″ | 9.5″ |
| Rear Height | 6″ | 6″ | 6″ | 6″ | 6″ |
| Height | 9.25″ | 9.25″ | 9.5″ | 9.25″ | 9.5″ |
| Bottom Depth | 15″ | 15″ | 15.5″ | 15″ | 15.25″ |
| Top Depth | 15″ | 15″ | 15.5″ | 15″ | 15.25″ |
| Depth | 15″ | 15″ | 15.5″ | 15″ | 15.5″ |
| Weight | 46 LBS | 46 LBS | 41 LBS | 46 LBS | 40 LBS |
| Air Space (ft³/chamber) | 1 | 1 | 1 | 1 | 1 |
| Tuning Frequency | NA | NA | NA | 38Hz | 38Hz |
