Elite Audio Enclosures | Ford F-150 Crew Cab 2009+ Dual 10" Deluxe - USA Made Subwoofer Box with Bed Liner Spray Finish

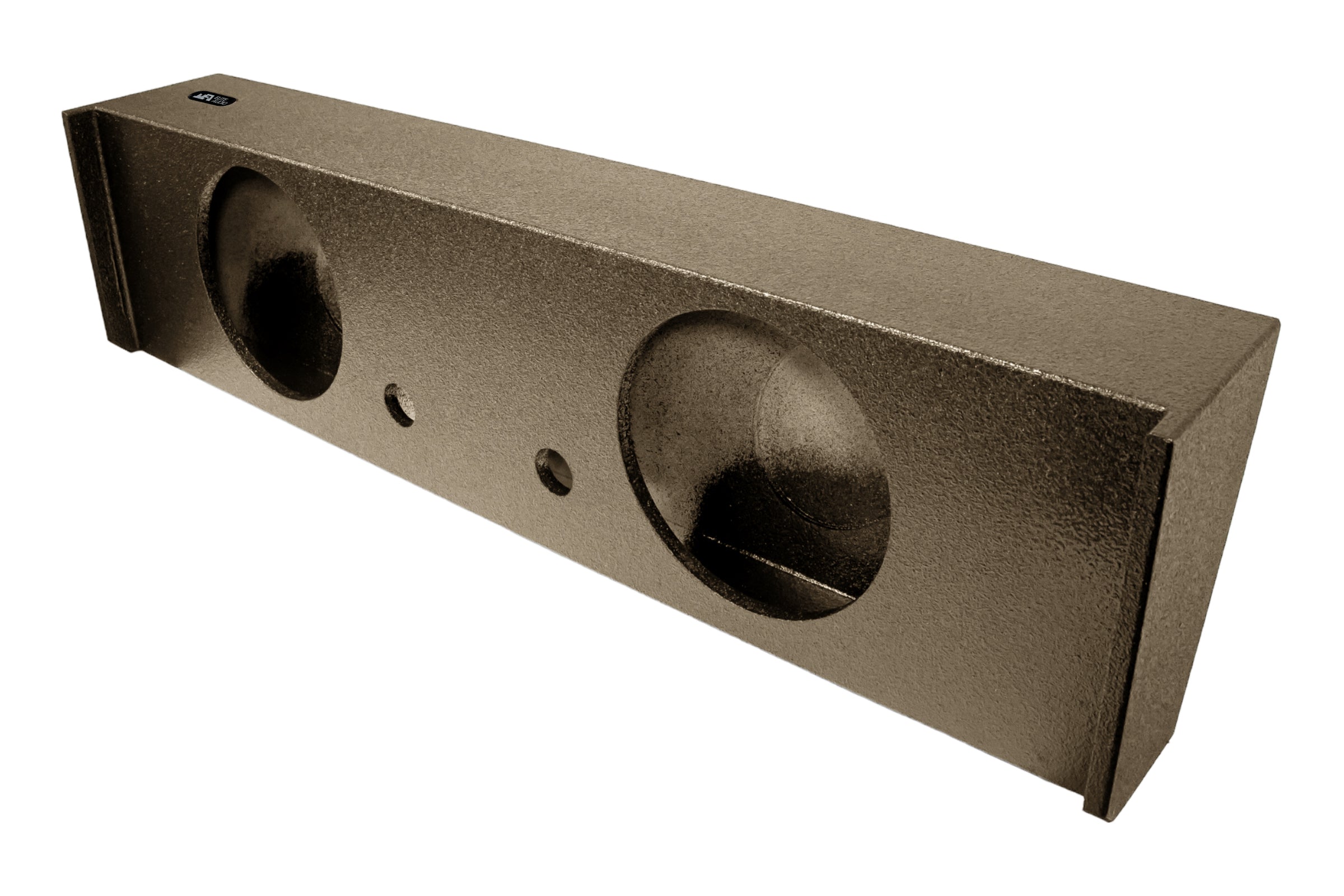

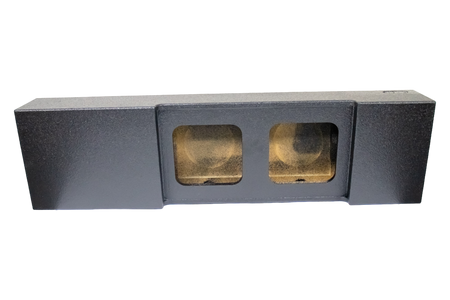

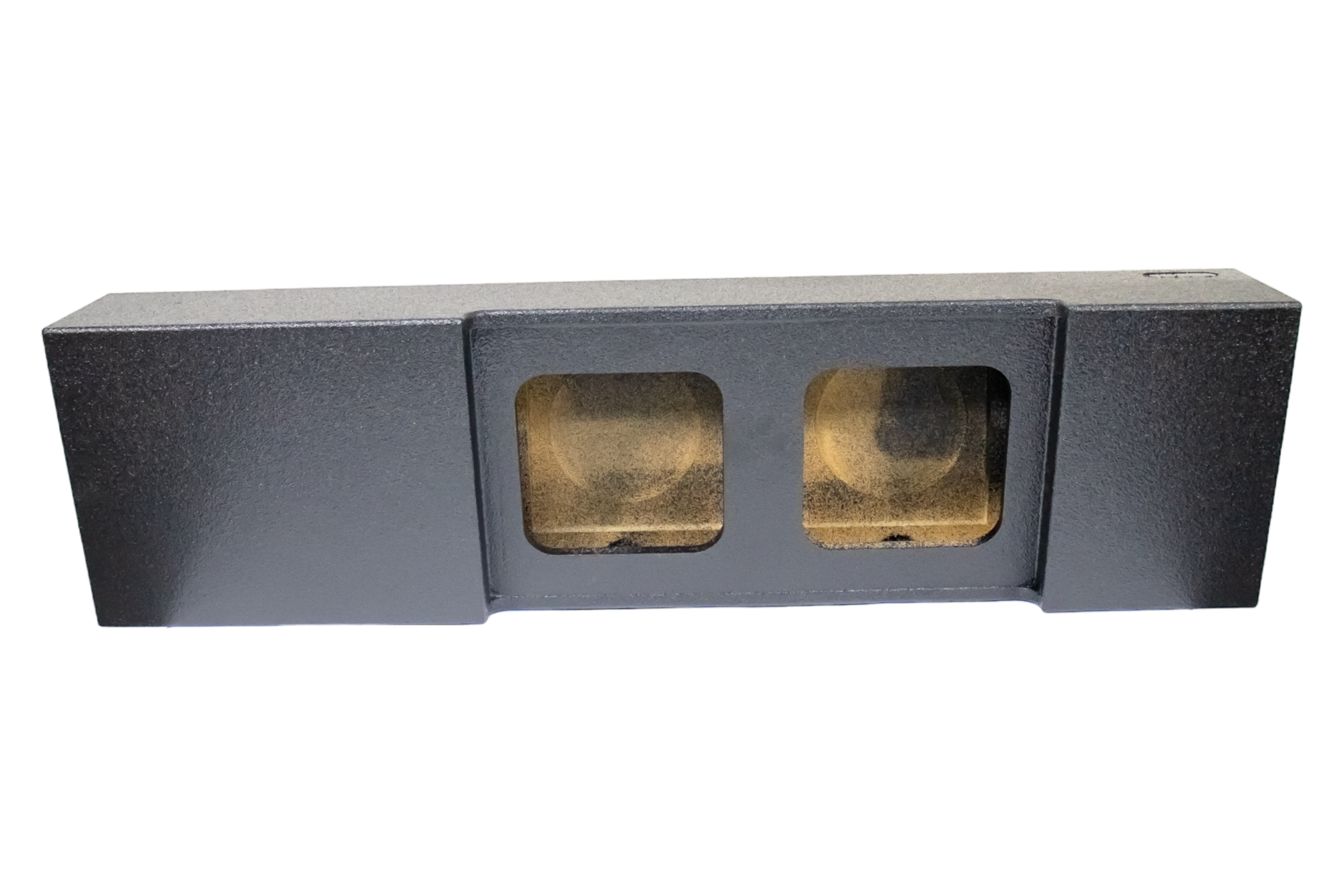

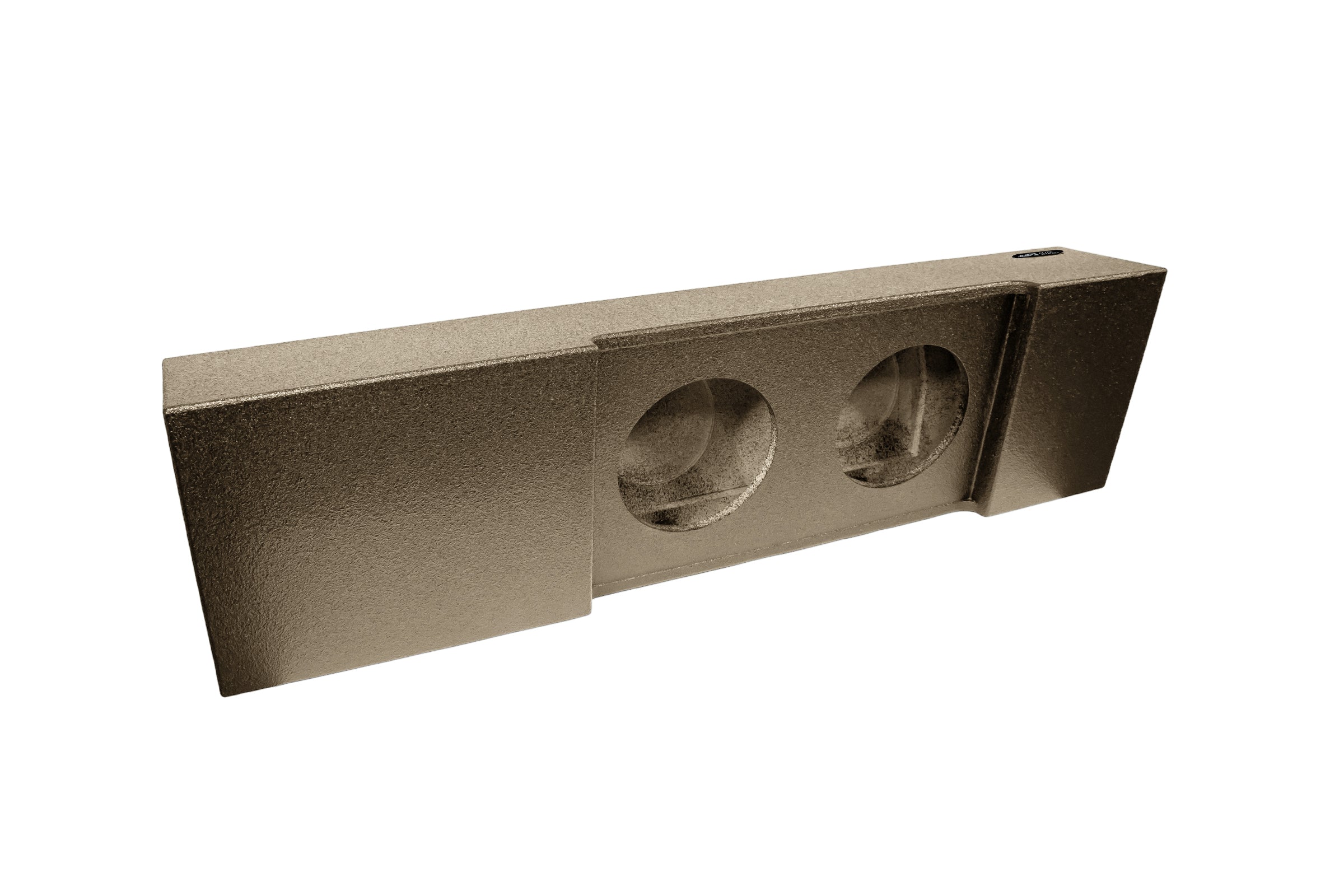

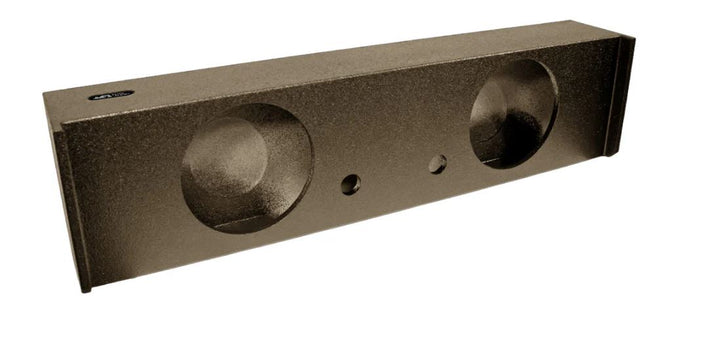

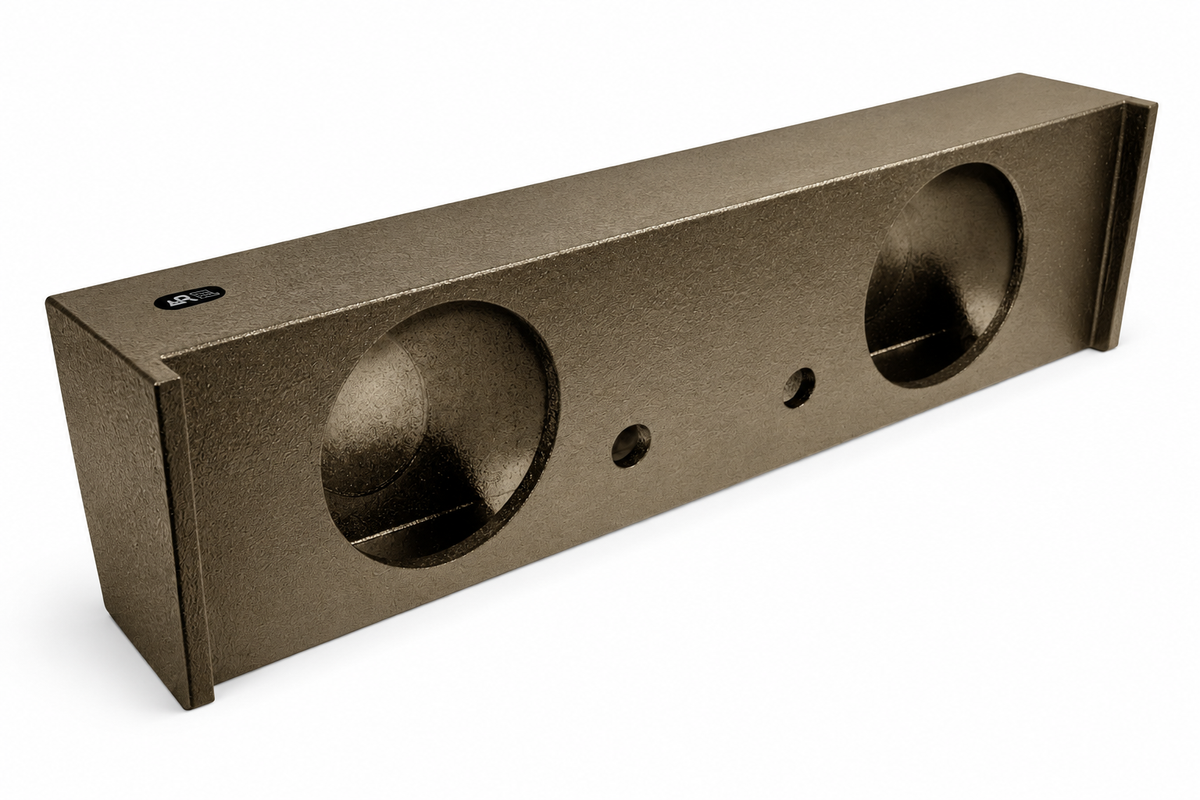

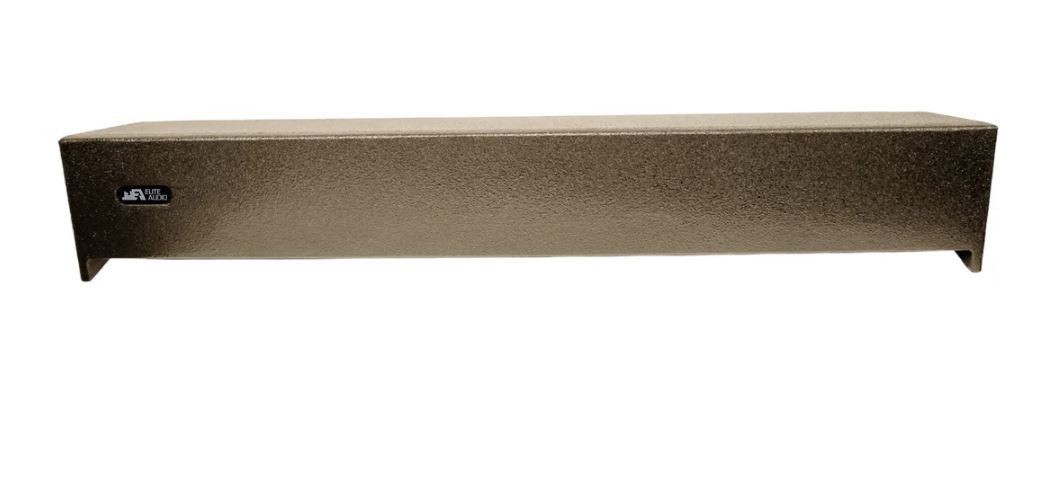

Elite Audio Dual 10” Sealed and Ported Deluxe Ford Enclosures fit Crew Cabs 2009+. Deluxe options offer additional airspace for powerful subwoofers. They also come in Kicker and JLTW3 Subwoofer specific options. These enclosures also come in Kicker and JLTW3 Subwoofer specific options. Each Elite Audio box is coated with a durable bed liner polymer spray to enhance its longevity. These USA-made enclosures are constructed from high-grade, 3/4" MDF, ensuring robustness and exceptional sound quality.
EAG-P210SF3CD Dimensions: Width: 55", Front Height: 9.25", Rear Height: 6", Height: 9.25", Bottom Depth: 15", Top Depth: 15", Depth: 15", Mounting Depth: 5.75", Cutout Diameter: 9.25", Weight: 46 LBS, Air Space per Cubic Foot: 1 Per Chamber
EAG-P210SF3CDK Dimensions: Width: 55", Front Height: 9.25", Rear Height: 6", Height: 9.25", Bottom Depth: 15", Top Depth: 15", Depth: 15", Mounting Depth: 5.75", Cutout Diameter: 9.25", Weight: 46 LBS, Air Space per Cubic Foot: 1 Per Chamber
EAG-P210SF3CDJ Dimensions: Width: 55", Front Height: 9.5", Rear Height: 6", Height: 9.5", Bottom Depth: 15.5", Top Depth: 15.5", Depth: 15.5", Mounting Depth: 3.25", Cutout Diameter: 9.625", Weight: 40 LBS, Air Space per Cubic Foot: 1.68 Per Chamber
EAG-P210PF3CD Dimensions: Width: 55", Front Height: 9.25", Rear Height: 6", Height: 9.25", Bottom Depth: 15", Top Depth: 15", Depth: 15", Mounting Depth: 5.75", Cutout Diameter: 9.25", Weight: 46 LBS, Air Space per Cubic Foot: 1 Per Chamber, Tuning Frequency: 38Hz
EAG-P210PF3CDK Dimensions: Width: 55", Front Height: 9.5", Rear Height: 6", Height: 9.5", Bottom Depth: 15.25", Top Depth: 15.25", Depth: 15.5", Mounting Depth: 4.25", Cutout Diameter: 9.25", Weight: 42.6 LBS, Air Space per Cubic Foot: 1 Per Chamber
DISCLAIMER: All Elite Audio Enclosures are custom-made. Enclosure orders cannot be discounted, canceled, or modified once placed. ALL SALES ARE FINAL. Please double-check dimensions to ensure fitment for your vehicle and subwoofers before purchasing. You have 30 days to claim any shipping damages. Subwoofers not included.
| Specification | EAG-P210SF3CD | EAG-P210SF3CDK | EAG-P210SF3CDJ | EAG-P210PF3CD | EAG-P210PF3CDK |
|---|---|---|---|---|---|
| Subwoofer Size | Dual 10″ | Dual 10″ | Dual 10″ | Dual 10″ | Dual 10″ |
| Enclosure Type | Deluxe Sealed | Deluxe Sealed | Deluxe Sealed | Deluxe Ported | Deluxe Ported |
| Mount Location | Under Rear Seat | Under Rear Seat | Under Rear Seat | Under Rear Seat | Under Rear Seat |
| Width | 55″ | 55″ | 55″ | 55″ | 55″ |
| Front Height | 9.25″ | 9.25″ | 9.5″ | 9.25″ | 9.5″ |
| Rear Height | 6″ | 6″ | 6″ | 6″ | 6″ |
| Total Height | 9.25″ | 9.25″ | 9.5″ | 9.25″ | 9.5″ |
| Bottom Depth | 15″ | 15″ | 15.5″ | 15″ | 15.25″ |
| Top Depth | 15″ | 15″ | 15.5″ | 15″ | 15.25″ |
| Total Depth | 15″ | 15″ | 15.5″ | 15″ | 15.5″ |
| Mounting Depth | 5.75″ | 5.75″ | 3.25″ | 5.75″ | 4.25″ |
| Cutout Diameter | 9.25″ | 9.25″ | 9.625″ | 9.25″ | 9.25″ |
| Weight | 46 LBS | 46 LBS | 40 LBS | 46 LBS | 42.6 LBS |
| Air Space (ft³/chamber) | 1.0 | 1.0 | 1.68 | 1.0 | 1.0 |
| Tuning Frequency | NA | NA | NA | 38 Hz | 38 Hz |
| Material | 3/4″ MDF | 3/4″ MDF | 3/4″ MDF | 3/4″ MDF | 3/4″ MDF |
| Finish | Bed Liner Spray | Bed Liner Spray | Bed Liner Spray | Bed Liner Spray | Bed Liner Spray |
| UPC | NA | NA | NA | NA | NA |
