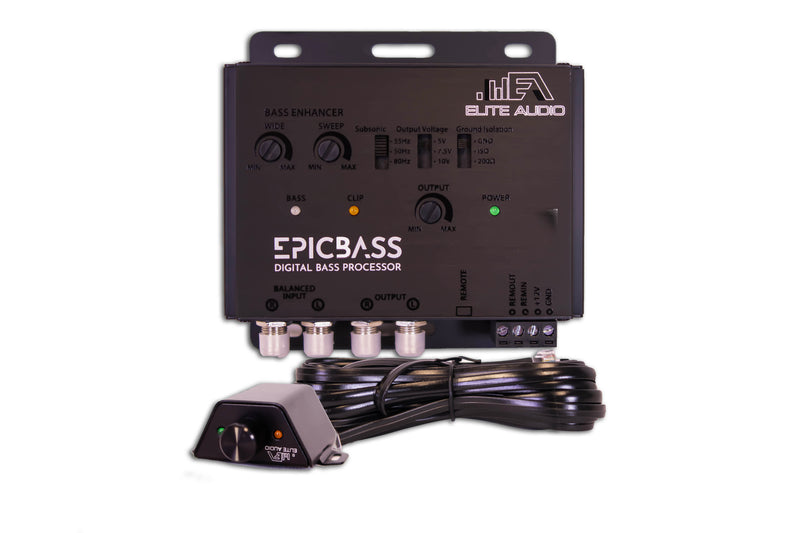

Elite Audio EPICBASS Digital Bass Processor

In stock
SKU: ea-epicbass
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $129.95 USD



  • Digital Bass Restoration Processor
  • 2 Channel Preamp Input / Output
  • Subsonic Filter / Output Voltage / Ground Iso
  • Bass / Power / Clip LED
  • Remote Level Control w/ Clip LED
  • Compact Design

Digital Bass Processor with Hi to Low Signal Converter

Upgrade your car audio experience with Elite Audios EPICBASS and take your audio to the next level, with deep and impactful bass that will revitalize your system.
Although sleek and compact, Elite Audio EPICBASS is equipped with a range of impressive features. The fully adjustable bass processor enhances low frequencies from the original source, allowing you to fine tune your bass with authority. With the hi-level speaker inputs, you can seamlessly integrate this bass processor into your OEM system, maximizing its potential.
Controlling your bass has never been easier with the dual knob dash mount remote control included with the EPICBASS. Adjusting the settings to suit your preferences is effortless, giving you complete control over your sound. The subsonic filter helps eliminate unwanted frequencies (adjustable at 35Hz, 50Hz, and 80Hz), ensuring clean and distortion-free output.
Designed for convenience and durability, Elite Audio EPICBASS is equipped with a PCB featuring an anti-corrosion coating. This ensures long-lasting performance even in harsh conditions. The LED indicators provide visual feedback on power, bass enhancement, and clipping, making it easy to monitor and optimize your sound.
With an operating voltage of 8-17V and low power consumption of 0.24A, this digital bass processor is efficient and reliable. Its compact size allows for easy installation in any application, making it adaptable to any existing system.
Experience the power of enhanced bass with Elite Audio EPICBASS.



GENERAL FEATURES

SKU
EPICBASS
Operating Voltage
8-17V
Power Consumption
0.24A
Recommended Fuse Rating
1A
Power Input Terminal Size
16ga
LED Indicator
Power / Bass Enhancer / Clip
Ground Isolation Switch
Yes (GND/ISO/200Ω)
Hi-Level Speaker Input
No
Auto Turn-on Function
No
Remote Turn-on (Input / Output)
Yes
Remote Level Control
Yes (Bass Enhancer)
RCA Connector Type
Tiffany (Silver)
Housing Material
Aluminum
Body Color / Finish
Black


AUDIO SPECIFICATIONS

Frequency Response
10Hz-20kHz
S/N Ratio
120dB
THD
0.0022%
Input Sensitivity (Low-Level)
<10V
Input Sensitivity (Hi-Level)
N/A
Input Impedance
20Kohms
Output Voltage
Selectable (5V/7.5V/10V)
Output Impedance
100ohms
Balanced Input Noise Rejection
>60dB
Stereo Separation
>80dB


CROSSOVER SECTION & BASS PROCESSOR

Subwoofer LPF Frequency Cut-off
No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off
Selectable (35/50/80Hz)
Gain
0~8.8V
Center Frequency (Sweep)
75Hz~120Hz
Q Factor (Wide)
1~3
