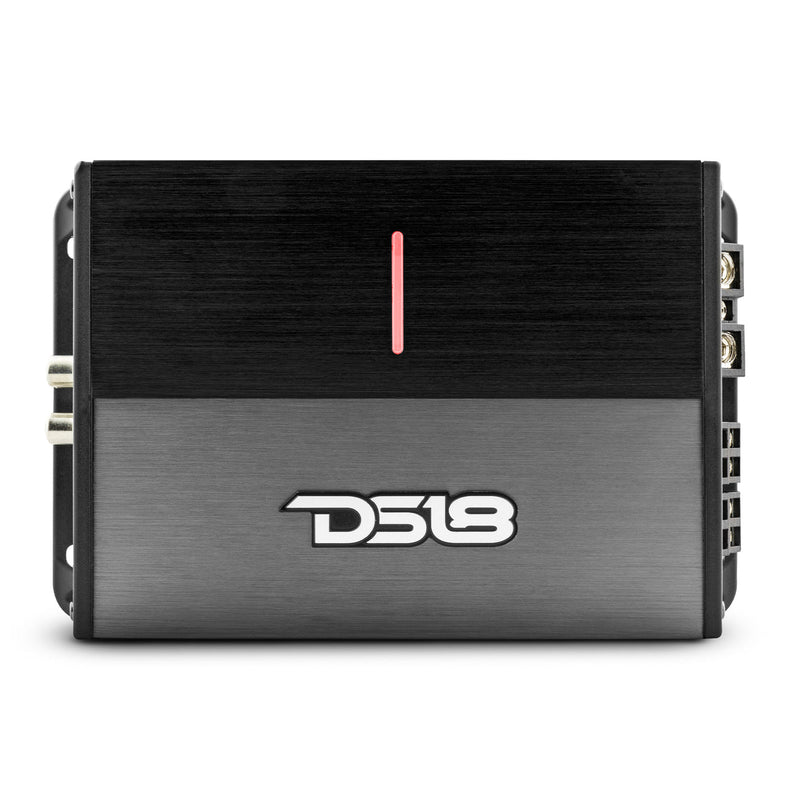

DS18ION Compact Full Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm

In stock
SKU: DS-ION1600.4D
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Regular price $335.96 USD
Regular price Sale $419.95 USD Sale price $335.96 USD
Massive Power & Clarity

Massive Power & Clarity

Superior Performance

Superior Performance

Advanced Technology

Advanced Technology

Premium Quality

Premium Quality

  • 4 Channel Full Range
  • Class D
  • 2 - 4 Ohm Stable
  • 4 X 240 Watts @ 4 Ohm
  • Power / Clip / Protection Indicator
  • Compact

DS18 ION1600.4D


Introducing DS18’s ION1600.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!

Hi-level Inputs and Tiffany RCA’s allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION1600.4D’s miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space.

The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies.

Surface mount component technology makes this amplifier highly resistant to vibrations, ensuring stable performance even on rough terrain. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability.

Safety was a top priority in the creation of DS18’s ION1600.4D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.

The ION1600.4D has power ratings of 2 X 800W at 4-ohm bridged, 4 x 400W at 2 ohms, and 4 x 240W at 4 ohms; perfect power ratings to turbocharge every component in your system!

Experience the power and precision of DS18’s ION1600.4D!



SPECS

SKU
ION1600.4D
Total Watts (Peak)
4800W
RMS Power @ 4 ohm
4 x 240W
RMS Power @ 2 ohm
4 x 400W
RMS Power @ 1 ohm
N/A
RMS Power @ 4 ohm Bridge
2 x 800W


AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
>95dB
Efficiency @ 4 ohm
88%
Damping Factor
210
Input Impedance
27Kohms
Channel Separation
59dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
LPF/HPF/FULL
X-Over Filter Range
40Hz-2KHz
Bass Boost Range
0~12dB
Bass Boost Frequency
45Hz


FEATURES

Amplifier Class
Digital
Amplifier Type
Full-Range Stereo
Number of Channels
4
Minimum Impedance
2 Ohm (St) / 4 Ohms (Bridge)
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
4 AWG
Fuse Size
140A (external)
Remote Level Control
No
Cooling Fan
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Aluminum Black / Silver


EXTRA FEATURES

Hi-Level Speaker connector
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
High Efficiency Micro Digital Design
Yes


MEASUREMENT

Overall Length
7.32" / 186mm
Overall Wide
4.72" / 120mm
Overall Height
2" / 52mm
Heatsink Length
6" / 153mm
Gross Single Unit Weight
1.3Kg





UPC: 810097264021
