DS18 ZXI-69.2C 6x9" 2-Way Component Speakers – 120W RMS, 4 Ohm, Glass Fiber Cone

Out of stock
SKU: DS-ZXI-69.2C
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Regular price $224.95 USD
Massive Power & Clarity

Massive Power & Clarity

Superior Performance

Superior Performance

Advanced Technology

Advanced Technology

Premium Quality

Premium Quality

The ZXi-692C 6x9” 2-way component system offers 120W RMS, 360W MAX power at 4 ohms, with glass fiber cones, adjustable crossovers, and separate tweeters for wide soundstage, accurate imaging, and powerful, distortion-free audio.

Features:

  • 6x9" 2-way component speaker system
  • 120W RMS / 360W MAX power handling

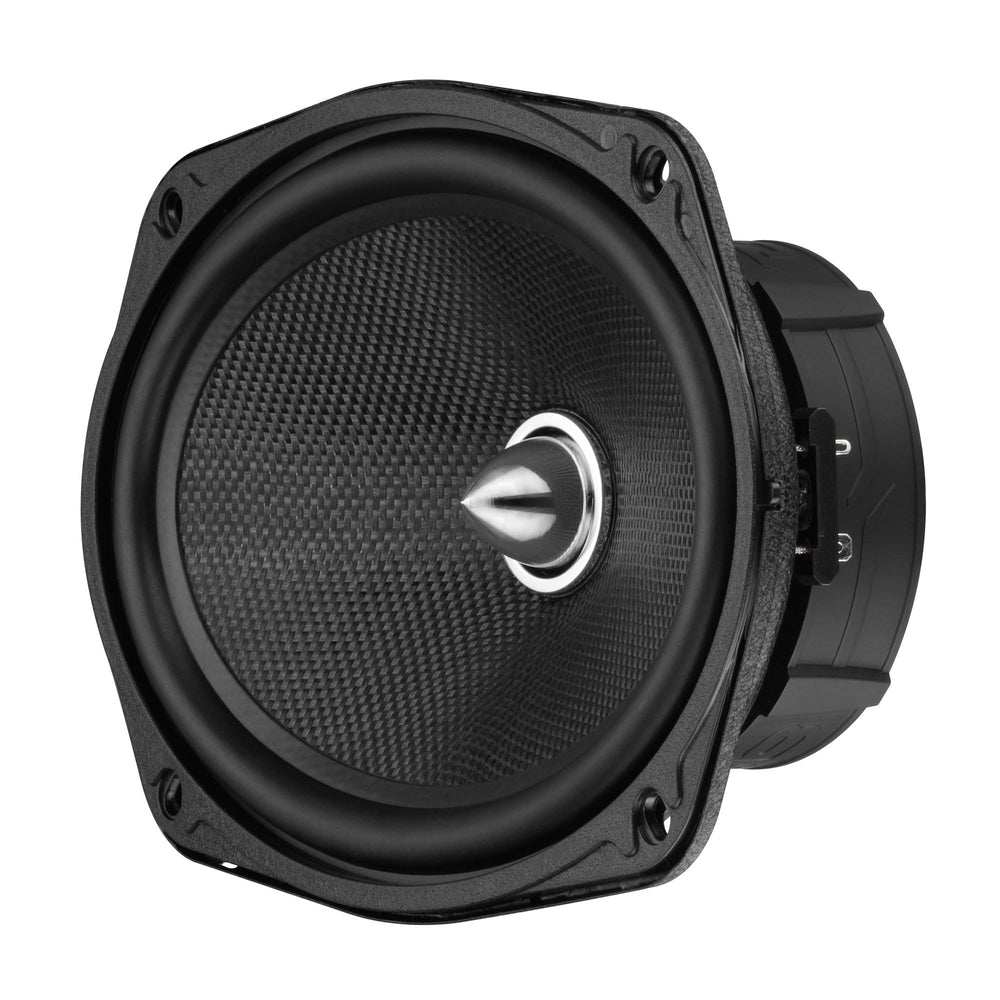

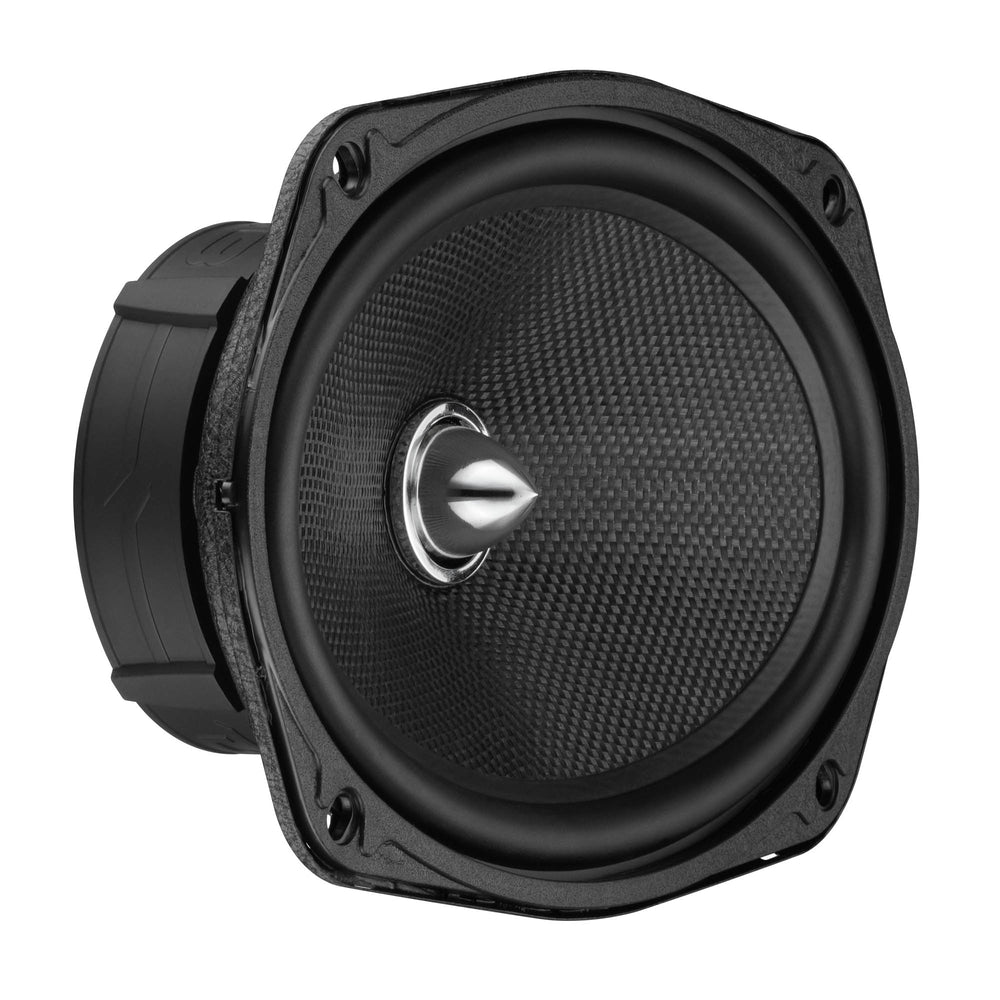

  • Glass fiber curvilinear cone woofers for tight midbass

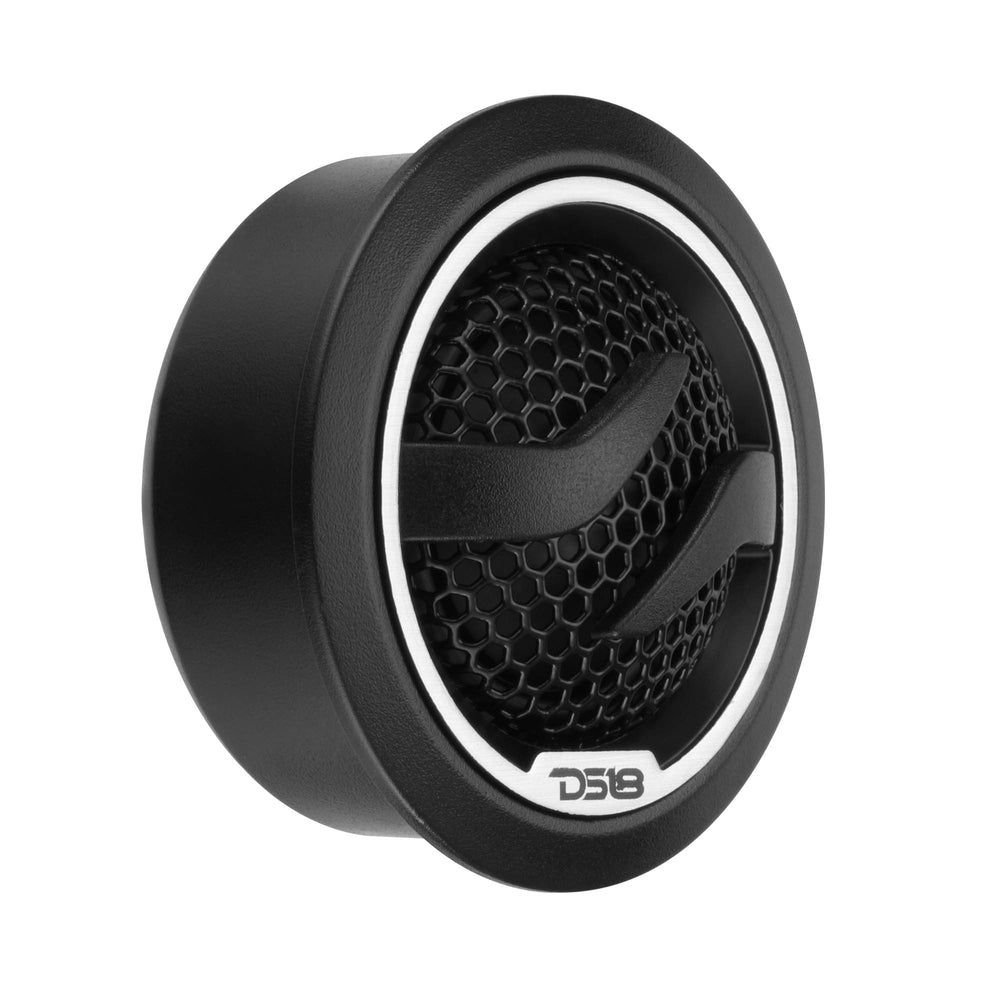

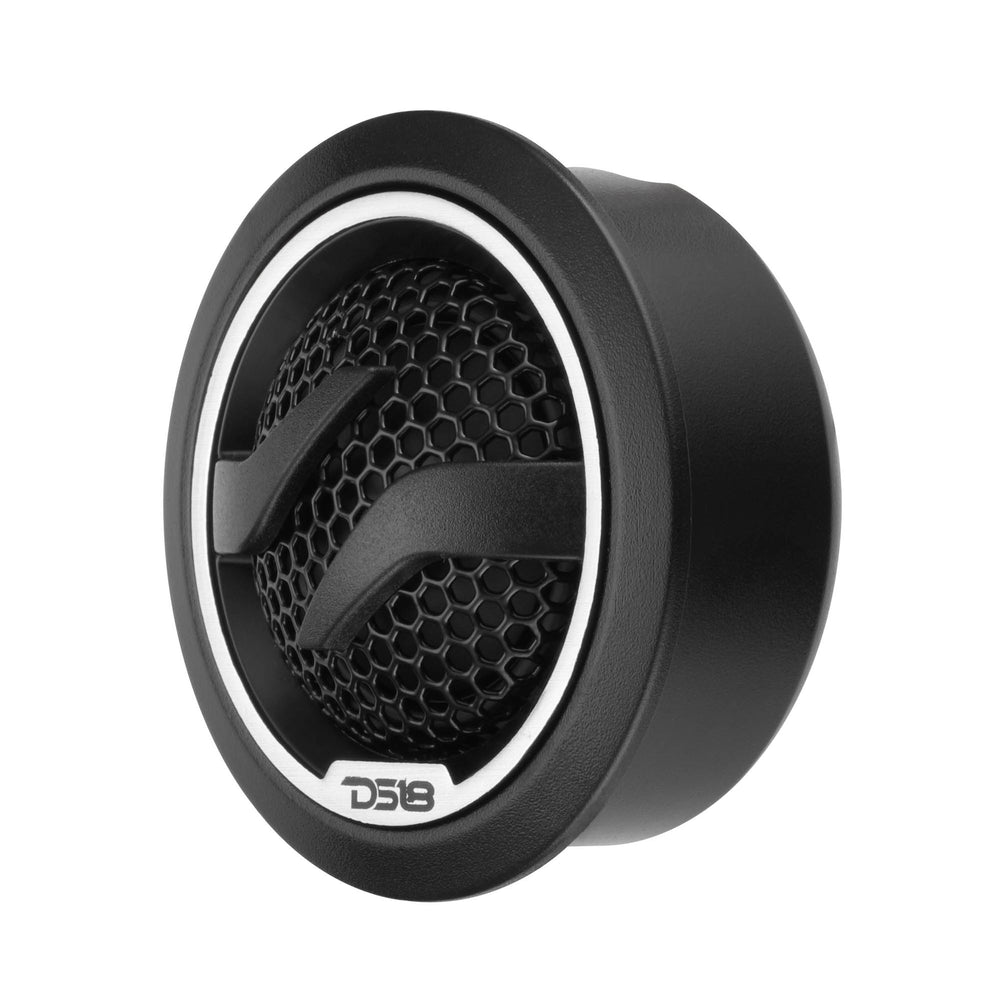

  • 1" tweeters with PEI diaphragm and neodymium magnet

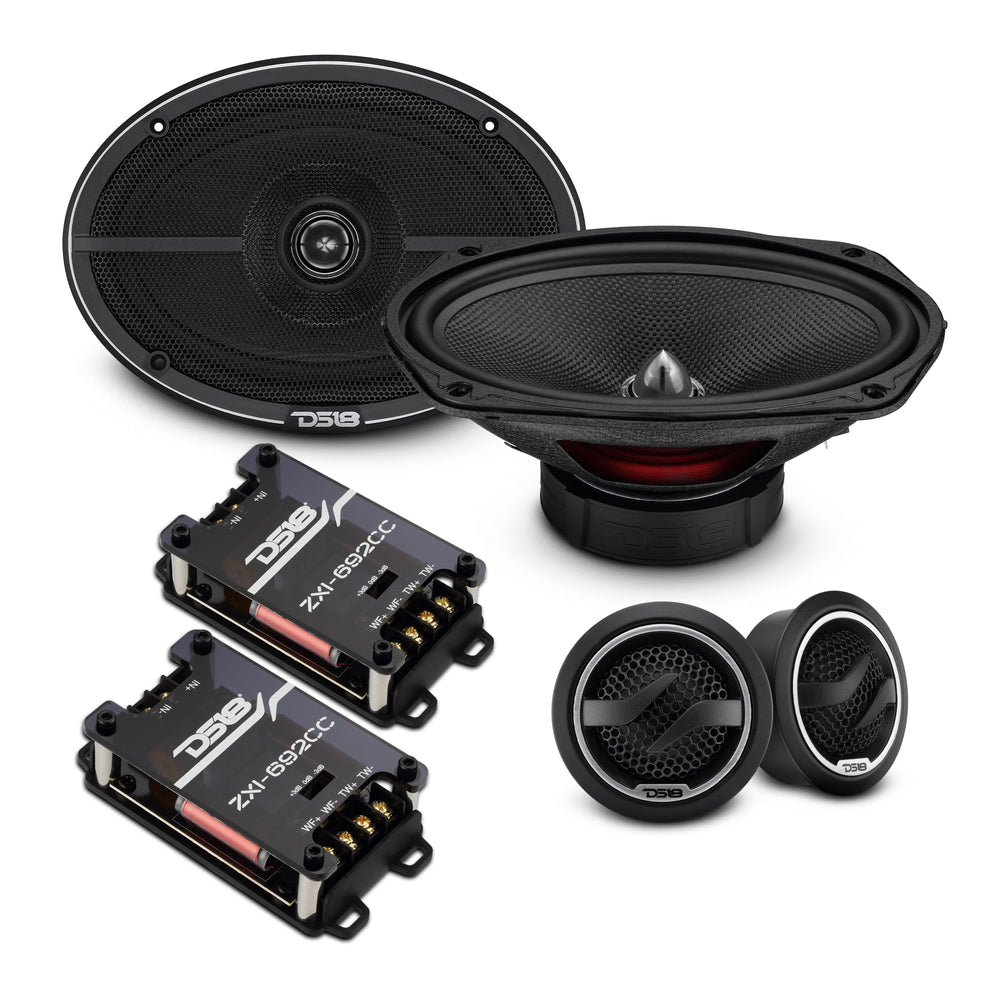

  • Complete system with 2x woofers, 2x tweeters, and 2x crossovers

Specifications:

General Specifications

Nominal Size
6x9" / 152 x 228mm
Nominal Impedance
4 Ohms
RMS Power Handling
120 Watts
MAX Power Handling
360 Watts
Sensitivity (1W/1M)
90 dB
Frequency Response
35Hz - 20KHz
Recommended High-Pass Crossover
50Hz
Number of Ways
2-Way
Sold As
Pair

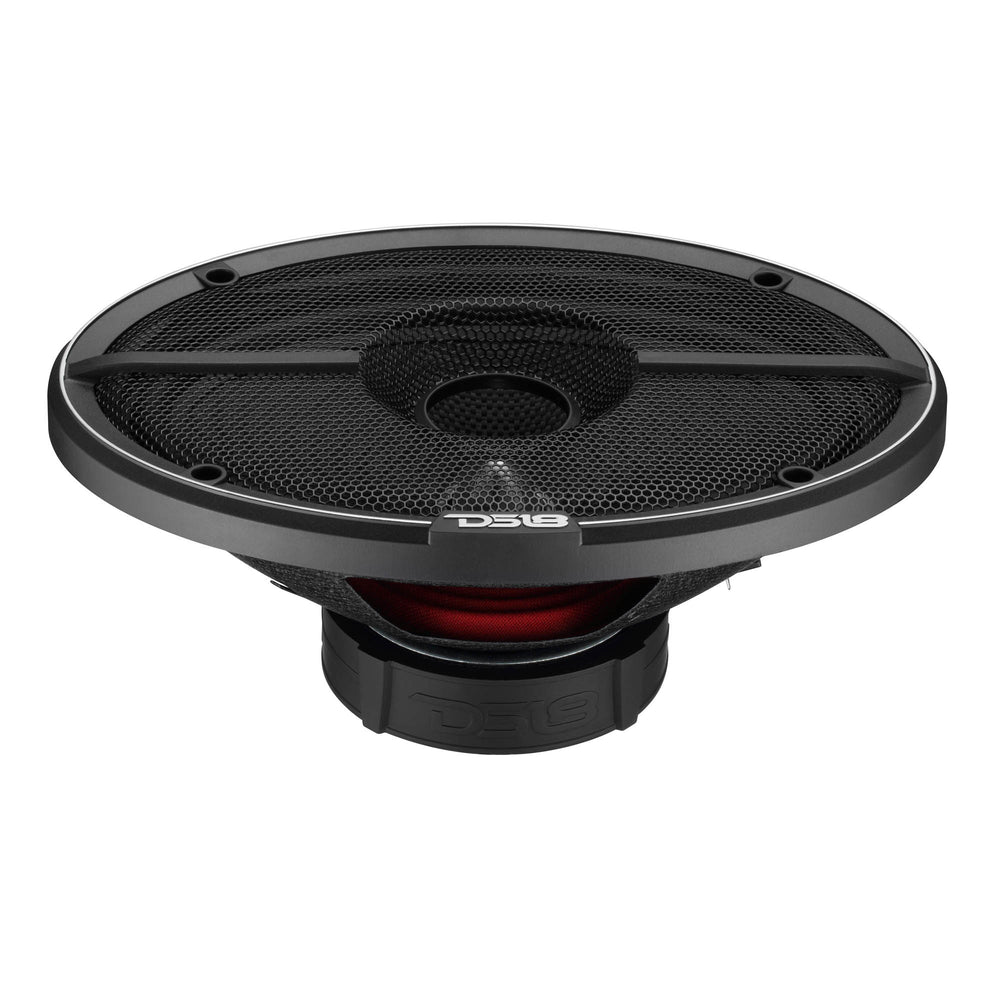

Grille Included
Yes

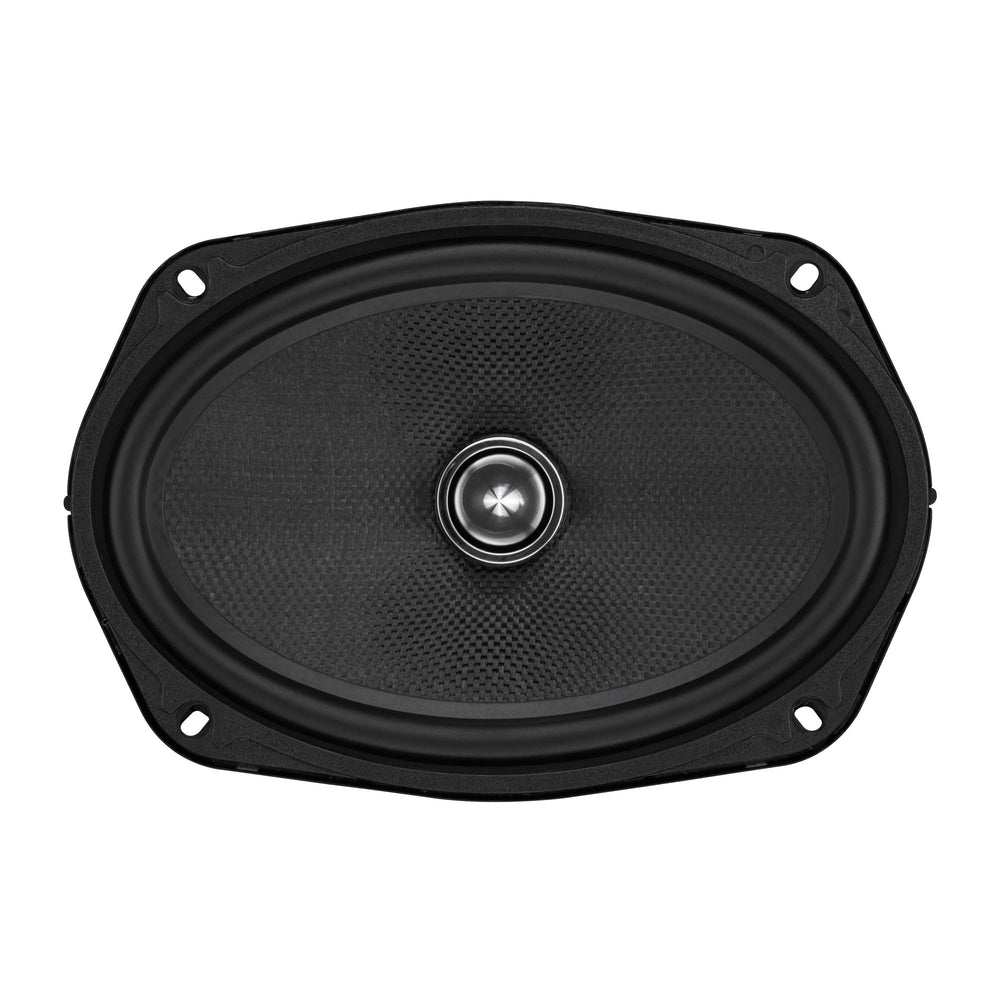

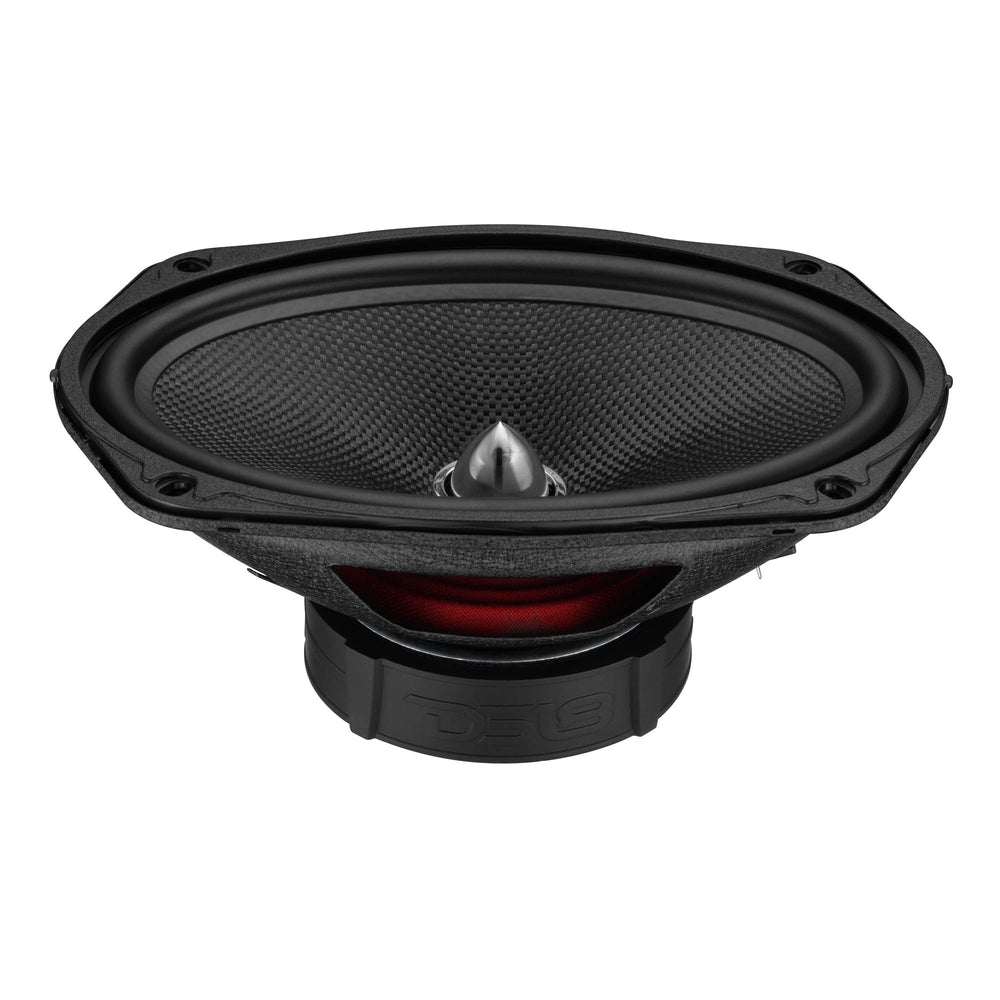

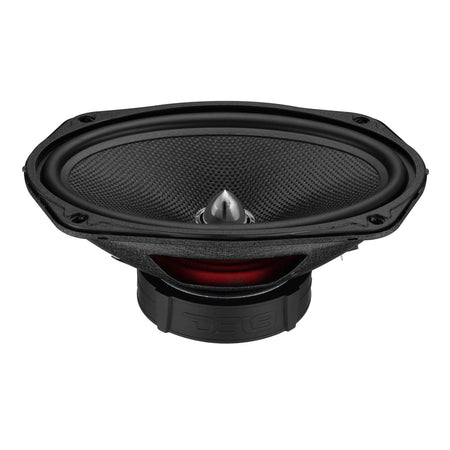

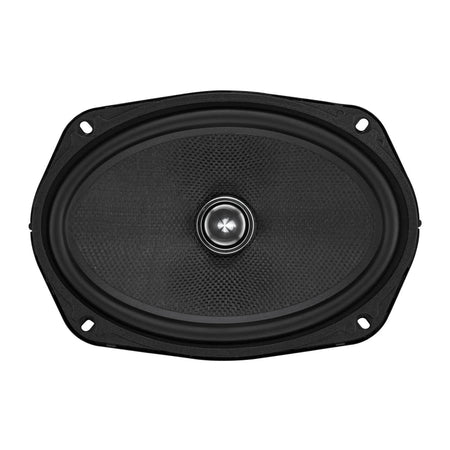

Woofer Specifications

Voice Coil Diameter
1.25" / 30.5mm
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass Fiber
Cone Shape
Curvilinear
Surround Material
Rubber
Basket Material
Steel
Basket Finish
Matte Black
Magnet Material
Barium Ferrite
Magnet Weight
19.4 Oz
Speaker Terminals
Spade

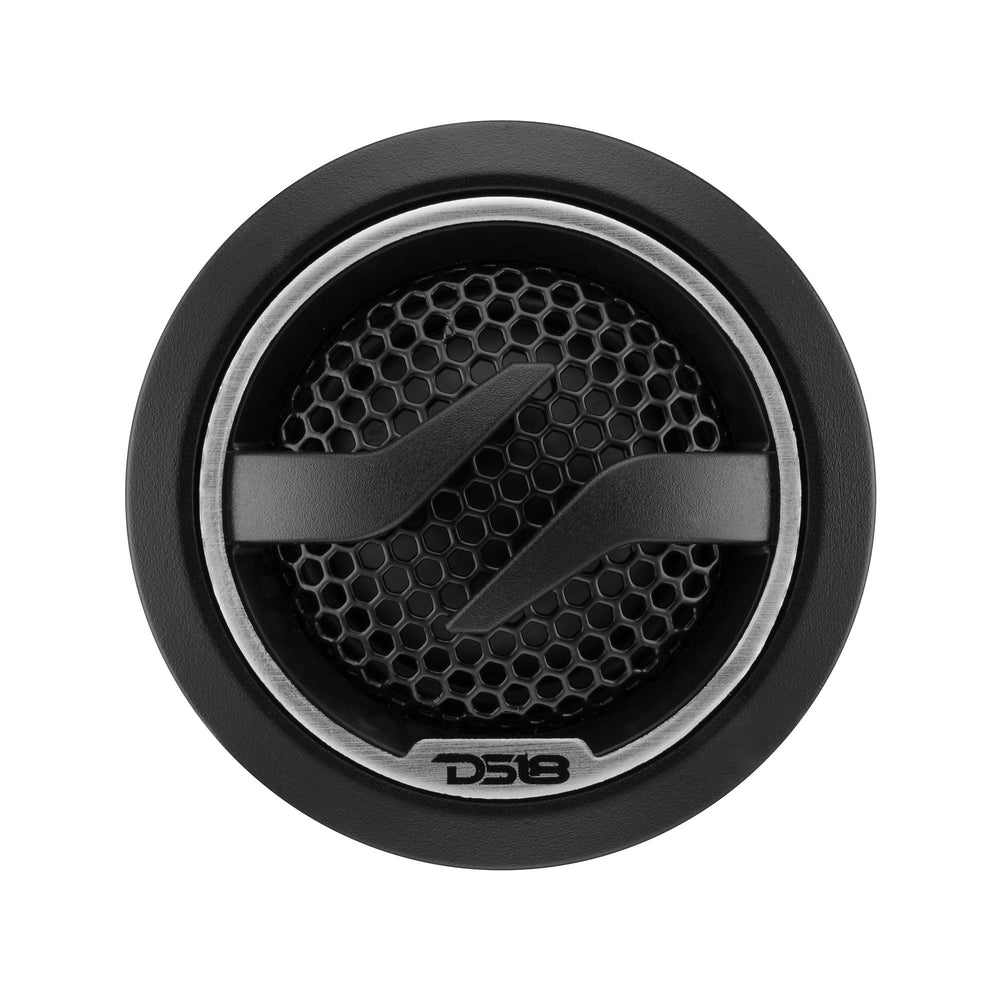

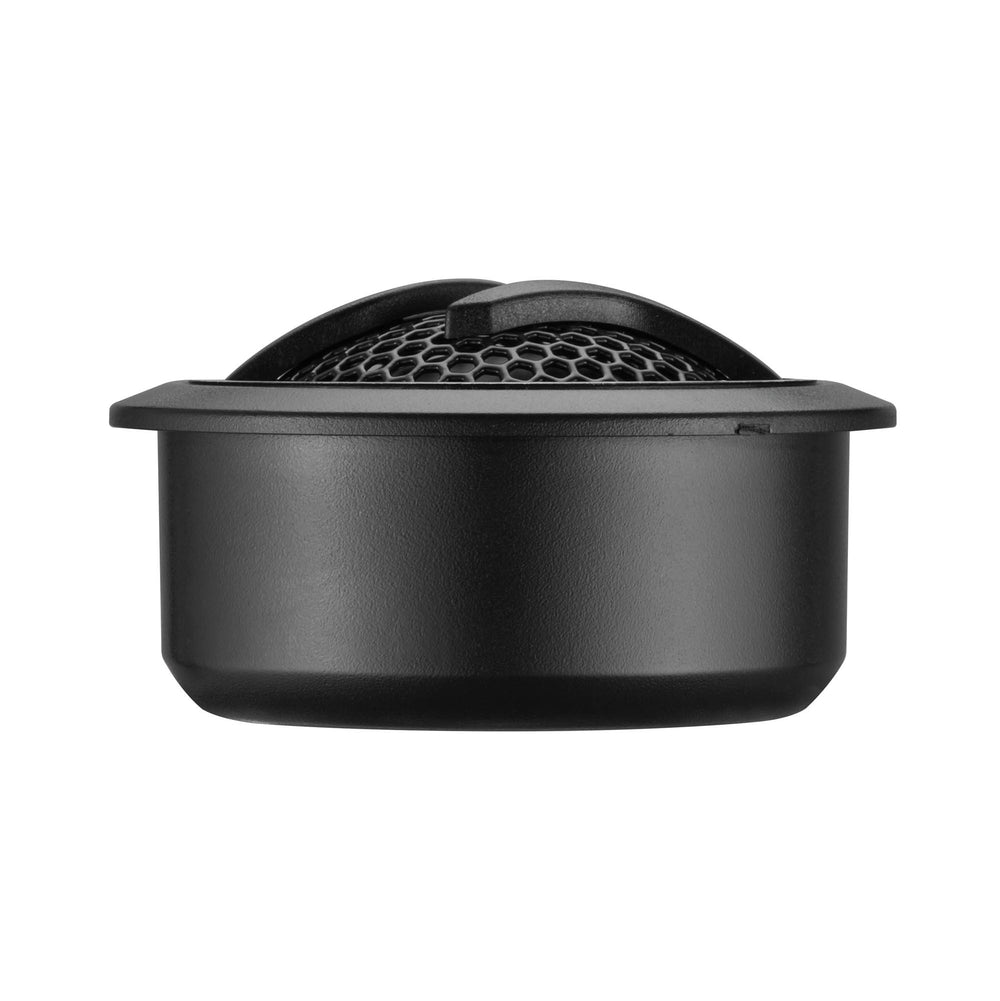

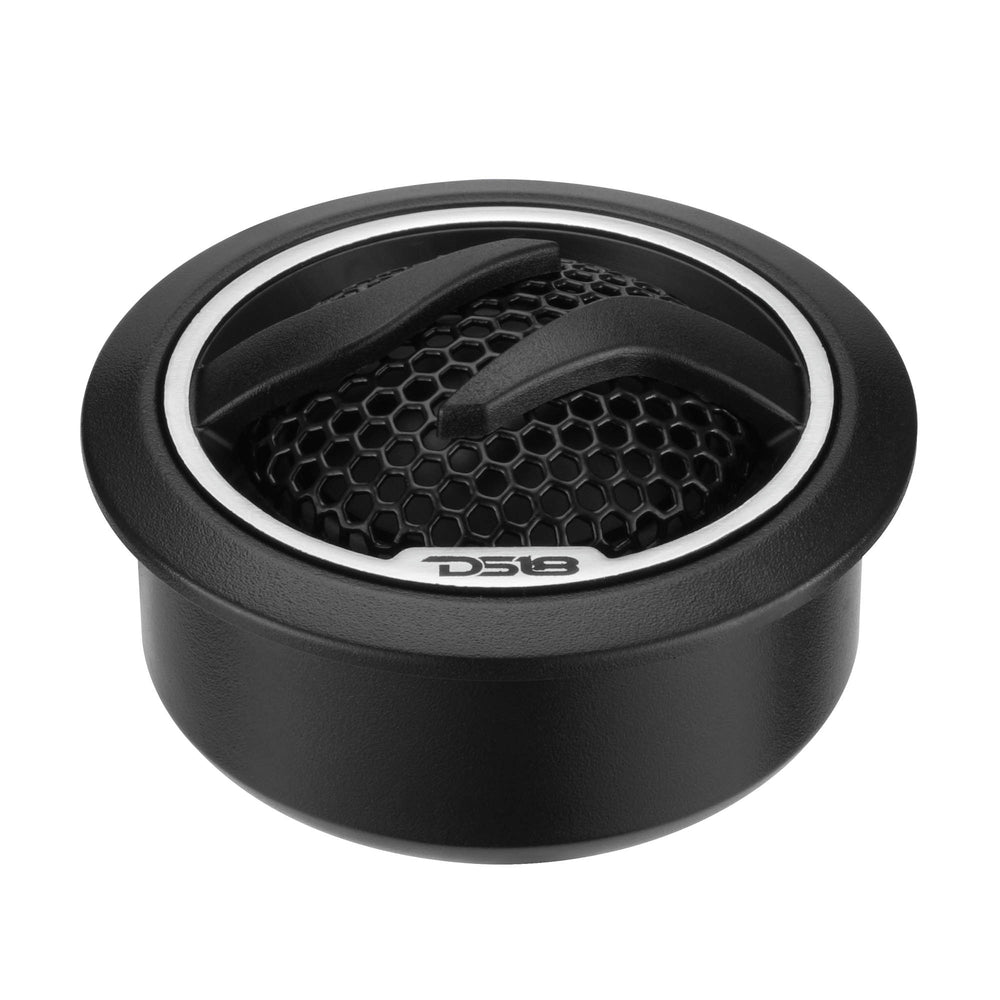

Tweeter Specifications

Nominal Diameter
1" / 25.4mm
VC Former Material
KSV
Winding Material
EISVM
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
13g
Body Material / Color
ABS / Black

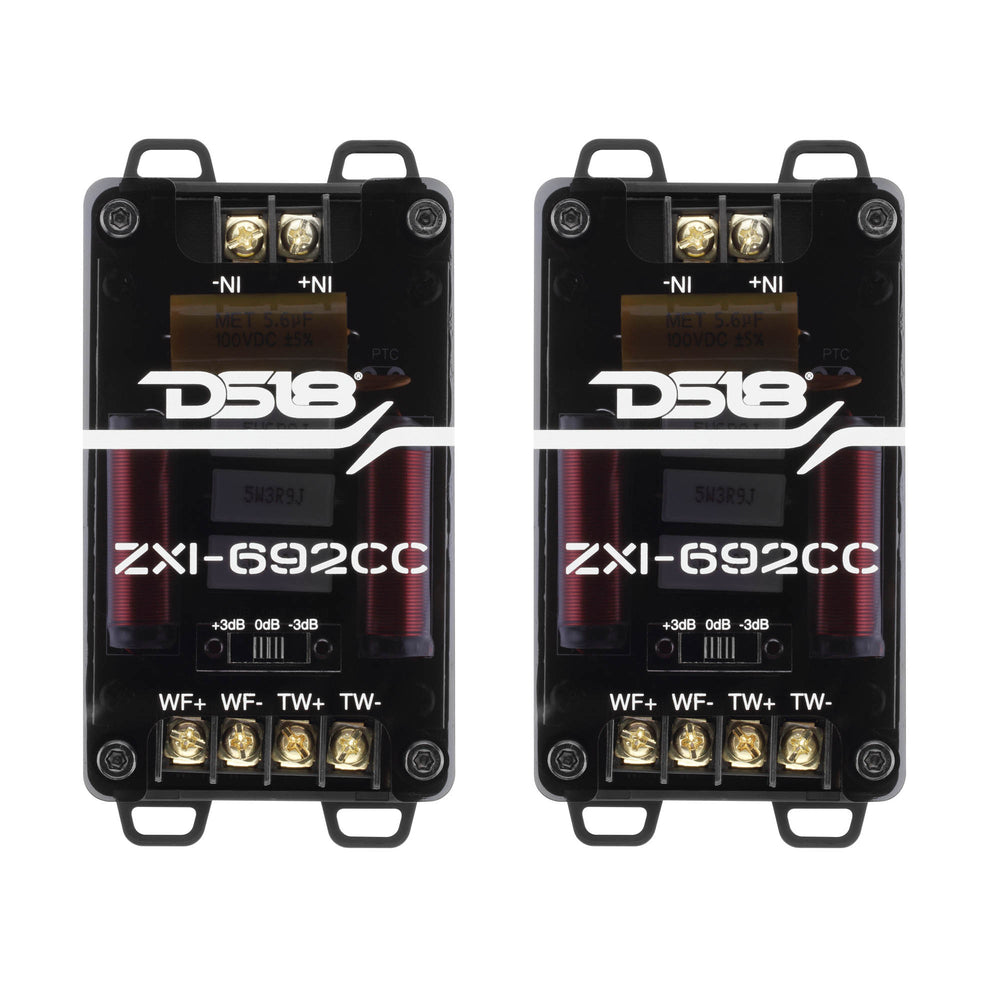

Crossover Specifications

Passive Crossover
2-Way
Crossover Point
3.5kHz
Power Handling
Up to 300W
Slope
12 dB/Oct
Tweeter Attenuation
+/- 3dB
Capacitor Type
NP
Coil Type
KSV
Terminal Type
Screw-On
Housing Material
ABS / Acrylic
Extra Features
Tweeter Protection


Thiele & Small Parameters

Equivalent Volume (Vas)
23.7L / 0.83 ft3
Excursion (One Way) Xmax
2.7mm
Free Air Resonance (Fs)
60Hz
Mechanical Factor (Qms)
7.03
Electrical Factor (Qes)
1.4
Total Factor (Qts)
1.16
Mechanical Mass (Mms)
19.57g
Mechanical Compliance (Cms)
0.35 mm/N
BL Factor
3.22
Voice Coil Inductance (Le)
0.16mH
Cone Area (Sd)
219.04 cm2
DC Resistance (Re)
3.9 Ohms


Woofer Measurements

Overall Diameter (Without Grille)
6.4 x 9.2" / 164 x 234mm
Overall Depth (Without Grille)
3.6" / 92mm
Overall Diameter (With Grille)
10.4 x 7.5" / 265 x 191mm
Overall Depth (With Grille)
4.16" / 107mm
Front Mount Baffle Cutout
6 x 8.7" / 153 x 221mm
Mounting Depth
3.2" / 82mm
Motor Diameter
4" / 100mm


Tweeter Measurements

Overall Diameter
2.17" / 55mm
Overall Depth
1.2" / 30mm
Front Mount Baffle Cutout
1.9" / 48mm
Mounting Depth
0.8" / 20mm


Crossover Measurements

Overall Length
2.5" / 65mm
Overall Depth
5" / 128mm
Overall Height
1.4" / 35.8mm

UPC: 810199441252
