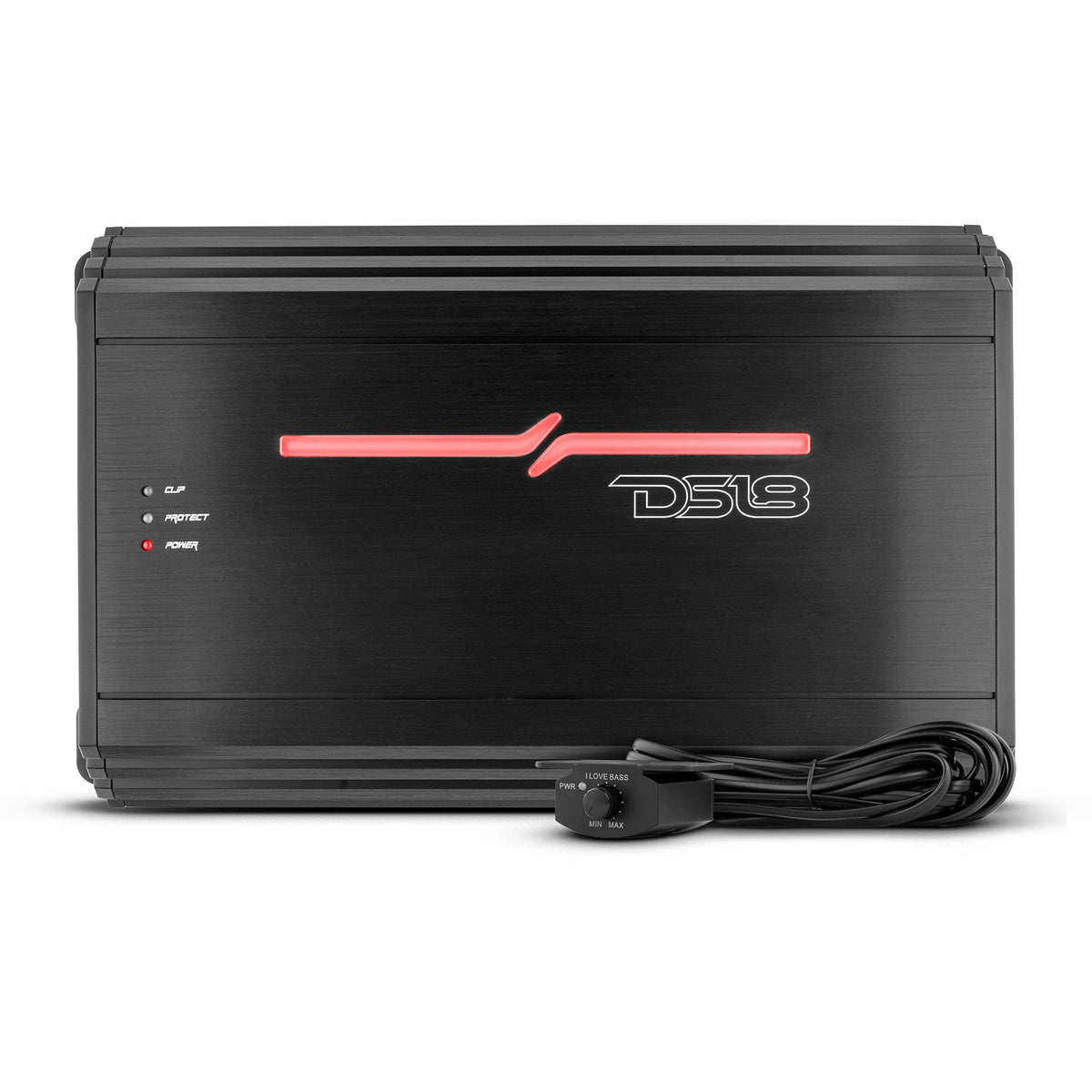

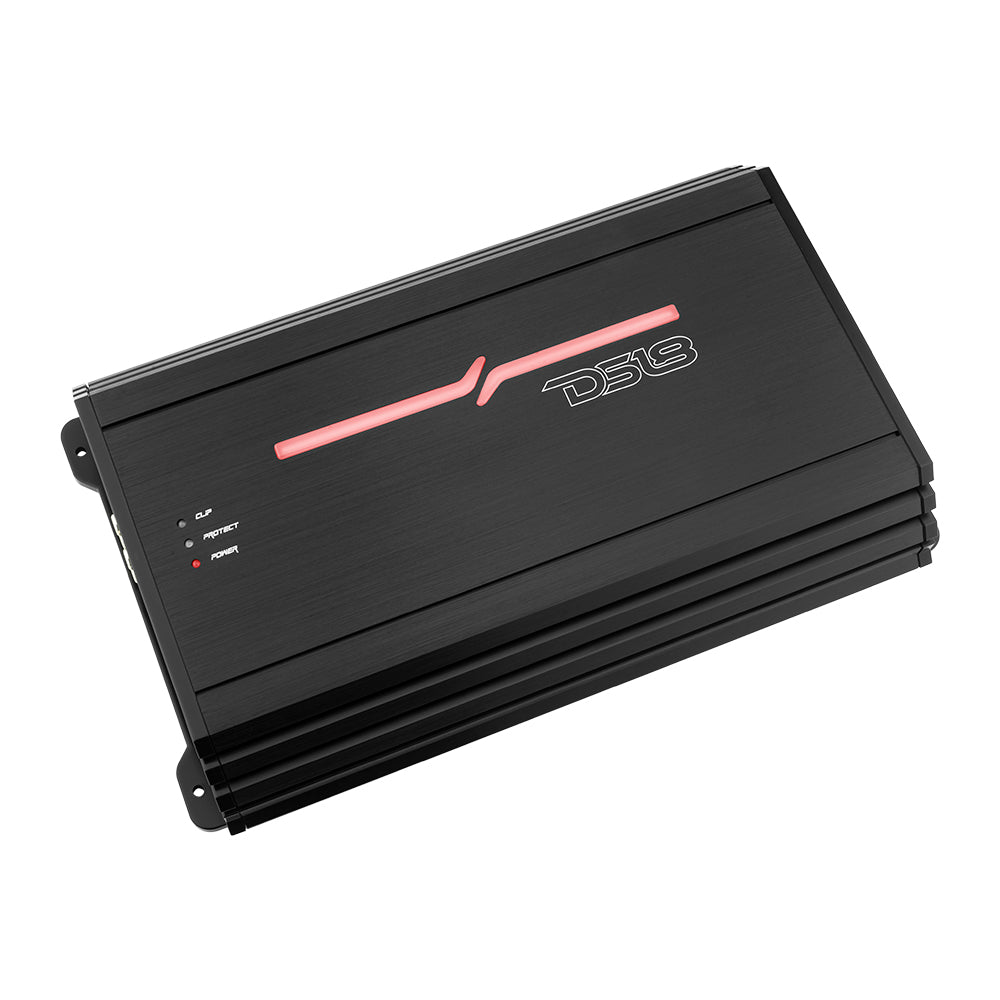

DS18 ZR1000.1D ZR Class D 1-Channel Monoblock Amplifier - 1000W RMS at 1 Ohm with Bass Knob DS18
The DS18 ZR1000.1D is a Class D monoblock built to drive subwoofers hard. It makes 1000 watts RMS at 1 ohm, 650 watts RMS at 2 ohms and 380 watts RMS at 4 ohms.

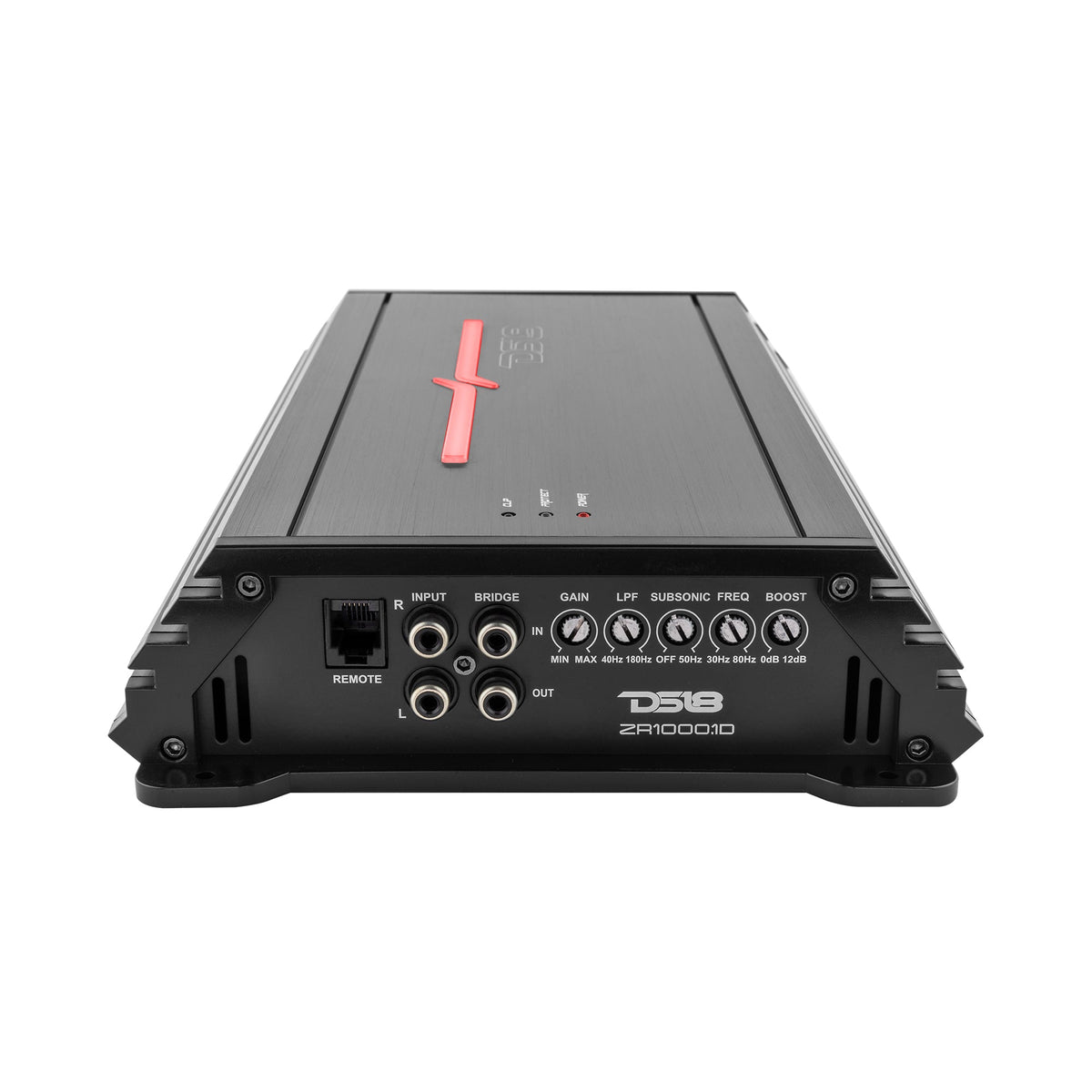

A low-pass filter (40-180 Hz) and subsonic filter (10-50 Hz) help you dial in clean, controlled bass, and bass boost adds up to 12 dB between 30 and 80 Hz. The included dash-mount bass knob lets you adjust the low end from the driver seat.

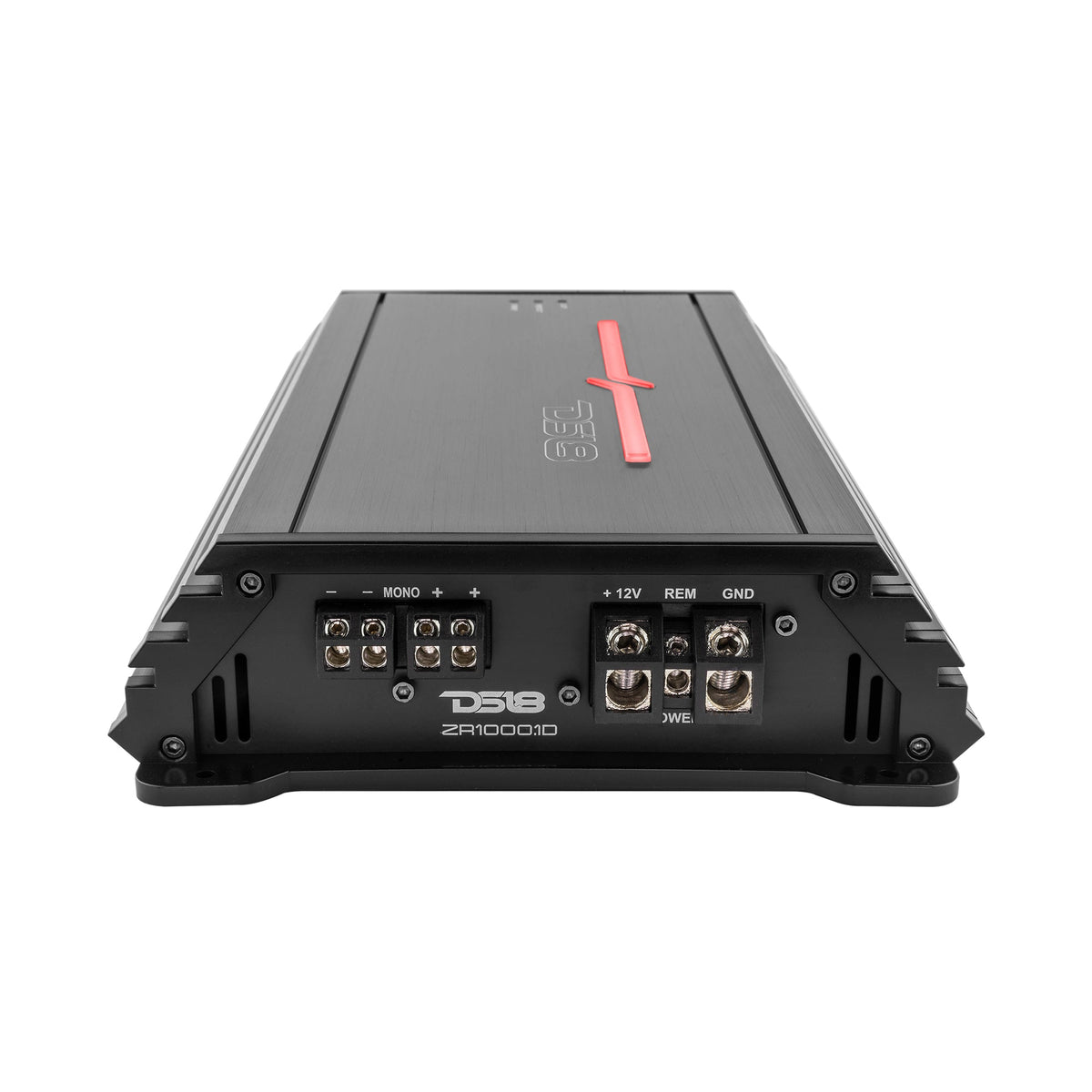

Thermal, overload, DC output, short circuit, voltage and clipping protection are built in, and 4-gauge power terminals make for a solid installation.
HIGHLIGHTS:
- 1000W RMS at 1 ohm, 650W at 2 ohms, 380W at 4 ohms
- Stable down to 1 ohm
- Low-pass 40-180 Hz and subsonic 10-50 Hz filters
- Bass boost 0-12 dB at 30-80 Hz
- Dash-mount remote bass knob included
- Frequency response 10-220 Hz, THD 0.01%
GREAT FOR:
- Single or dual subwoofer systems
- Car, truck and Jeep builds
- Off-road and DIY projects
SPECIFICATIONS:
| SERIES | ZR |
| CHANNELS | 1 Channel |
| CLASS | Class D |
| RMS @ 1 OHM | 1000 Watts |
| RMS @ 2 OHM | 650 Watts |
| RMS @ 4 OHM | 380 Watts |
| PEAK POWER | 3000 Watts |
| FREQUENCY RESPONSE | 10 - 220 Hz |
| SIGNAL TO NOISE | >95 dB |
| POWER TERMINALS | 4 Gauge |
| FUSE | 100A |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097260498 |
