DS18 X4XL X Series Ultra Compact 4-Channel Class D Amplifier - 4 x 120W RMS at 4 Ohms DS18
The DS18 X4XL is an ultra compact Class D 4-channel amplifier for installs where space is tight. It delivers 4 x 120 watts RMS at 4 ohms, 4 x 180 watts RMS at 2 ohms, or 2 x 300 watts RMS at 4 ohms bridged, with 1800 watts peak.

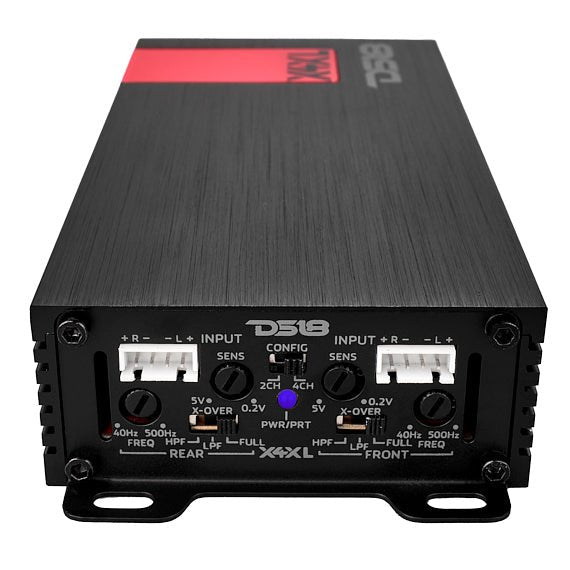

A crossover switch selects LPF, FLAT or HPF with an adjustable range of 40 Hz to 500 Hz, and a 2/4-channel input selector adds wiring flexibility.
Surface mount construction on a four-layer PCB, plus thermal, overload and short circuit protection, help keep the amp reliable.
HIGHLIGHTS:
- 4 x 120W RMS at 4 ohms
- 4 x 180W RMS at 2 ohms
- Bridgeable: 2 x 300W RMS at 4 ohms
- LPF / FLAT / HPF crossover, 40-500 Hz
- 2/4-channel input selector
- Ultra compact Class D design
GREAT FOR:
- Tight install spaces
- Powering door and rear speakers
- Motorcycles and golf carts
SPECIFICATIONS:
| SERIES | X |
| CHANNELS | 4 Channel |
| CLASS | Class D |
| RMS @ 4 OHM | 120W x 4 |
| RMS @ 2 OHM | 180W x 4 |
| BRIDGED @ 4 OHM | 300W x 2 |
| PEAK POWER | 1800 Watts |
| CROSSOVER | LPF / FLAT / HPF, 40 - 500 Hz |
| INPUT MODE | 2 / 4 Channel selectable |
| PROTECTION | Thermal, overload, short circuit |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097265257 |
