• Full Range Amplifier
• 4 Channel
• Class D
• 2 ~ 4 Ohm Stable
• 4 X 100 Watts @ 4 Ohm
• Compact Design

• SPECS

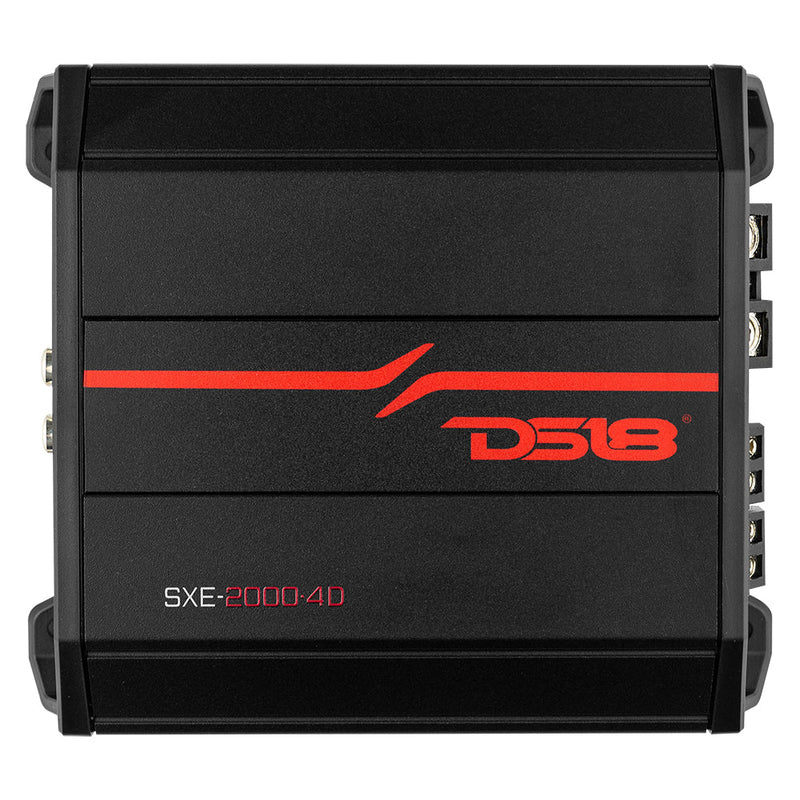

  DS18 SXE-2000.4D




  DS18’s SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-2000.4D at the helm, your vehicle's speakers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks.

  The SXE-2000.4D offers you the ability to shape your systems audio to match your personal preferences. Its selectable crossover, and multi-channel amplifier design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-2000.4D enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style.

  Thanks to its Class D circuit design the SXE-2000.4D seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-2000.4D's staggering performance, delivering 320W x 2 CH bridged at 4-ohms, 160W x 4 CH at 2-ohms, and 100W x 4 CH at 4-ohms. These power settings are guaranteed to supercharge any custom build.

  The SXE-2000.4D also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has thought of everything to guarantee a long-lasting and exceptional audio experience.



  SKU
  SXE-2000.4D
  Total Watts (Peak)
  2000W
  RMS Power @ 4 Ohm
  4 x 100W
  RMS Power @ 2 Ohm
  4 x 160W
  RMS Power @ 1 Ohm
  N/A
  RMS Power @ 4 Ohm Bridge
  2 x 320W





  Audio

  Frequency Response
  10Hz-20KHz
  Signal to Noise Ratio
  90dB
  Efficiency @ 4ohm
  90%
  Damping Factor
  200
  Input Impedance
  20kΩ
  Channel Separation
  60dB
  Total Harmonic Distortion (THD)
  0.10%
  Low Level Input Range
  200mV-5V
  High Level Input
  No
  Selectable X-Over
  HPF/FULL/LPF
  X-Over Filter Range
  40HZ-2KHZ
  Bass Boost Range
  No
  Bass Boost Frequency
  No
  Infrasonic Filter
  No
  Phase Selector
  No





  Features

  Amplifier Class
  Digital (D)
  Amplifier Type
  Stereo Full Range
  Number of Channels
  4
  Minimum Impedance
  2 Ohm Stereo / 4 Ohm Bridge
  Led Indicator
  Power/Protect/Clip
  Power Input Terminal Size
  4Ga
  Fuse Size
  1 x 40A (40A)
  Remote Level Control
  No
  Cooling Fan
  No
  Voltmeter
  No
  Thermal Protection
  Yes
  Over-Load Protection
  Yes
  DC Output Protection
  Yes
  Short Circuit Output Protection
  Yes
  Voltage Input Protection
  Yes (16.5v)
  Clipping Protection
  Yes
  Body Color / Finish
  Red / Black Brushed Aluminum





  Measurement

  Overall Length
  6.4" / 164.3mm
  Overall Wide
  5.5" / 140mm
  Overall Height
  1.8" / 48mm
  Heatsink Length
  5" / 127mm





  Extra Features

  Compact Size to easy Installation for Any Applications
  Yes
  Stable/Reliable Two or Four Layers Traces PCB Design
  Yes
  Surface Mount Component Technology
  Yes
  Quality Control Verification using Audio Precision Instruments
  Yes
  Remote Level Control with Clip Indicator
  No
