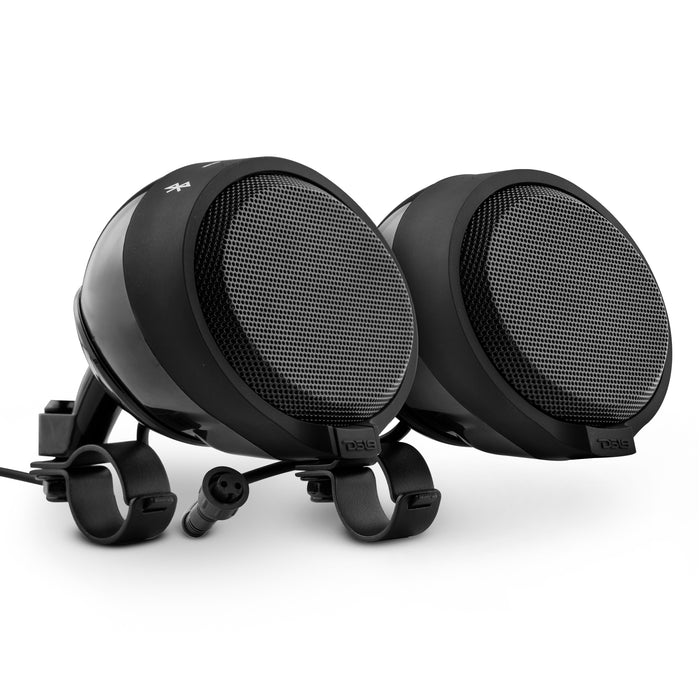

The RYDERBT utilizes a built-in digital stereo amplifier that commands its two 2.5” full-range speakers. With a whopping 40W of RMS Power and 120W of Peak Power combined, the RYDERBT guarantees auditory pleasure without distortion. The speakers' innovative design guarantees an immersive, heart-thumping sound that reverberates through your soul.
The RYDERBT's technical prowess is highlighted by its thoughtful engineering. Its easy-to-install bracket system is designed to fit most motorcycle and ATV handlebars, and the pre-made terminals seamlessly integrate into your ride without the need for awkward modifications. We’ve also incorporated larger buttons on this model for easier use with motorcycle gloves.
Built to conquer the elements, DS18’s RYDERBT is IP55 waterproof certified, fully prepared to endure whatever gets thrown its way. Rain, dust, or even a sudden splash – your audio experience remains unaffected, adding an exciting rhythm to your journey regardless of the weather.
Features:
- Handle Bar Mount Pods
- 2.5" Full Range Speakers
- Amplified Class D(2 X 20 Watts RMS)
- Bluetooth v5.0 / USB Port ~ Charge & Player
- PAIR ~ Blue Backlit Illumination
- Water Resistant IP55
Specs:
SKU
RYDERBT
Nominal Size
2.5" / 63.5mm
Total Watts (Peak)
120W
RMS Power @ 4 ohm (Internal Amp)
2 x 20W
MAX Power @ 4 ohm (Internal Amp)
2 x 60W
Frequency Response
80Hz-20kHz
Storage Temperature
5°F ~ 176°F (-15°C ~ 80°C)
Operation Temperature
32°F ~ 140°F (0°C ~ 60°C)
Operation Voltage
12 Volts (10~16 Volts Range)
Bluetooth Version
V5.0
Audio Protocols
A2DP,AVRCP
Range
>130ft / 40M
Body / Features:
Marine Grade Type
IP55
Body Material / Color / Finish
ABS-PC / Gloss Black
Grill Type
Steel Mesh With Cloth Protection
Qty on box
Pair Set (left & Right)

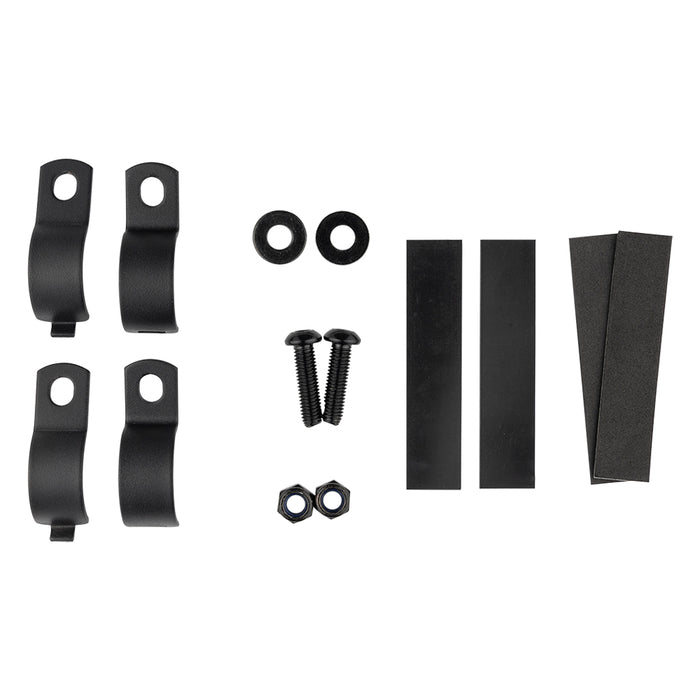

Clamps
2 Set
Front Logo
Yes

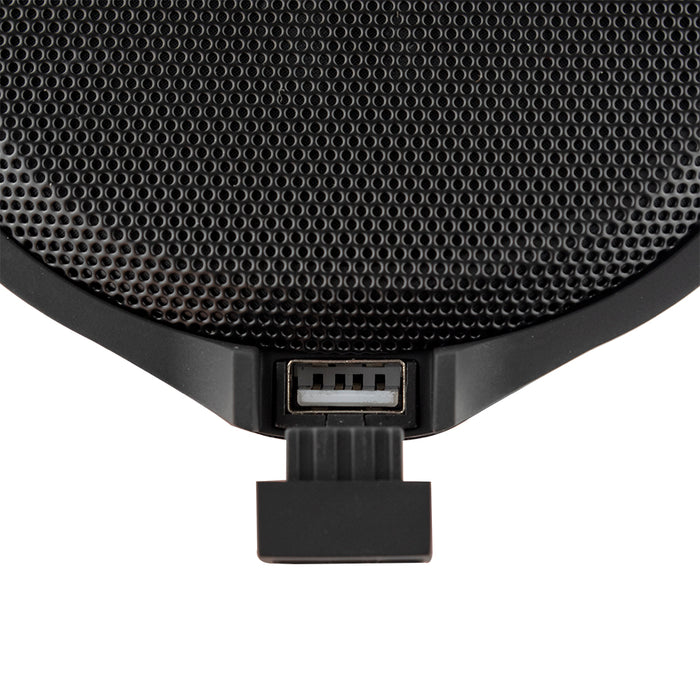

USB Player
Yes (WMA, MP3 files)
USB Charger
Quick Charge 5V2A , 9V1.6A

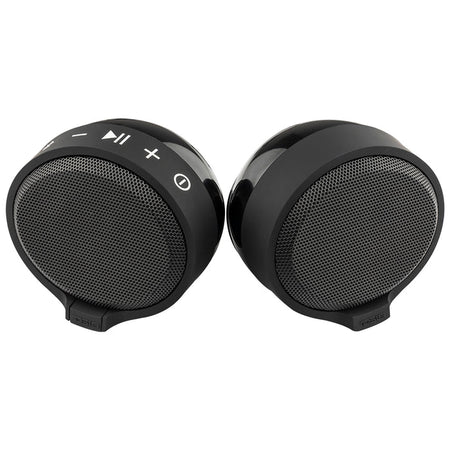

Buttons / Controls
Yes (Power, Play/Pause, Fwd, Bwd, Vol+/Vol-,BT)
Illumination
Yes (Blue Backlit)
Mount Diameter
1"
Woofer Specs:
Nominal Diameter
2.5" / 63.5mm (each)
Voice Coil Diameter
0.6" / 16.4mm
Voice Coil Former Material
Kapton
Cone Material
PPI
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Neodymium
Motor Diameter
2.17" / 55mm
Amplifier Specs:
Amplifier Class
Class D
Amplifier Type
Stereo Full Range
Number of Channels
2
Minimum Impedance
4 ohm
Signal to Noise Ratio
68dB
T.H.D.
1% @ 1000Hz
Channel Separation
60dB
Audio Source
BT, USB
Power Input Wire Size
2x20awg
Recommend Fuse Size
5A
MAX Current Draw
5A
Thermal Protection
Yes (>284°F / 140°C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Measurements:
Overall Width
4.33" / 110 mm
Overall Height
3.66" / 93mm
Overall Depth
5.31" / 135 mm
Shipping Info:
Gross Single Unit Weight
2.53Lb / 1.15Kg
Single Unit Box Dimensions W x L x H
295 x 180 x 138mm
Quantity of Units in Master Carton
6 prs
Gross Master Carton Weight
16.75Lb / 7.6Kg
Master Carton Dimensions W x L x H
560 x 310 x 296mm
| Product Name |
DS18 RYDERBT Amplified Handlebar Mount Speaker Pods |
| Speaker Size |
2.5" / 63.5 mm |
| Power Handling |
2 x 20W RMS / 2 x 60W Peak (120W total peak) |
| Amplifier Class / Type |
Class D / Stereo Full Range |
| Frequency Response |
80Hz – 20kHz |
| Bluetooth Version |
5.0 (A2DP, AVRCP protocols) |
| USB Features |
USB Player (WMA, MP3), Quick Charge 5V/2A, 9V/1.6A |
| Controls |
Power, Play/Pause, Fwd, Bwd, Vol+/Vol−, BT |
| Water Resistance |
IP55 Marine Grade |
| Construction Materials |
ABS-PC body, steel mesh grill with cloth protection |
| Cone / Surround |
PPI / Rubber |
| Protection Features |
Thermal (>284°F / 140°C), Overload, Short Circuit |
| Operating Voltage |
12V (Range: 10V–16V) |
| T.H.D. / SNR |
1% @ 1kHz / 68dB |
| Fuse / Current Draw |
5A fuse recommended / Max current 5A |
| Unit Dimensions (W x H x D) |
4.33" x 3.66" x 5.31" (110 x 93 x 135 mm) |
| Gross Weight (1 unit) |
2.53 lb / 1.15 kg |
| Box Dimensions (1 unit) |
295 x 180 x 138 mm |
| Master Carton |
6 pairs per carton / 16.75 lb / 560 x 310 x 296 mm |
