Only 2 left
SKU: DS-PSW8.4D

DS18 PSW8.4D 8″ Shallow-Mount Water-Resistant Subwoofer | 400W RMS DVC 4-Ohm

Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last
Regular price $129.95 USD
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last

8″ shallow-mount subwoofer featuring a water-resistant design, 400W RMS power handling, and dual 4-ohm voice coils, delivering deep, controlled bass for tight-space and compact car audio installations.

Features:

  • Shallow-mount 8” subwoofer designed for tight installations
  • Dual 4-ohm voice coils for flexible system wiring
  • 400W RMS / 800W MAX power output
  • Water-resistant paper cone with aluminum reinforcement
  • 3.5” mounting depth ideal for compact enclosures

Specifications:

Nominal Diameter
8" / 203mm
Nominal Impedance
4 + 4 Ohms
RMS Power Handling
400W
MAX Power Handling
800W
Sensitivity (1W/1M)
81 dB
Frequency Response
20-300 Hz
Recommended Low-Pass Crossover
100 Hz

UPC: 810199441184


Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Water-resistant paper with aluminum reinforcement
Surround Material
Rubber
Magnet Material
Ferrite
Magnet Weight
38 oz
Displacement Volume
0.5 L / 0.017 ft3
Basket Material
Steel
Basket Finish
Matte Black


Thiele & Small Parameters

Equivalent Volume (Vas)
9.38 L / 0.33 ft3
Excursion (Xmax, one way)
8.5 mm
Free Air Resonance (Fs)
42 Hz
Mechanical Factor (Qms)
4.08
Electrical Factor (Qes)
1.06
Total Factor (Qts)
0.84
Moving Mass (Mms)
98.43 g
Compliance (Cms)
141.08 mm/N
BL Factor
12.61
Voice Coil Inductance (Le)
1.83 mH
Diaphragm Area (Sd)
216 cm2
DC Resistance (Re)
3.2 + 3.2 Ohms
Efficiency Bandwidth Product (EBP)
39.6


Recommended Enclosure

Sealed Internal Volume Range
10?37 L / 0.35?1.3 ft3
Sealed Box Output Response (F3)
43-38 Hz


Measurement

Overall Diameter
8.6" / 220mm
Overall Depth
4" / 102mm
Front Mount Baffle Cutout
7.5" / 191mm
Mounting Depth
3.5" / 90mm
Motor Diameter
5.27" / 134mm

Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.

Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.

1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.

Customer Support : 9:00 am to 5:00 pm

Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States

Email: info@eliteautogear.com

For technical support questions, contact us at cs@eliteautogear.com

Phone: (877)-215-8187

From Our Community

Real Installs. Real Sound.

See what enthusiasts are saying — straight from their builds

Low End You Can Feel

Bass Built for Daily Driving and Competition

Controlled Low End

Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.

Built to Take Power

Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.

Match the Enclosure

Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.

Wire It Right

Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.

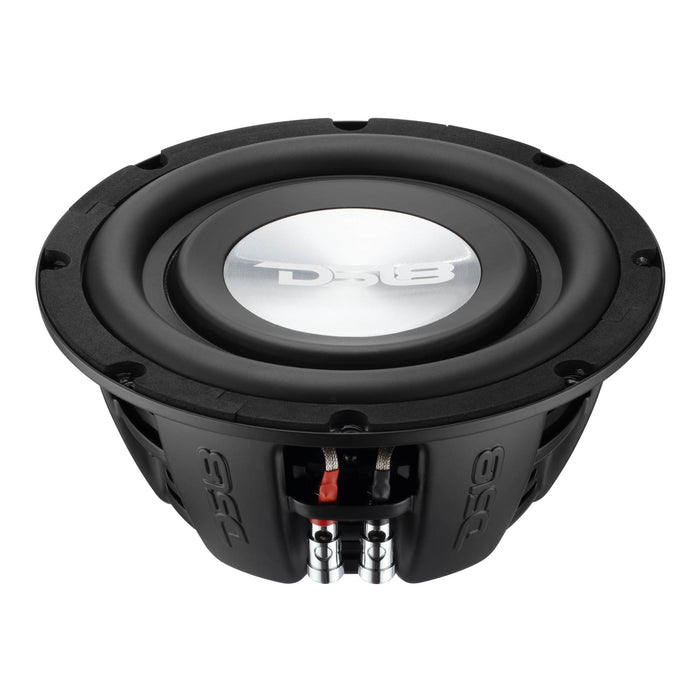

DS18 PSW8.4D subwoofer, angled side view showing cone, basket and rubber surround
