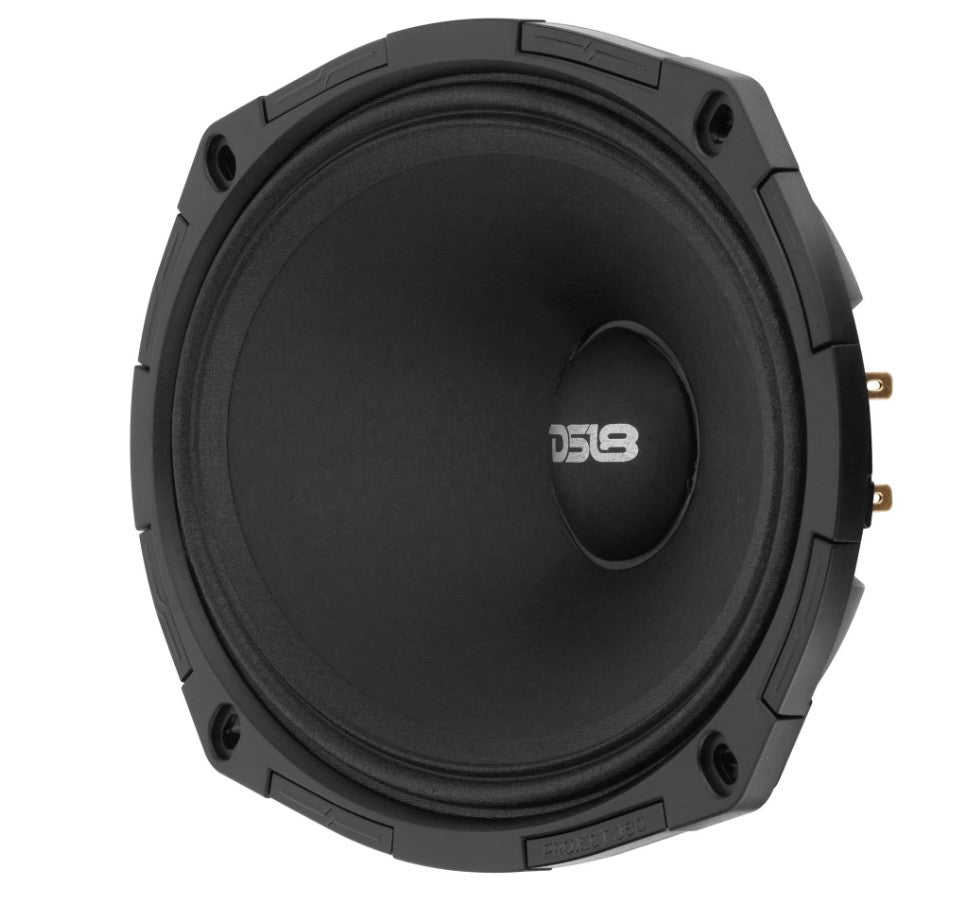

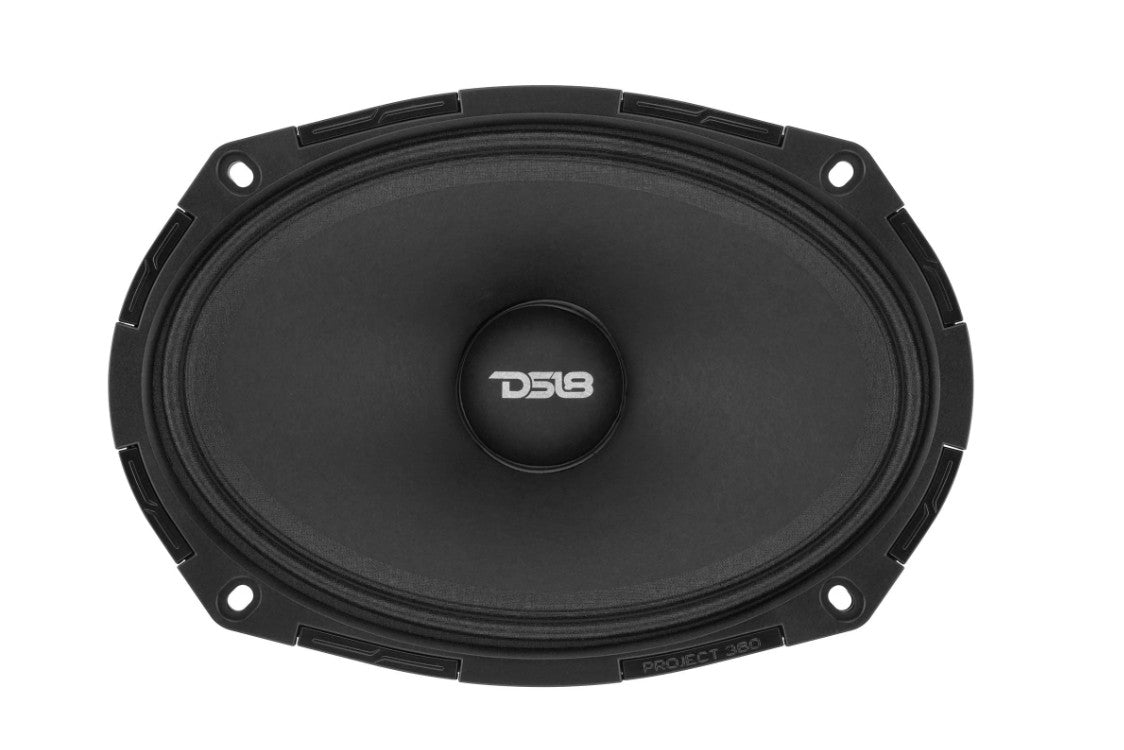

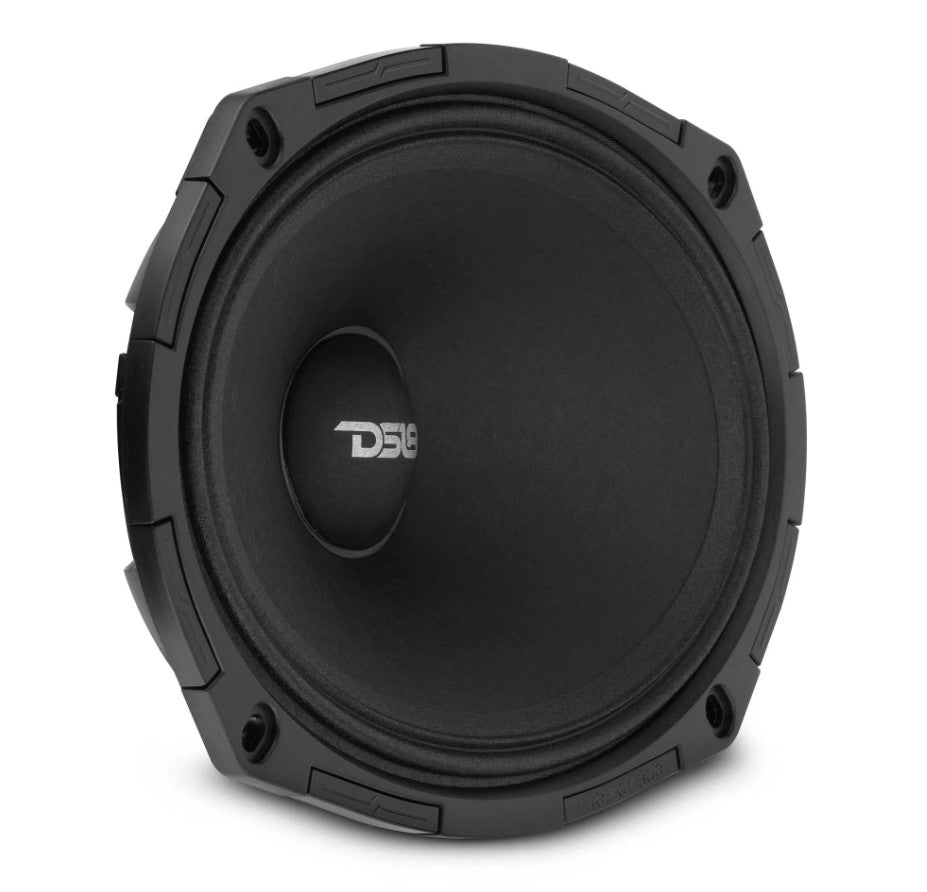

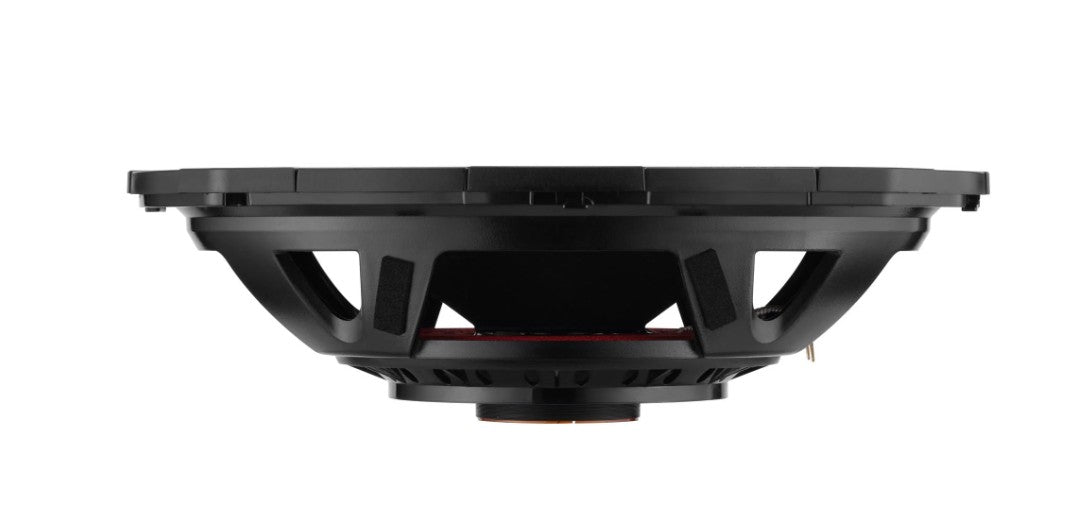

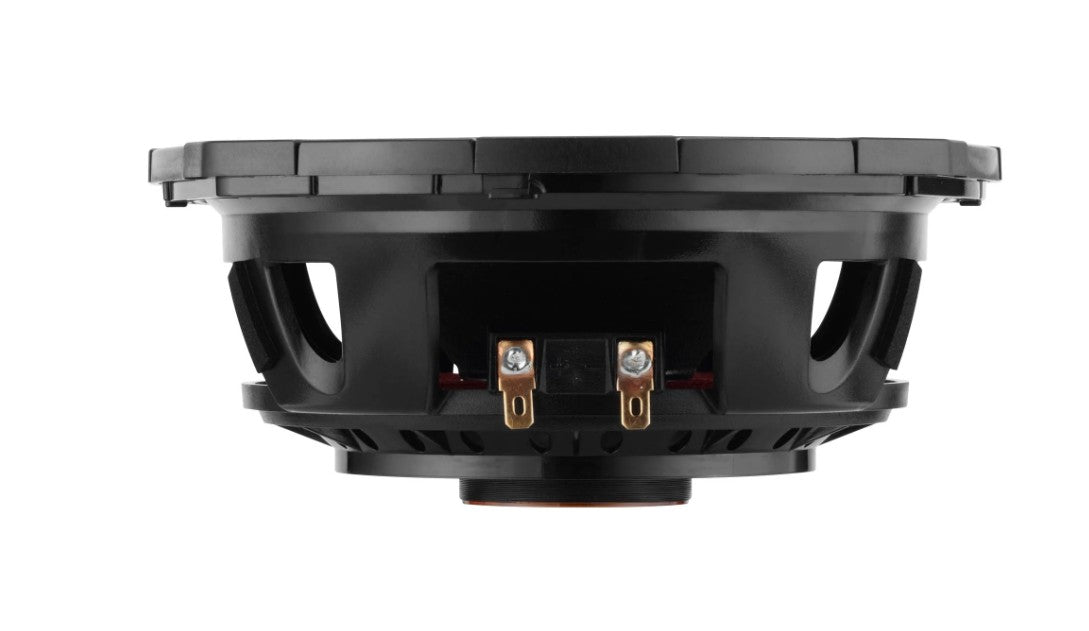

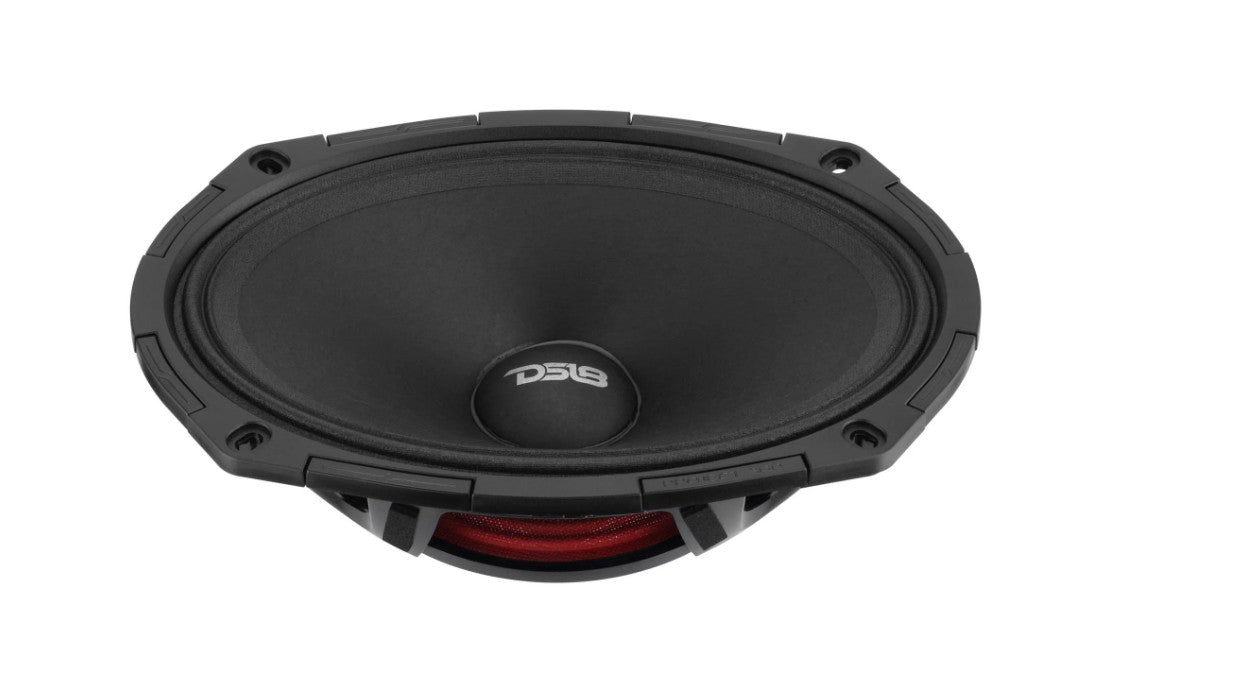

DS18 PROJECT360.694B 6x9" Pro Mid-High Speaker 300W RMS 4 Ohm 98dB
Take your car audio system to the next level with the DS18 PROJECT360.694B, a professional-grade 6x9-inch mid-high loudspeaker engineered to deliver outstanding clarity, efficiency, and reliability. With 300 Watts RMS and 600 Watts MAX power handling, this speaker produces powerful vocals and detailed mid-to-high frequencies while maintaining exceptional performance in high-output audio systems.

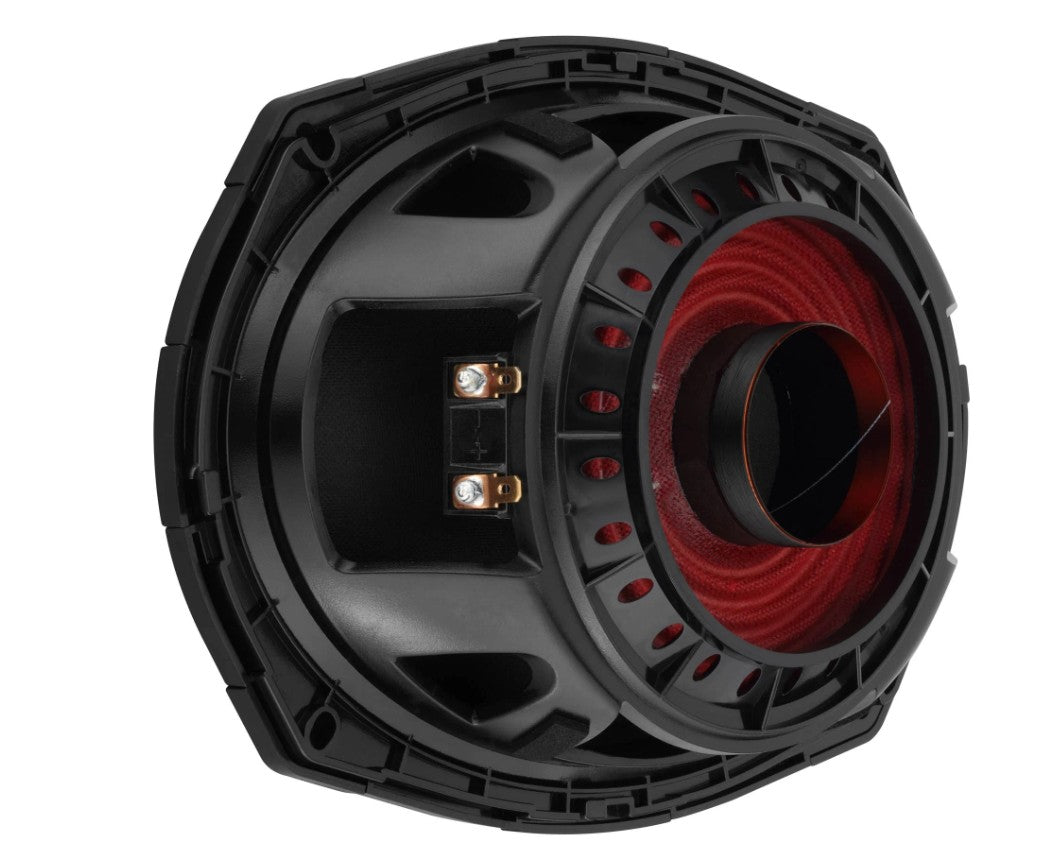

Featuring an innovative patent-pending Rotating Recone Design, the PROJECT360.694B allows for fast and easy recone replacement without the need for glue, minimizing downtime and making repairs quicker than traditional speaker designs. Built with a durable cast aluminum basket, high-temperature 1.75-inch Kapton voice coil, ferrite magnet, and curvilinear paper cone, this speaker is designed to withstand demanding daily use and competition-level SPL applications.
Whether you're upgrading an existing system or building a custom professional audio setup, the PROJECT360.694B delivers the loud, clean sound and durability that DS18 is known for.
Features
- 300 Watts RMS / 600 Watts MAX Power Handling
- 6x9" Professional Mid-High Loudspeaker
- 4 Ohm Impedance
- 98 dB High Sensitivity

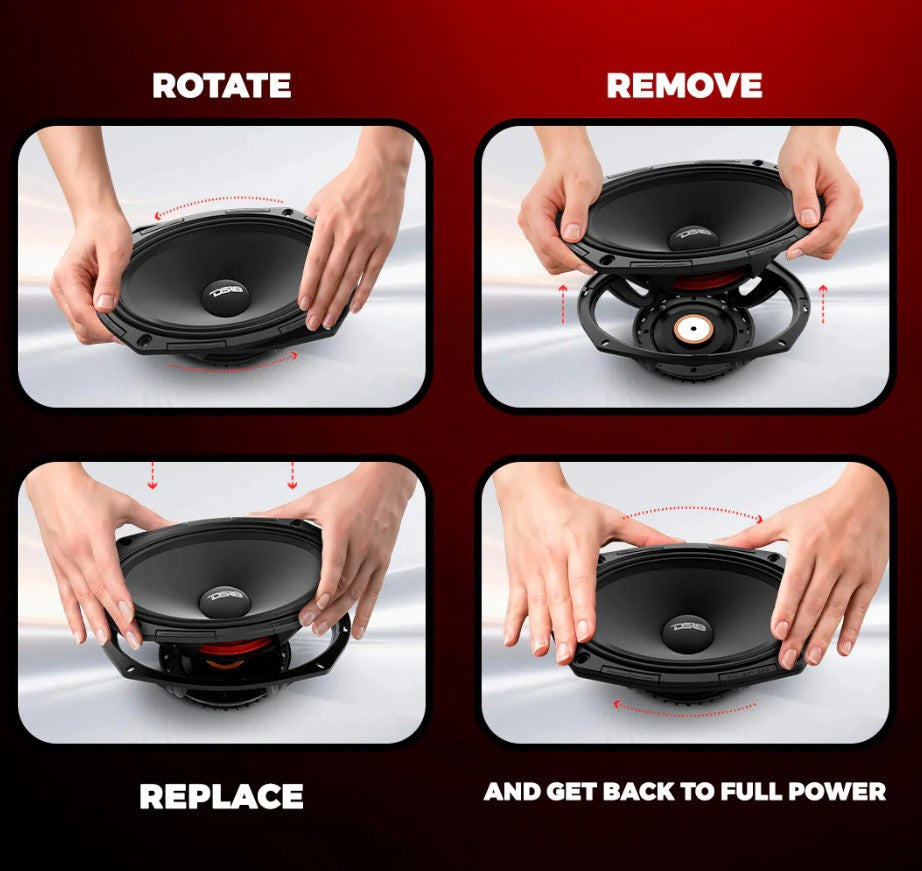

- Patent-Pending Rotating Recone Design
- Quick, Glue-Free Recone Replacement
- Bullet Phase Plug for Improved Sound Dispersion
- 1.75" High-Temperature Kapton Voice Coil
- Cast Aluminum Basket for Superior Strength
- Curvilinear Paper Cone with Cloth Surround
- Ferrite Magnet Motor Structure
- Crystal-Clear Midrange and High Frequencies
- Ideal for High-Output Car Audio & SPL Systems
- Universal Surface-Mount Installation
- Sold Individually
Specifications
- Brand: DS18
- Model: PROJECT360.694B
- Speaker Size: 6x9"
- RMS Power: 300 Watts
- Maximum Power: 600 Watts
- Impedance: 4 Ohm
- Sensitivity: 98 dB
- Frequency Response: 90 Hz – 17 kHz
- Voice Coil: 1.75" Kapton
- Magnet Type: Ferrite
- Basket Material: Cast Aluminum
- Cone Material: Curvilinear Paper
- Surround Material: Cloth
- UPC: 810199442556
Upgrade your system with the DS18 PROJECT360.694B and enjoy powerful output, crisp vocals, and innovative serviceability thanks to its advanced Rotating Recone Design. Built for enthusiasts and competitors alike, it's the perfect choice for demanding car audio applications.
