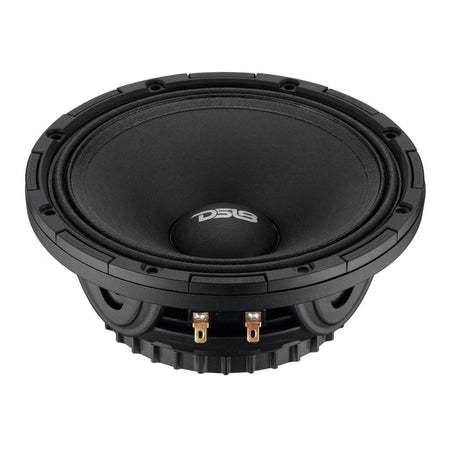

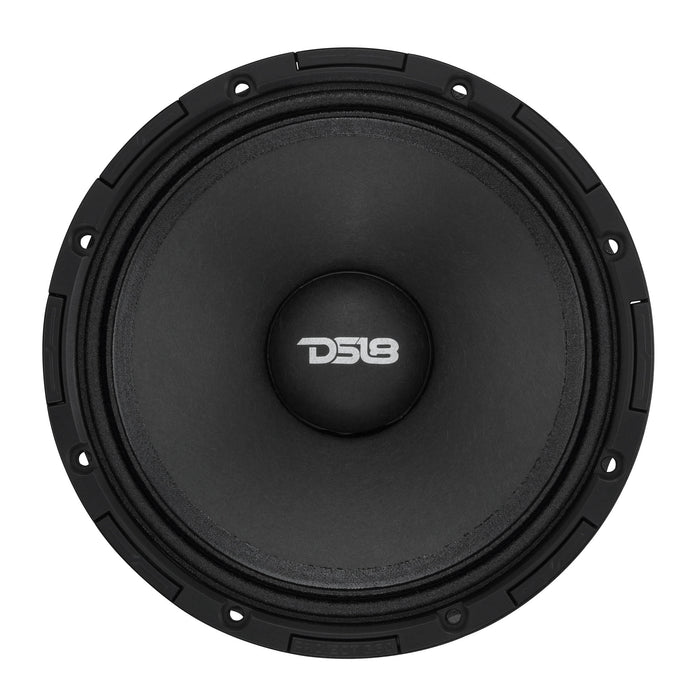

DS18 PROJECT360.64N 6.5” High-Sensitivity Mid-High Loudspeaker | Neodymium Magnet 350W RMS 4-Ohm | Rotating Recone Design for Quick Repair

Out of stock
SKU: DS-PROJECT360.64N
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last
Regular price $209.95 USD
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last

The DS18 Project360.64N loudspeaker is a high-sensitivity mid-high loudspeaker designed for extreme efficiency, lightweight performance, and fast serviceability in compact installations. With a shallow 2.72” mounting depth and neodymium motor structure, it delivers strong output while keeping weight low and efficiency high.

Its patent-pending rotating recone system allows instant cone replacement without glue or downtime, keeping systems running with minimal interruption. With 100.5 dB sensitivity, it produces powerful projection and clear midrange response with minimal amplifier power. Built with a 1.75” Kapton voice coil, cloth surround, and aluminum basket, it ensures durability, thermal stability, and long-term reliability.

Features:

  • 350W RMS / 700W MAX power handling / Neodymium Magnet
  • Curvilinear cone for improved response
  • Aluminum basket construction

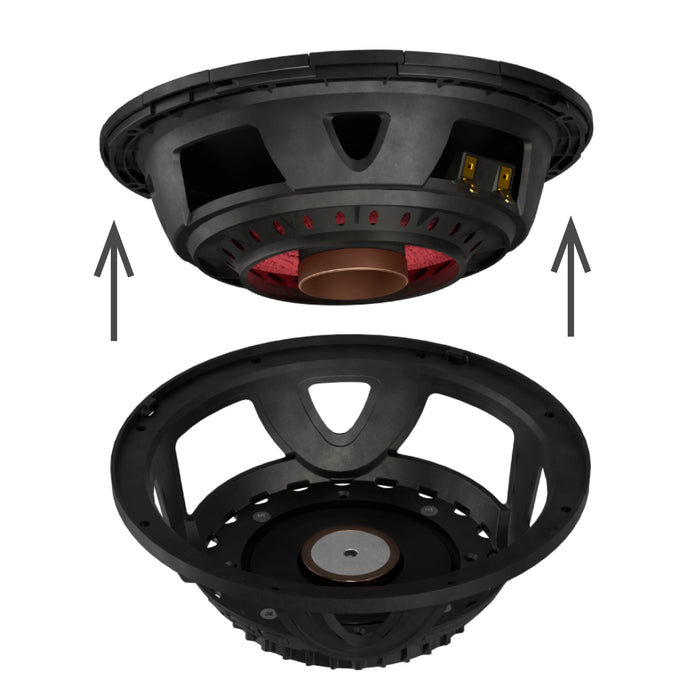

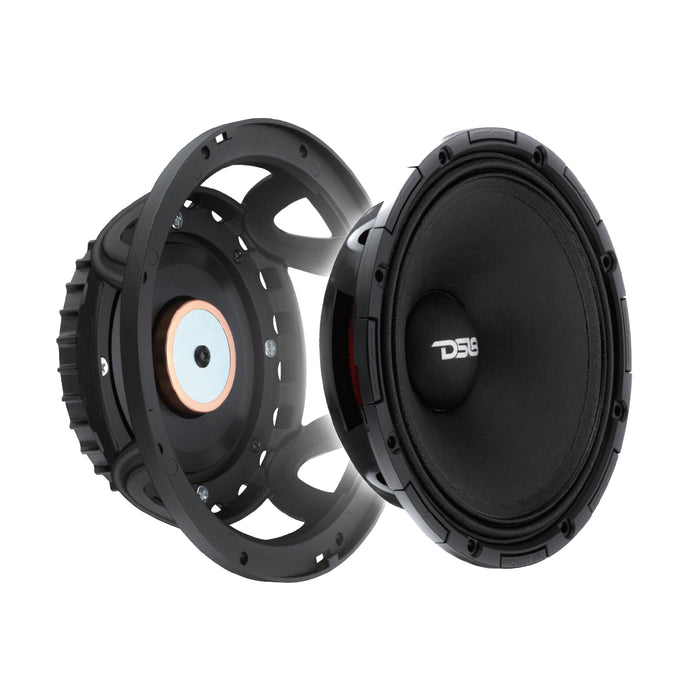

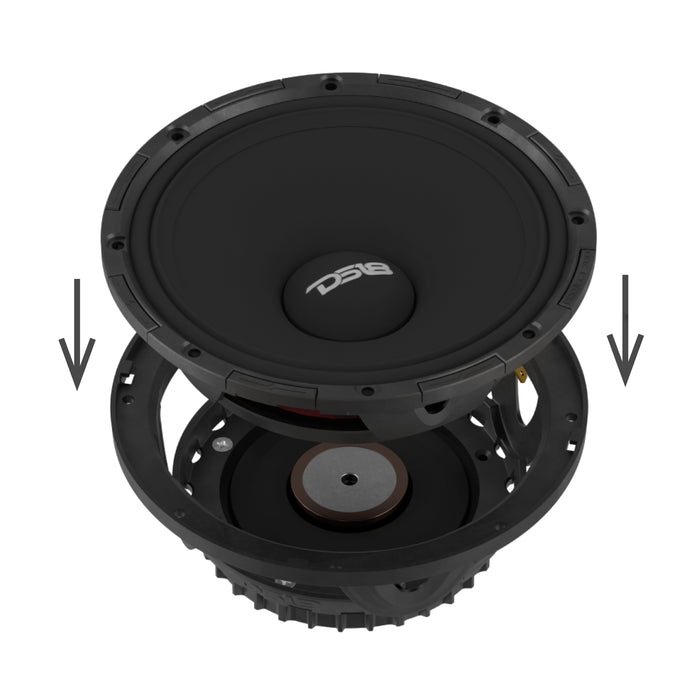

  • Plug-and-play recone system – no glue required

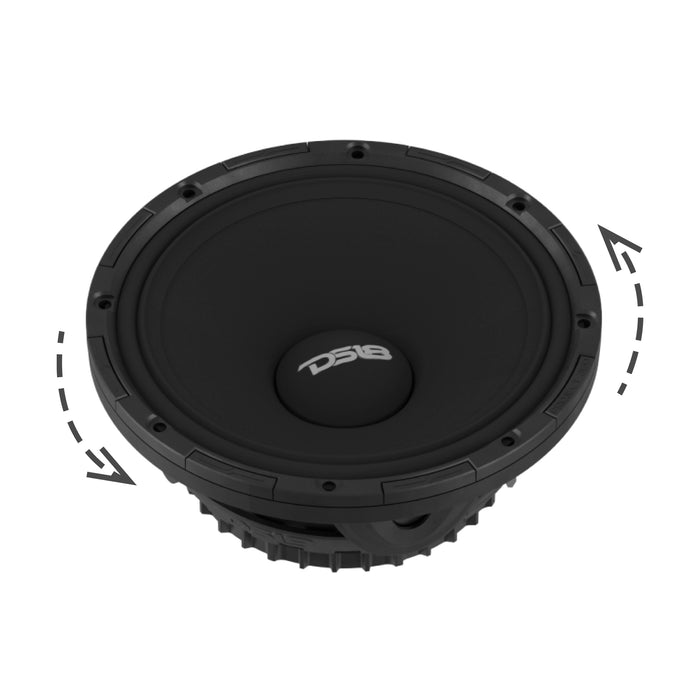

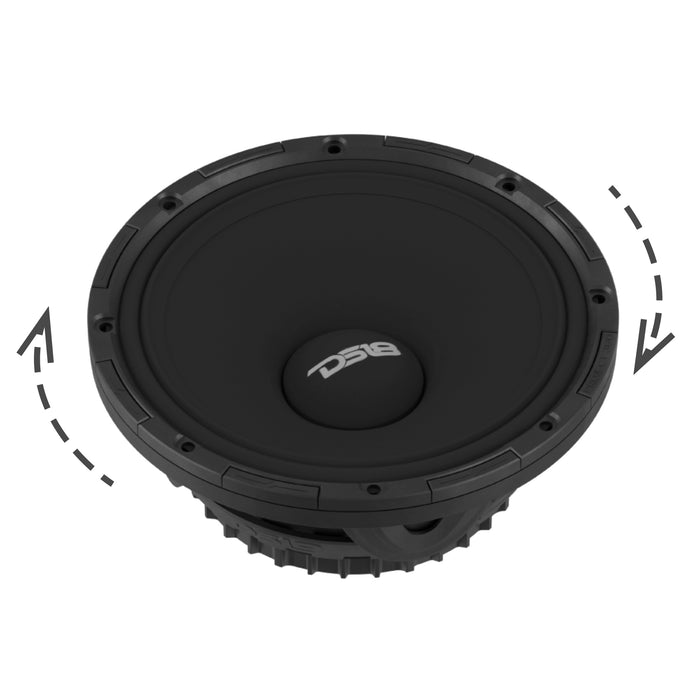

  • Patent-Pending rotating recone design for instant repairs
  • Compatible recone model PROJECT360.64RCK

Specifications:

Specifications

Nominal Diameter
6.5" / 152.4mm
Nominal Impedance
4 Ohms
RMS Power Handling
350 W
MAX Power Handling
700 W
Sensitivity (1w/1m)
100.5 dB
Frequency Response
100Hz-17kHz
Recommended High-Pass Crossover
100 Hz
Sold in Pair or Single
Single
Grill Included
No
Demodulating Rings
Yes
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Spade
Easy Recone Design
Yes


Motor

Voice Coil Diameter
1.75" / 44.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Cloth
Spider Diameter
4" / 102mm
Leads Connection Type
Round Crossed
Basket Material
Aluminum
Basket Color / Finish
Black
Magnet Material
Neodymium
Magnet Weight
12.8 oz


Thiele & Small Parameters

Equivalent Volume
2.78L / 0.098ft3
Excursion (one way)
0.3 mm
Free Air Resonance
160 Hz
Mechanical Factor
2.667
Electrical Factor
0.264
Total Factor
0.240
Moving Mass
14.523 g
Mechanical Compliance
0.063 mm/N
BL Factor
12.708
Voice Coil Inductance
0.035 mH
Cone Area
176.71 cm2
DC Resistance
3.4 Ohm


Measurement

Overall Diameter
6.85" / 174mm
Overall Depth
3.27" / 83mm
Front Mount Baffle Cutout
5.83" / 148mm

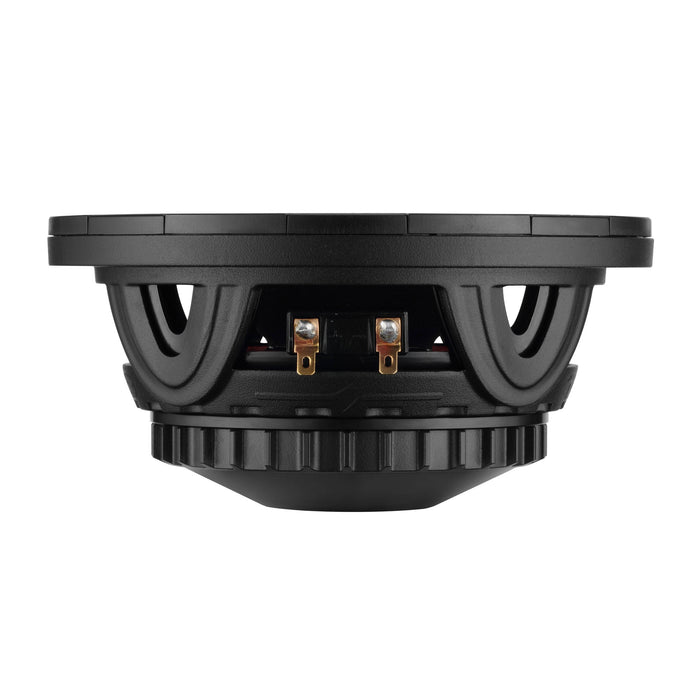

Mounting Depth
2.72" / 69mm
Motor Diameter
3.94" / 100mm

UPC: 810199441634
