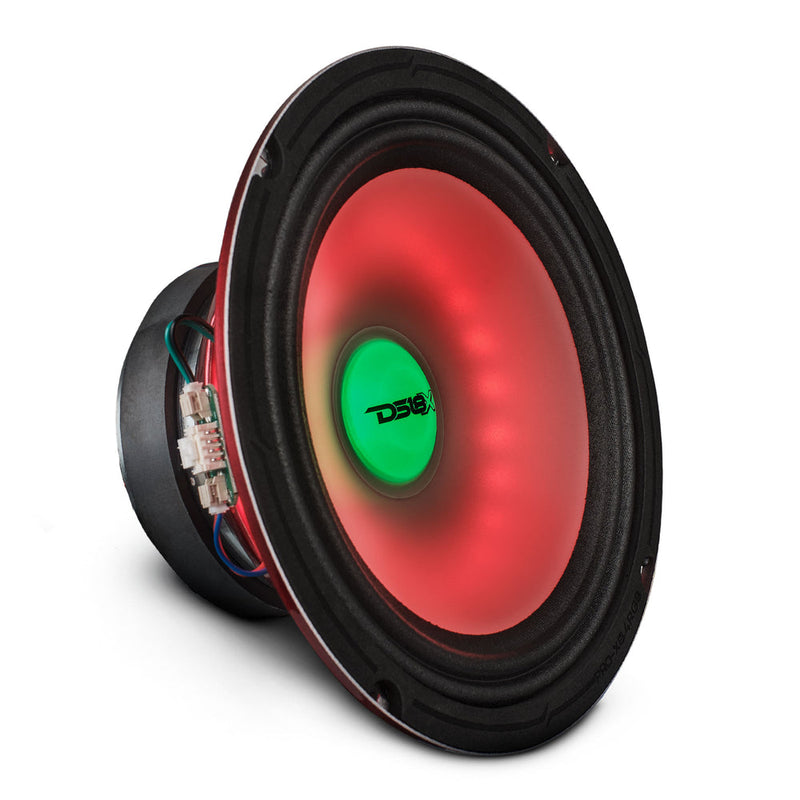

DS18 PRO-X8.4RGB 8" Mid-Range Loudspeaker With Dual RGB LED For Cone & Dust Cap 275 Watts 4-Ohm
8" Mid-Range Loudspeaker With Dual RGB LED For Cone & Dust Cap
Get LOUD with DS18’s PRO-X8.4RGB, an 8-inch loudspeaker engineered for excellence. This loudspeaker combines high-power audio with a striking visual flair, making it the perfect upgrade for competitive and casual systems.
The PRO-X8.4RGB handles up to 275W RMS and peaks at 550W, guaranteeing distortion-free sound even at high volumes. Its wide frequency response from 80Hz to 5kHz captures rich mid-range tones, while the exceptional sensitivity of 95 dB guarantees loud, detailed audio with minimal power input.

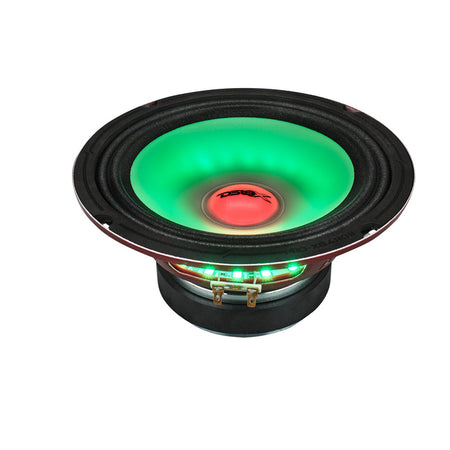

This mid-range speaker features a translucent polypropylene cone and dust cap integrated with RGB LEDs for dynamic lighting effects that can transform any show build from runner up to first place. The 1.5-inch voice coil with Kapton former and CCAW winding enhances durability and precision, while the glossy red steel basket ensures structural integrity. Its rugged ferrite magnet weighing 30 oz boosts reliability, making it perfect for any setup.
What sets the PRO-X8.4RGB apart is its customizable LED lighting system, offering both dual and single-color modes suitable for wet or dry environments. This feature allows you to tailor your setup's aesthetics to your liking.
This speaker is perfect for every enthusiast. Its compact design with a 4-ohm impedance and 3.75" mounting depth ensures effortless integration into various setups.
Features:
- 8" Mid-Range w/RGB LED Cone & Dust Cap
- RMS Power: 275 Watts
- MAX Power: 550 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 95dB
Specifications:
SKU: PRO-X8.4RGB
Nominal Diameter: 8" / 203.2mm
Nominal Impedance: 4 ohm
RMS Power Handing: 275w
MAX Power Handing: 550w
Sensitivity (1w/1m): 95dB
Frequency Response: 80Hz-5KHz
Recommended HI Pass Crossover: 100Hz
Sold in Pair or Single: Single
Grill Included: No
Water Resistant: IP65 rating
Motor:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Translucid PP with RGB LED
Bullet Material: N/A
Dust Cap Material: Translucid PP with RGB LED
Surround Material: Cloth
Basket Material: Steel
Basket Color/Finish: Glossy Red
Magnet Material: Ferrite
Magnet Weight: 30 Oz
Displacement Volume: 0.049L / 0.0017ft3
Thiele & Small Parameters:
Equivalent Volume Vas: 13.2L / 0.46ft3
Excursion (one way) Xmax: 7mm
Free Air Resonance Fs: 80Hz
Mechanical Factor Qms: 9.31
Electrical Factor Qes: 0.75
Total Factor Qts: 0.7
Mechanical Mass Mms: 22.3g
Mechanical Compliance Cms: 0.19mm/N
BL Factor BL: 6.96
Voice Coil Inductance Le: 0.03mH
Cone Area Sd: 219.04cm2
DC Resistance Re: 3.5 ohms
Mechanical Mass w/o air Mmd: 20.5g
Measurement:
Overall Diameter: 8.22" / 209mm
Overall Depth: 4" / 101.6mm
Front Mount Baffle Cutout: 7.16" / 182mm
Mounting Depth: 3.75" / 95mm
