DS18 PRO-X6MSE 6.5” Sealed Back Mid-Range Loudspeaker | 500W | 8-Ohm

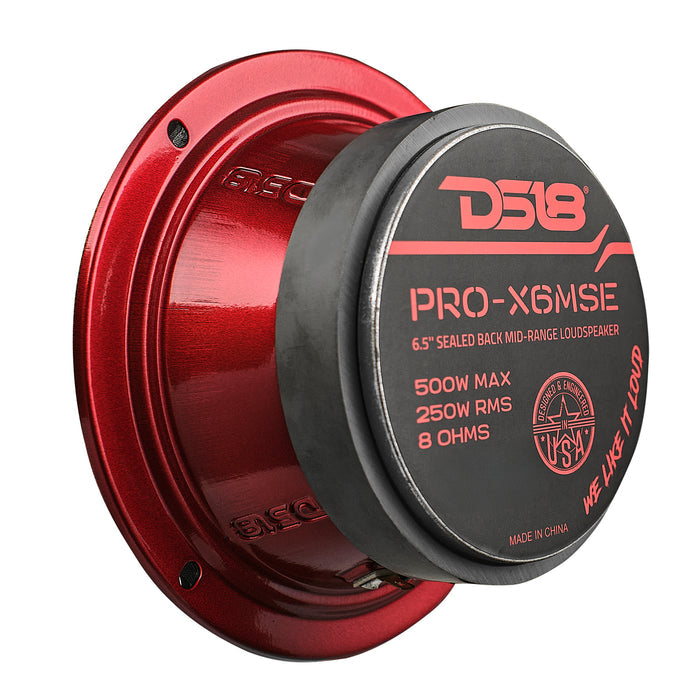

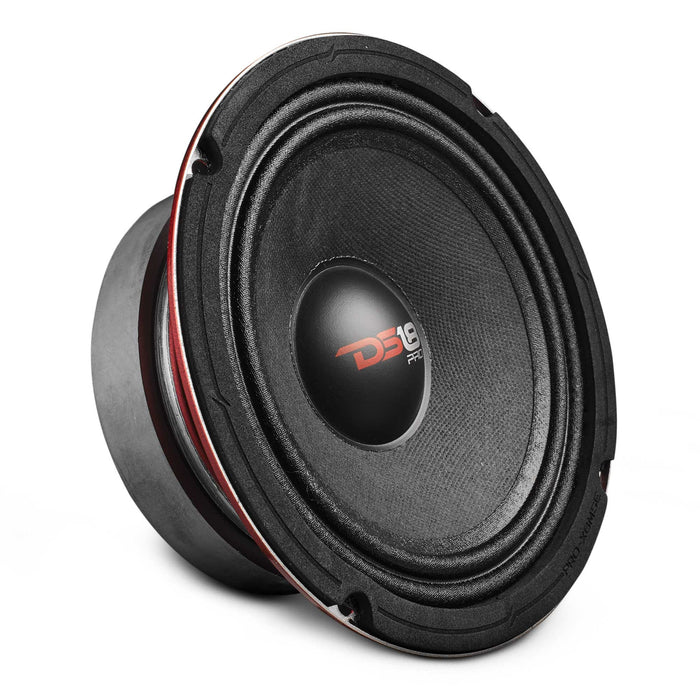

6.5” Sealed Back Mid-Range Loudspeaker
DS18’s PRO-X6MSE is your go-to 6.5" mid-range speaker when you need serious sound! With a sealed back design, this speaker thrives in high-pressure enclosures like door panels or chucheros, delivering consistent performance in tough environments.
Perfect for wall builds, doors, or high-intensity chuchero setups—this speaker’s sealed back means you don't need a custom enclosure to get insane performance. With a compact 2.64" mounting depth and 5.7" cutout, installation is easy and versatile.
Features:
- 6.5" Sealed Back Mid-Range
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 8-Ohms
- Ferrite Magnet
- 95dB
| Specification | Details |
|---|---|
| Product Name | DS18 PRO-X6MSE 6.5” Sealed Back Mid-Range Loudspeaker |
| UPC | 810005185532 |
| Nominal Diameter | 6.5" / 165 mm |
| Nominal Impedance | 8 Ohm |
| RMS Power Handling | 250 Watts |
| Max Power Handling | 500 Watts |
| Sensitivity (1w/1m) | 95 dB |
| Frequency Response | 315 Hz – 8 kHz |
| Recommended Hi-Pass Crossover | 550 Hz |
| Voice Coil Diameter | 1.5" / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA (Copper-Clad Aluminum) |
| Basket Material | Steel |
| Magnet Type / Weight | Ferrite / 33 oz |
| Thiele & Small Parameters | |
| - Vas | 1.82 L |
| - Xmax | 9 mm |
| - Fs | 511 Hz |
| - Qms | 10.782 |
| - Qes | 3.249 |
| - Qts | 2.427 |
| - Re | 5.1 Ohm |
| Mounting Depth | 2.63" / 67 mm |
| Overall Depth | 2.83" / 72 mm |
| Front Mount Baffle Cutout | 5.7" / 144 mm |
| Overall Diameter | 6.6" / 168 mm |
| Product Weight | 5.5 lbs |
| Product Dimensions | 7.25 x 7.25 x 3.25 in |
| Master Carton Weight | 43 lbs |
| Master Carton Dimensions | 15.25 x 15.25 x 7.5 in |
| Master Carton Quantity | 8 Pieces |
| Sold In | Single Unit |
