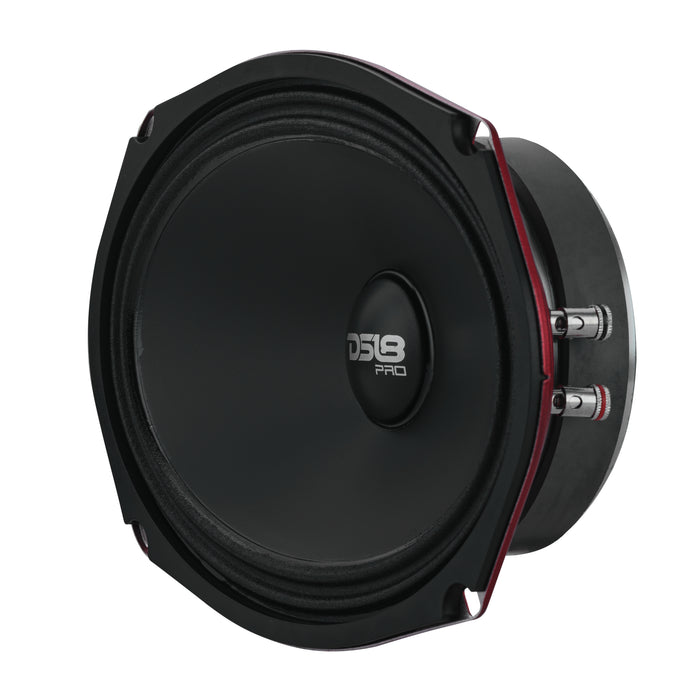

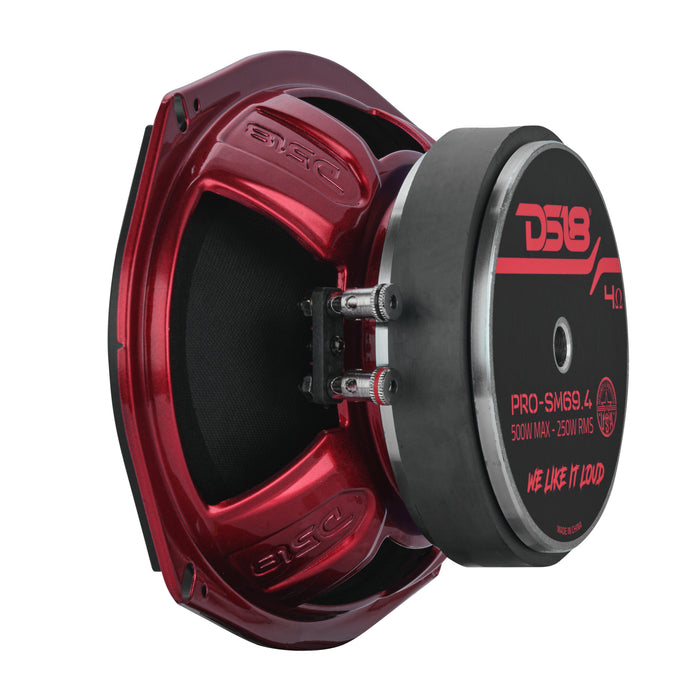

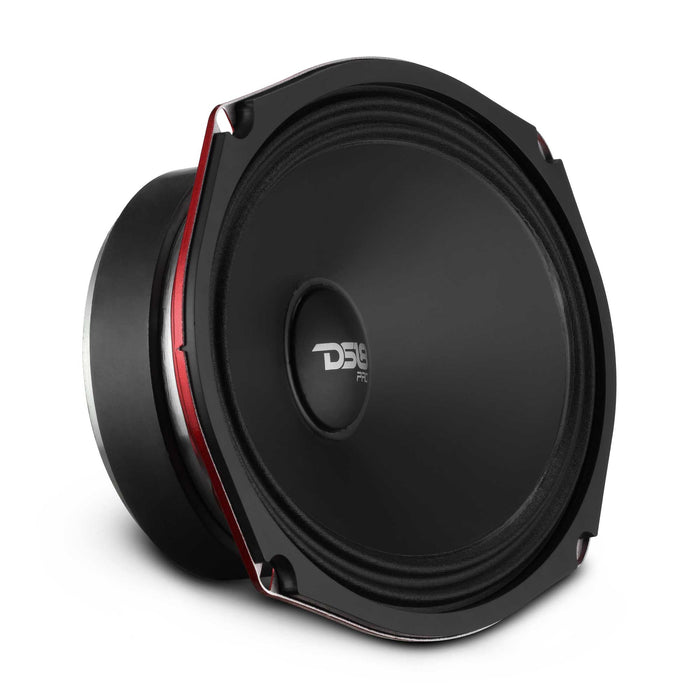

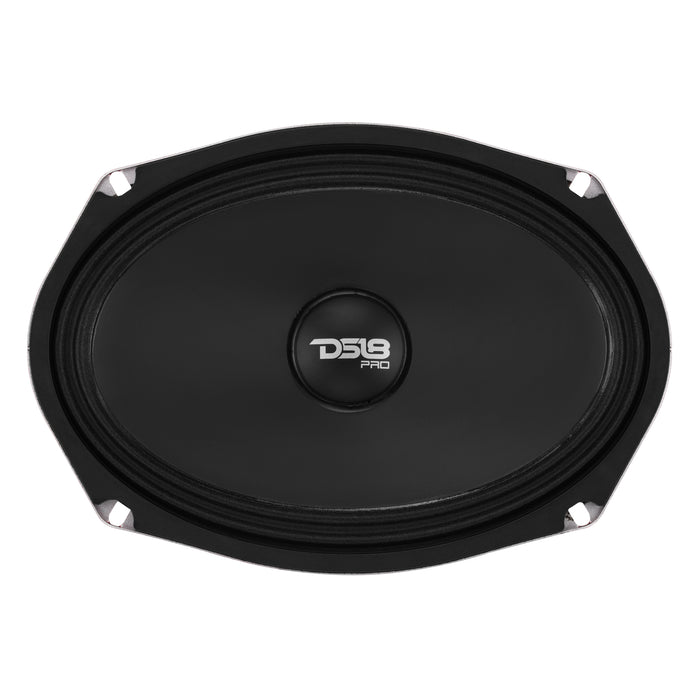

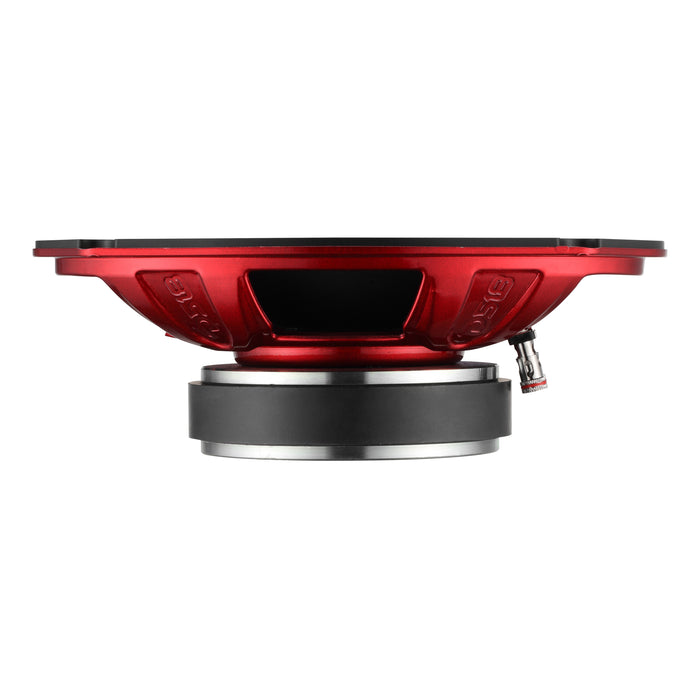

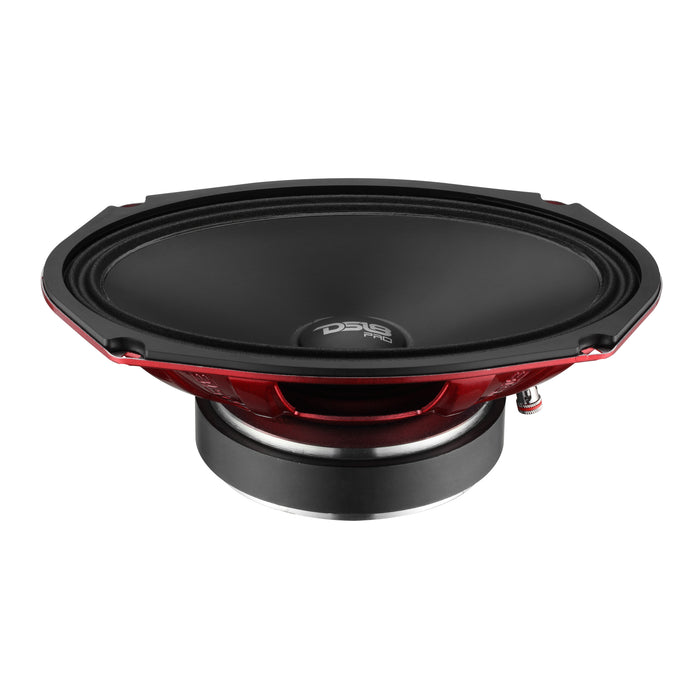

DS18 PRO-SM69.4 6x9" Shallow Water-Resistant Midrange Speaker | 250W RMS | 4-Ohm

In stock
SKU: DS-PRO-SM69.4
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Regular price $63.96 USD
Regular price Sale $79.95 USD Sale price $63.96 USD
Massive Power & Clarity

Massive Power & Clarity

Superior Performance

Superior Performance

Advanced Technology

Advanced Technology

Premium Quality

Premium Quality

Experience powerful, clear sound with this 6x9” shallow-mount midrange speaker, delivering 500W max and 250W RMS power. Featuring a water-resistant cone, 4-ohm impedance for easy amp matching, and high 96dB sensitivity, it’s built for durability and loud performance in tight installs.

Features:

  • 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
  • 4-Ohm Impedance for Easy Amplifier Matching
  • Water-Resistant Cone, Dust Cap, and Cloth Surround
  • High Sensitivity (96dB) for Clear, Loud Output
  • 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
  • 2.83" Mounting Depth for Versatile Install Options

Specifications:

Nominal Diameter
6x9" / 152x228mm
Nominal Impedance
4 ohms
RMS Power Handling
250W
MAX Power Handling
500W
Sensitivity (1w/1m)
96dB
Frequency Response
60Hz - 5KHz
Recommended HI Pass Crossover
120Hz
Pair or Single
Single
Grill Included
No
Voice Coil Water Protection
No
Water-Resistant Rating
N/A


Motor:

Voice Coil Diameter
1.5" / 38.1mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water Resistant Paper
Surround Material
Coated Cloth
Basket Material
Steel
Basket Color/Finish
Gloss Red
Magnet Material
Ferrite
Magnet Weight
33 Oz


Thiele & Small Parameters:

Equivalent Volume
10.87L / 0.383ft3
Excursion (one way)
1.3 mm
Free Air Resonance
110Hz
Mechanical Factor (Qms)
7.186
Electrical Factor (Qes)
0.947
Total Factor (Qts)
0.832
Mechanical Mass
13.102g
Mechanical Compliance
156.274mm/N
BL Factor
4.46
Voice Coil Inductance
0.36mH
Cone Area
212.6cm2
DC Resistance
3.2 ohms
Mechanical Mass w/o Air
11.85g


Measurement:

Overall Diameter
6.45x9.2" / 164x234mm
Overall Depth
3" / 78mm
Front Mount Baffle Cutout
5.7x8.6" / 145x218mm
Mounting Depth
2.83" / 72mm
Motor Diameter
4.72" / 120mm

UPC: 810199440408
