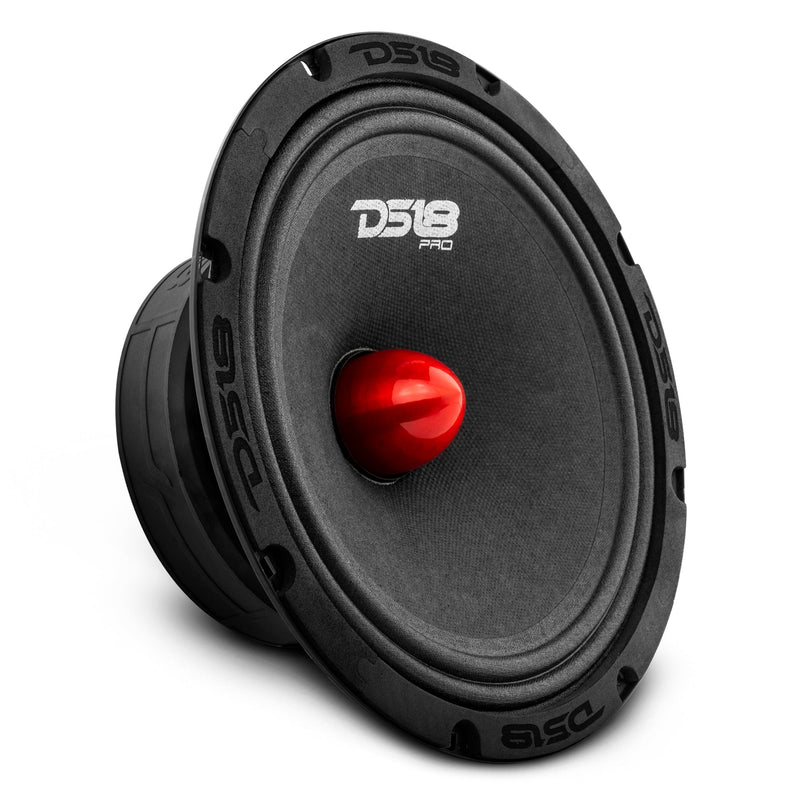

DS18 PRO-GM8.4B 8" Mid-Range Loudspeaker with Bullet 580 Watts 4-Ohm

In stock
SKU: DS-PRO-GM8.4B
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $41.95 USD



DS18 PRO-GM8.4B


8" Mid-Range Loudspeaker with Bullet 580 Watts 4-Ohm

With the DS18 PRO-GM8.4B, you'll experience the pinnacle of faithful sound reproduction. Its exceptional performance in the midrange region, ensures that every nuance and subtlety of your favorite tracks is faithfully conveyed.
With an RMS power of 190W and a maximum power of 580W, these speakers pack a punch that will leave you breathless. The frequency response of 90Hz – 10KHz ensures that no detail is lost, capturing every note with astonishing accuracy.
Crafted with high durability parts, including a robust ferrite magnet, a pressed paper cone, and CCA voice coils, this mid-range is built to deliver maximum volume without compromising audio excellence. The voice coil wire, made of Kapton, ensures enhanced performance and durability. With an impedance of 8 Ohms, a sensitivity rating of 96dB, 1.5" voice coil size, a magnet weight of 30 oz., a mounting depth of 3.11" (86mm), and cut-out dimensions of 7.16" (182mm), these speakers are engineered to fit seamlessly into your vehicle.
The solid cone design of the PRO-GM8.4B ensures that it shines as a pure midrange speaker, providing a focused and precise soundstage. For the ultimate audio experience, pair these exceptional speakers with a complementary tweeter, and prepare to be transported to a world where sound comes alive with unparalleled clarity and depth.
The "B" in PRO-GM8.4B stands for "Bullet," and it represents the heart of this extraordinary speaker. Equipped with a resonator featuring a distinctive red bullet design, the PRO-GM8.4B extends the range of frequencies, allowing you to hear every nuance and detail in your music. From deep, thundering bass to crystal-clear highs, this speaker does it all.
Whether you're cruising down the highway or parked at a car meet, the PRO-GM8.4B will captivate your senses, immersing you in crystal clear notes and deep heavy beats.

  • 8" Mid-Range
  • MAX Power: 580 Watts
  • RMS Power: 190 Watts
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • With Bullet

SPECIFICATIONS

SKU
PRO-GM8.4B
Nominal Diameter
8" / 203.2mm
Nominal Impedance
4 Ohm
RMS Power Handling
190W
MAX Power Handling
580W
Sensitivity (1w/1m)
95dB
Frequency Response
80Hz-10KHz
Recommended HI Pass Crossover
120Hz
Pair or Single
Single
Grill Included
No


MOTOR

Voice Coil Diameter
1.5" / 38.1mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
N/A
Bullet Material / Color
Red Aluminum
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
30 oz


THIELE & SMALL PARAMETERS

Equivalent Volume (Vas)
18.39L / 0.64ft3
Excursion (one way) (Xmax)
N/A
Free Air Resonance (Fs)
92Hz
Mechanical Factor (Qms)
11.5
Electrical Factor (Qes)
0.715
Total Factor (Qts)
0.673
Mechanical Mass (Mms)
10.3g
Mechanical Compliance (Cms)
0.286mm/N
BL Factor (BL)
5.2
Voice Coil Inductance (Le)
0.427mH
Cone Area (Sd)
213.82cm2
DC Resistance (Re)
3.2 ohm


MEASUREMENT

Overall Diameter
8.26" / 210 mm
Overall Depth
3.46" / 88 mm
Front Mount Baffle Cutout
7.2" / 183 mm
Mounting Depth
3.22" / 82mm
Motor Diameter
4.72" / 120mm
Gross Single Unit Weight (lb)
5
Single Unit Box Dimensions W x L x H (Inches)
9 x 9 x 4
Quantity of Units in Master Carton
8
Gross Master Carton Weight (lb)
40
Master Carton Dimensions W x L x H (Inches)
18.5 x 18.5 x 8.8
