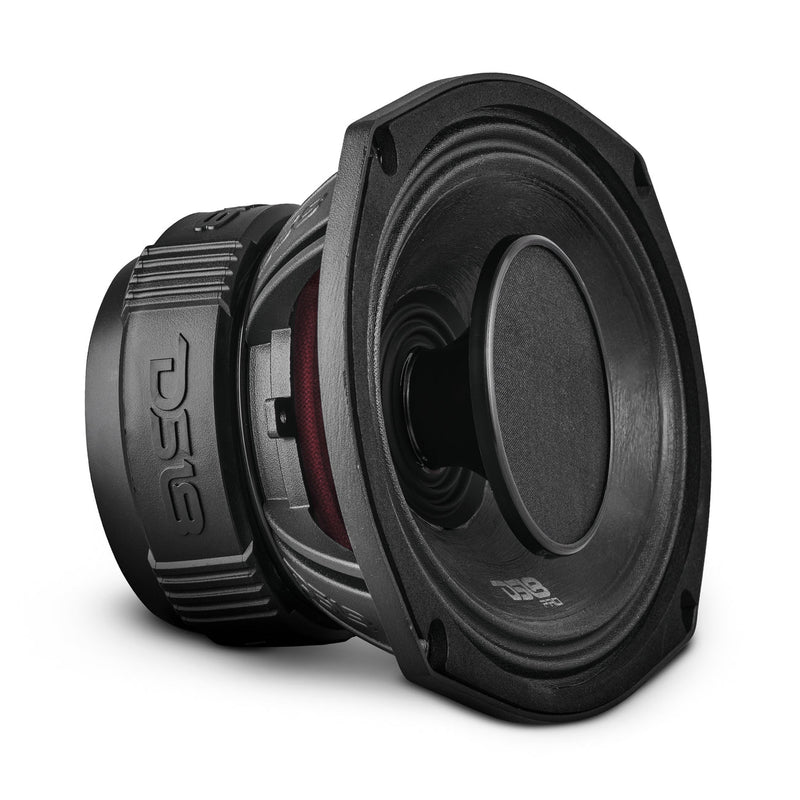

DS18 PRO 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm

In stock
SKU: DS-PRO-HY69.4B
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $144.95 USD



  • 6x9" Hybrid Coaxial Mid-Range w/Driver
  • RMS Power: 250 Watts(500 Watts Peak)
  • Impedance: 4 Ohm
  • Ferrite & Neodymium Magnets
  • Water Resistant IPX5
  • Easily Repaired With The PRO-HY/VC

DS18 PRO-HY69.4B


6x9” Water Resistant Hybrid Loudspeaker With 1” Compression Driver Horn

The PRO-HY69.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 6x9" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume.
The PRO-HY69.4B features a 1" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound.
With a maximum power handling of 500 watts and a sensitivity of 97 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound.
The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY69.4B also has a nominal impedance of 4 ohms, a frequency response range of 50Hz-20KHz, and a recommended hi-pass crossover of 80Hz for improved audio performance and longevity, making it a great choice for a range of audio applications.
The PRO-HY69.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.

SPECS

SKU
PRO-HY69.4B
Nominal Diameter
6x9" / 152 x 228mm
Nominal Impedance
4 Ohm
RMS Power Handling
250W
MAX Power Handling
500W
Sensitivity (1w/1m)
97dB
Frequency Response
50Hz - 20Khz
Recommended HI Pass Crossover
80Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes


WOOFER SPECIFICATIONS

Voice Coil Diameter
1.5"/ 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Water Resistant Paper (IPx5)
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
27 Oz
Displacement Volume
0.051L / 0.0018ft3


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
14.84L / 0.52ft3
Excursion (one way) Xmax
9.2mm
Free Air Resonance Fs
87Hz
Mechanical Factor Qms
3.629
Electrical Factor Qes
0.661
Total Factor Qts
0.559
Mechanical Mass Mms
14.264g
Mechanical Compliance Cms
0.236 mm/N
BL Factor BL
6.135
Voice Coil Inductance Le
4.22mH
Cone Area Sd
210.48 cm²
DC Resistance Re
3.2 ohms
Mechanical Mass w/o air Mmd
12.509g


DRIVER SPECIFICATIONS

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3.26" / 83mm


SPEAKER MEASUREMENT

Overall Diameter
9.45 X 6.57" / 240 X 167mm
Overall Depth
4.54" / 115.4mm
Front Mount Baffle Cutout
8.74 X 5.98" / 222 X 152mm
Mounting Depth
4.21" / 107 mm
Motor Diameter
4.61" / 117mm
