DS18 NXL-M6 NXL 6-Channel Class D Marine & Powersports Amplifier - 6 x 150W RMS at 4-Ohm DS18
The DS18 NXL-M6 is a 6-channel Class D amplifier made for boats, ATVs and other open-air rides. It puts out 150 watts RMS per channel at 4 ohms and 230 watts RMS per channel at 2 ohms, and it can be bridged to 3 channels at 440 watts each into 4 ohms.
Gain is adjustable from 0.2V to 6V, and each crossover can be set to high-pass, low-pass or full-range anywhere from 40 Hz to 2 kHz. A variable bass boost adds up to 12 dB at 45 Hz.
For harsh conditions it carries an IP55 water-resistance rating, corrosion-resistant hardware and a coated 4-layer circuit board. Thermal, overload, DC output, short circuit, input voltage and clipping protection are built in, and LED indicators show power, clip and protect status. Marine-grade mounting hardware and direct-insert power and speaker terminals are included.
HIGHLIGHTS:
- 6 x 150W RMS at 4 ohms, 6 x 230W RMS at 2 ohms
- Bridgeable: 3 x 440W RMS at 4 ohms
- HPF / LPF / full-range crossovers, adjustable 40 Hz - 2 kHz
- Bass boost up to 12 dB at 45 Hz
- IP55 water resistance with coated 4-layer PCB

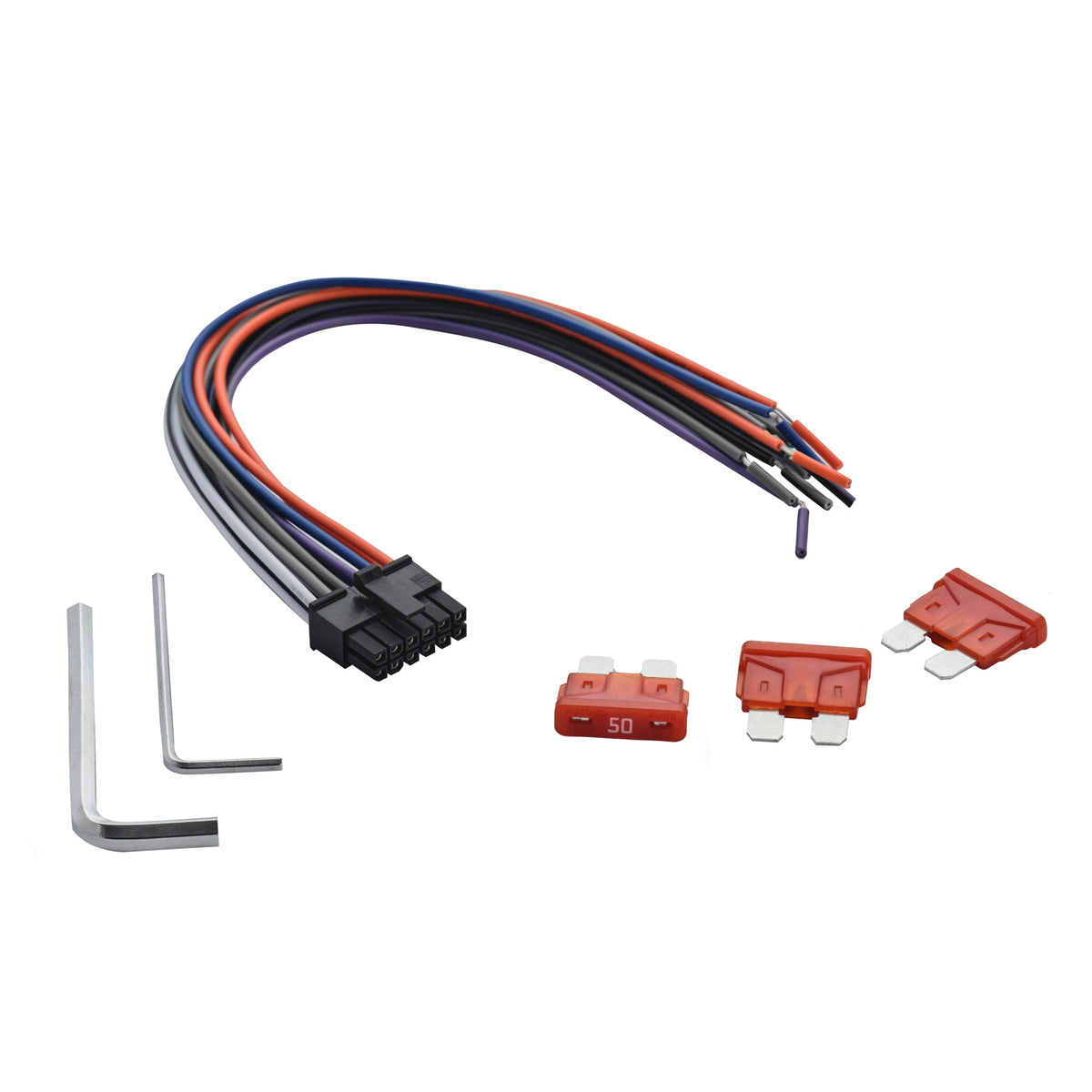

- Marine-grade mounting hardware and direct-insert terminals
GREAT FOR:
- Boats and pontoons
- ATVs, UTVs and golf carts
- Multi-speaker marine systems
SPECIFICATIONS:
| SERIES | NXL |
| CHANNELS | 6 Channel |
| CLASS | Class D |
| RMS @ 4 OHM | 150W x 6 |
| RMS @ 2 OHM | 230W x 6 |
| BRIDGED @ 4 OHM | 440W x 3 |
| GAIN RANGE | 0.2V - 6V |
| CROSSOVER | HPF / LPF / Full, 40 Hz - 2 kHz |
| BASS BOOST | 0 - 12 dB @ 45 Hz |
| WATER RESISTANCE | IP55 |
| PROTECTION | Thermal, overload, DC output, short circuit, voltage, clipping |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097269064 |
