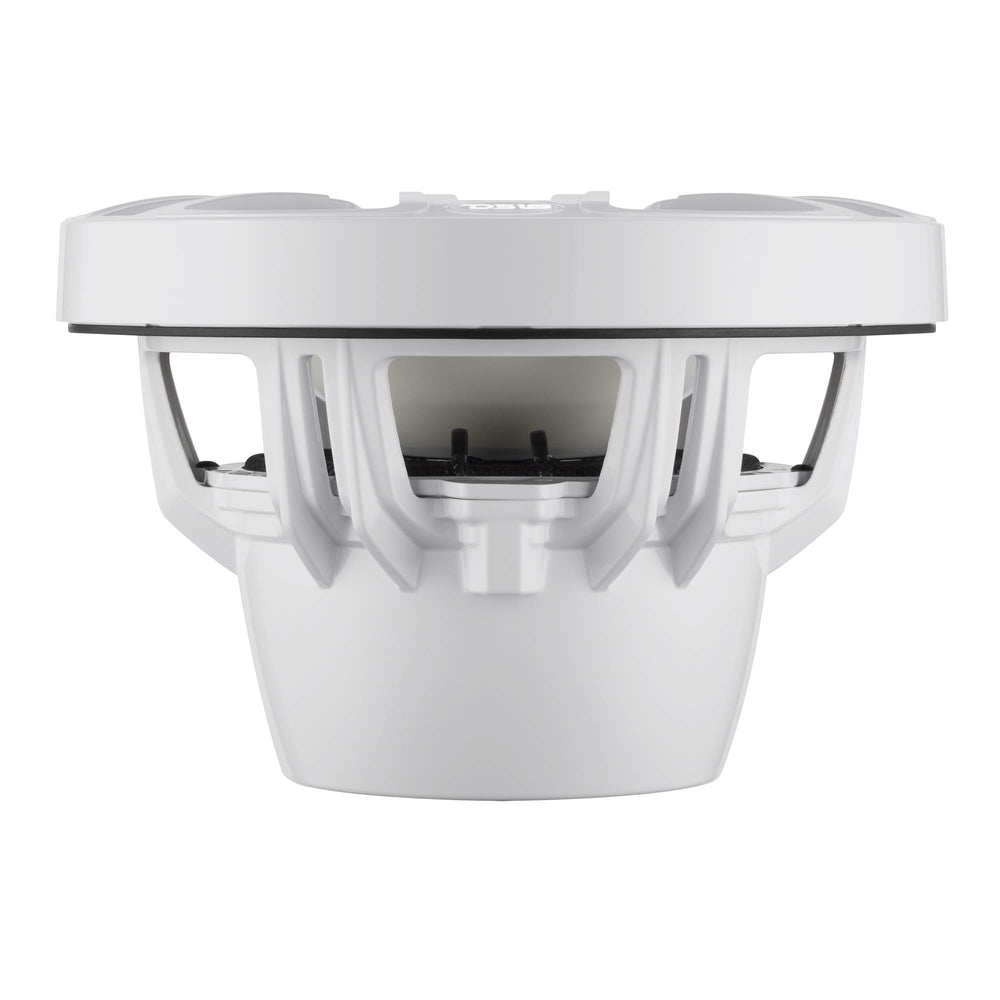

DS18 NXL-IQ10SUB/WH 10" Marine Subwoofer 500W RMS 4 Ohm | Hybrid Magnet Motor | LED Lights | Removable Grille

Only 2 left
SKU: DS-NXL-IQ10SUB/WH
★★★★★ 5.0
Based on 42 reviews
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last
$449.95 USD
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last

Built for marine and powersports use, the NXL-iQ10SUB 10” subwoofer delivers 500W RMS power, hybrid magnet motor design, LED lighting, removable grille, and UV-protected materials for lasting performance.

Features:

  • 500W RMS Power Handling
  • Marine-Grade Durability (IP65 Rated)

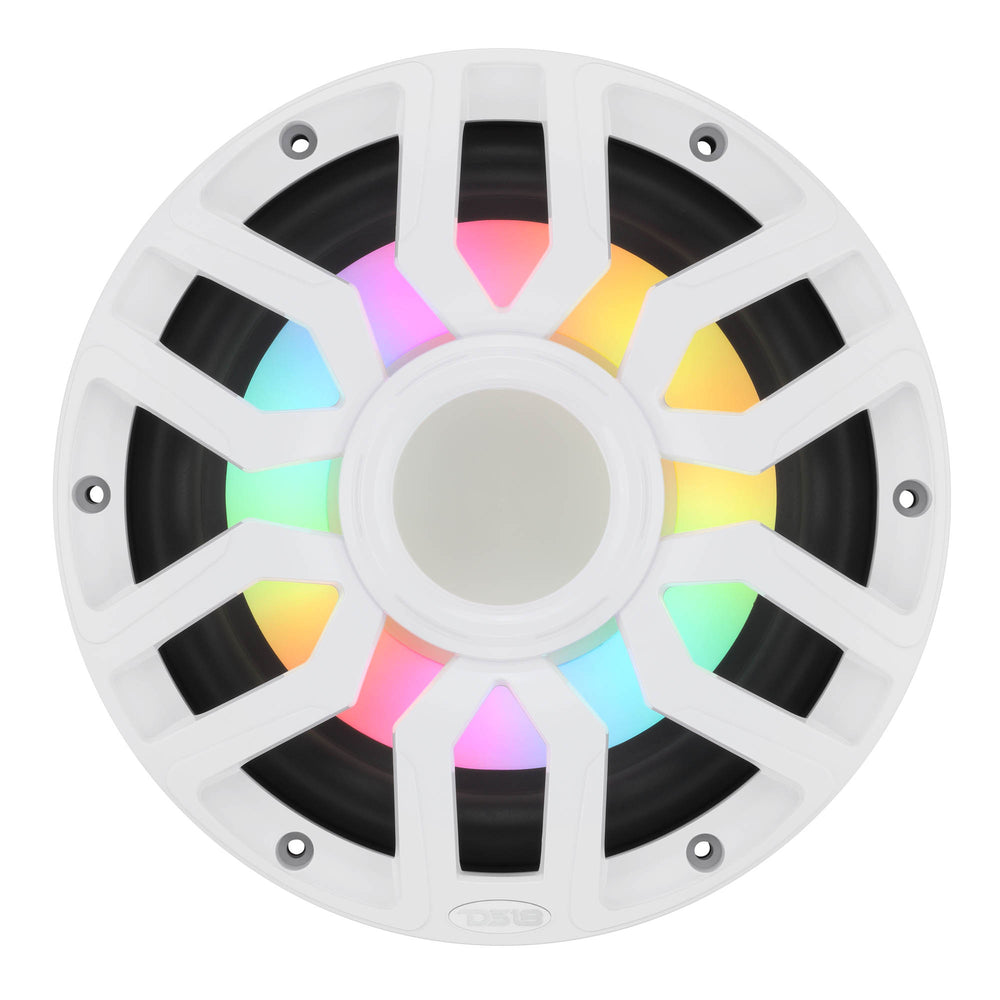

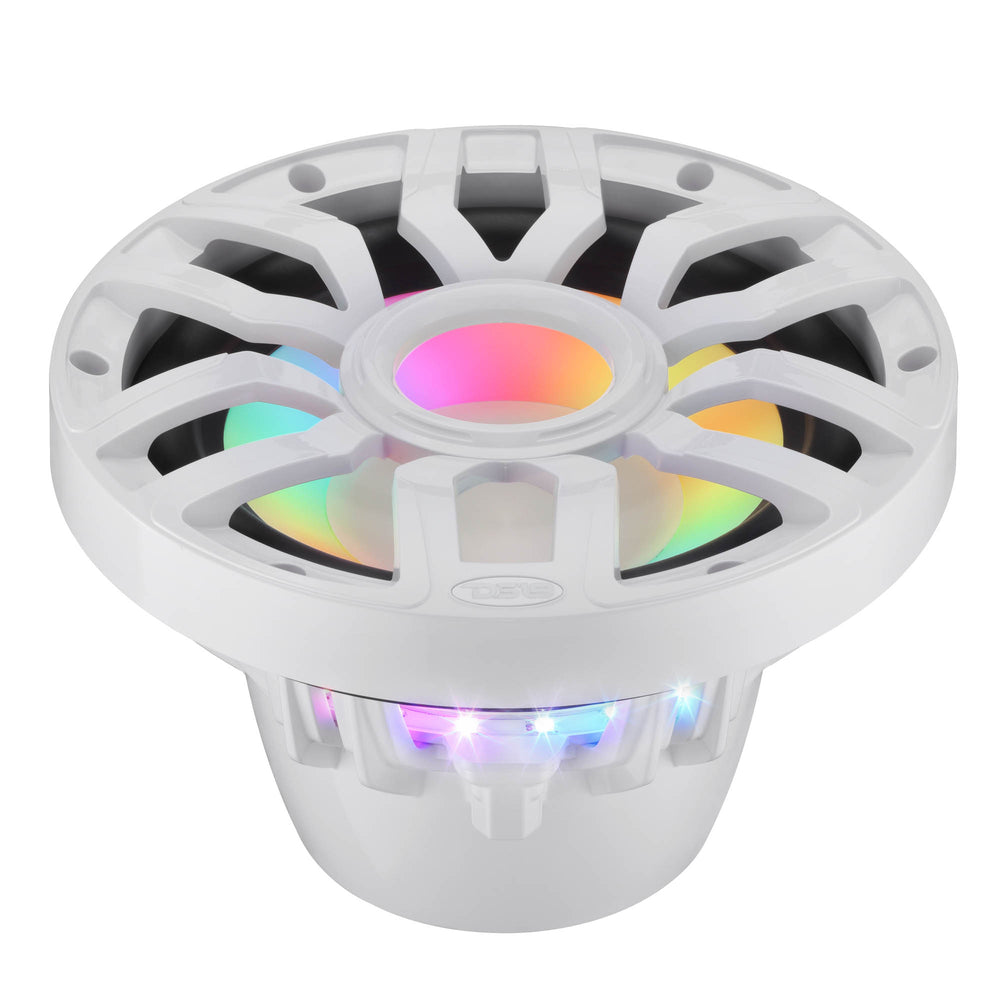

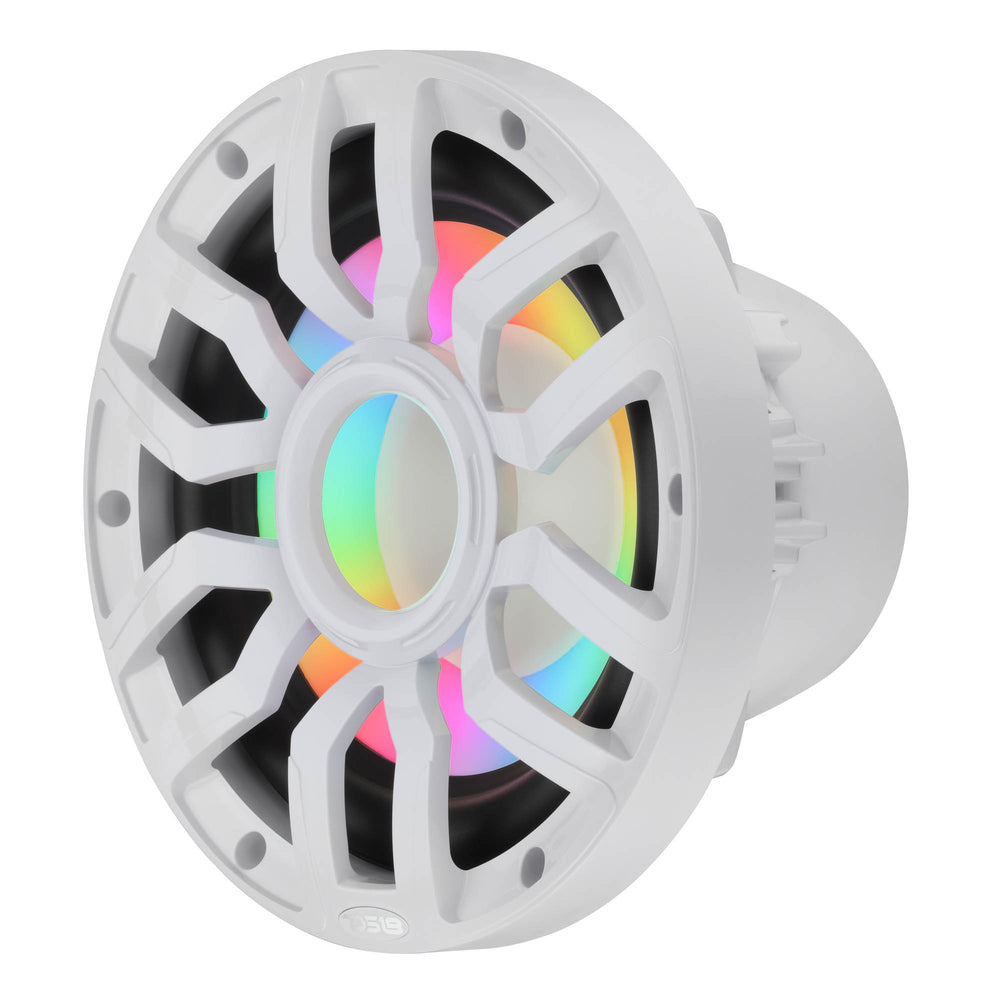

  • Digital LED Lighting
  • Hybrid Magnet Motor (Ferrite main magnet and reverse neodymium magnet)

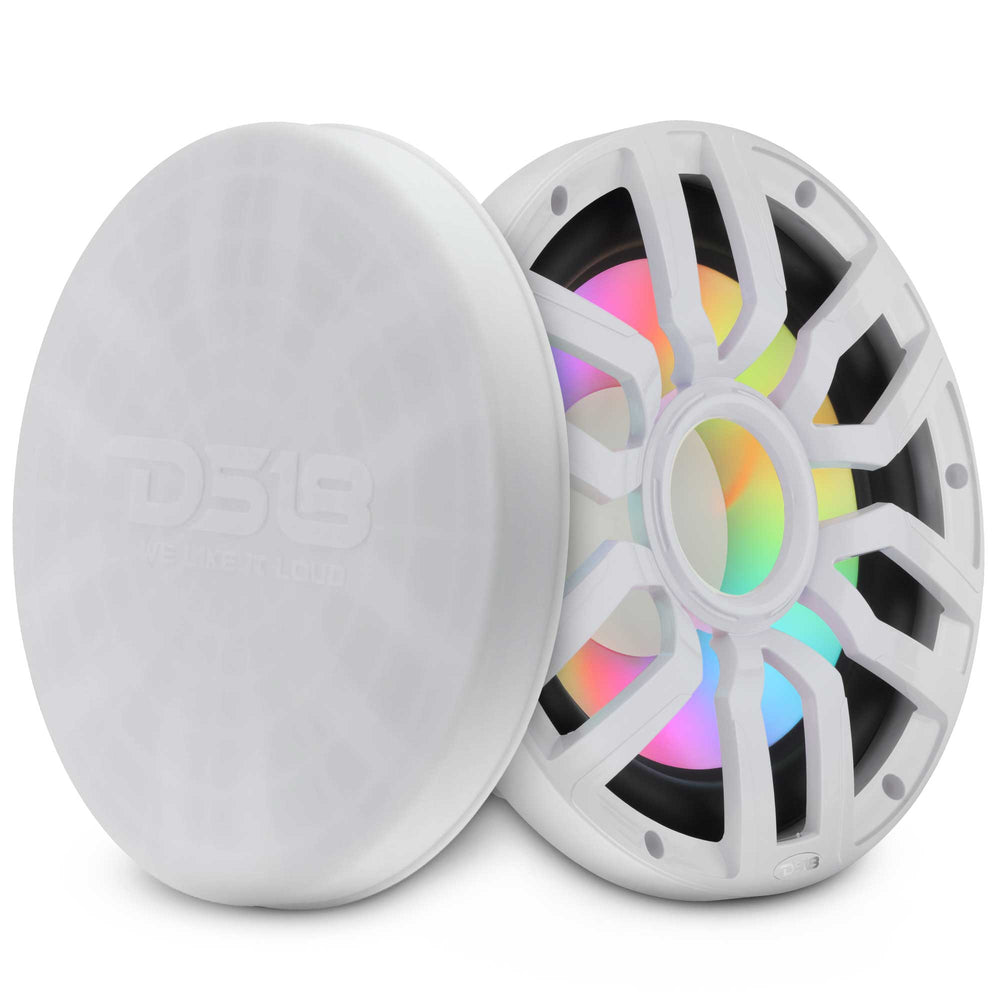

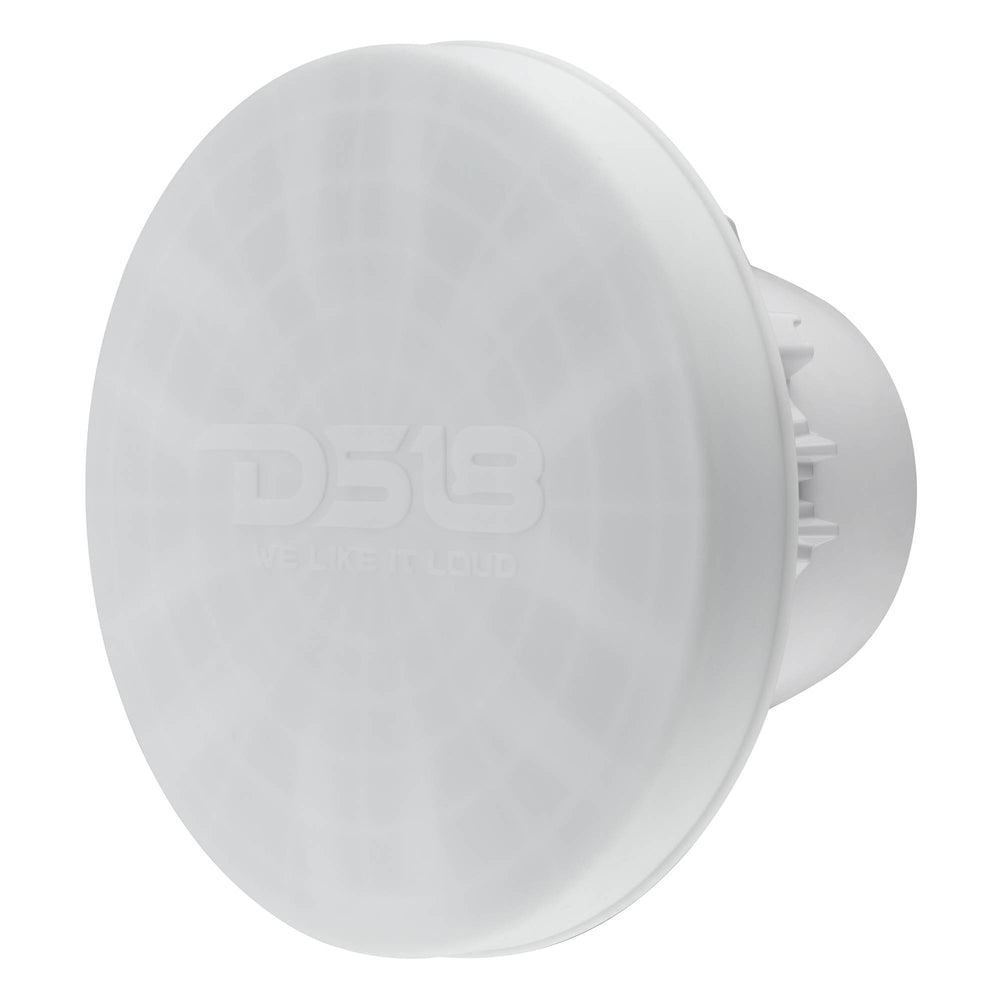

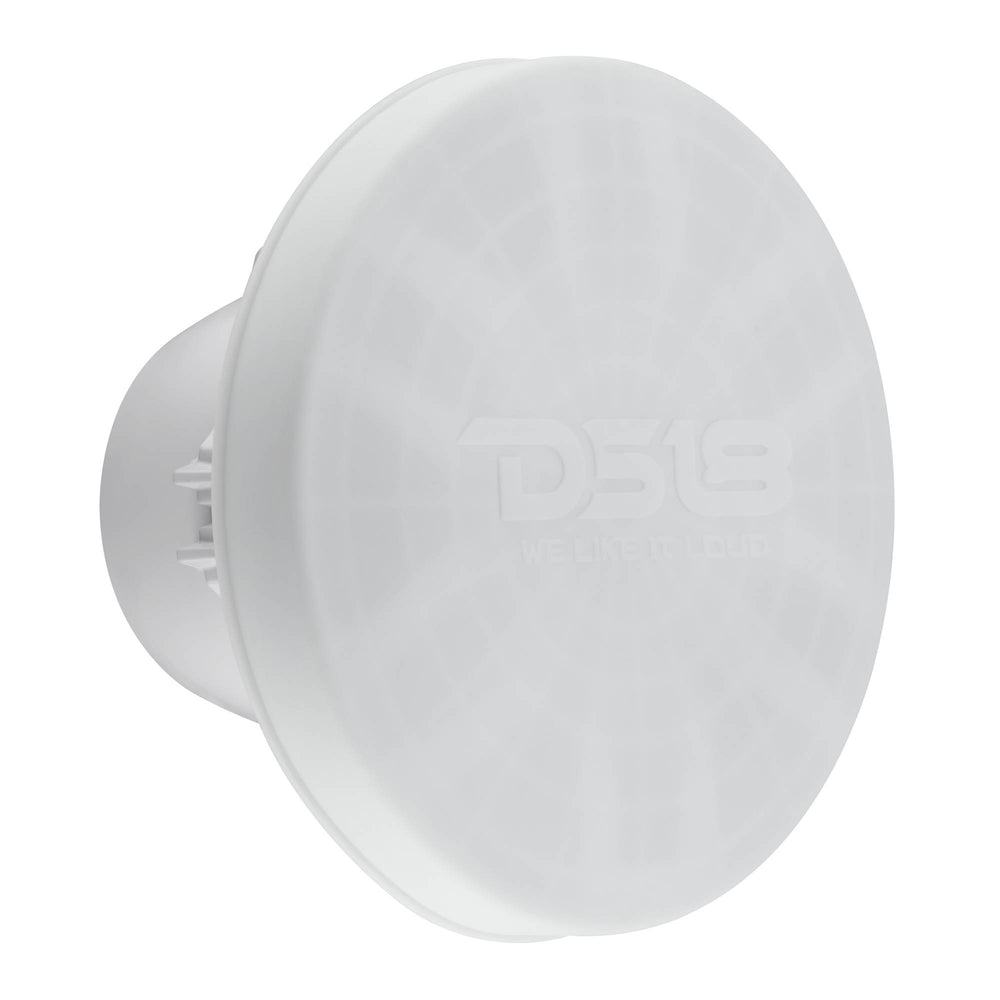

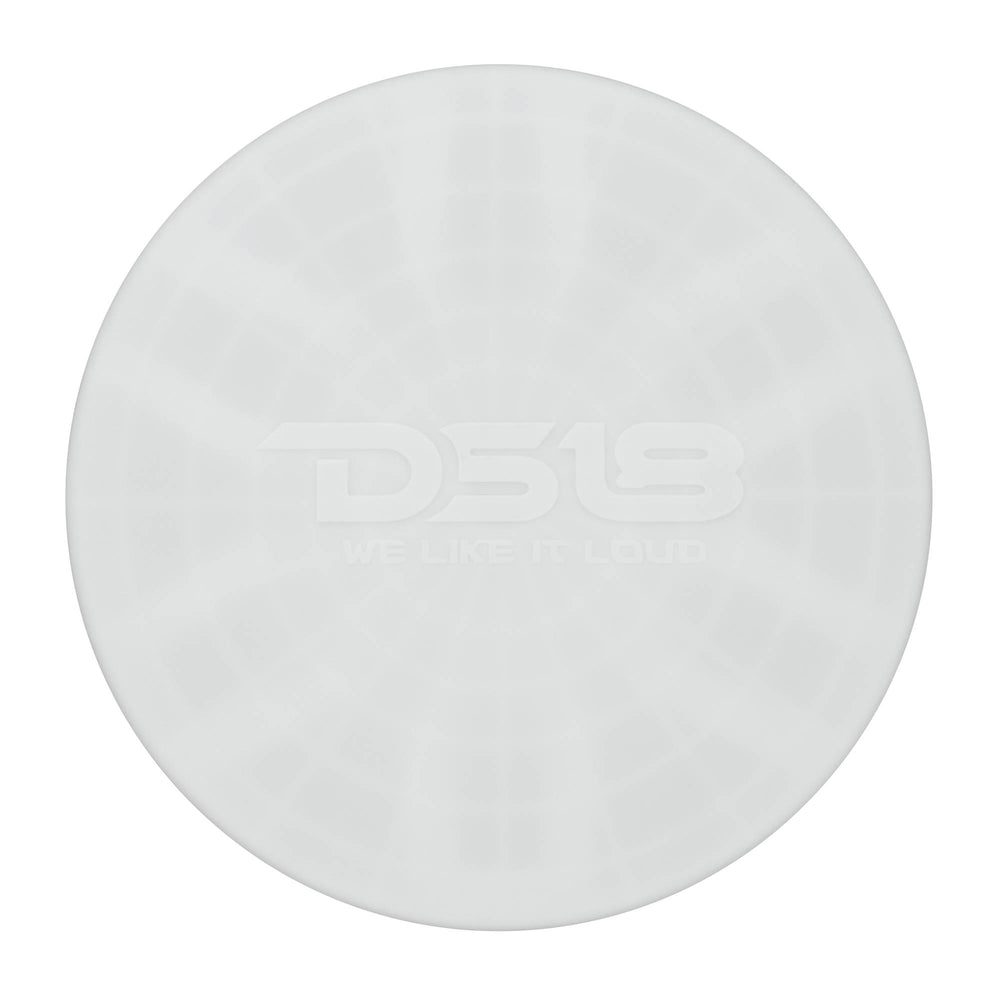

  • Silicone Cover Included / Removable Grille Design
  • Aluminum Basket

Specifications:

Nominal Diameter
10" / 268mm
Nominal Impedance
4 ohms
RMS Power Handling
500W
MAX Power Handling
1000W
Sensitivity (1w/1m)
87dB
Frequency Response
20Hz-250Hz
Recommended High-Pass Crossover
100Hz
Sold in Pair or Single
Single


Body / Features

UV Protection
Yes, 100% Stable
Marine Grade Type
IP65
LED Lights
Yes, Digital LED integrated (behind cone)
LED Connection Type
12V & Digital IN (Water-Resistant Terminal)
Digital LED Chip Type
1815S
Grill Type
Injection Molded Composite ASA with UV Protection coating and electroplated decorative strips
Color / Finish
White


Woofer Specifications

Voice Coil Diameter
2.4" / 61.1mm
Voice Coil Former Material
Glass fiber
Winding Material
CCAW
Cone Material
PPI
Surround Material
Rubber
Basket Material
Aluminum
Magnet Material
Ferrite + Neodymium
Magnet Weight
73oz + 1.8oz


Thiele & Small Parameters

Equivalent Volume
14.34L / 0.506ft3
Excursion (one way)
6.6mm
Free Air Resonance
53 Hz
Mechanical Factor
6.808
Electrical Factor
0.723
Total Factor
0.654
Moving Mass
98.487g
Compliance
92.724 uM/N
BL Factor
12
Voice Coil Inductance
0.74 mH
Cone Area
330.06 cm_
DC Resistance
3.2 Ohms
Efficiency Bandwidth Product
73.3


Recommended Enclosures

Sealed Internal Volume
0.6~2ft3
Sealed Box Output Response
64~45Hz
Free Air or Baffle Mount
Yes (Recommended)


Speaker Measurement

Overall Diameter
10.57" / 268.5mm
Overall Depth
6.9" / 175mm
Front Mount Baffle Cutout
8.66" / 220mm
Mounting Depth
5.31" / 135mm
Motor Diameter
5.28" / 134mm

UPC: 810199441788
