DS18 NXL 6.5” Marine Coaxial Speaker – RGB LED, 100W RMS, 4-Ohm, Black Carbon Fibe

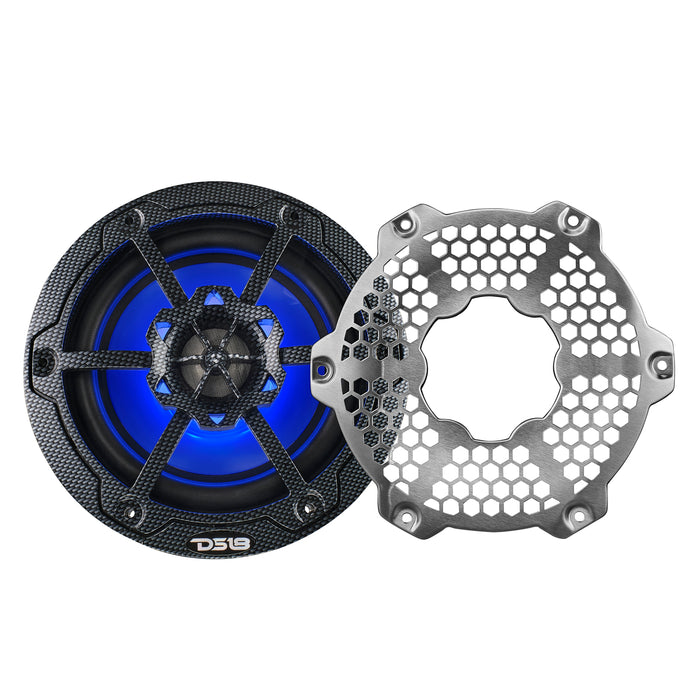

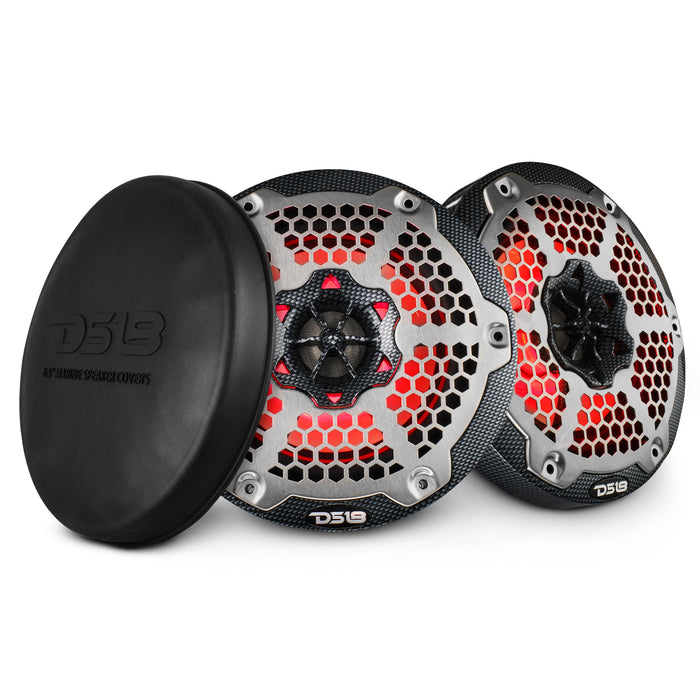

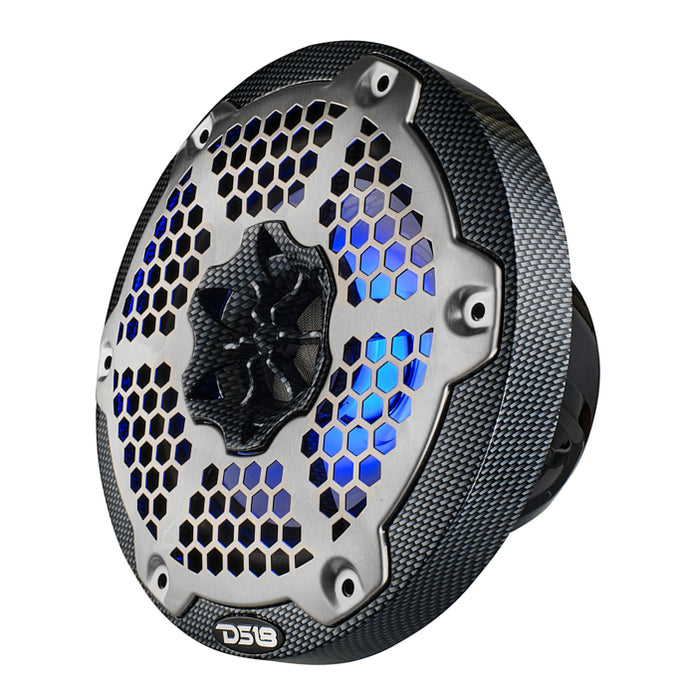

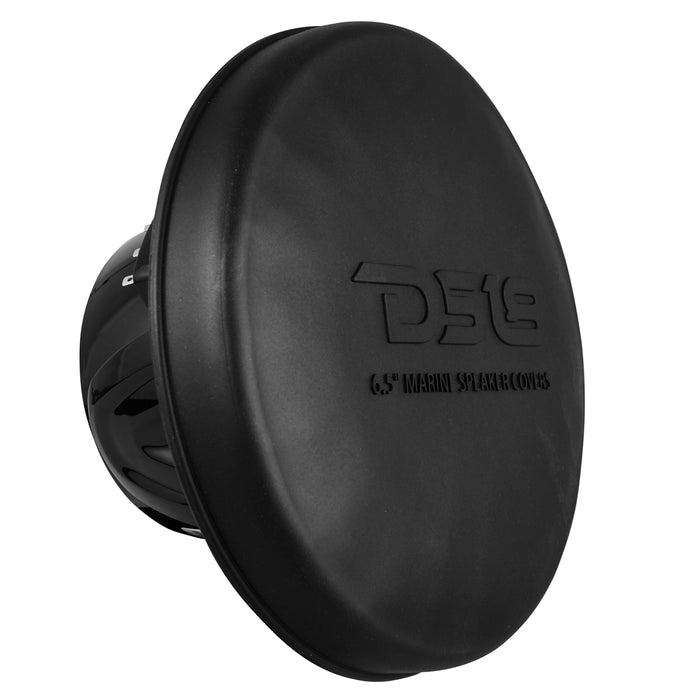

Built for marine and powersports environments, the DS18 CF-65M delivers 100W RMS of crisp, full-range sound. Featuring a rugged black carbon fiber design, IP65 waterproof rating, and RGB LED lights for custom lighting effects. Durable construction includes a UV-coated basket, silicone cover, and detachable 316 metal mesh grill.
Features:
- 6.5" 2-Way Marine Speaker
- RMS Power: 100 Watts
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnet

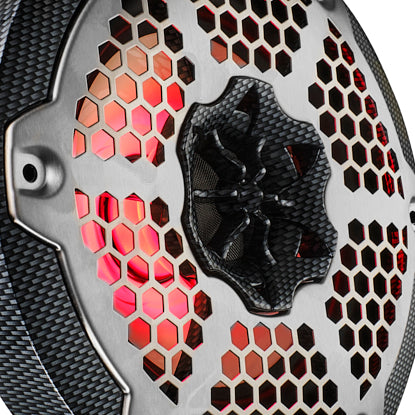

- RGB LED Light ~ Metal Mesh Grill
- Water Resistant IP65
- Sync with DS18 LED-BTC or compatible systems (sold separately)
Specifications:
SKU
CF-65M
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
45Hz-23KHz
Recommended HI Pass Crossover
65 Hz
UPC: 663593064097
Body / Features:
UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated

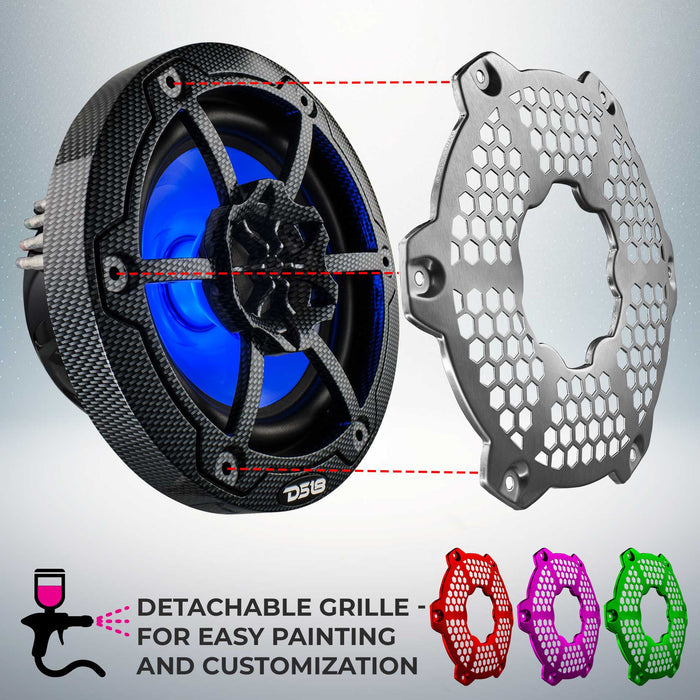

Grill Type
Injection Molded Composite (ASA) with 316 Stainless Steel mesh

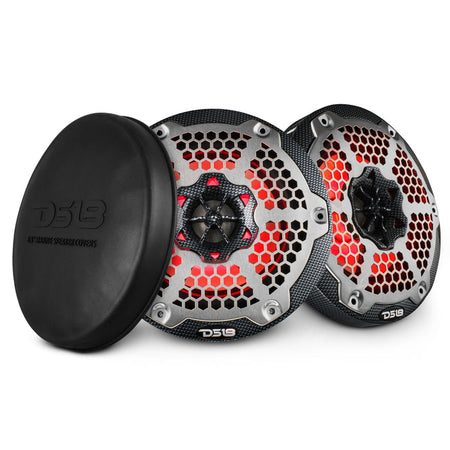

Pair
Yes
Color / Finish
Carbon Fiber Texture / Gloss
Woofer Specifications:
Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite (ASA) with UV Protection coating
Magnet Material
Ferrite (Y35) + Neodymium (N35)
Magnet Weight
14oz+0.32oz
Tweeter Specifications:
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEI
Magnet Material
NEODYMIUM(N38H)
Magnet Weight
0.54oz
Thiele & Small Parameters:
Equivalent Volume Vas
20L / 0.708ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
75Hz
Mechanical Factor Qms
7.823
Electrical Factor Qes
1.057
Total Factor Qts
0.931
Moving Mass Mms
4.122g
Compliance Cms
1.081mm/N
Bl Factor Bl
2.41
Voice Coil Inductance Le
0.543mH
Cone Area Sd
114.99cm2
DC Resistance Re
3.14 ohms
Efficiency Bandwidth Product EBP
70.9

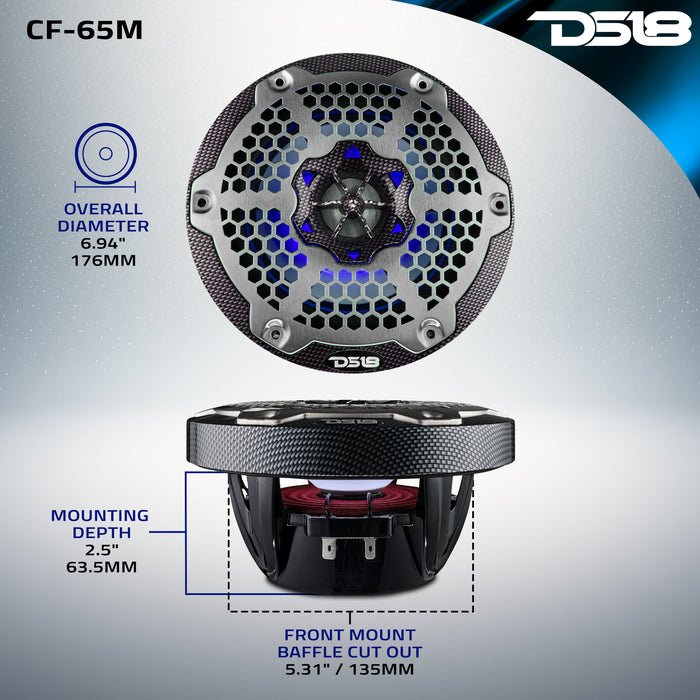

Speaker Measurement:
Overall Diameter
6.94" / 176mm
Overall Depth
3.72" / 94.4mm
Front Mount Baffle Cutout
5.31" / 135mm
Mounting Depth
2.5" / 63.5mm
Motor Diameter
3.54" / 90mm
Gross Single Unit Weight (lb)
7.5
Single Unit Box Dimensions W x L x H (Inches)
16.75 x 8.75 x 4.75
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
31.5
Master Carton Dimensions W x L x H (Inches)
19.25 x 17.25 x 10
