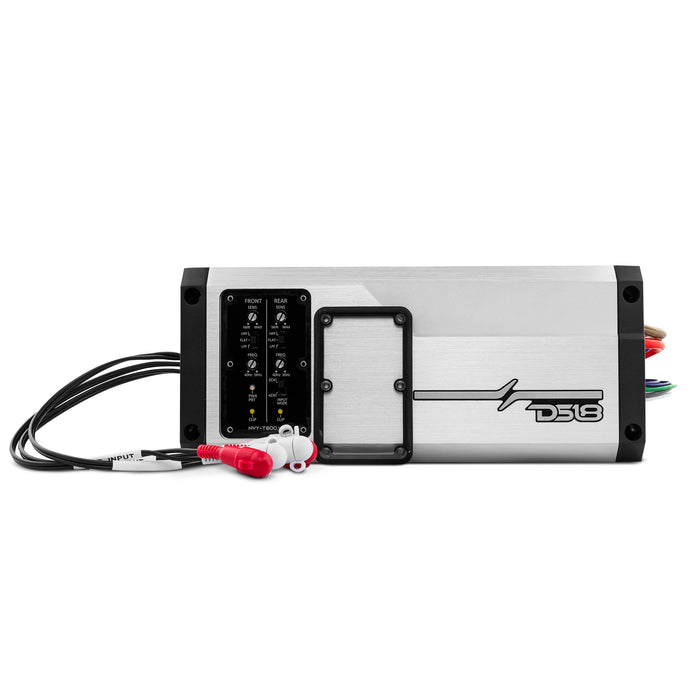

DS18 NVY-T800.4D 4-Channel Marine Waterproof Amplifier 2400 Watts Peak Power Class D Full-Range @4 Ohms 200x4 RMS - Boat & Motorsport Amp - IPX6 Waterproof Rating UV/Salt/Fog Protection

In stock
SKU: DS-NVY-T800.4D
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Regular price $519.96 USD
Regular price Sale $649.95 USD Sale price $519.96 USD
Massive Power & Clarity

Massive Power & Clarity

Superior Performance

Superior Performance

Advanced Technology

Advanced Technology

Premium Quality

Premium Quality

4 Channel Digital Marine & Powersports Amplifier

Introducing the NVY-T800.4D: a versatile 4-channel amplifier designed for high quality audio reproduction and unbreakable durability.
The NVY-T800.4D was designed to withstand the harshest elements: it’s IP67 waterproof rating and UV/SALT/Fog Protection, paired with it’s surface mount component technology and direct harness design allows this amplifier to be installed anywhere easily without sacrificing space!
The NVY-T800.4D also features a 2CH/4CH Input Selector so you can use 2 RCAs or 4 depending on your setup.
It’s wide range of protection features, including thermal protection, over-load protection, short circuit output protection, and voltage input protection reinforced by power, protection, and clipping indicators ensures the safety and longevity of the NVY-T800.4D.
Equipped with selectable HPF, LPF, and FULL crossover filters; the NVY-T800.4D allows you to customize your sound to your liking.
This stereo full range amplifier covers ranges from 20Hz-20KHz and has a signal-to-noise ratio of >80dB for crisp and clear audio with minimal distortion.
With a peak power output of 2400W and RMS power of 4 x 200W @ 4 ohm, 4 x 300W @ 2 ohm, and 2 x 600W @ 4 ohm bridge, the NVY-T800.4D is perfect for powering any speakers in your marine audio system.
Be prepared for everything with the NVY-T800.4D!

GENERAL SPECIFICATIONS

UPC: 810097261631

SKU
NVY-T800.4D
Total Watts (Peak)
2400W
RMS Power @ 4 ohm
4 x 200W
RMS Power @ 2 ohm
4 x 300W
RMS Power @ 4 ohm Bridge
2 x 600W


AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω
> 80dB
Efficiency @ 4 ohm
85%
Input Impedance
20K ohms
Channel Separation
>55dB
Total Harmonic Distortion (THD)
< 0.05%
Low Level Input Range
200mV-5V
Selectable X-Over
HPF/Full/LPF
X-Over Filter Range
40Hz-3KHz
Damping Factor
>55dB


FEATURES 1

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohms (Stereo) / 4 Ohm (Bridge)
Led Indicator
Power | Protection | Clip
Power Input Terminal Size
8GA Tinned OFC


FEATURES 2

Recommended Fuse Size
80A
Thermal Protection
Yes
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Body Color | Finish
Brushed Aluminum


EXTRA FEATURES

2Ch / 4Ch Input Selector
Yes
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Power Direct Harness Design
Yes
Surface Mount Component Technology
Yes
Metal Knobs
Yes


MEASUREMENT

Overall Length
11.6" / 295mm
Overall Wide
4.9" / 125mm
Heatsink Length
10.2" / 261mm
Gross Single Unit Weight
2.86Kg
Product Weight
6.5 lbs
Product Dimensions
14.5 x 6.75 x 4
M/C Weight
27 lbs
M/C Dimensions
16.5 x 15.25 x 7.75
M/C QTY
4
Sold In
Piece
