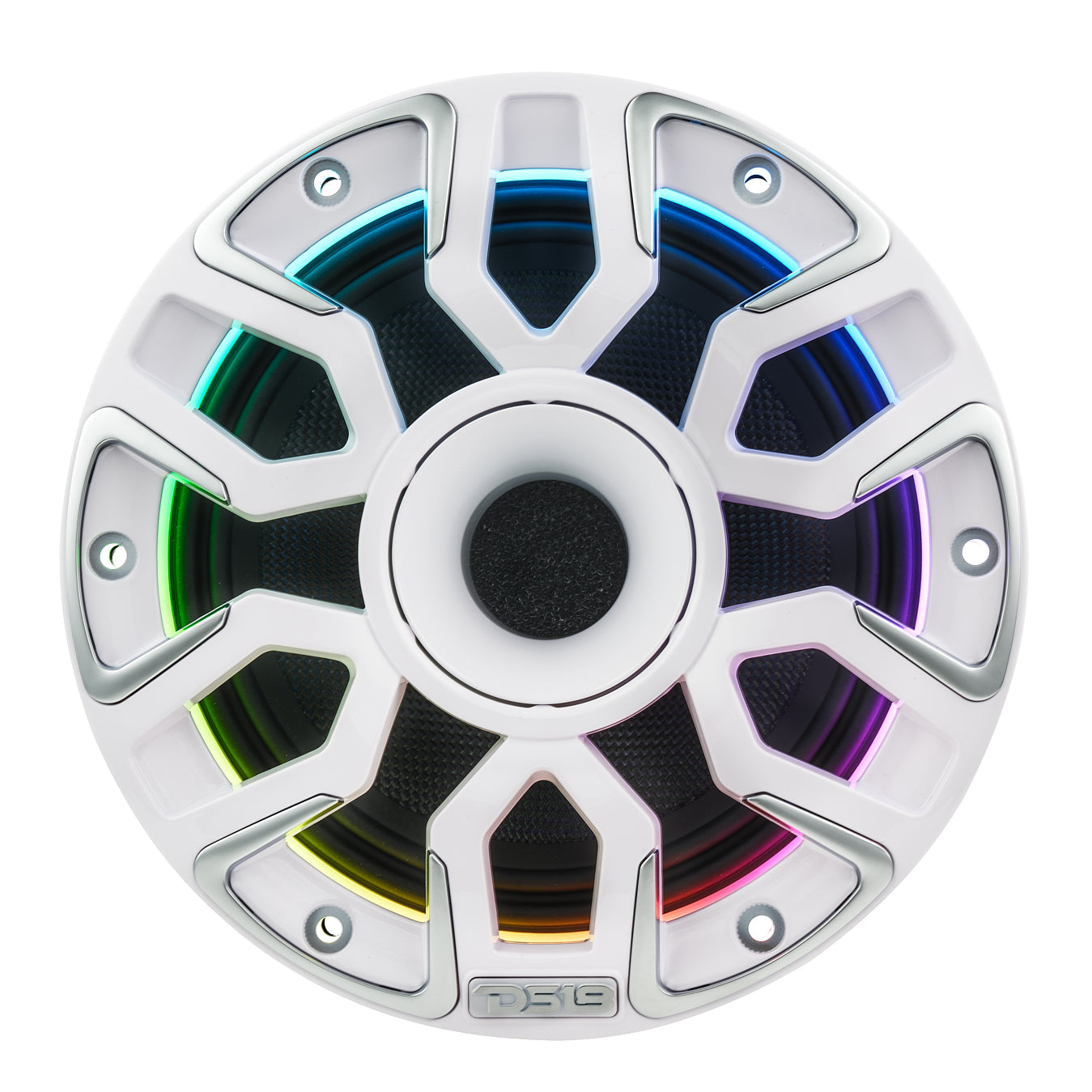

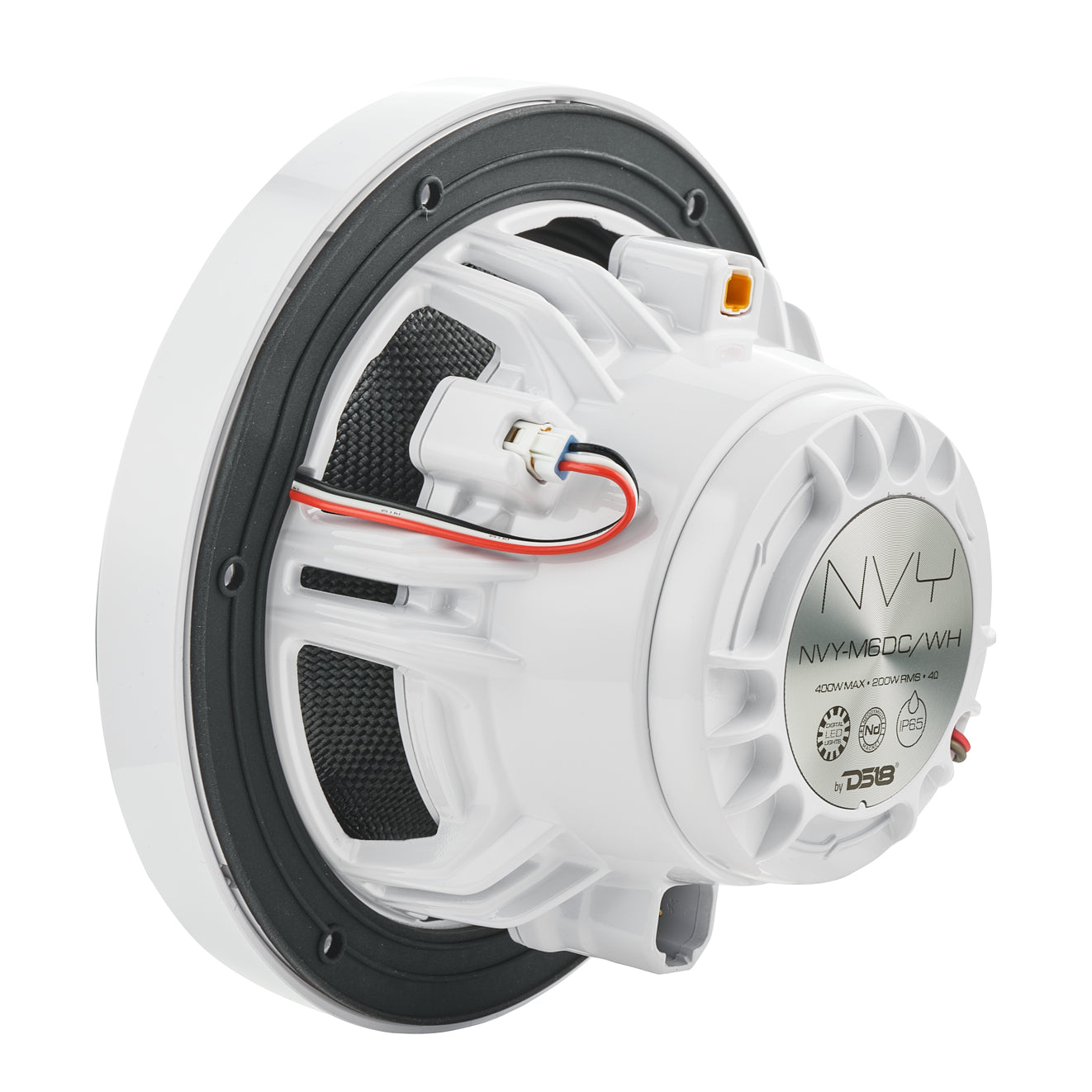

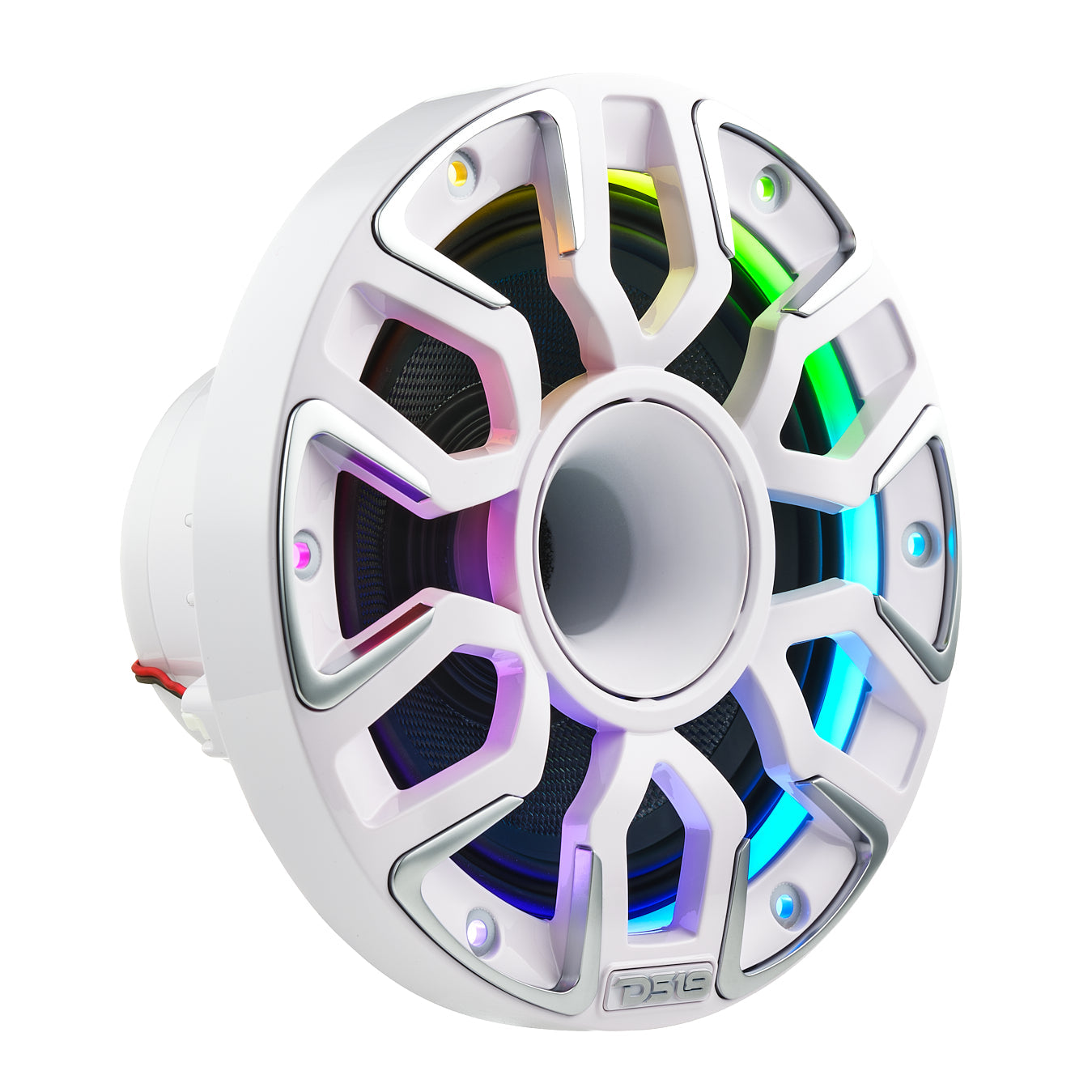

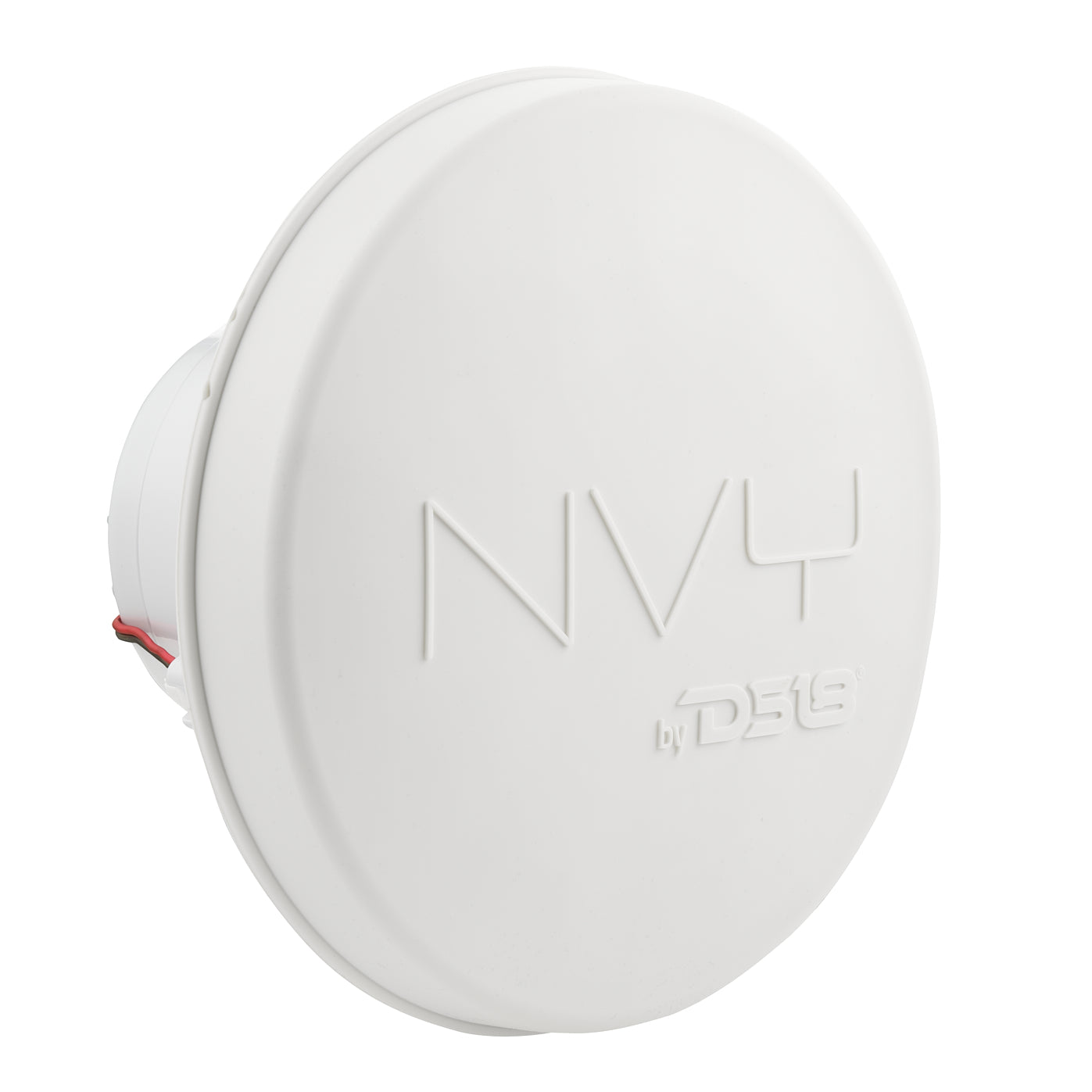

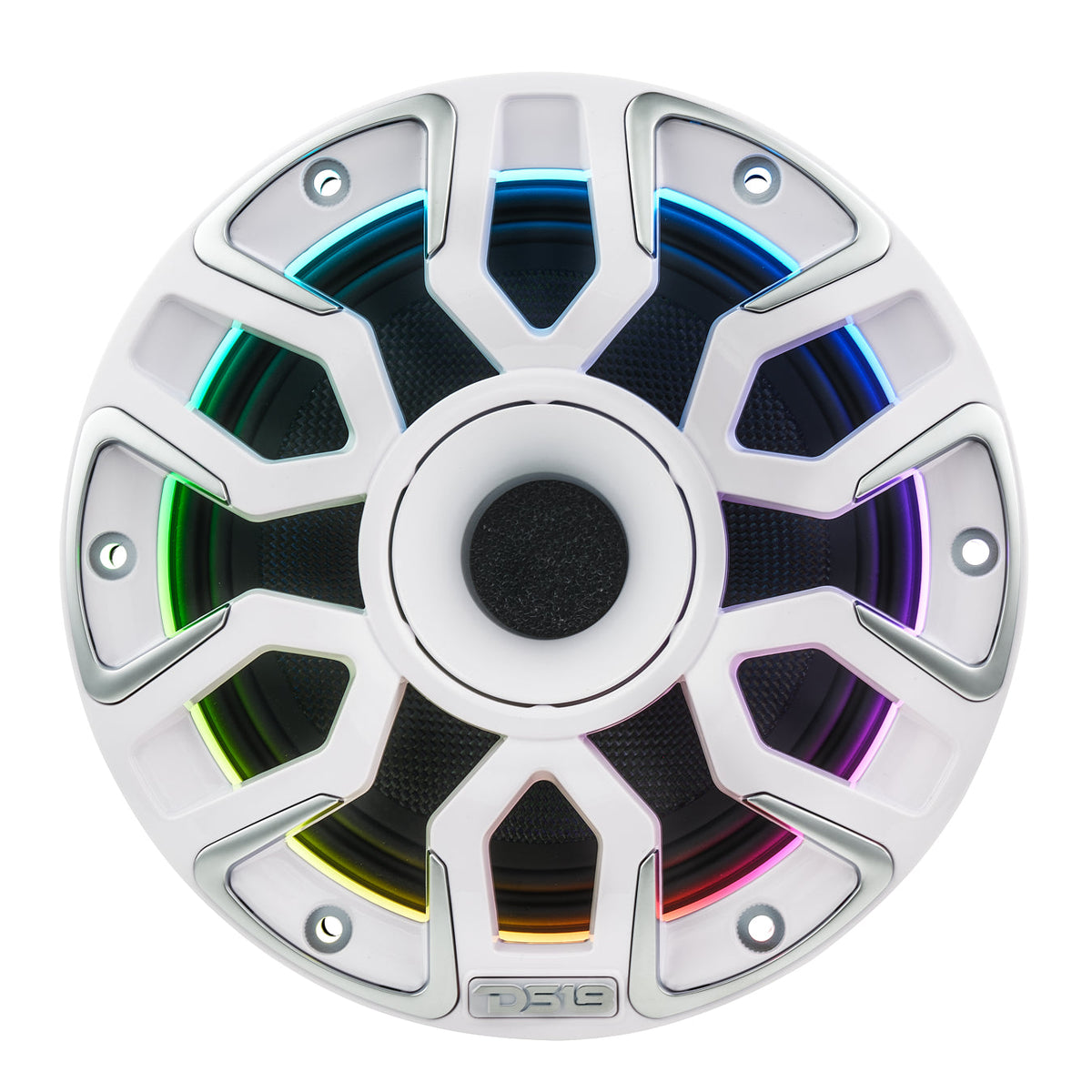

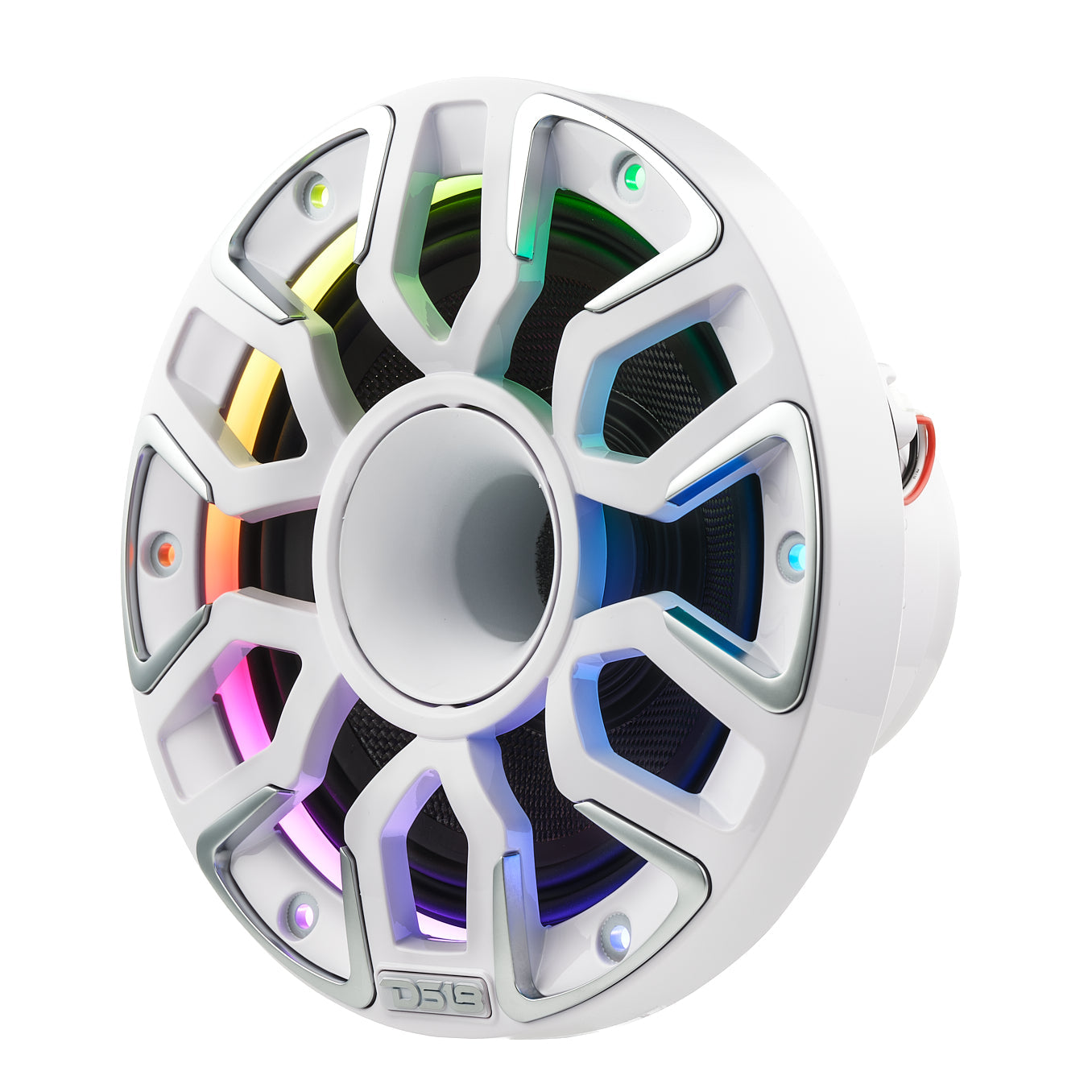

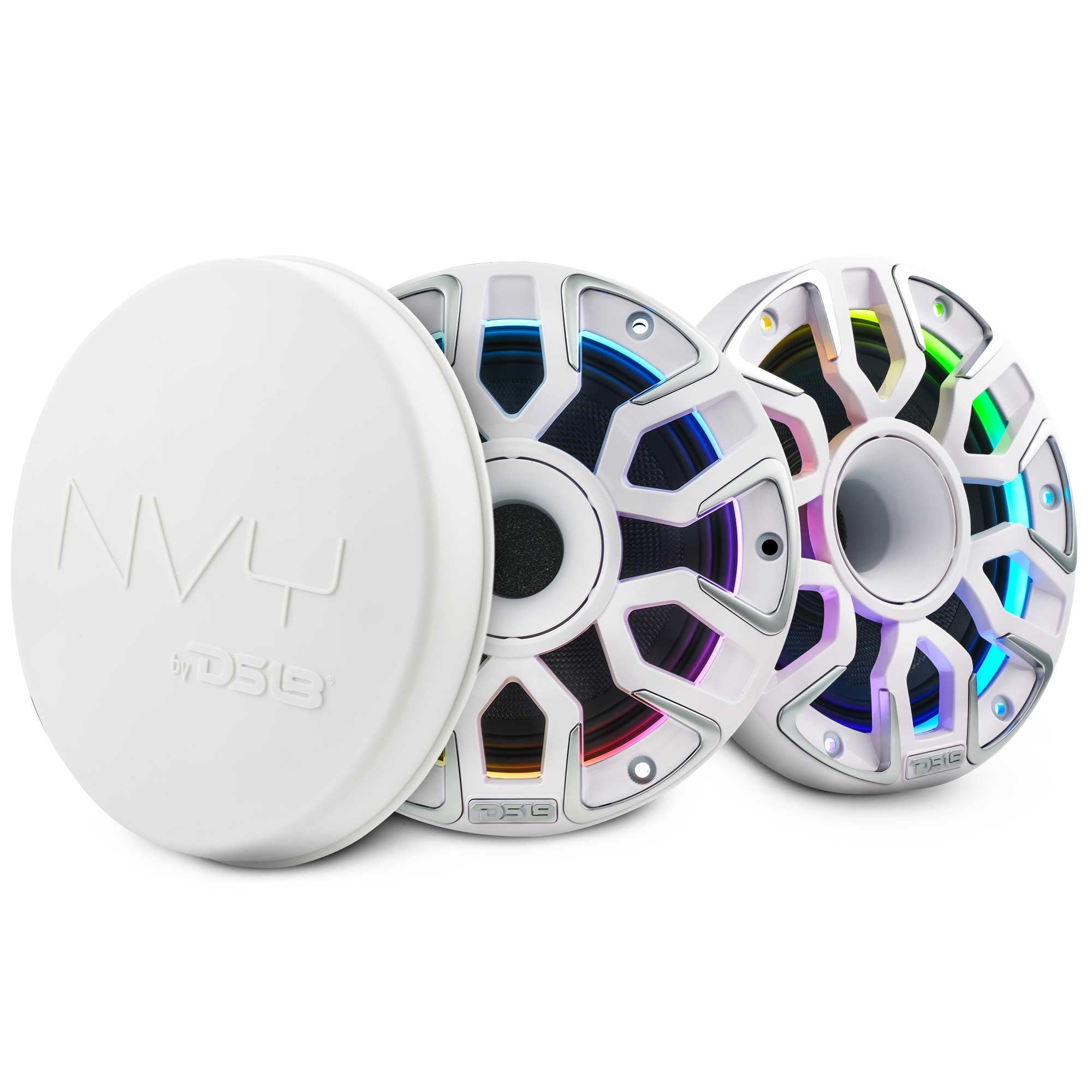

DS18 NVY-M6DC/WH 6.5” Marine-Grade Hybrid Coaxial Speaker with Kevlar Cone, Compression Driver & Neodymium Magnet – 200W RMS, 4-Ohm
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
Crafted for precision and built to endure harsh marine conditions, the NVY-M6DC 6.5” Hybrid Coaxial Speaker delivers crisp, commanding sound through its Kevlar cone and high-output compression driver. Sealed terminals and a floating tweeter design ensure consistent, high-fidelity performance, making it a reliable choice for marine audio systems.
Features:
- Weatherproof Design: IP65-rated enclosure with UV-coated surfaces and stainless steel hardware for marine durability.
- Premium Audio Components: Kevlar cone, compression driver, and floating tweeter deliver crisp, high-output sound.
- Custom LED Lighting: Integrated digital LED ring, customizable via DS18 LC-DRM module and DS18 LC App (Android & iPhone).
- Easy Installation: Compact sealed frame and precision terminals for clean setup in marine and powersports environments.
-
Color Options: Choose Glossy White or Satin Black to match your style.
Note: DS18 LC-DRM module required for LED functionality (sold separately).
Specifications:
General Specifications
- Nominal Diameter: 6.5" / 165mm
- Nominal Impedance: 4 ohms
- RMS Power Handling: 200W
- MAX Power Handling: 400W
- Sensitivity (1w/1m): 98dB
- Frequency Response: 50Hz-20KHz
- Number of Ways: 2-Ways
- Recommended High-Pass Crossover: 80Hz

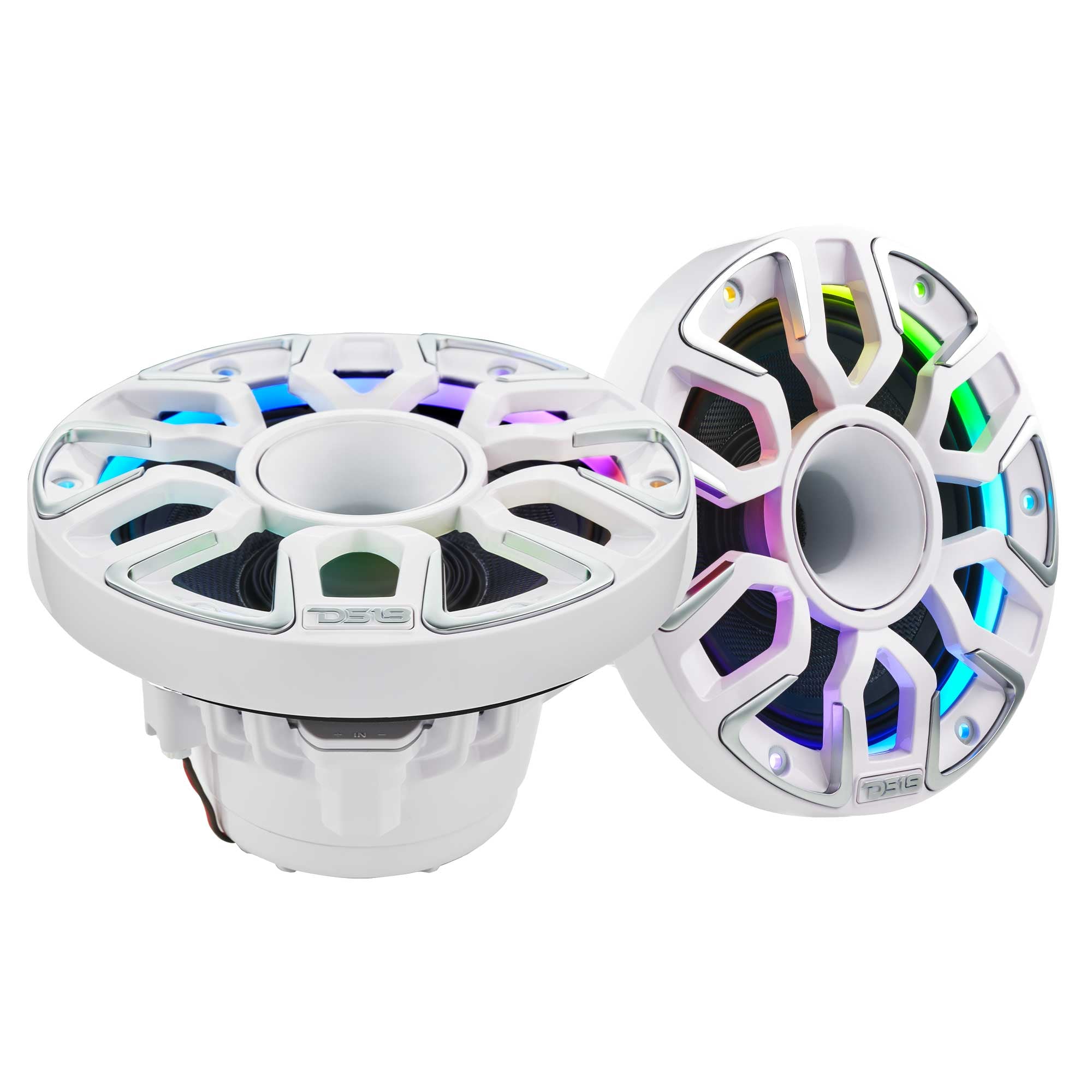

- Sold in Pairs
- UPC: 810097266650
Body / Features
- UV Protection: Yes, 100% Stable
- Protection Coating: Yes, with PU
- Decorative Strips: Yes. Electroplated
- Marine Grade Type: IP65
- Digital LED integrated
- Digital LED Chip Type: 1815S
- Grill Type: Injection Molded Composite ASA
- Color / Finish: Gloss White
Woofer Specifications
- Voice Coil Diameter: 2" / 50.6mm
- Voice Coil Former Material: Glass Fiber
- Winding Material: CCAW
- Cone Material: Kevlar
- Dust Cap Material: Kevlar
- Surround Material: Santoprene (Rubber)
- Basket Material: Aluminum Molded with UV Protection
- Magnet Material: Neodymium
- Magnet Weight: 6.5 Oz + 1.3 Oz
Driver Specifications
- Type Compression Horn
- Voice Coil Diameter: 1" / 25.4mm
- Voice Coil Former: Material Kapton
- Winding Material: CCAW
- Diaphragm Material: PEN
- Horn Material: Aluminum
- Magnet Material: Neodymium (N38H)
- Magnet Weight: 1.85 Oz
Thiele & Small Parameters
- Equivalent Volume Vas: 15.32L / 0.541ft3
- Excursion (one way) Xmax 2.2mm
- Free Air Resonance Fs: 120Hz
- Mechanical Factor Qms: 10.87
- Electrical Factor Qes: 0.714
- Total Factor Qts: 0.67
- Moving Mass Mms: 12.77g
- Compliance Cms 0.165mm / Bl Factor BI: 7.257
- Voice Coil Inductance Le: 0.25mH
- Diaphragm Area Sd: 122.7cm²
- DC Resistance Re: 3.2 Ohms
- Efficiency Bandwidth Product: EBP 168
Speaker Measurement
- Overall Diameter: 6.97″ / 177mm
- Overall Depth: 3.84″ /97.49mm
- Front Mount Baffle Cutout: 5.30″ /134.63mm
- Mounting Depth: 2.57″ 65.25mm
- Motor Diameter: 3.6" / 91.5mm
