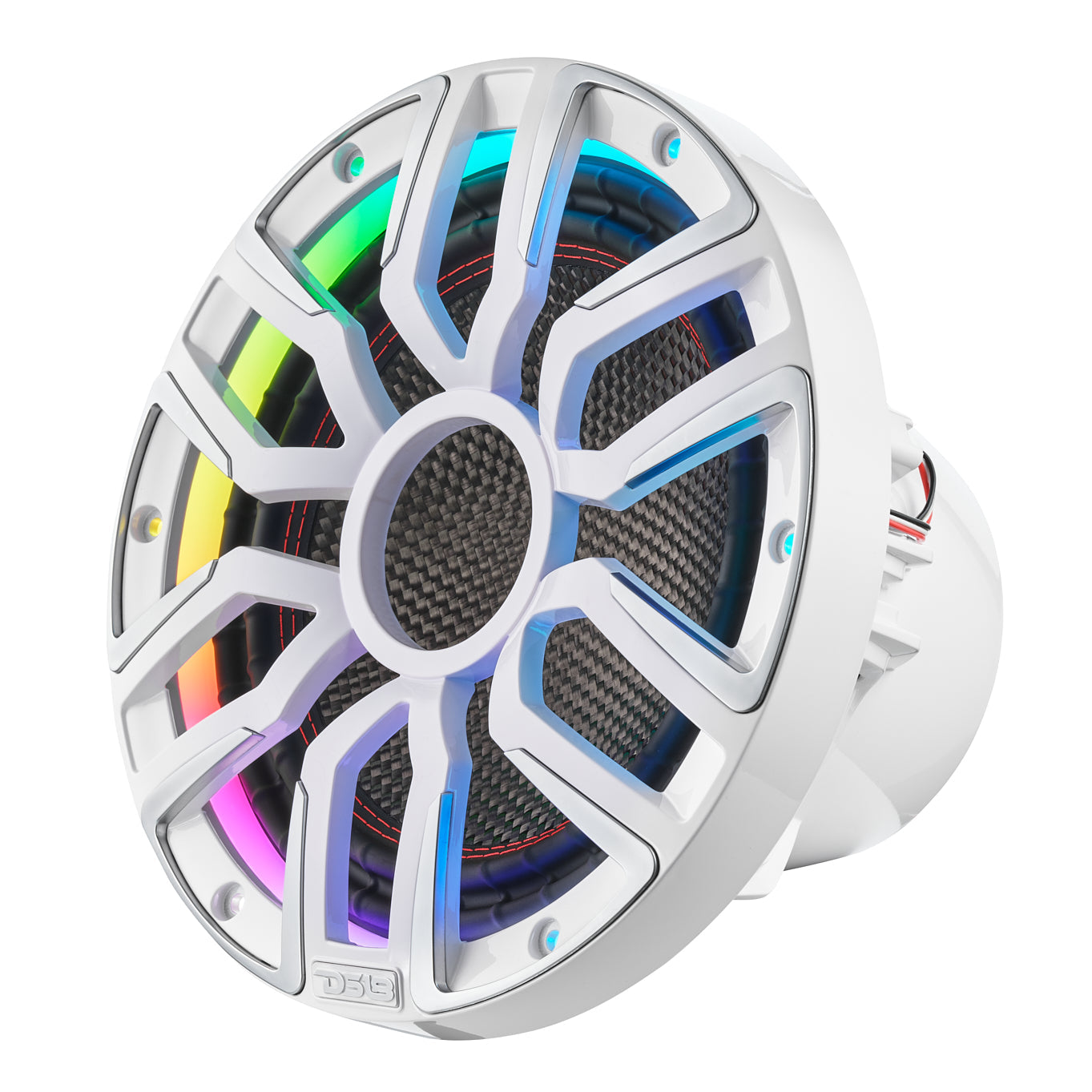

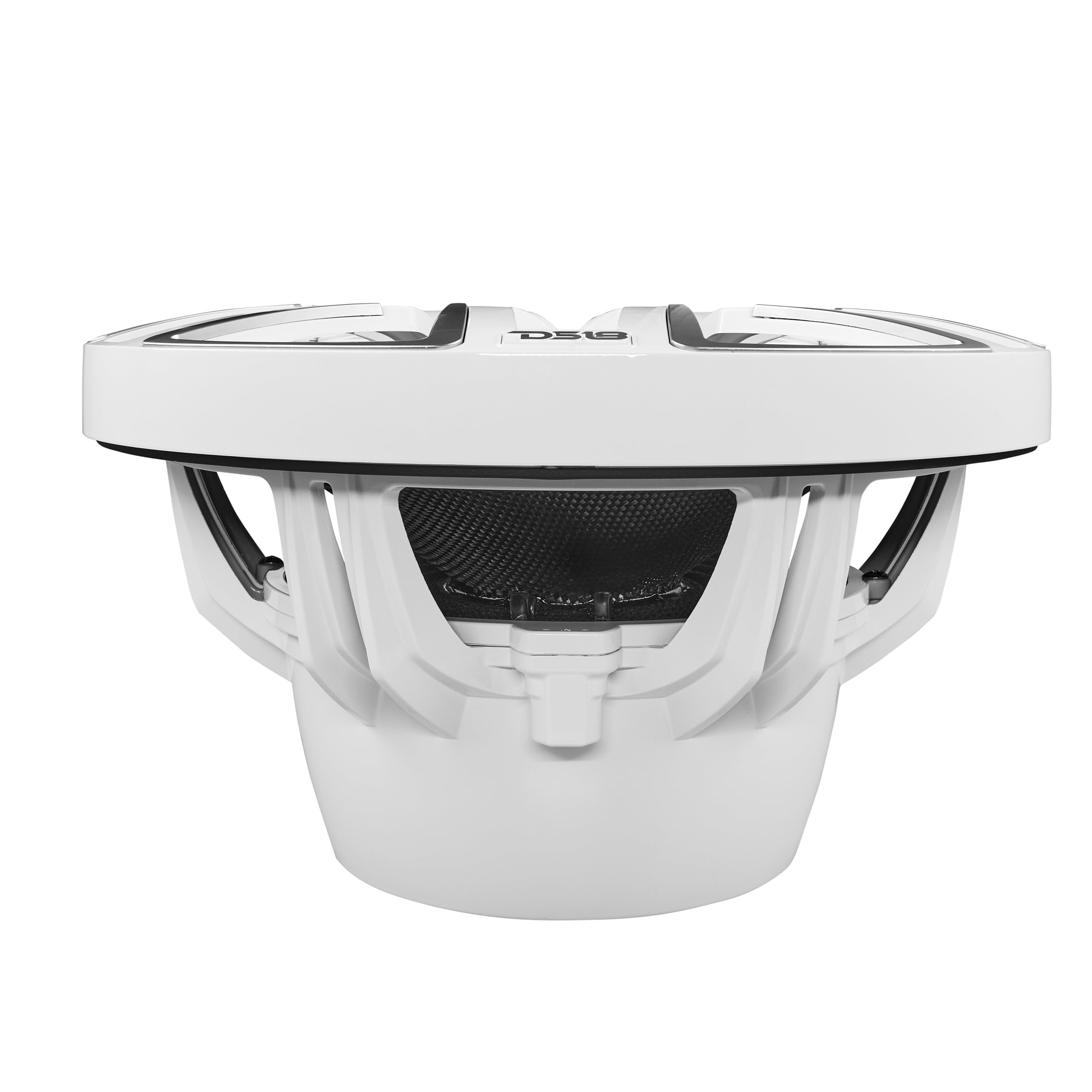

DS18 NVY-M12SUB/WH 12" Neodymium Marine & Powersport Subwoofer | 800W RMS 4-Ohm, LED Lights, Carbon Fiber Cone, 4-Ohm

Upgrade your sound system with the DS18 NVY-M12SUB/WH – a powerful 12" subwoofer built for marine and powersport environments. With 800W RMS output, eye-catching LED lights, and a durable carbon fiber cone, it delivers deep bass and bold style wherever your adventures take you.

Features:

• Powerful Output: Up to 1600W peak power for deep, punchy bass that fills any space.

• Premium Build: Carbon fiber cone and neodymium motor for precise, high-performance sound.

• Custom Lighting Control: App-controlled digital LED lighting via the DS18 LC-DRM module (sold separately). Compatible with Android & iPhone using the DS18 LC App.

• Smart Lighting System: Requires a digital signal from a compatible module—do not power with direct current (DC).

• Easy Setup: Waterproof connectors and a sleek ASA composite grill for clean, professional installs.

• Style Options: Available in Black Satin or White Gloss to match your build.

• Designed for Impact: Built to stand out with bold design and serious sound presence.

Specifications:

General Specifications

• Nominal Diameter: 12" / 304.8mm
• Nominal Impedance: 4 ohms
• RMS Power Handling: 800W
• MAX Power Handling: 1600W
• Sensitivity (1w/1m): 87dB
• Frequency Response: 20Hz-250KHz
• Recommended Low-Pass Crossover: 100Hz
• Single
• UPC: 810097265820

Body / Features

• UV Compliant: Yes, 100% Stable
• Protection Coating: Yes, with PU
• Decorative Strips: Yes, Electroplated
• Marine Grade: Type IP65

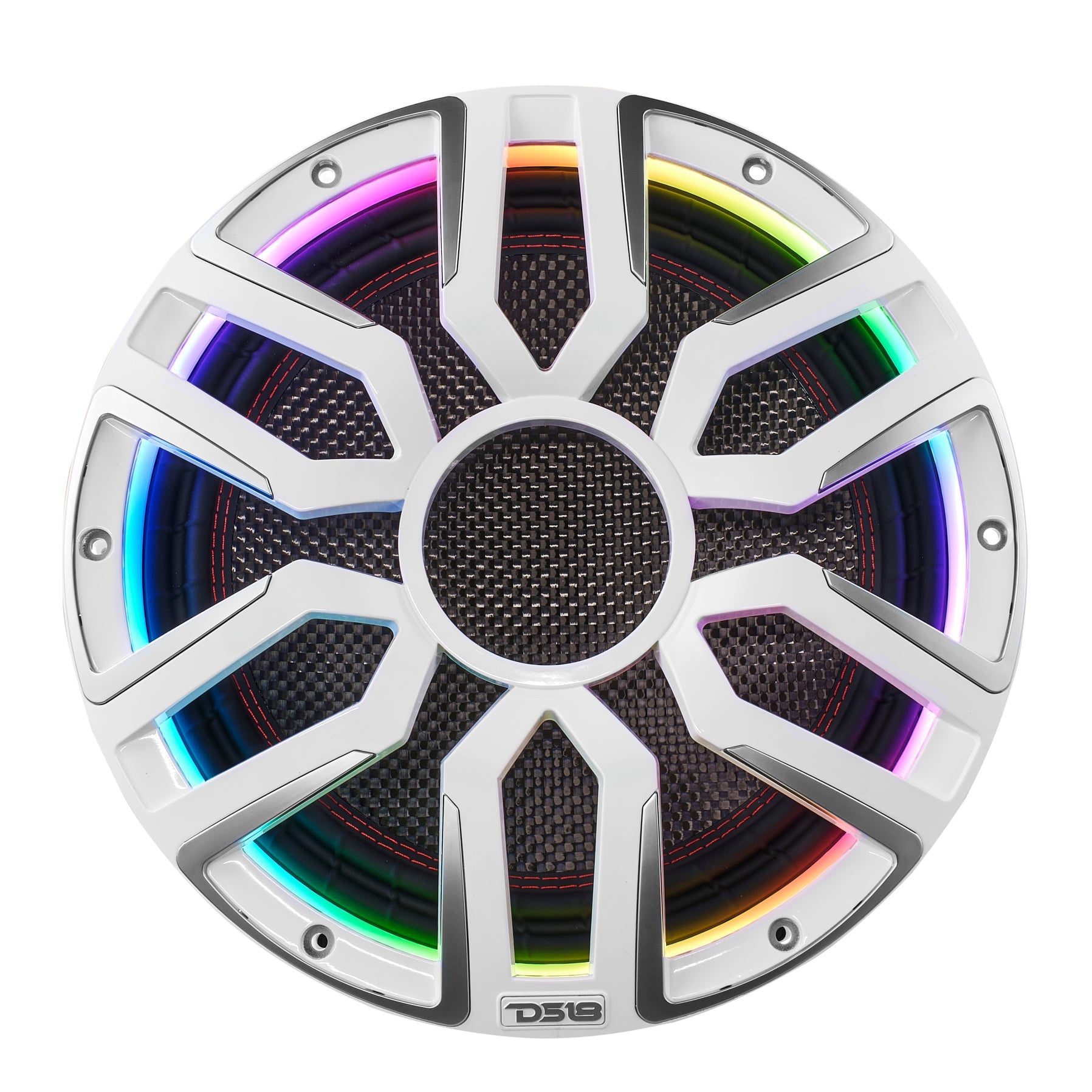

• Digital LED Lights
• Grill Type: Injection Molded Composite (ASA)

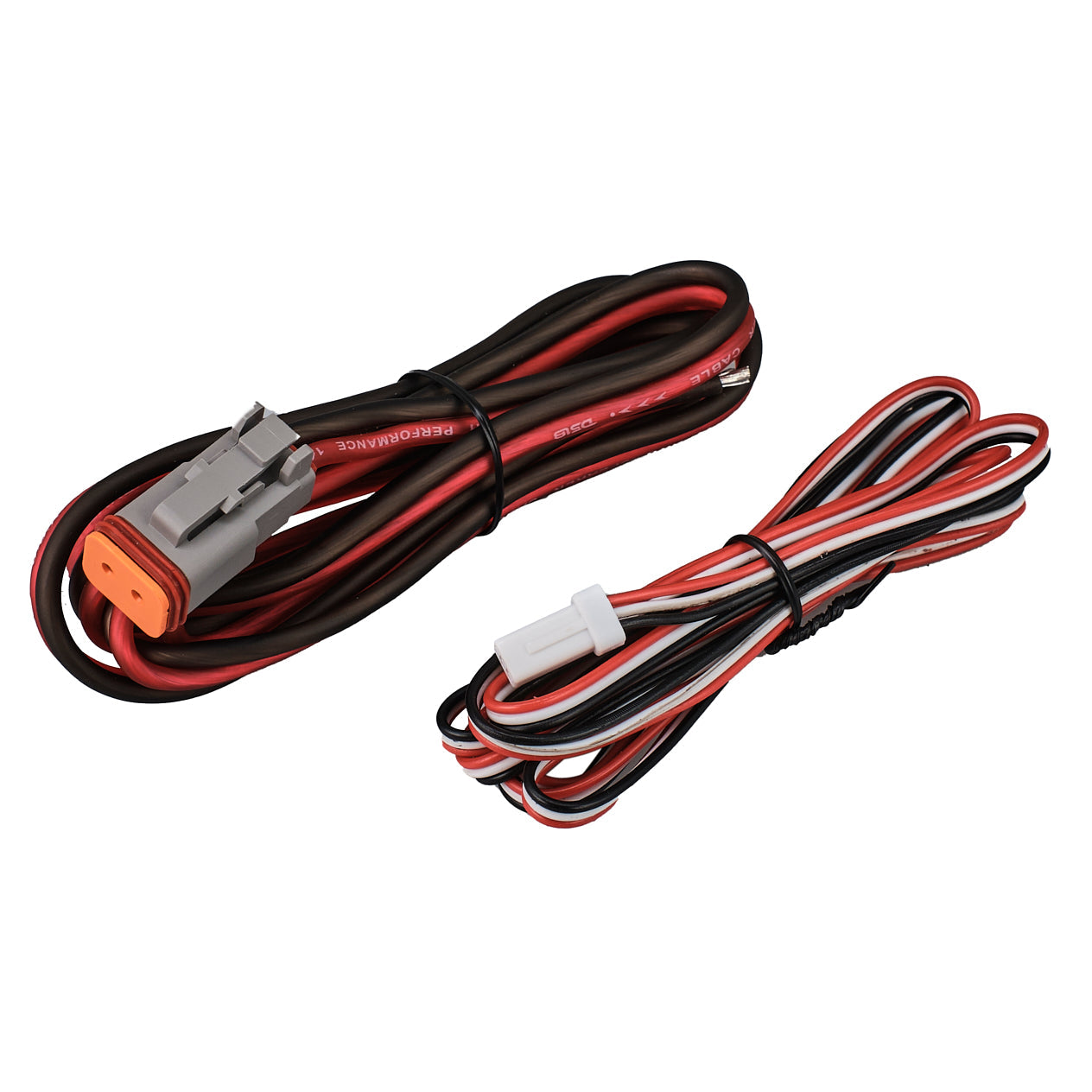

• Speaker / Lights Connector: Waterproof Type
• Color / Finish: White

Woofer Specifications

• Voice Coil Diameter: 3" / 76.5mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Carbon Fiber
• Surround Material: Santoprene (Rubber)
• Basket Material: Aluminum Molded with PU Coating
• Magnet Material: Neodymium
• Magnet Weight: 20 Oz

Thiele & Small Parameters

• Equivalent Volume Vas: 40.8L / 1.44ft3
• Excursion (one way) Xmax: 9.75mm
• Free Air Resonance Fs: 33Hz
• Mechanical Factor Qms: 3.73
• Electrical Factor Qes: 0.45
• Total Factor Qts: 0.4
• Moving Mass Mms: 203g
• Compliance Cms: 0.11mm/
• Bl Factor Bl: 19.28
• Voice Coil Inductance Le: 0.77mH
• Diaphragm Area Sd: 502.73cm2
• Dc Resistance Re: 3.7 Ohms
• Efficiency Bandwidth Product EBP: 73

Speaker Measurement

• Overall Diameter: 12.75" / 324mm
• Overall Depth: 7.5" / 190mm
• Front Mount Baffle Cutout: 10.86" / 276mm
• Mounting Depth: 5.78" / 147mm
• Motor Diameter: 6.5" / 165mm
